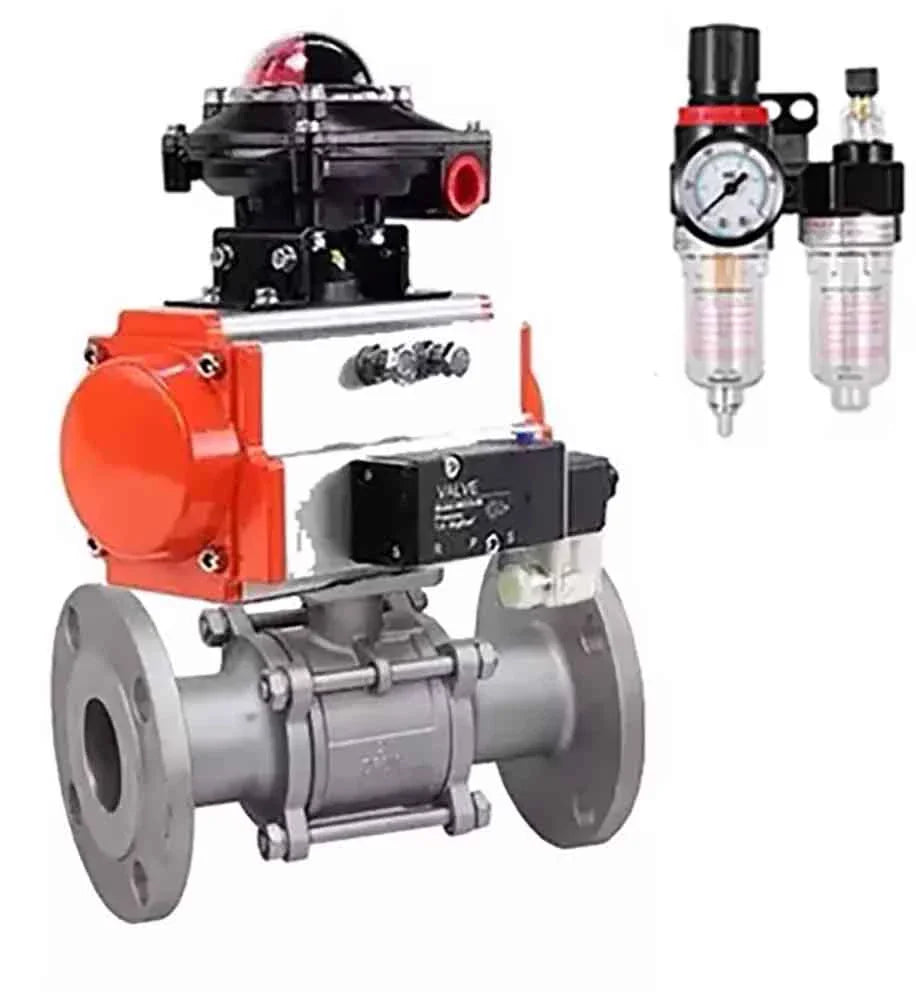

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with PA-SA pneumatic actuator, pneumatic distributor 4M310-08 NAMUR 24V, LSU APL-210N, ATU AFC2000
Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with PA-SA pneumatic actuator, pneumatic distributor 4M310-08 NAMUR 24V, LSU APL-210N, ATU AFC2000 - DN100 / 25 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heating, water supply, steam, fuel, and compressed air and neutral gas pneumatic systems. BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems that transport liquid and gaseous media (water, steam, petroleum products, liquid media, neutral media, gaseous media) that are non-aggressive to the valve materials.
The Elephant PA-SA pneumatic actuator is designed to automate the control process of industrial shut-off valves - gate valves, ball valves. Elephant pneumatic actuators are designed for indoor and outdoor use. All internal and external parts have an anti-corrosion coating.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| Name | Value |
| Working medium temperature, °C | from -20 to 150 |
| Valve type | Two-way |
| Application | Water supply, heat supply, pneumatic systems |
| Working medium | Water, steam, petroleum products, liquid media, neutral media, gaseous media |
| Connection to pipeline | Flanged |
| Water supply | No |
| Type of passage section | Full bore |
| Control type | With pneumatic actuator |
| Connection | Flanged |
| Control | Double-acting pneumatic actuator |
| Presence of limit switches | No |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| DN, mm | D, mm | L, mm | L1, mm | F, mm |
| 65 | 185 | 290 | 268 | 153 |
| 80 | 200 | 310 | 301 | 185 |
| 100 | 235 | 350 | 390 | 202 |
Table of ball valve parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| № | Part name | Quantity, pcs | Material |
| 1 | Flange part | 2 | AISI 316 stainless steel |
| 2 | Pin | 4/6/8 | AISI 304 stainless steel |
| 3 | Nut | 8/12/16 | AISI 304 stainless steel |
| 4 | Gasket | 8/12/16 | AISI 304 stainless steel |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | AISI 316 stainless steel |
| 7 | Housing | 1 | AISI 316 stainless steel |
| 8 | Thrust bearing | 1 | PTFE |
| 9 | Rod | 1 | AISI 316 stainless steel |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust ring | 1 | AISI 304 stainless steel |
| 12 | Positioning screw | 1 | AISI 304 stainless steel |
| 13 | Movable cover | 1 | AISI 304 stainless steel |
| 14 | Positioning bolt | 1 | AISI 304 stainless steel |
| 15 | Hex nut | 1 | AISI 304 stainless steel |
| 16 | Handle | 1 | SS 201 stainless steel + PVC |
| 17 | Locking pin | 1 | SS 201 stainless steel |
Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
Technical parameters of the PA-SA pneumatic actuator
| Name | Meaning |
| Model | PA-SA |
| Pressure, bar | 2 ÷ 8 |
| Availability of a manual backup | No |
Table of parts and materials for Elephant PA-SA pneumatic actuator
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | 304 stainless steel |
| 4 | Metal washer | 304 stainless steel |
| 5 | Pressure washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Pressure washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper shaft seal ring | NBR |
| 10 | Upper shaft anti-friction ring | Engineering plastic |
| 11 | Shaft | Alloy steel Nickel-plated |
| 12 | Lower shaft anti-friction ring | Engineering plastic |
| 13 | Lower shaft seal ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting screw seal ring | NBR |
| 16 | Adjusting screw washer | 304 stainless steel |
| 17 | Adjusting screw lock nut | 304 stainless steel |
| 18 | Adjusting screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston guide plate | Engineering plastic |
| 21 | Piston anti-friction ring | Engineering plastic |
| 22 | Piston sealing ring | NBR |
| 23 | Spring set | Spring steel |
| 24 | Cover sealing ring | NBR |
| 25 | End cover | Die-cast aluminum with polyester coating |
| 26 | Cover screw | Stainless steel 304 |
| 27 | Lock screw | Stainless steel 304 |
| 28 | Adapter | Carbon steel |
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Technical parameters of the Elephant APL-210N limit switch unit
| Name | Meaning |
| Model | APL-210N |
| Average service life, years | 10 |
Technical parameters of the Elephant AFC2000 air preparation unit
| Name | Meaning |
| Working pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Size of filtered particles, μm | 40 micrometers |
| Weight, kg | 0.395 |
Dimensions and sizes of the Elephant AFC2000 air preparation unit
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Dimension sketch and dimensions of the Elephant AFC2000 air handling unit
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
-
Tipo de sello
-
Material de bloqueo
-
Interruptores de límite
-
Tipo de actuador neumático
