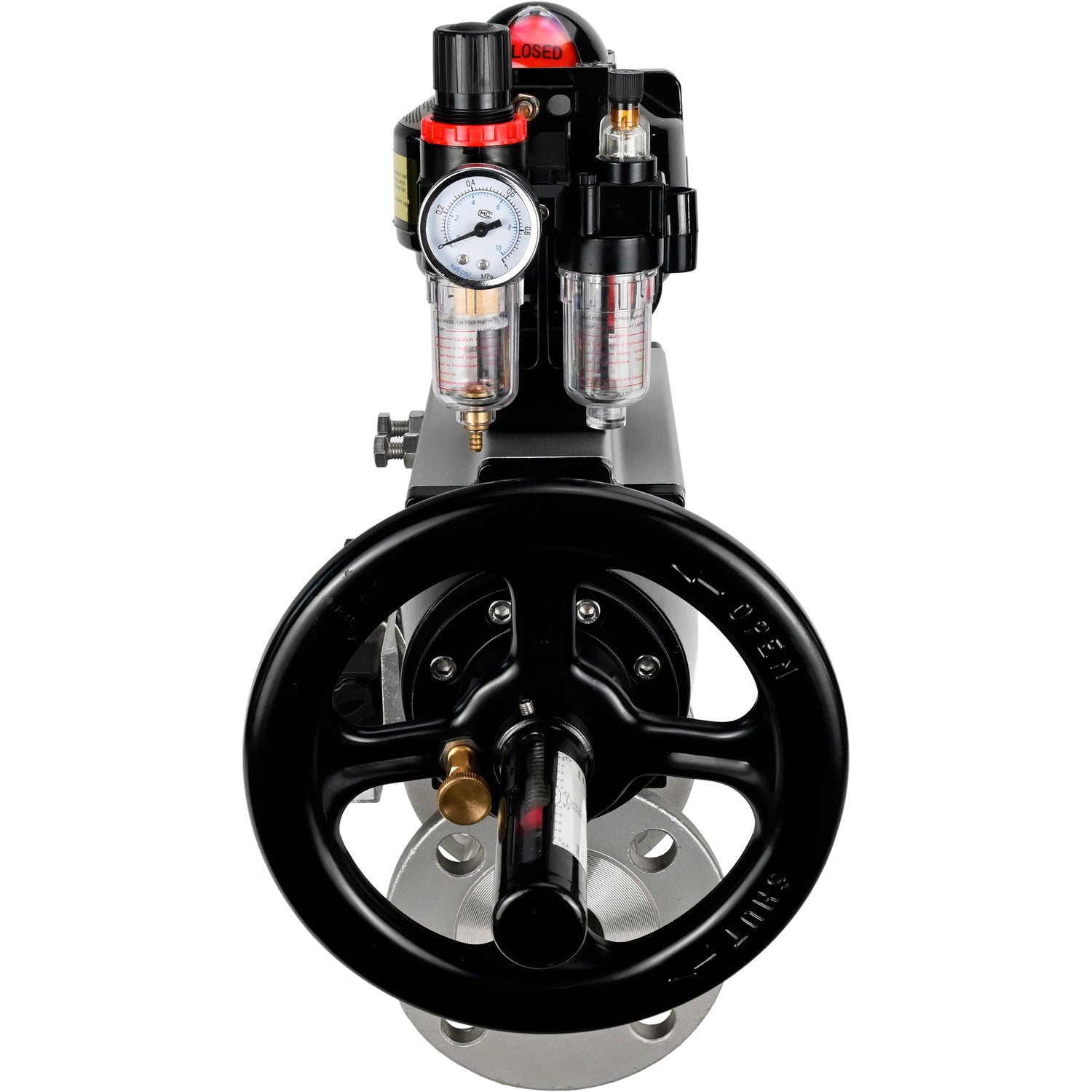

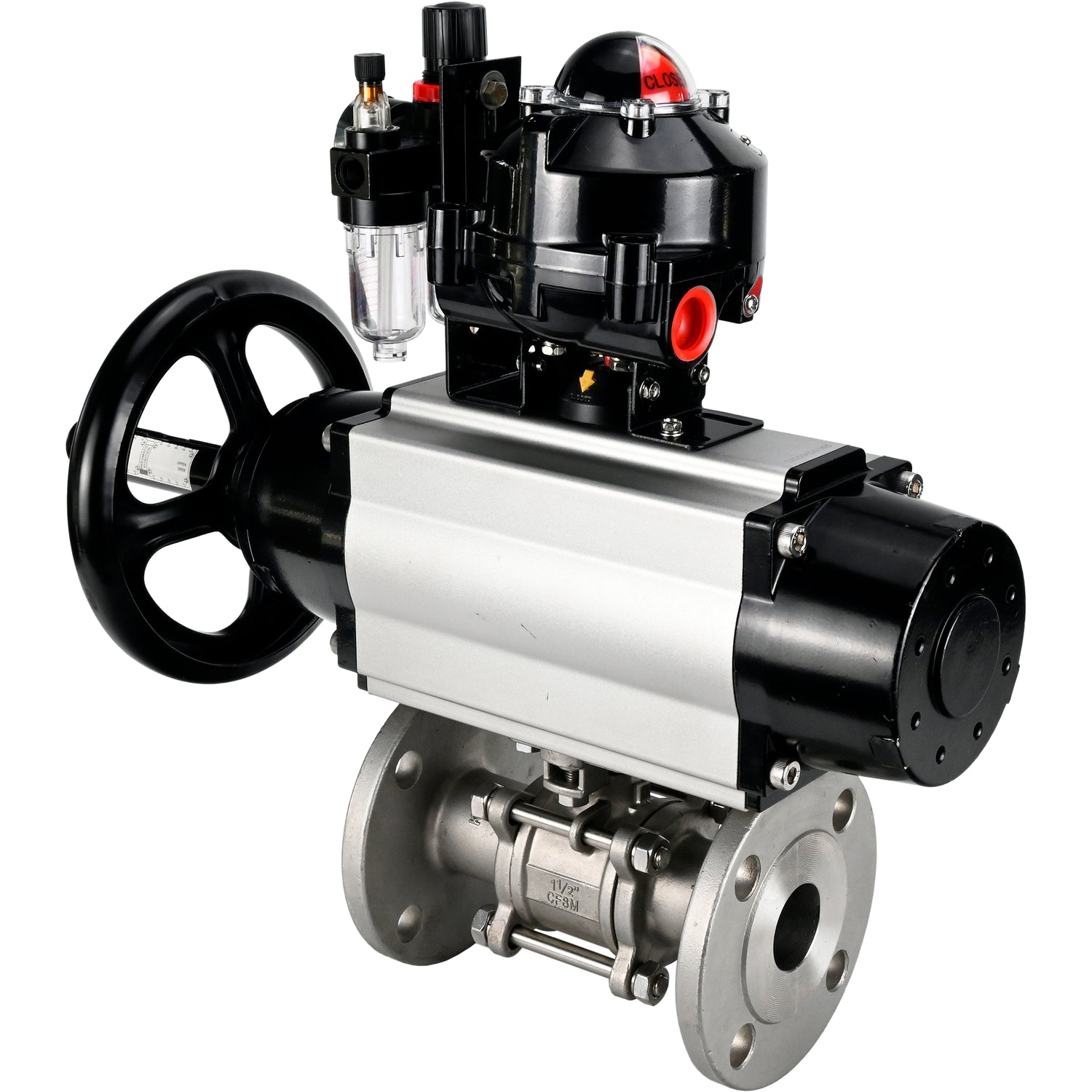

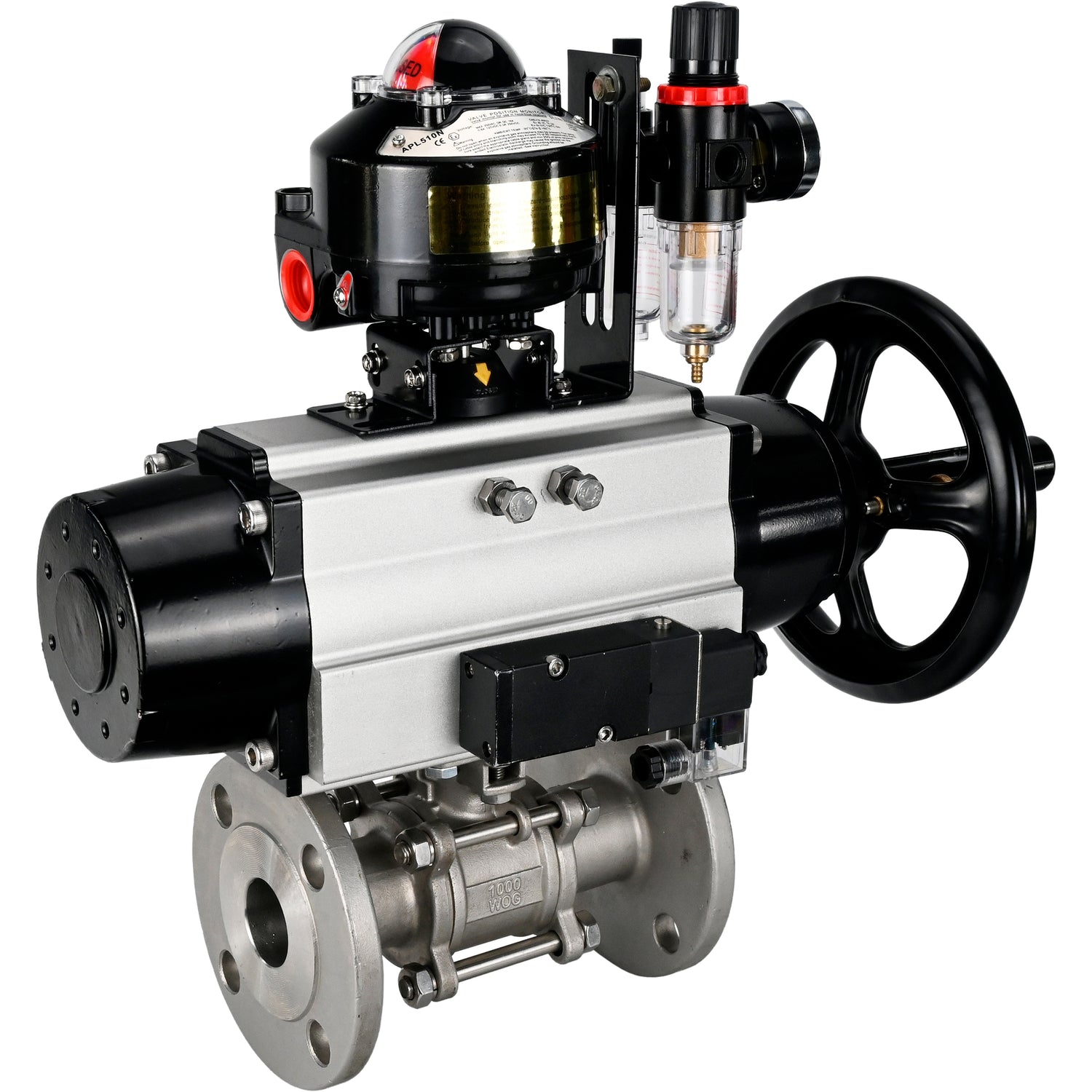

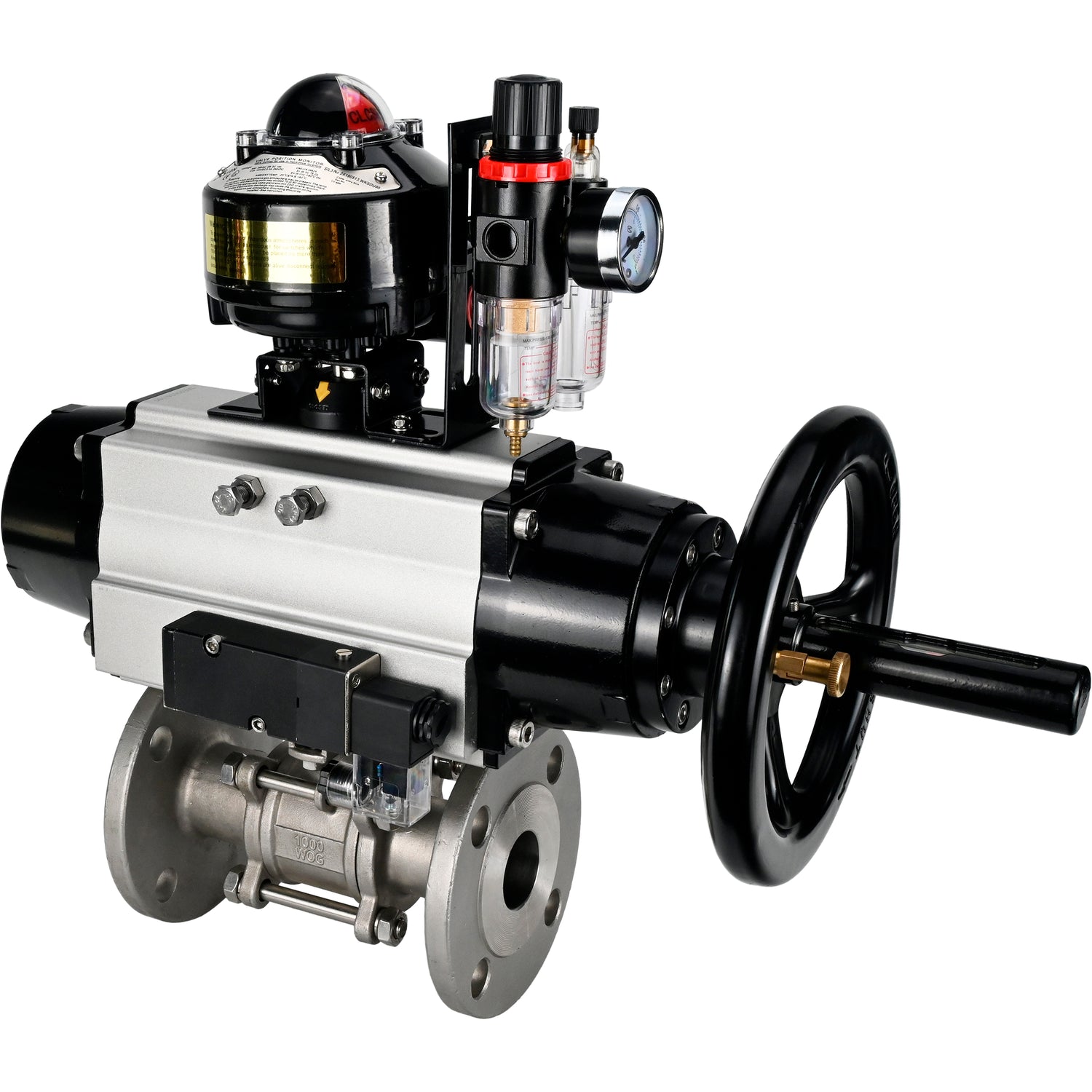

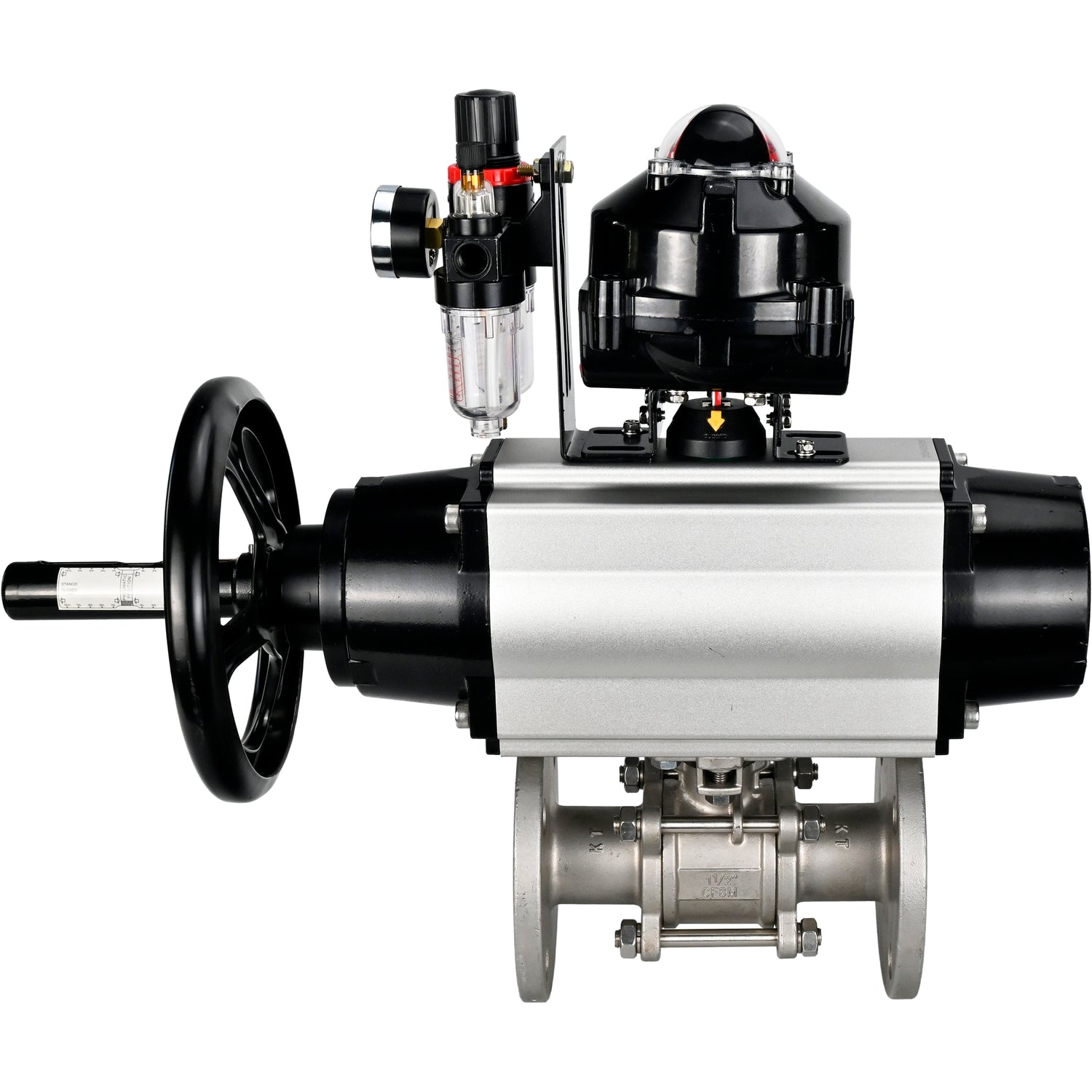

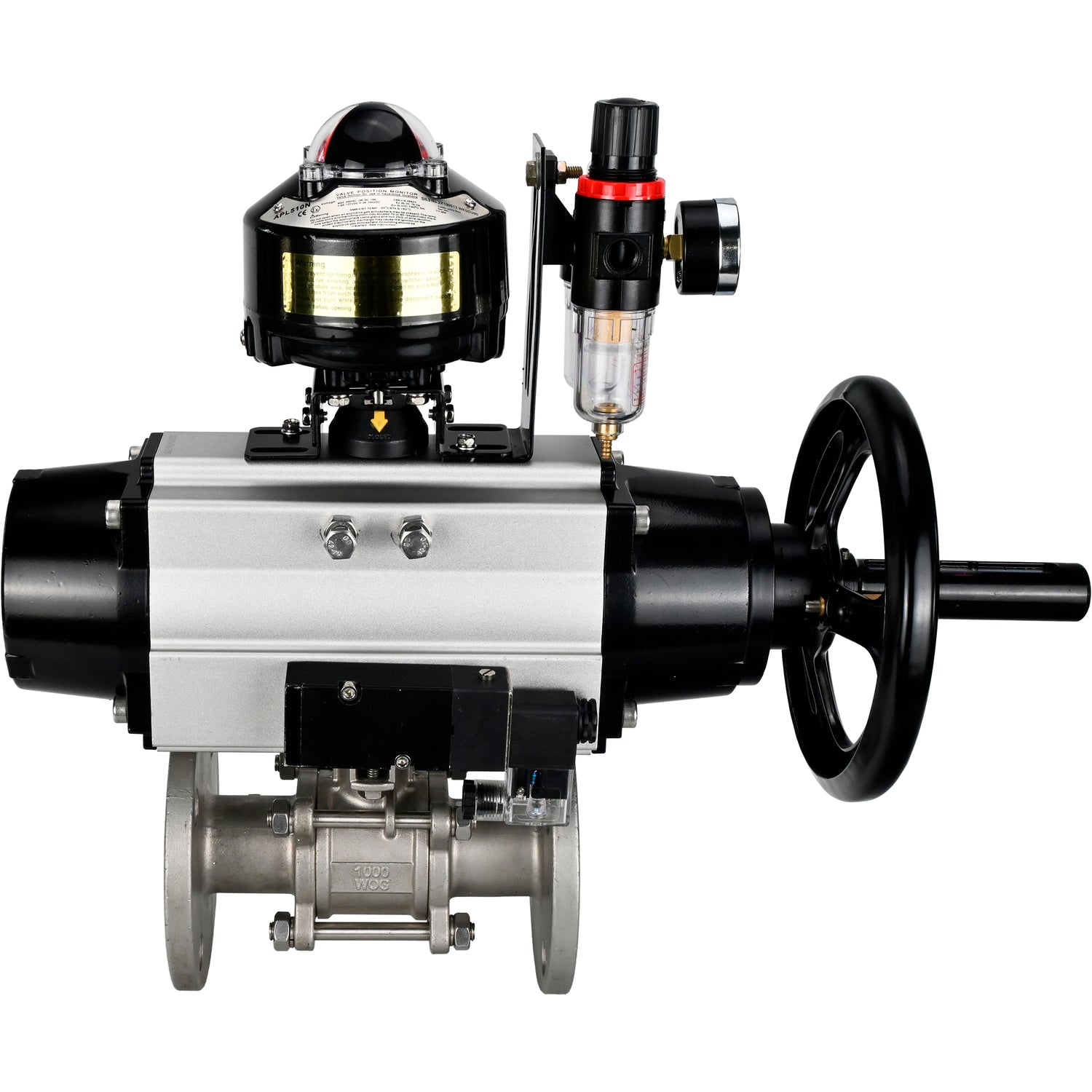

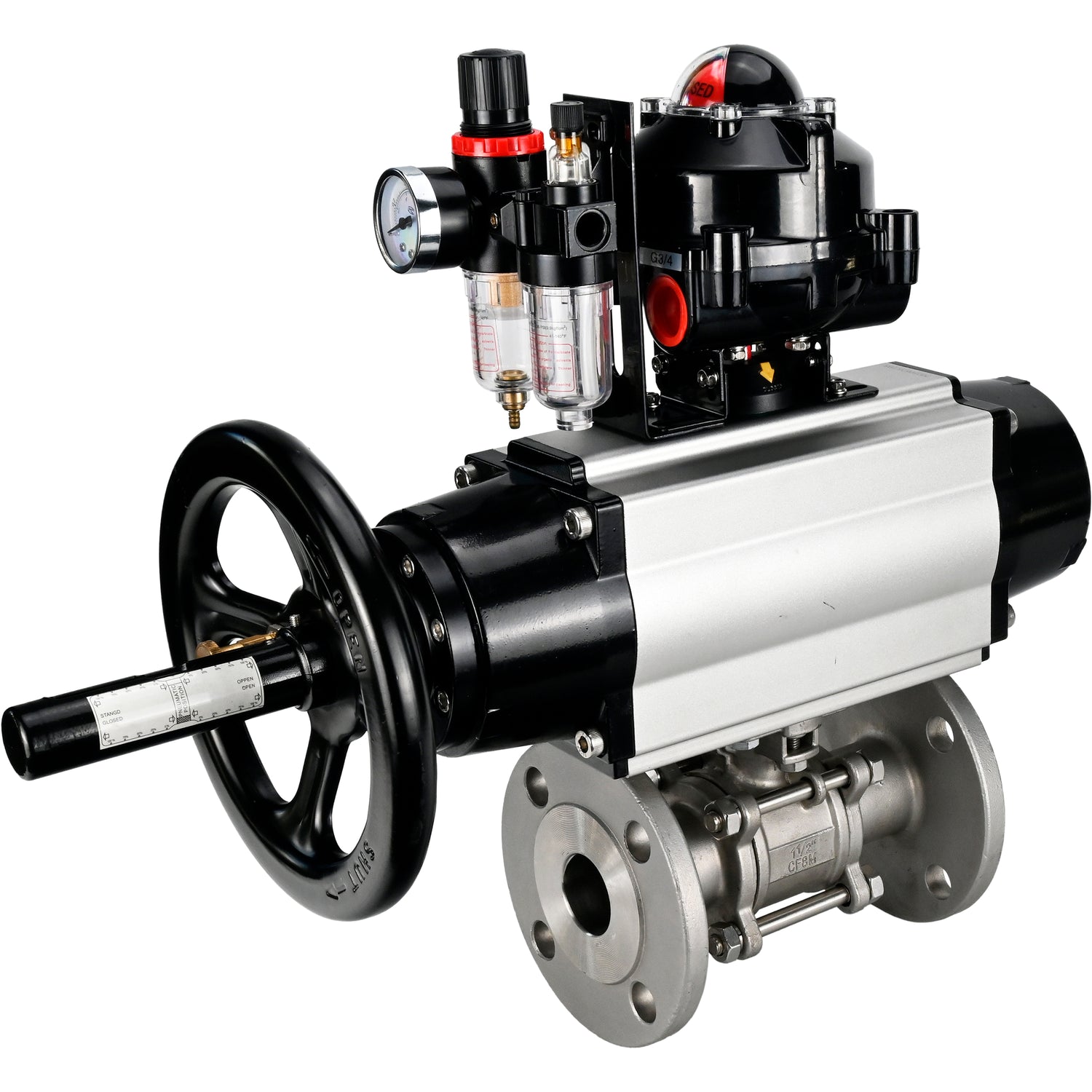

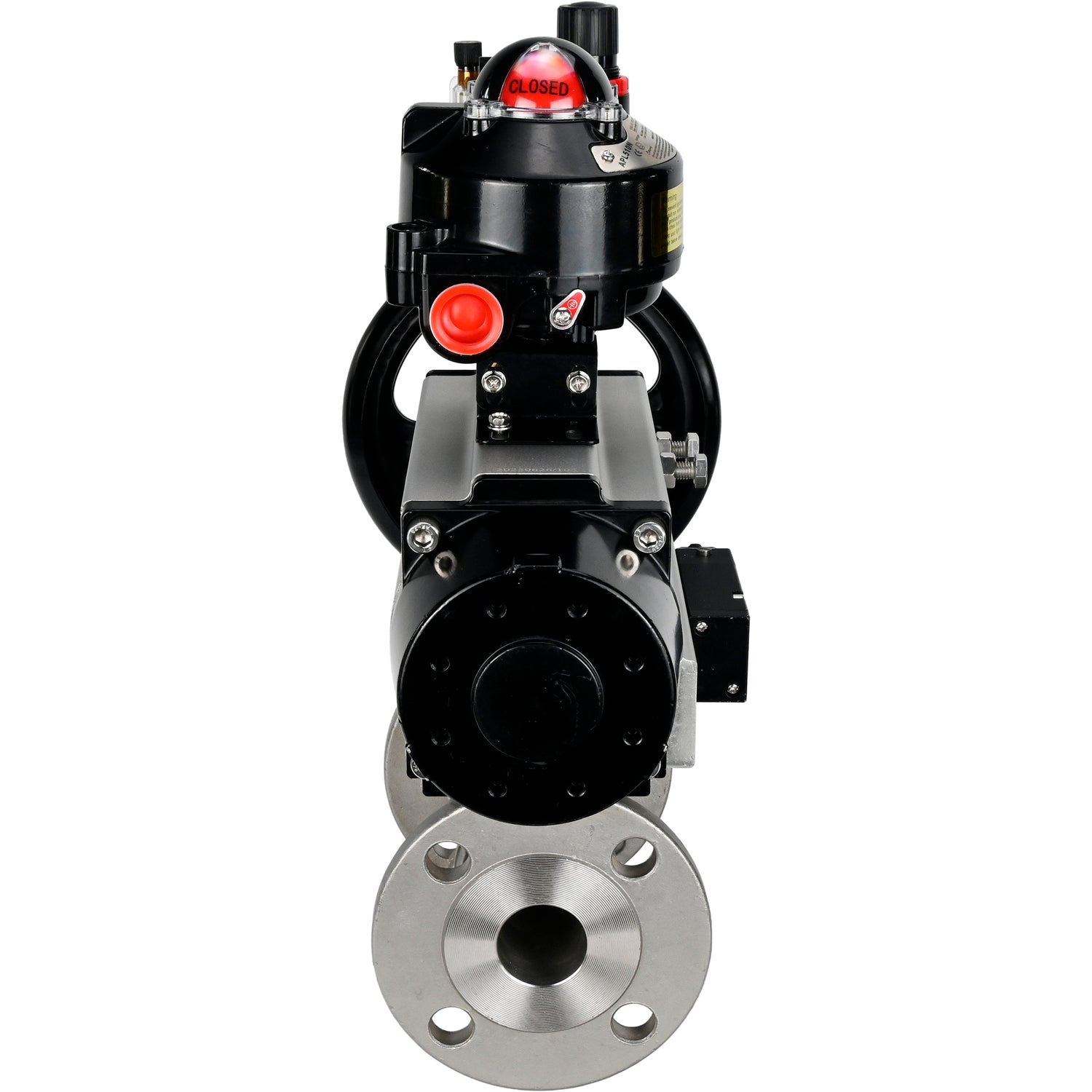

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA-105-1, pneumatic distributor 4M310-08 NAMUR 220V, LSU APL-510N Ex, ATU AFC2000
Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA-105-1, pneumatic distributor 4M310-08 NAMUR 220V, LSU APL-510N Ex, ATU AFC2000 - DN100 / 25 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The Elephnat BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heating, water supply, steam, fuel, and compressed air and neutral gas pneumatic systems. BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems that transport liquid and gaseous media (water, steam, petroleum products, liquid media, neutral media, gaseous media) that are non-aggressive to the valve materials.
The Elephnat PA-DA-105-1 pneumatic actuator is designed to automate the control process of industrial shut-off valves - gate valves, ball valves. Elephnat pneumatic actuators are designed for indoor and outdoor use. All internal and external parts have an anti-corrosion coating.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| Name | Value |
| Working medium temperature, °C | from -20 to 150 |
| Valve type | Two-way |
| Application | Water supply, heat supply, pneumatic systems |
| Working medium | Water, steam, petroleum products, liquid media, neutral media, gaseous media |
| Connection to pipeline | Flanged |
| Water supply | No |
| Type of passage section | Full bore |
| Control type | With pneumatic actuator |
| Connection | Flanged |
| Control | Double-acting pneumatic actuator |
| Presence of limit switches | No |
| Presence of pneumatic distributor | Yes |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| DN | D | L | L1 | F |
| 65 | 185 | 290 | 495 | 153 |
| 80 | 200 | 310 | 495 | 153 |
| 100 | 235 | 350 | 495 | 153 |
Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
Table of ball valve parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
| № | Part name | Quantity, pcs | Material |
| 1 | Flange part | 2 | AISI 316 stainless steel |
| 2 | Pin | 4/6/8 | AISI 304 stainless steel |
| 3 | Nut | 8/12/16 | AISI 304 stainless steel |
| 4 | Gasket | 8/12/16 | AISI 304 stainless steel |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | AISI 316 stainless steel |
| 7 | Housing | 1 | AISI 316 stainless steel |
| 8 | Thrust bearing | 1 | PTFE |
| 9 | Rod | 1 | AISI 316 stainless steel |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust ring | 1 | AISI 304 stainless steel |
| 12 | Positioning screw | 1 | AISI 304 stainless steel |
| 13 | Movable cover | 1 | AISI 304 stainless steel |
| 14 | Positioning bolt | 1 | AISI 304 stainless steel |
| 15 | Hex nut | 1 | AISI 304 stainless steel |
| 16 | Handle | 1 | AISI 304 stainless steel SS 201 + PVC |
| 17 | Locking pin | 1 | SS 201 stainless steel |
Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange
Technical parameters of the PA-DA-105-1 pneumatic actuator
| Name | Meaning |
| Model | PA-DA-105-1 |
| Pressure, bar | 2 ÷ 8 |
| Availability of a manual backup | no |
Table of parts and materials for pneumatic actuator Elephant PA-DA-105-1
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | 304 stainless steel |
| 4 | Washer | 304 stainless steel |
| 5 | Outer washer | Engineering plastic |
| 6 | Adjusting screw | 304 stainless steel |
| 7 | Nut | 304 stainless steel |
| 8 | Washer | 304 stainless steel |
| 9 | Housing | Extruded aluminum alloy |
| 10 | Piston | Die-cast aluminum alloy |
| 11 | Piston seal ring | NBR |
| 12 | Bearing assembly | Engineering plastic |
| 13 | End cap seal ring | NBR |
| 14 | End cap | Die-cast aluminum alloy coated with polyester paint |
| 15 | Fastening screw | 304 stainless steel |
| 16 | Inner washer | Engineering plastic |
| 17 | Seal ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Seal ring | NBR |
Sketch of parts and materials for pneumatic actuator Elephant PA-DA-105-1
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Technical parameters of the Elephant APL-510N EX limit switch unit
| Name | Meaning |
| Limit switch block model | APL-510N EX |
| Average service life, years | 10 |
Main parameters of the Elephant AFC2000 air preparation unit
Working pressure - 8 bar
Maximum pressure - 10 bar
Adjustable pressure range - 0.5 ÷ 9 bar
Burst pressure - 15 bar
Air connection - 1/4"
Operating temperature - from -5 to +60 °C
Filtered particle size - 40 μm
Oil viscosity - ISO VG 32
Weight - 0.395 kg
Kit contents - filter-moisture separator, pressure regulator, lubricator, bracket
