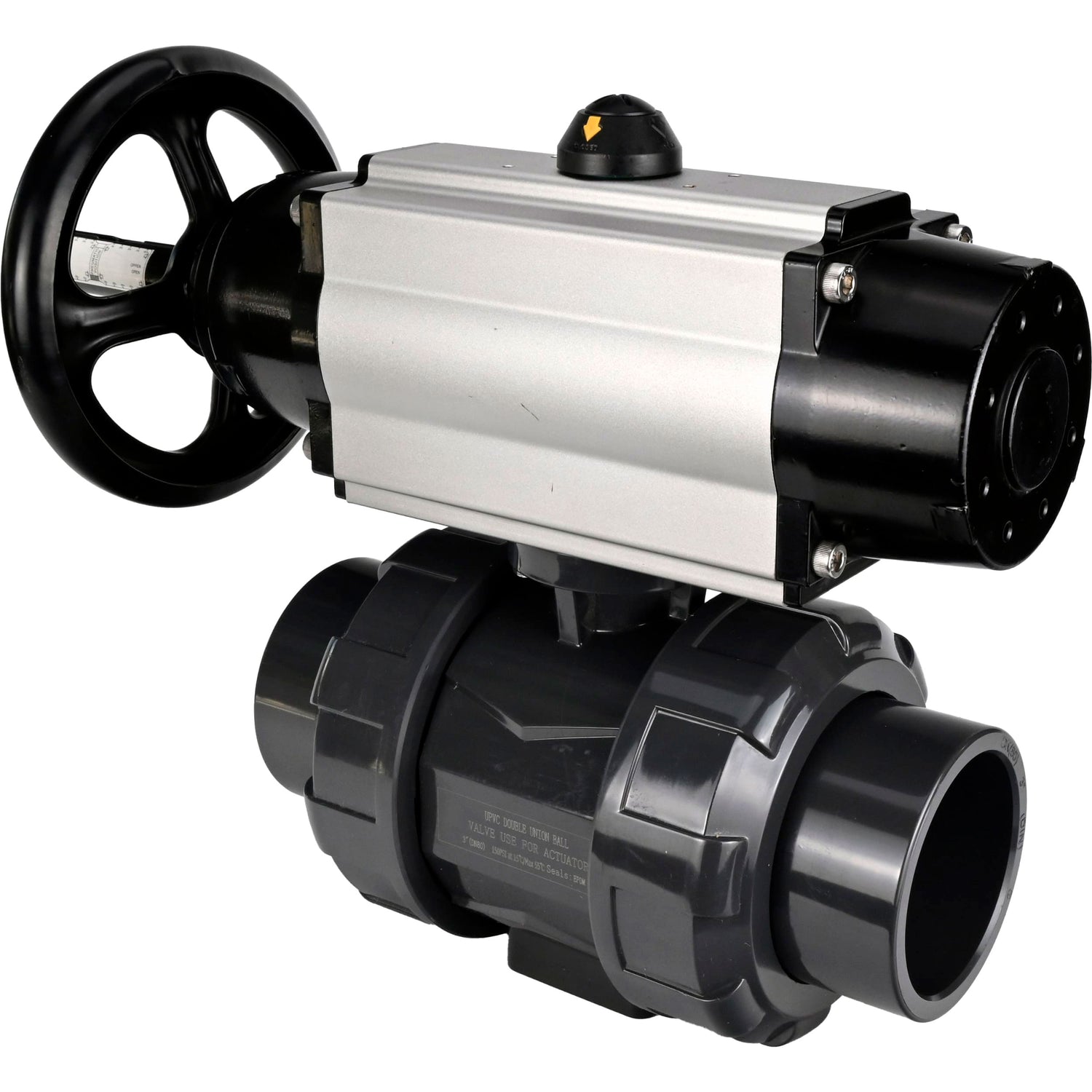

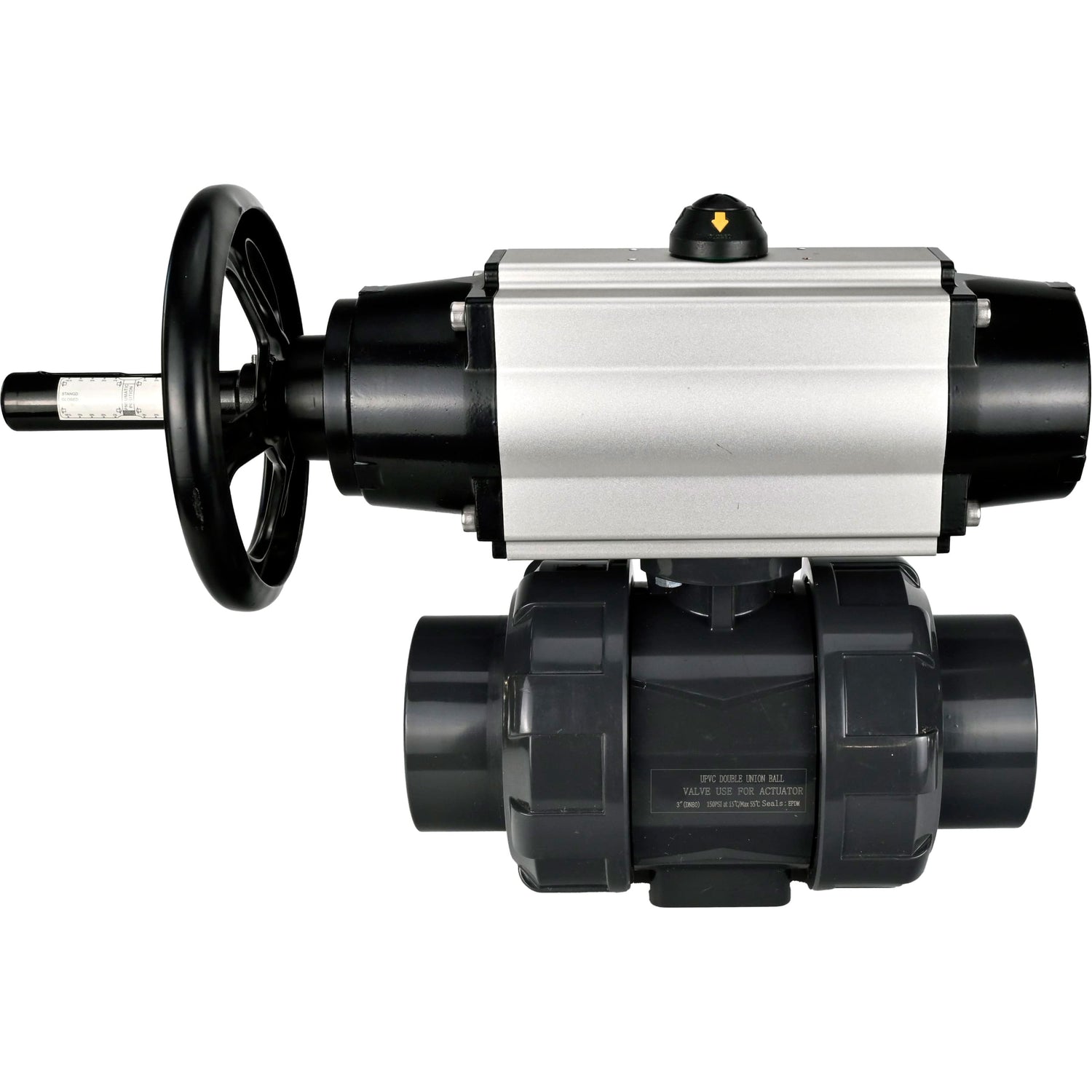

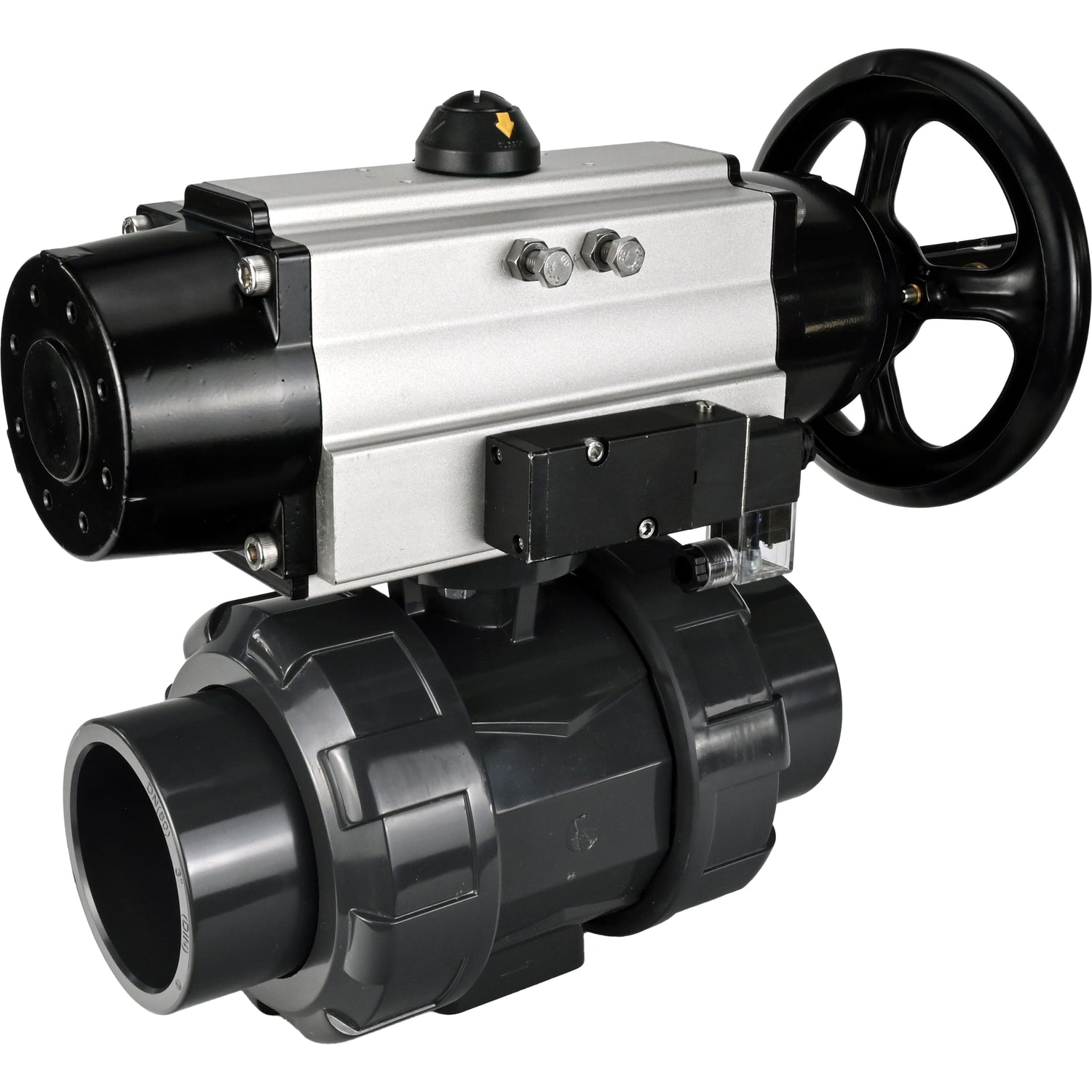

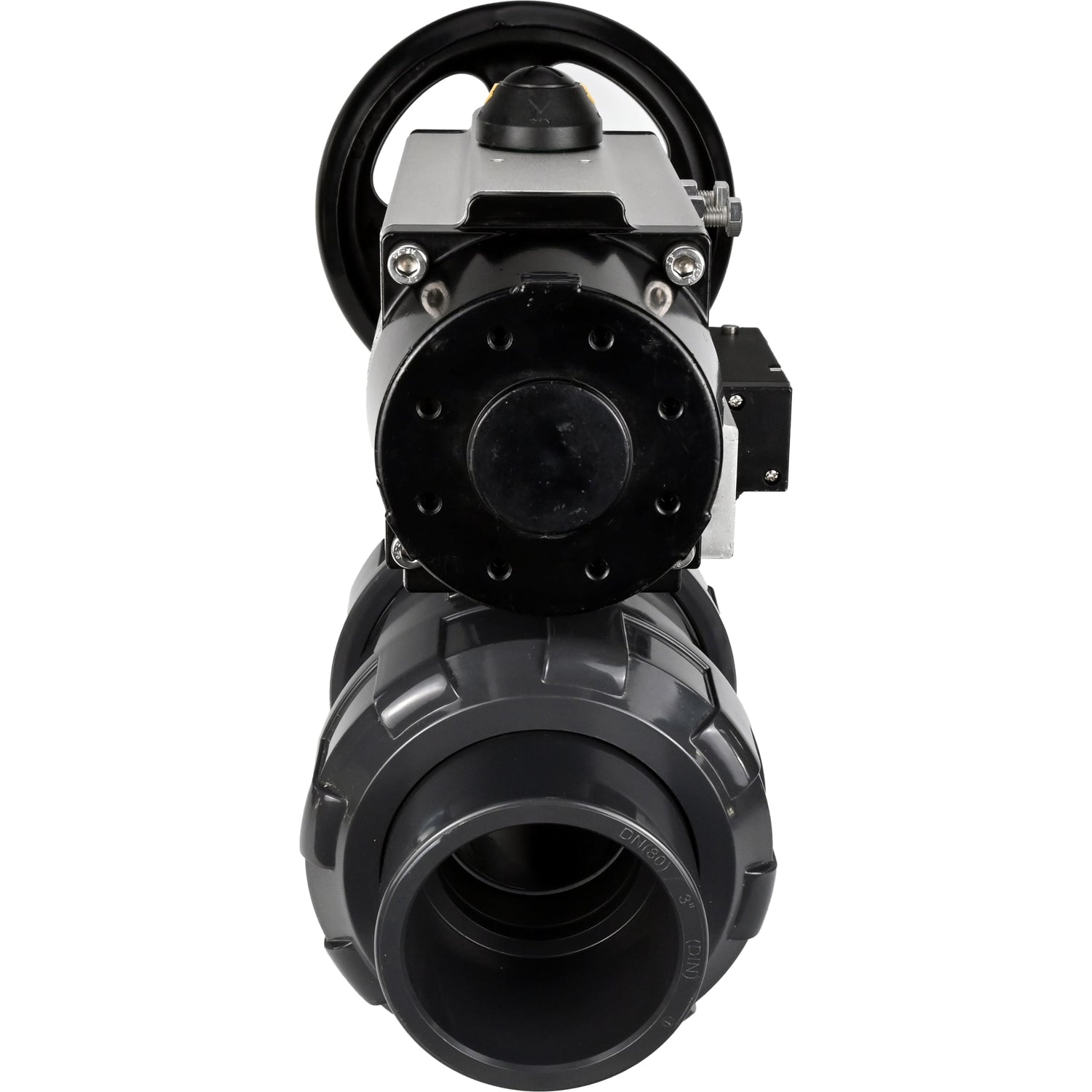

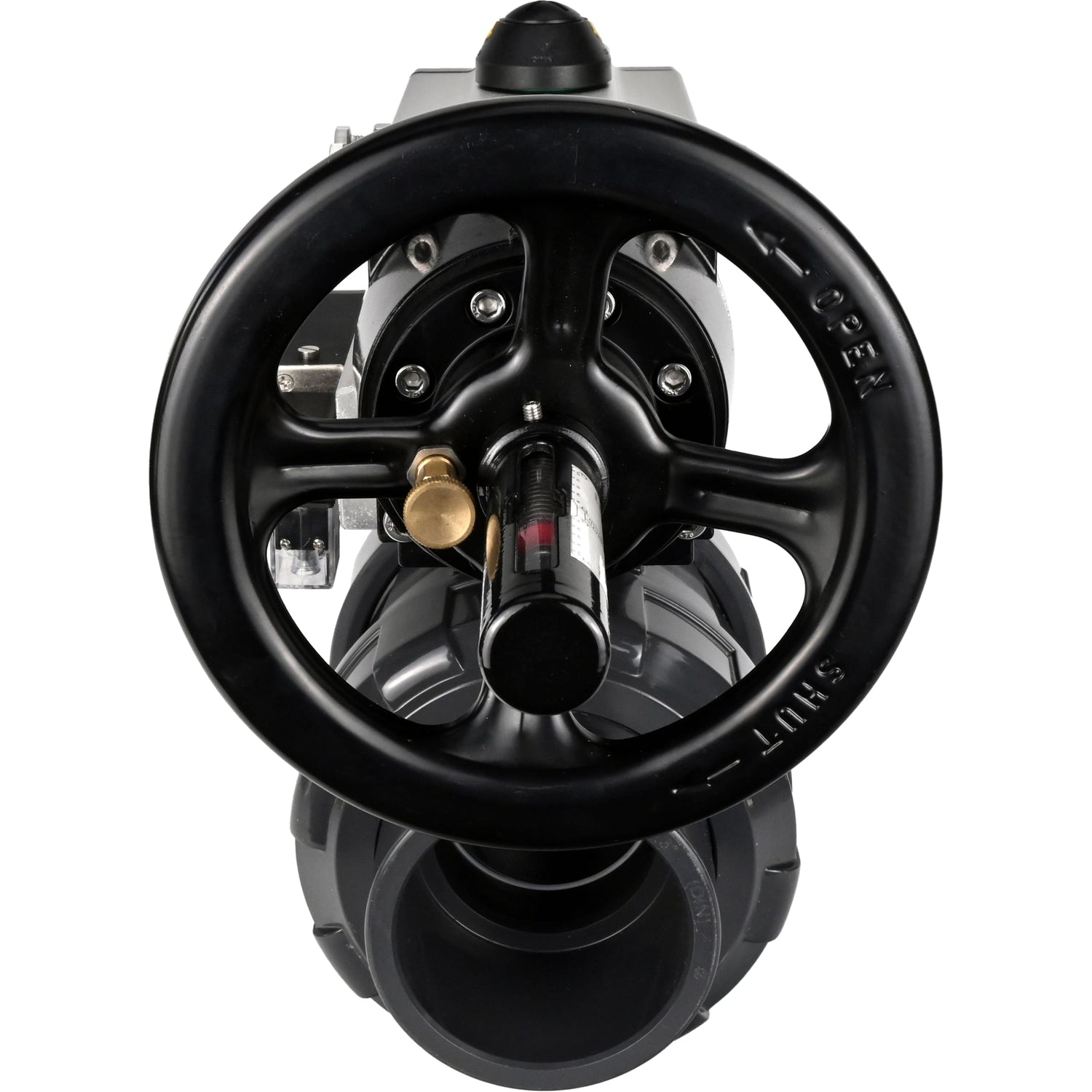

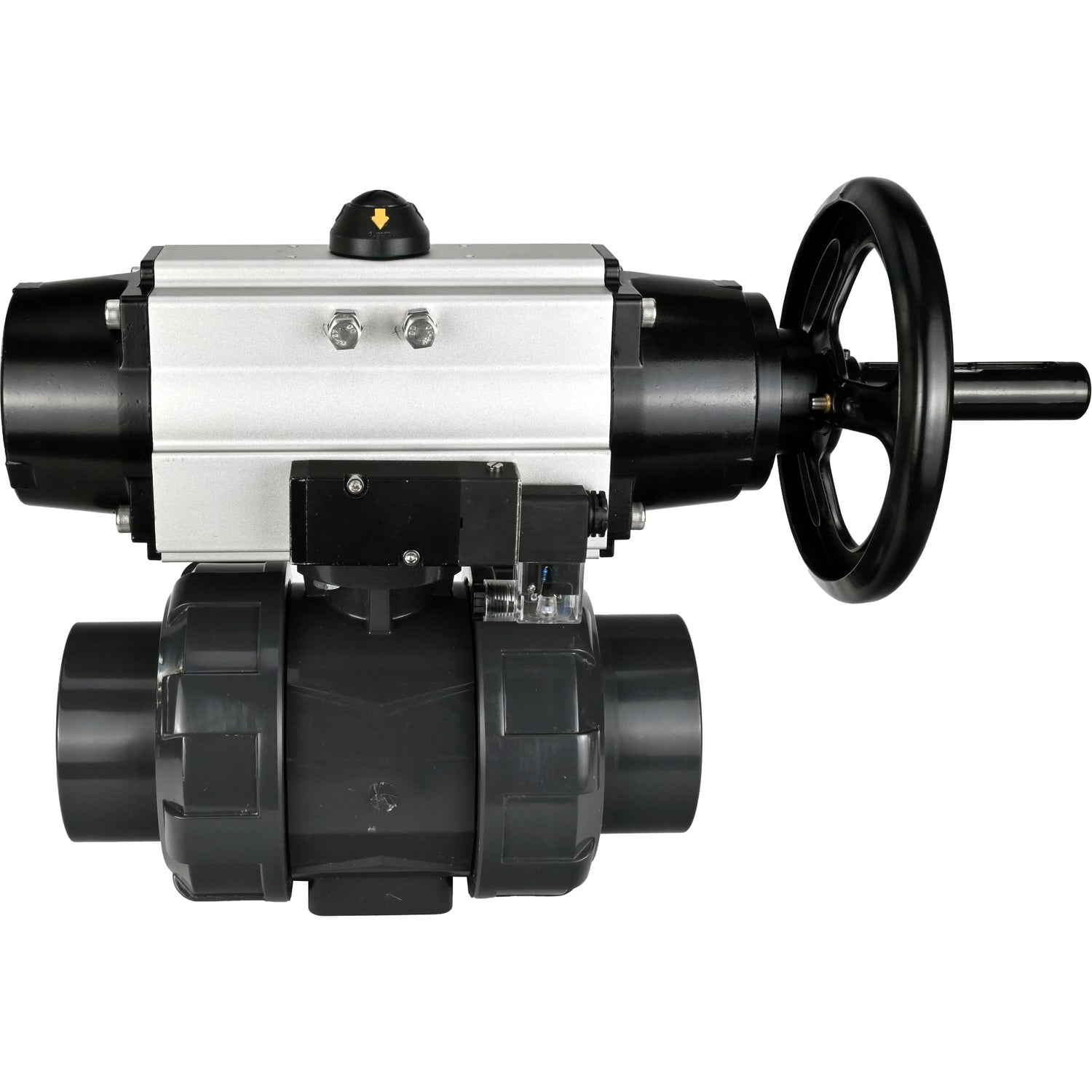

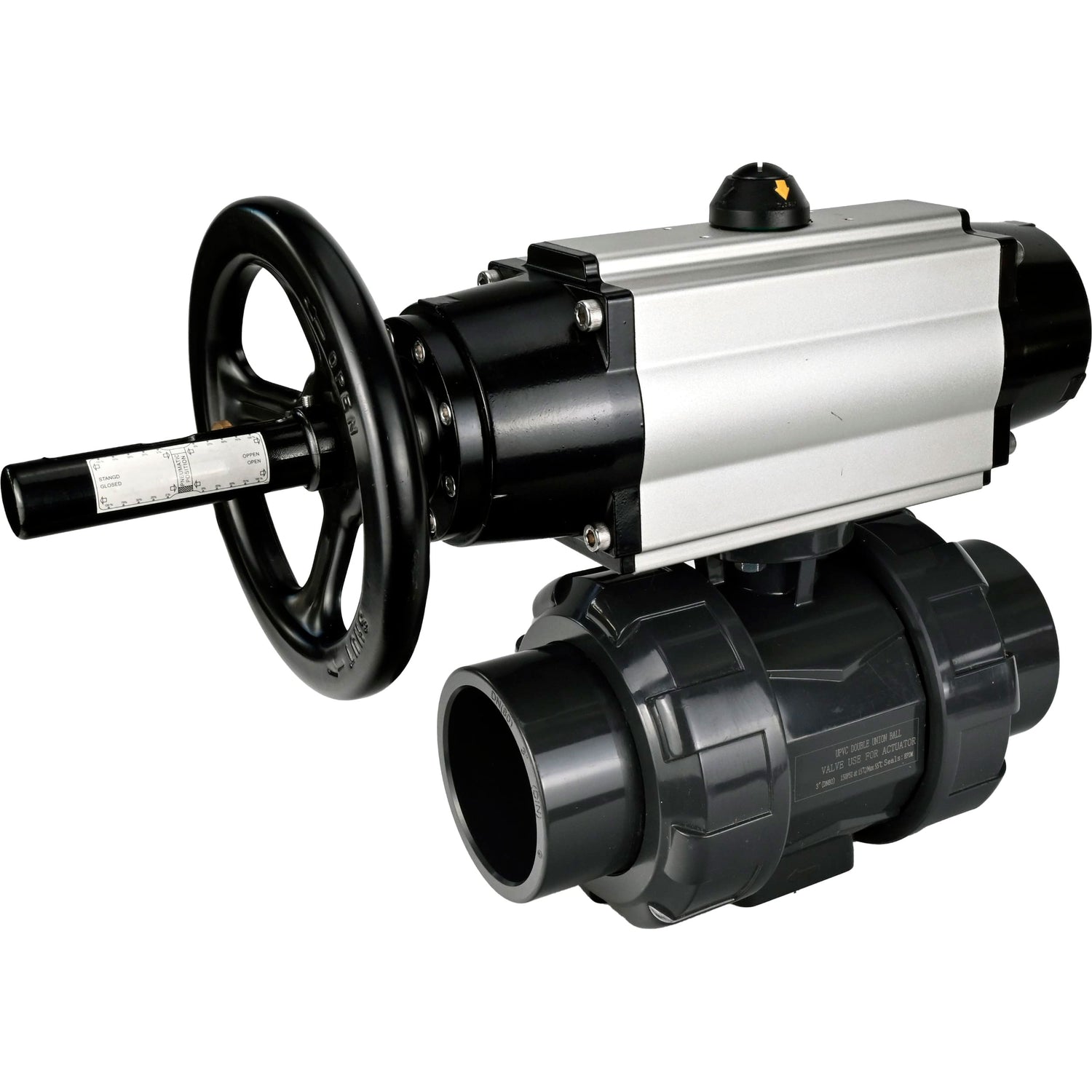

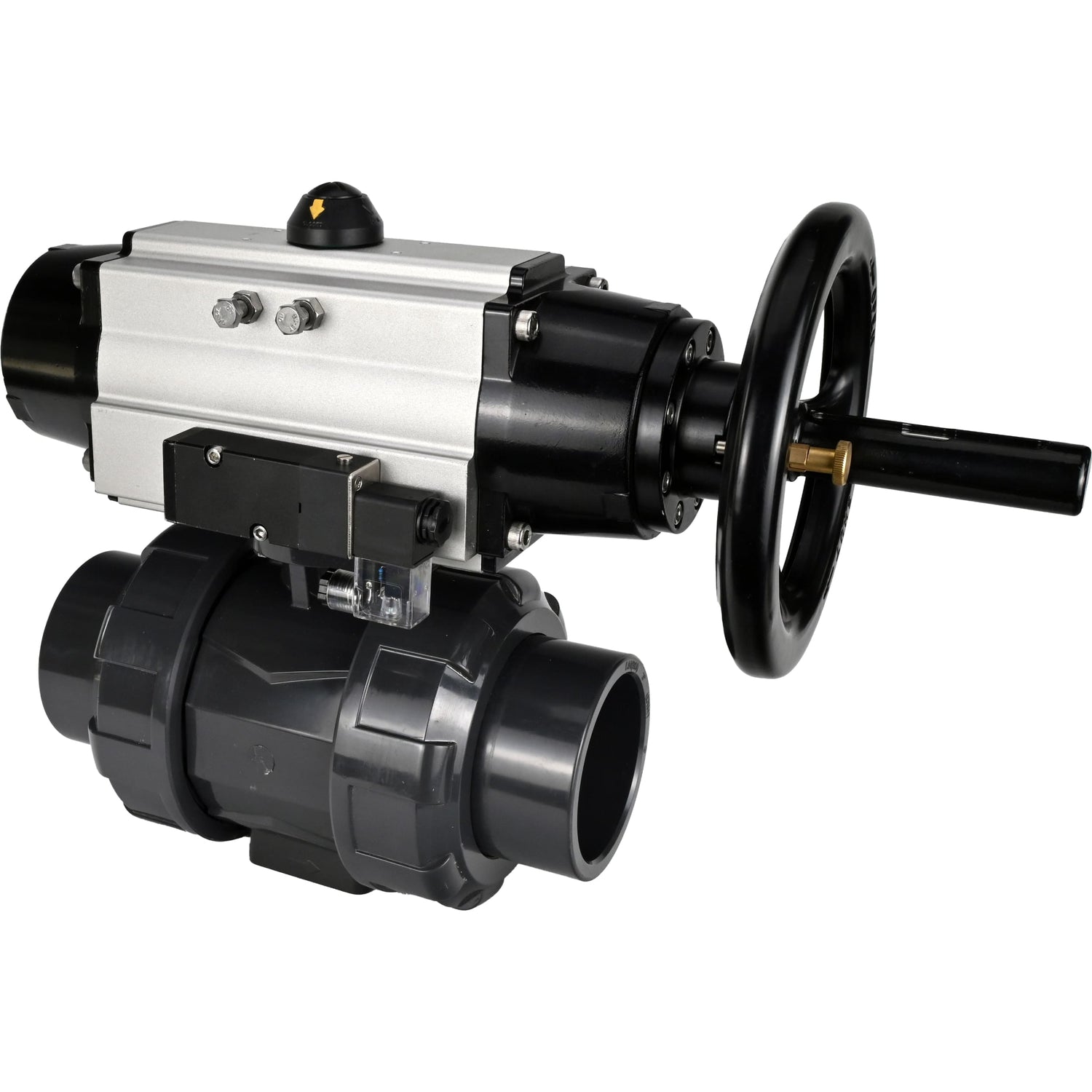

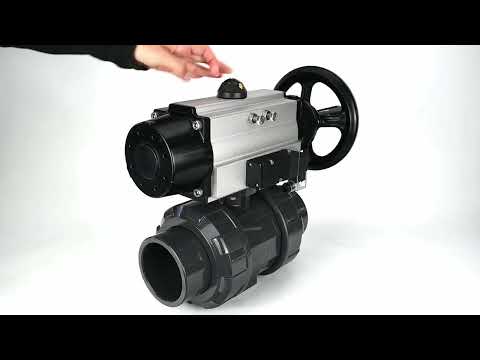

Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1 and pneumatic distributor 4M310-08 220V
Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1 and pneumatic distributor 4M310-08 220V - DN100 / 10 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.
The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.
Pneumatic valves are used for control in pneumatic systems with NAMUR docking surface, for installation of valves through holes in the housing.
Technical parameters of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| Characteristic | Meaning |
| Type of flow section | full bore |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working medium temperature | from 0 to +45°C |
| Application | Water Supply |
| Operating environment | Liquids, Air and Gases |
| Connection type | adhesive, with a detachable coupling connection |
| Control type | under the drive |
| Sealing class | A |
| Manufacturer's country | China |
| Warranty | 12 months |
Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem
Dimensions of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| Model | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 |
| D, mm | 56 | 65 | 75.5 | 86.5 | 101 | 121.5 | 153 | 175 | 194 |
| d, mm | 15 | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 |
| d1, mm | 20.3 | 25.3 | 32.3 | 40.4 | 50.4 | 63.4 | 75.5 | 90.5 | 110.5 |
| d2, mm | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110.1 |
| L, mm | 123.5 | 137 | 148 | 165 | 176 | 197 | 279 | 307 | 354 |
| L1, mm | 23 | 26 | 29 | 32.5 | 35.5 | 38.5 | 65 | 70 | 84 |
| L2, mm | 67 | 74 | 77 | 88 | 93 | 105 | 134 | 148 | 157.5 |
| H1, mm | 66 | 77.5 | 89.5 | 103 | 116.5 | 138 | 171 | 194 | 220 |
| H2, mm | 27.5 | 32 | 37.5 | 43 | 50 | 60 | 76 | 88 | 99.5 |
| H3, mm | 8 | 8 | 8 | 12 | 12 | 13 | 16 | 16 | 17.5 |
| SxS, mm | 9x9 | 9x9 | 9x9 | 11x11 | 11x11 | 11x11 | 14x14 | 14x14 | 14x14 |
Sketch Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem
Materials of parts Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | UPVC |
| 2 | Ball | UPVC |
| 3/4/ 5/6 |
O-ring seals | EPDM |
| 7 | Rod | Stainless steel AISI 304 |
Sketch of parts and materials Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem
Technical parameters of Elephant pneumatic drives PA-DA-105-1:
| Characteristic | Meaning |
| Pneumatic drive type | double acting |
| Control pressure | 2-8 bar |
| Operating temperature | from -20 to +80 °C |
| Angle of rotation | 90±5° |
| Visual position indicator | open / closed |
| Manual control | flywheel |
| Air supply connection thread | G1/4 |
Pneumatic drives Elephant PA-DA-105-1
Dimensions of Elephant pneumatic drives PA-DA-105-1:
| Model | A, mm |
B, mm |
C, mm |
D, mm |
G, mm |
W, mm |
| PA-DA-105-1 | 495 | 133 | 109.5 | 153 | 26 | 200 |
Sketch Pneumatic drives Elephant PA-DA-105-1
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoLiquids, Air and Gases
-
Tipo de sello
-
Posicionador electroneumático
-
Actuador neumático
-
Anulación manual
-
Interruptores de límite
-
Manual de estudio
-
Tipo de actuador neumático
Reseñas (0)
Reseñas (0)
Ball valve ELEPHANT BV4242E-FP-GRM-ISO
Rotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
Pneumatic valve ELEPHANT 4M310-08 spool typePago y seguridad
