Elephant  |  SKU: D160-63798

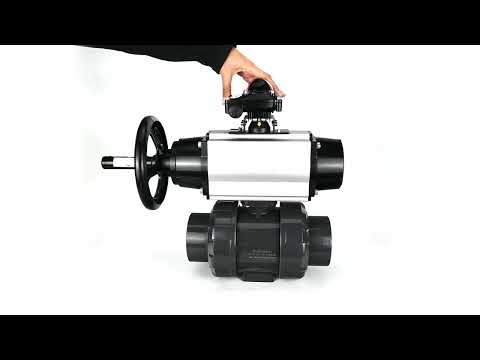

Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4M310-08 24V and LSU APL-210N

€1.036,37
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.

The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.

The limit switch unit is designed for visual and electrical signalling of the end positions of the shut-off valve, valve, tap or disc gate. It is mounted on top of the pneumatic actuator surface and is connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors that monitor the position of the actuator shaft and signalise in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.

Pneumatic valves are used for control in pneumatic systems with NAMUR docking surface, for installation of valves through holes in the housing.



Technical parameters of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Type of flow section full bore
Diameter 15-100 mm
Nominal pressure 10 bar
Working medium temperature from 0 to +45°C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type adhesive, with a detachable
coupling connection
Control type under the drive
Sealing class A
Manufacturer's country China
Warranty 12 months

Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
D, mm 56 65 75.5 86.5 101 121.5 153 175 194
d, mm 15 20 25 32 40 50 63 75 90
d1, mm 20.3 25.3 32.3 40.4 50.4 63.4 75.5 90.5 110.5
d2, mm 20 25 32 40 50 63 75 90 110.1
L, mm 123.5 137 148 165 176 197 279 307 354
L1, mm 23 26 29 32.5 35.5 38.5 65 70 84
L2, mm 67 74 77 88 93 105 134 148 157.5
H1, mm 66 77.5 89.5 103 116.5 138 171 194 220
H2, mm 27.5 32 37.5 43 50 60 76 88 99.5
H3, mm 8 8 8 12 12 13 16 16 17.5
SxS, mm 9x9 9x9 9x9 11x11 11x11 11x11 14x14 14x14 14x14

Sketch Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Ball UPVC
3/4/
5/6		 O-ring seals EPDM
7 Rod Stainless steel AISI 304

Sketch of parts and materials Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant pneumatic drives PA-DA-105-1:

Characteristic Meaning
Pneumatic drive type double acting
Control pressure 2-8 bar
Operating temperature from -20 to +80 °C
Angle of rotation 90±5°
Visual position indicator open / closed
Manual control flywheel
Air supply connection thread G1/4

Pneumatic drives Elephant PA-DA-105-1



Dimensions of Elephant pneumatic drives PA-DA-105-1:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 G,
mm		 W,
mm
PA-DA-105-1 495 133 109.5 153 26 200

Sketch Pneumatic drives Elephant PA-DA-105-1



Technical parameters of Elephant limit switch APL-210N:

Characteristic Meaning
Terminal Block 8 cells 0.08-2.6mm2
Voltage 12V, 24V, 38V, 48V,
110V, 220V, 250V
Indicator Position CLOSED: red, OPEN: green
Ambient temperature from -40 to +80 °C
Cable Entry Thread 2 x NPT1/2"
Sensor 2 SPDT electromechanical
microswitches OMRON V151-1C25
External Coating polyester coating (black)
Shaft Standard (17mm)
Protection class IP65

Limit switch Elephant APL-210N



Dimensions of Elephant limit switch APL-210N:

Depth, mm 112
Height, mm 77
Width, mm 88

Sketch Limit switch Elephant APL-210N





Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design Spool-type
Test pressure (body strength test. Not for operation!), bar 10
Working pressure (recommended range for normal operation), bar 1.5 ÷ 8
Valve type 5/2 five-port, two-position
Working medium purified air (40 µm filter fineness)
Operating temperature, °C 0 to +60
Actuation frequency 5 cycles per second
Manual override yes
Protection rating/insulation class IP65/F
Connection to pneumatic actuator NAMUR-compliant mounting surface (VDI/VDE3845)
Body material anodized aluminum
Effective cross-sectional area, mm2 25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere) 2 - PT1/4”
Air inlet port size (to pneumatic valve) G1/4”
Air outlet port size (to pneumatic actuator) 2 x Ø19.2 mm
Response time, sec 0.05
Supply voltage, V 220AC/24DC
Coil power 220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg 0.35
Average service life, cycles 10,000,000





Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A C D E F G H I K L J N M
mm
40 24 28 32 40 21,5 69 45 17,5 135 29,3 40 27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№ Part Name Material
1 Connector Engineering plastic
2 Nut POM + carbon steel
3 Coil Copper
4 Control Elements —
5 Plate Carbon steel
6 Piston POM
7 Control Valve Seat Engineering plastic
8 Valve Body Aluminum alloy
9 Spool Aluminum alloy
10 O-Ring Seal HNBR
11 Rear Cover Engineering plastic
12 Filter Synthetic material
13 Piston POM
14 Spring Stainless steel
15 Manual Override Engineering plastic
16 Rear Seat Aluminum alloy
17 Spring Seat Aluminum alloy
18 Type C Towing Shackle 65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Especificaciones
  • País de origen
    China
  • Temperatura máxima permitida
    45 °C
  • Tipo de conexión
    Threaded
  • Entorno operativo
    Liquids, Air and Gases
  • Tipo de sello
    EPDM
  • Posicionador electroneumático
    No
  • Actuador neumático
    Yes
  • Anulación manual
    Steering wheel
  • Interruptores de límite
    Yes
  • Manual de estudio
    No
  • Tipo de actuador neumático
    Double acting

Reseñas (0)

Documentación
nullBall valve ELEPHANT BV4242E-FP-GRM-ISO
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
nullLimit switch unit ELEPHANT APL-210N
nullPneumatic valve ELEPHANT 4M310-08 spool type
