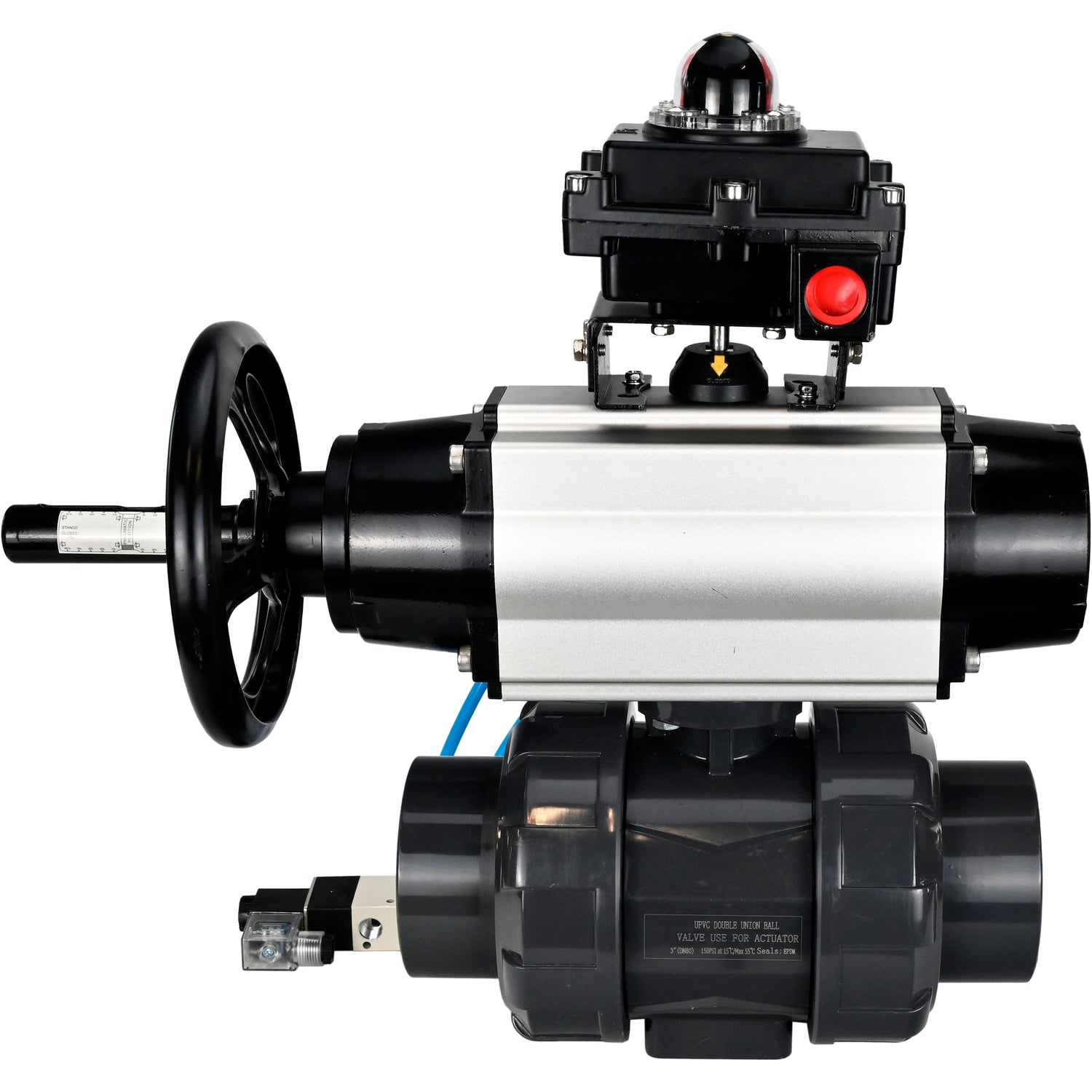

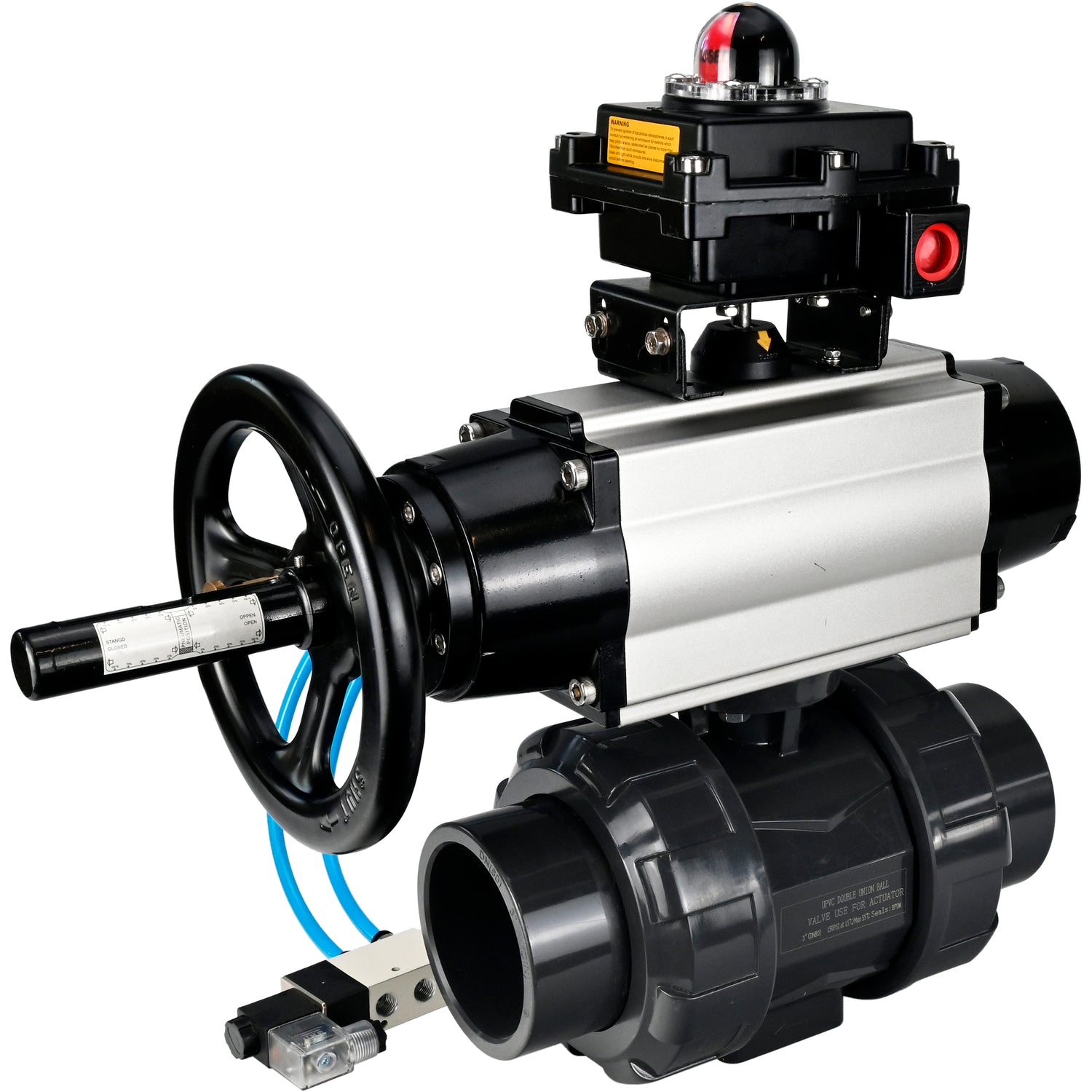

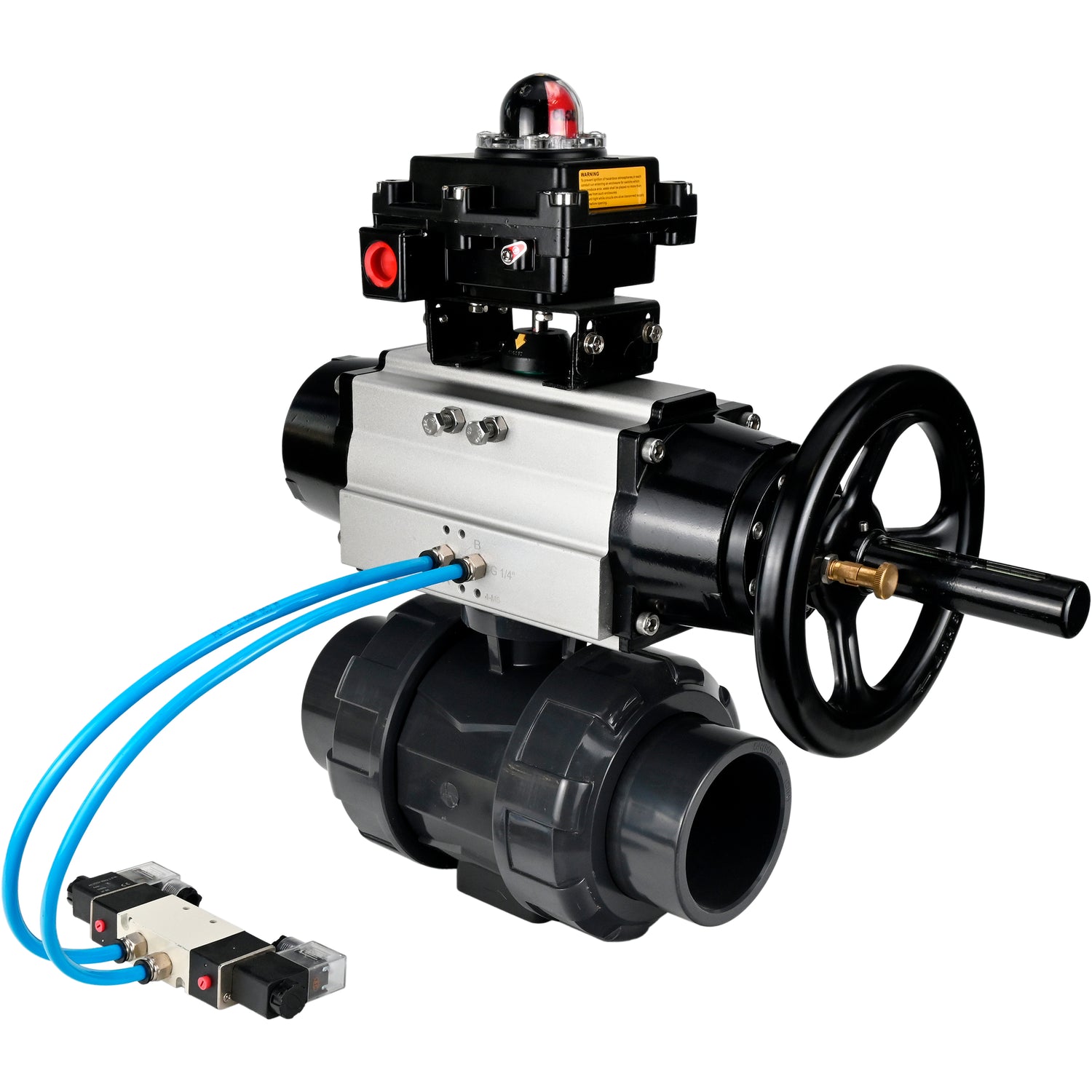

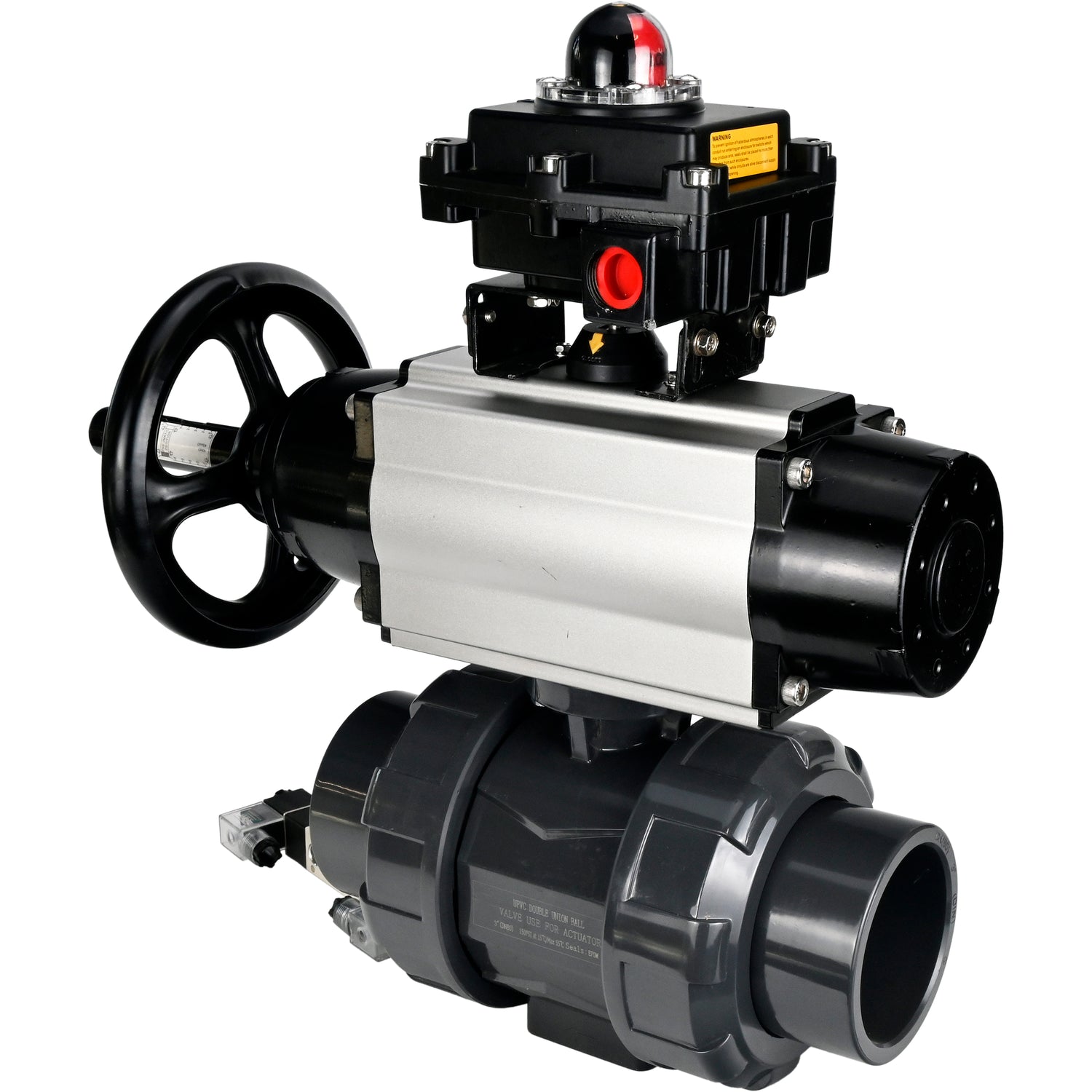

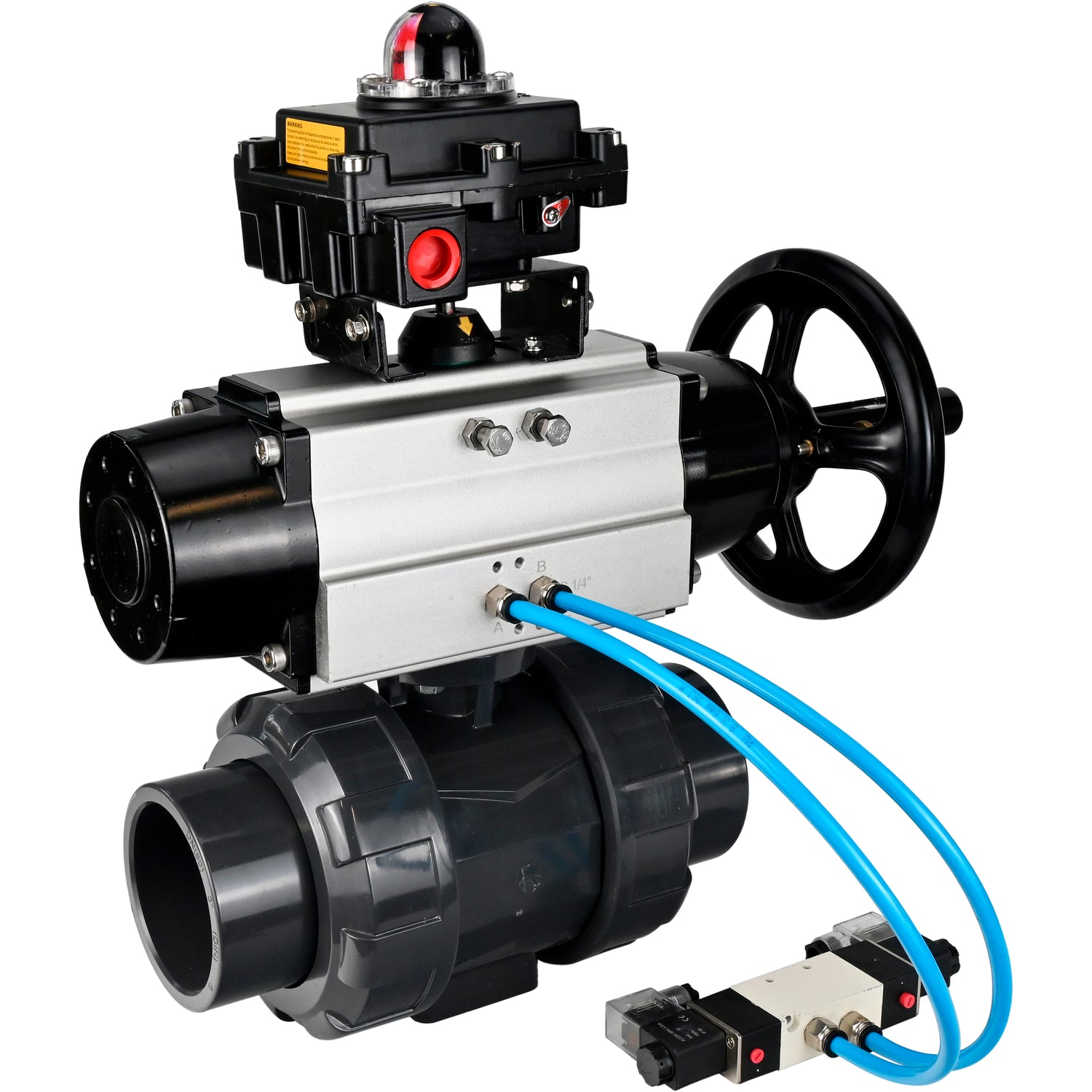

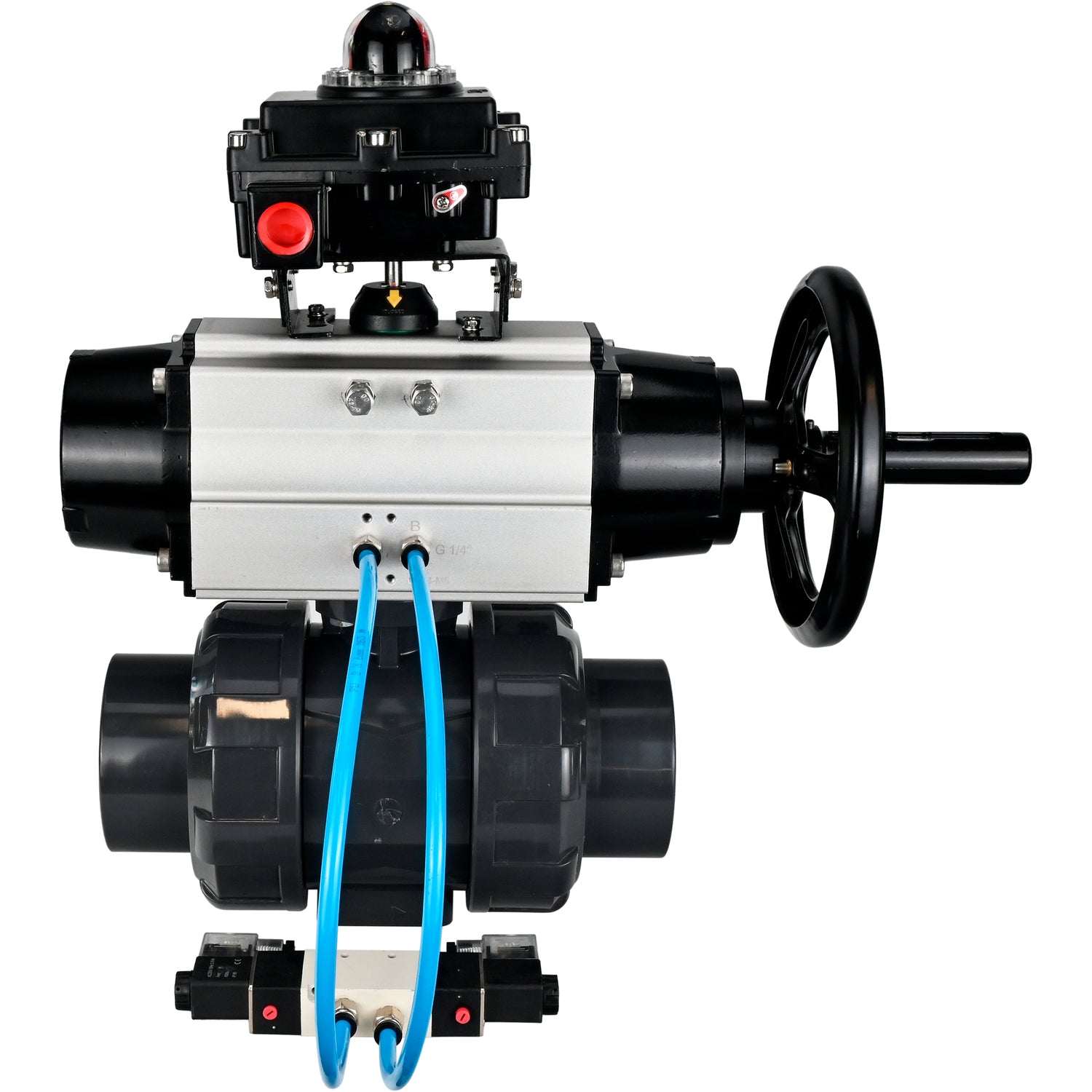

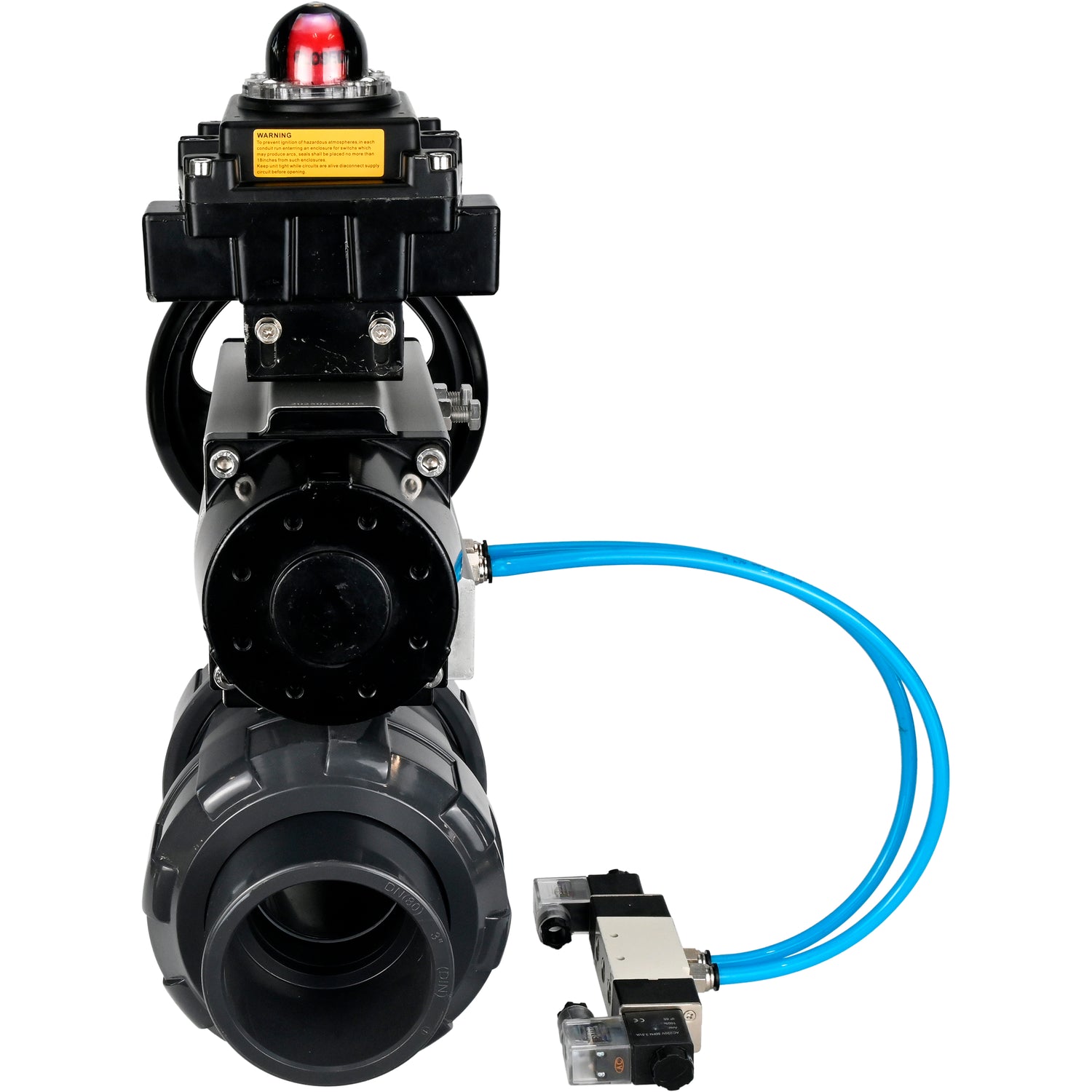

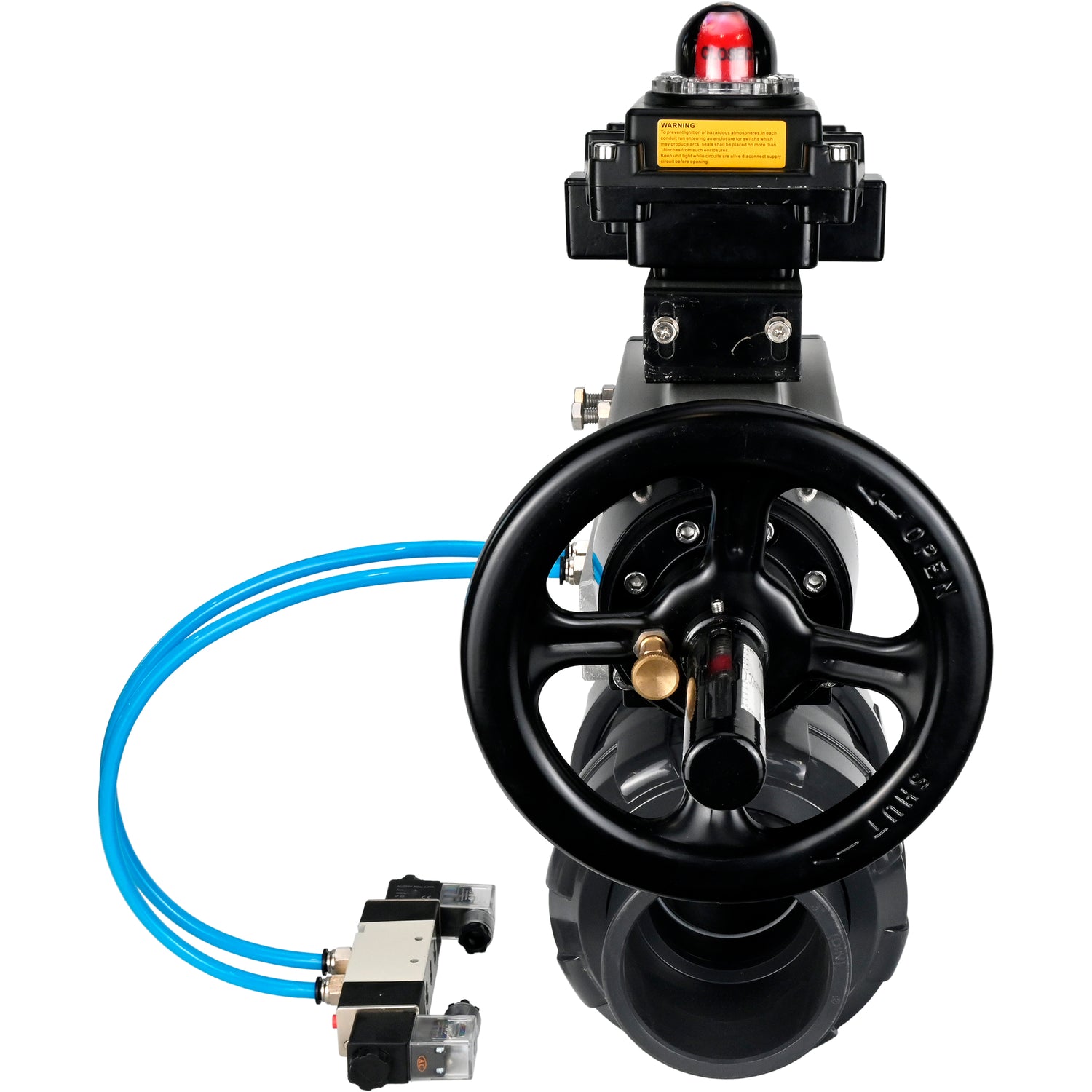

Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4V320-10 220V and LSU APL-410N EX
Ball valves Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4V320-10 220V and LSU APL-410N EX - DN100 / 10 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
A ball valve is used as a shut-off valve to shut off the flow of the working medium in pipelines.
The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.
The limit switch box is designed for visual and electrical signaling of the final positions of the shut-off valve body: ball-check-valve, ball valve or wafer butterfly valve. Mounted on top of the surface of the pneumatic actuator and connected to the drive shaft DIN standard. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.
Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Technical parameters of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| Characteristic | Meaning |
| Type of flow section | full bore |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working medium temperature | from 0 to +45°C |
| Application | Water Supply |
| Operating environment | Liquids, Air and Gases |
| Connection type | adhesive, with a detachable coupling connection |
| Control type | under the drive |
| Sealing class | A |
| Manufacturer's country | China |
| Warranty | 12 months |
Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem
Dimensions of Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| Model | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 |
| D, mm | 56 | 65 | 75.5 | 86.5 | 101 | 121.5 | 153 | 175 | 194 |
| d, mm | 15 | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 |
| d1, mm | 20.3 | 25.3 | 32.3 | 40.4 | 50.4 | 63.4 | 75.5 | 90.5 | 110.5 |
| d2, mm | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110.1 |
| L, mm | 123.5 | 137 | 148 | 165 | 176 | 197 | 279 | 307 | 354 |
| L1, mm | 23 | 26 | 29 | 32.5 | 35.5 | 38.5 | 65 | 70 | 84 |
| L2, mm | 67 | 74 | 77 | 88 | 93 | 105 | 134 | 148 | 157.5 |
| H1, mm | 66 | 77.5 | 89.5 | 103 | 116.5 | 138 | 171 | 194 | 220 |
| H2, mm | 27.5 | 32 | 37.5 | 43 | 50 | 60 | 76 | 88 | 99.5 |
| H3, mm | 8 | 8 | 8 | 12 | 12 | 13 | 16 | 16 | 17.5 |
| SxS, mm | 9x9 | 9x9 | 9x9 | 11x11 | 11x11 | 11x11 | 14x14 | 14x14 | 14x14 |
Sketch Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem
Materials of parts Elephant BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | UPVC |
| 2 | Ball | UPVC |
| 3/4/ 5/6 |
O-ring seals | EPDM |
| 7 | Rod | Stainless steel AISI 304 |
Sketch of parts and materials Ball valves BV4242E-FP-GRM-ISO, body material - UPVC, ball material - UPVC, seal - EPDM, with ISO flange and bare square stem
Technical parameters of Elephant pneumatic drives PA-DA-105-1:
| Characteristic | Meaning |
| Pneumatic drive type | double acting |
| Control pressure | 2-8 bar |
| Operating temperature | from -20 to +80 °C |
| Angle of rotation | 90±5° |
| Visual position indicator | open / closed |
| Manual control | flywheel |
| Air supply connection thread | G1/4 |
Pneumatic drives Elephant PA-DA-105-1
Dimensions of Elephant pneumatic drives PA-DA-105-1:
| Model | A, mm |
B, mm |
C, mm |
D, mm |
G, mm |
W, mm |
| PA-DA-105-1 | 495 | 133 | 109.5 | 153 | 26 | 200 |
Sketch Pneumatic drives Elephant PA-DA-105-1
Technical parameters of Elephant limit switch APL-410N EX:
| Characteristic | Meaning |
| Terminal Block | 8 cells 0.05-2.5mm2 |
| Voltage | 250V |
| Rated current | 10A |
| Indicator Position | CLOSED: red, OPEN: yellow |
| Ambient temperature | from -25 to +80 °C |
| Cable Entry Thread | 2 x NPT1/2" |
| Sensor | two mechanical switches, two proximity sensors |
| Body | IP65/NEMA4&4X Exd IIB T6 |
Limit switch Elephant APL-410N EX
Dimensions of Elephant limit switch APL-410N EX:
| A, mm | 177 |
| B, mm | 174 |
| C, mm | 178 |
| D, mm | 101 |
| E, mm | 76 |
| F, mm | 57 |
| G, mm | 55 |
| H, mm | 23 |
| I, mm | 27 |
| J, mm | 3 |
| K, mm | 4 |
| Ød1, mm | 5 |
| Ød2, mm | 9.5 |
Sketch Limit switch Elephant APL-410N EX
Technical parameters of Elephant pneumatic distributor 4V320 AC220V:
| Characteristic | Meaning |
| Type of pneumatic valve | slide valve |
| Body material | aluminum alloy and technopolymer |
| Control | two-way electromagnetic |
| Operating temperature | -5 to +60 °C |
| Operating scheme | 5/2 |
| Working pressure | 1.5-8 bar |
| Maximum pressure | 12 bar |
| Supply voltage | 220V |
| Degree of protection | IP65 |
| Insulation class | F |
Pneumatic distributor Elephant 4V320 AC220V
Dimensions of Elephant pneumatic distributor 4V320-10 AC220V:
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| H, mm | 82.4 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 83.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
Sketch Pneumatic distributor Elephant 4V320-10 AC220V
