Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, di – Valve Elephant
Elephant  |  SKU: D050-81714

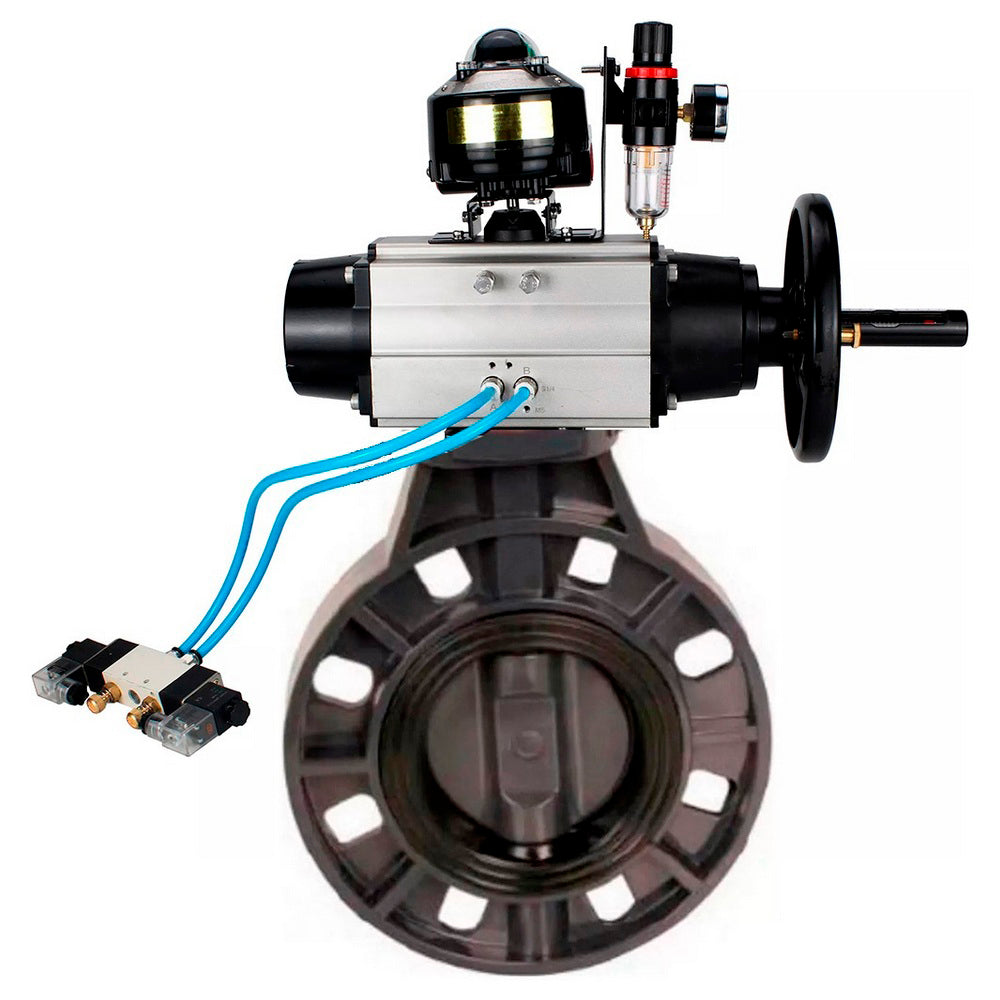

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4V320-10 220V, LSU APL-510N EX and ATU AFC2000

€444,03
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.

The limit switch unit is an electrical device designed for opening and closing of the working circuit and for visualisation of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions.

The air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at the set level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.

Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.



Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Gate type rotary disk
Diameter 50-200 mm
Nominal pressure 10 bar
Working medium temperature 0 to +45 °C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type Compact flanged
Control type Manual (handle, gearbox)
Sealing class A
Manufacturer's country China
Warranty 12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN50 DN65 DN80 DN100 DN125 DN150 DN200
D, mm 158 179 195 226.5 253.5 280 340
D1, mm 120.5 130.5 154 181 208 234 291.5
L, mm 45 45 48 54 63 69 89
H1, mm 98 110 131 155 169 185 231
n–Ød,
pcs-mm		 4–Ø19.3*24.5 4–Ø19.3*24.5 8–Ø20*24 8–Ø20*27 4–Ø23*27.5 4–Ø23*28 4–Ø23*28.5
ØD, mm 65 65 65 90 90 90 125
ØD1, mm 50 50 50 70 70 70 102
ØD2, mm 35.5 35.5 35.5 55.5 55.5 55.5 70.5
h, mm 3.5 3.5 3.5 3.5 3.5 3.5 3.5
H, mm 32 32 32 32 32 32 45
BxB, mm 9х9 9х9 9х9 11х11 14х14 14х14 17х17
N–Ød,
pcs-mm		 4–8 4–8 4–8 4–10 4–10 4–10 4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Disc UPVC
3 Seat seal EPDM
4 Rod Steel 45
5 Rod seal EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant pneumatic drives PA-DA-105-1:

Characteristic Meaning
Pneumatic drive type double acting
Control pressure 2-8 bar
Operating temperature from -20 to +80 °C
Angle of rotation 90±5°
Visual position indicator open / closed
Manual control flywheel
Air supply connection thread G1/4

Pneumatic drives Elephant PA-DA-105-1



Dimensions of Elephant pneumatic drives PA-DA-105-1:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 G,
mm		 W,
mm
PA-DA-105-1 495 133 109.5 153 26 200

Sketch Pneumatic drives Elephant PA-DA-105-1



Technical parameters of Elephant limit switch APL-510N EX:

Characteristic Meaning
Terminal Block 8 cells 0.08-2.5mm2
Voltage 250V
Rated current 16A
Indicator Position CLOSED: red, OPEN: yellow
Ambient temperature from -20 to +66 °C
Cable Entry Thread 2 x NPT3/4"
Sensor two mechanical switches,
two proximity sensors
Body IP67/NEMA4 4X,7,9;
E EX d IIC T6

Limit switch Elephant APL-510N EX



Dimensions of Elephant limit switch APL-510N EX:

A, mm 118
B, mm 118
C, mm 138.4
D, mm 17
E, mm 19
F, mm 7
G, mm 3
H, mm 4
I, mm 59
J, mm 59
K, mm 59
L, mm 59
M, mm 121.4
Ød1, mm 50
Ød2, mm 5

Sketch Limit switch Elephant APL-510N EX



Technical parameters of Elephant water separator AFC2000:

Characteristic Meaning
Operating Pressure 8 bar
Maximum Pressure 10 bar
Adjustable Pressure Range 0.5-9 bar
Burst Pressure 15 bar
Operating Temperature from -5 to +60 °C
Air Connection 1/4"
Filtered Particle Size 40 µm
Oil Viscosity ISO VG 32

Water separator Elephant AFC2000



Dimensions of Elephant water separator AFC2000:

A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5

Sketch Water separator Elephant AFC2000



Technical parameters of Elephant pneumatic distributor 4V320 AC220V:

Characteristic Meaning
Type of pneumatic valve slide valve
Body material aluminum alloy and technopolymer
Control two-way electromagnetic
Operating temperature -5 to +60 °C
Operating scheme 5/2
Working pressure 1.5-8 bar
Maximum pressure 12 bar
Supply voltage 220V
Degree of protection IP65
Insulation class F

Pneumatic distributor Elephant 4V320 AC220V



Dimensions of Elephant pneumatic distributor 4V320-10 AC220V:

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4

Sketch Pneumatic distributor Elephant 4V320-10 AC220V

Especificaciones
  • País de origen
    China
  • Temperatura máxima permitida
    45 °C
  • Tipo de conexión
    Compact flanged
  • Entorno operativo
    Liquids, Air and Gases
  • Tipo de sello
    EPDM
  • Material del disco
    UPVC
  • Posicionador electroneumático
    No
  • Actuador neumático
    Yes
  • Anulación manual
    Steering wheel
  • Interruptores de límite
    Yes
  • Manual de estudio
    No
  • Tipo de actuador neumático
    Double acting

Reseñas (0)

Documentación
nullButterfly valves Elephant WBV4242E-2W-Fb-ISO
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullAir treatment unit AFC2000 ELEPHANT
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
