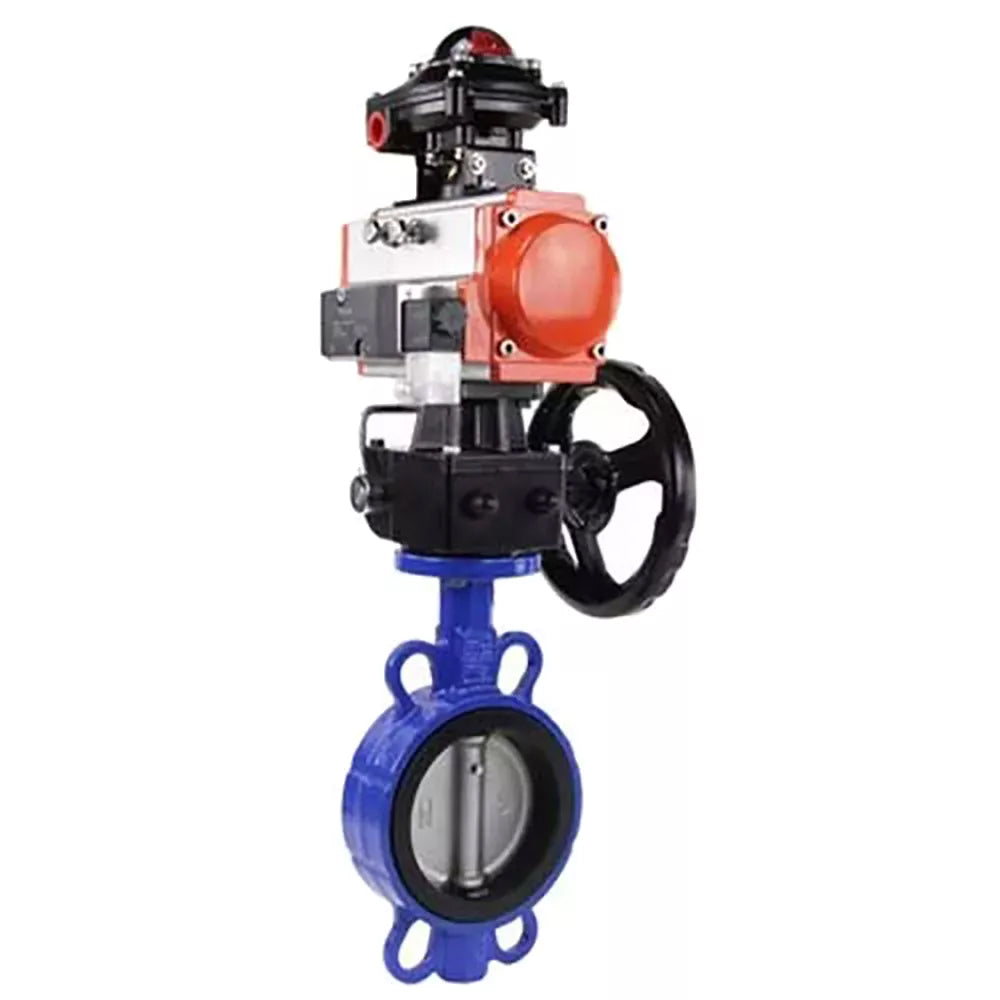

Vanne papillon d'eau Elephant WBV1432E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4M310-08 220V, volant MON, BKV APL-510N-EX

Butterfly valve model WBV1432E-2W-Fb PA-DA 4M310-08 APL-510N-EX MON 4M310-08 220V is designed for use as shut-off or regulating valves to control flows in heating systems, water supply, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

PA-DA pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4m310-08 220 V are used for control in pneumatic systems having NAMUR docking surface, for installation of actuators through through holes in the body.

The HDM worm gear reduction manual doublet allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution to the full range of manual override applications.

The APL-510N-EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical parameters of Elephant WBV1432E-2W-Fb-H butterfly valves, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, handwheel MON, LSU APL-510N-EX:

Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, handwheel MON, LSU APL-510N-EX

Dimensions and dimensions of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, handwheel MON, LSU APL-510N-EX:

Sketch Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, handwheel MON, LSU APL-510N-EX

Materials of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, handwheel MON, LSU APL-510N-EX:

Sketch of parts and materials Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, handwheel MON, LSU APL-510N-EX

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

Material sketch of DA double-acting pneumatic actuators

Technical characteristics of the pneumatic valve 4m310-08 220V:

Technical parameters of the handwheel MON:

Manual doubler MON

Dimensions and dimensions of the handwheel MON:

Sketch of dimensions and dimensions of the MON handwheel MON

MON handwheel materials:

Materials of the handwheel

Characteristics of limit switch unit APL-510N-EX:
