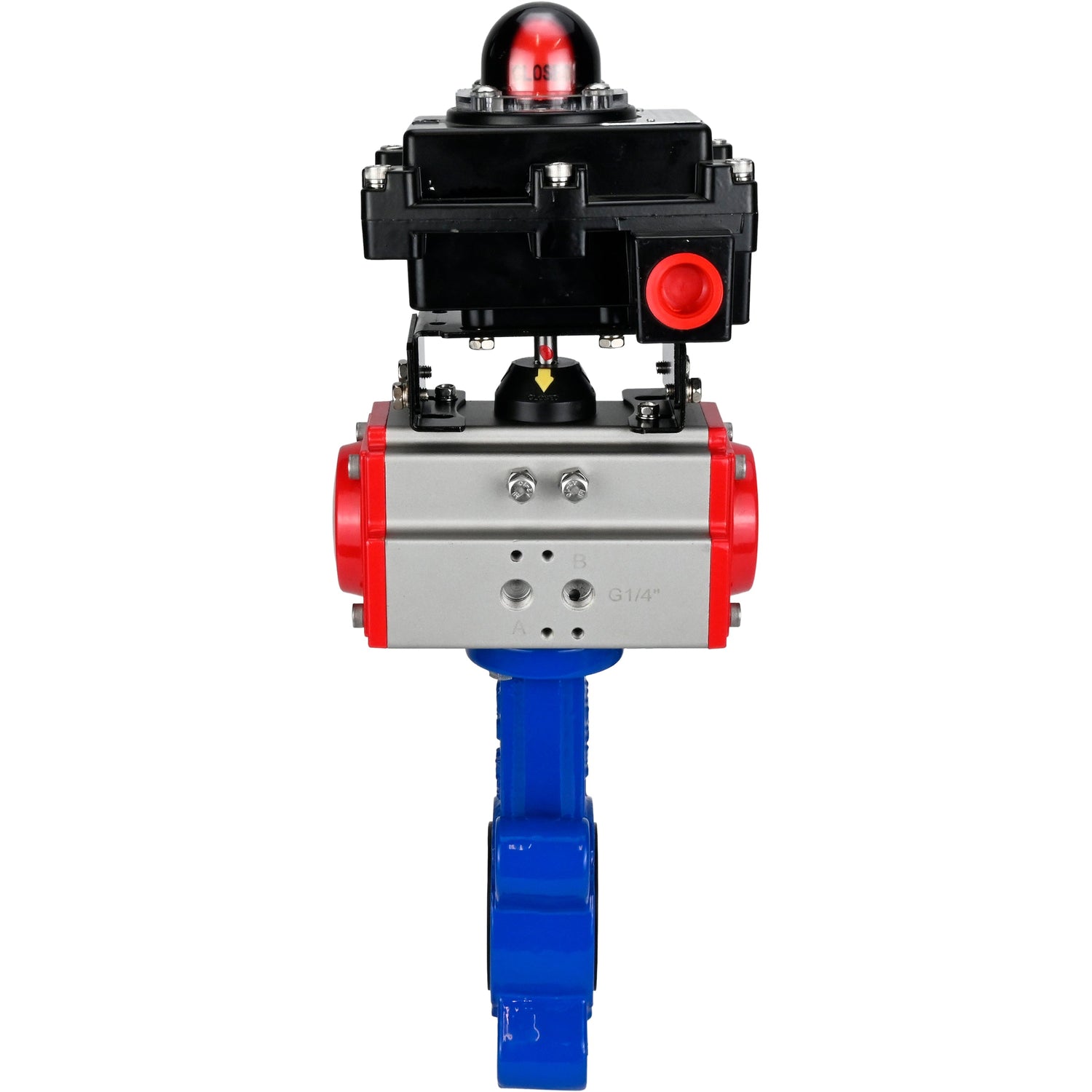

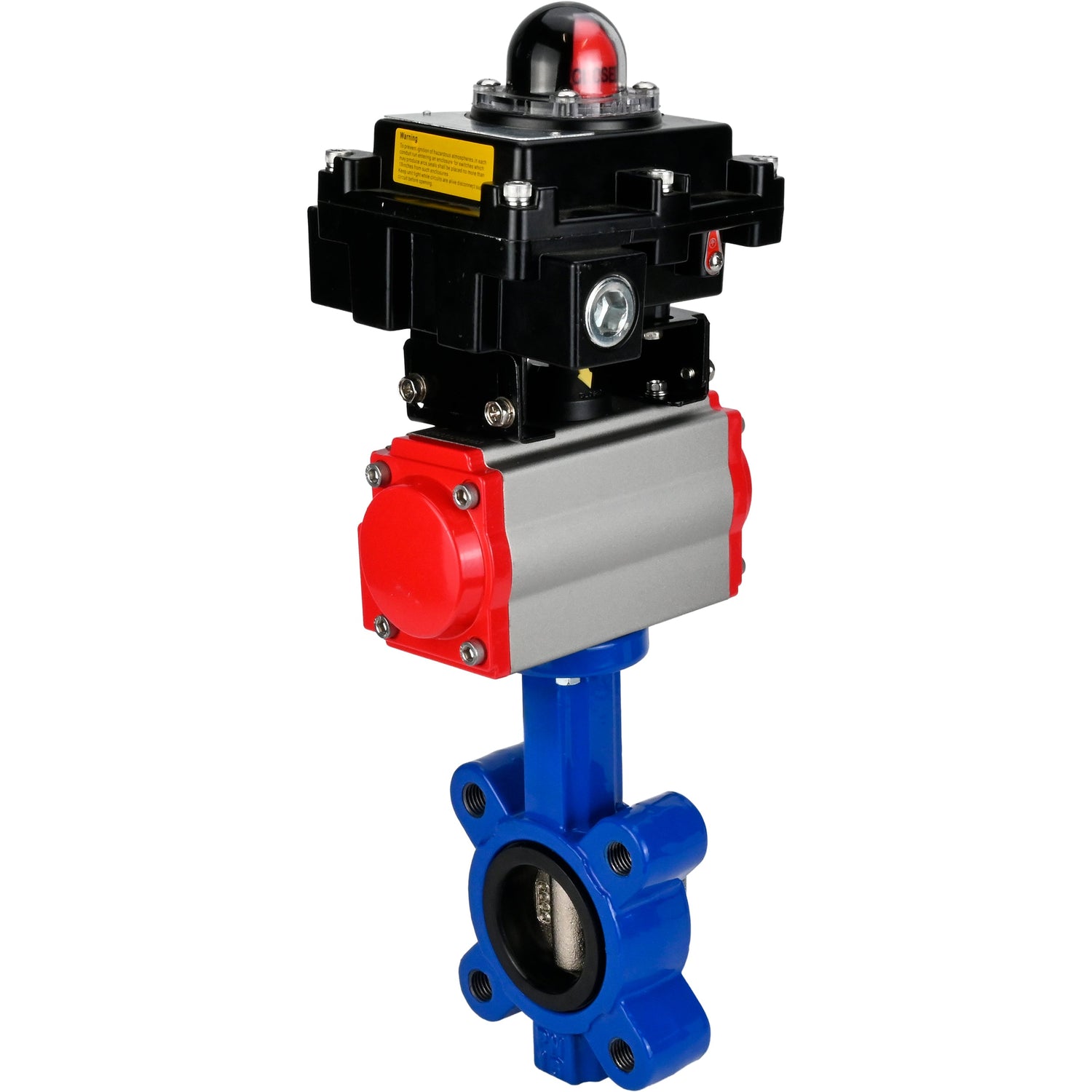

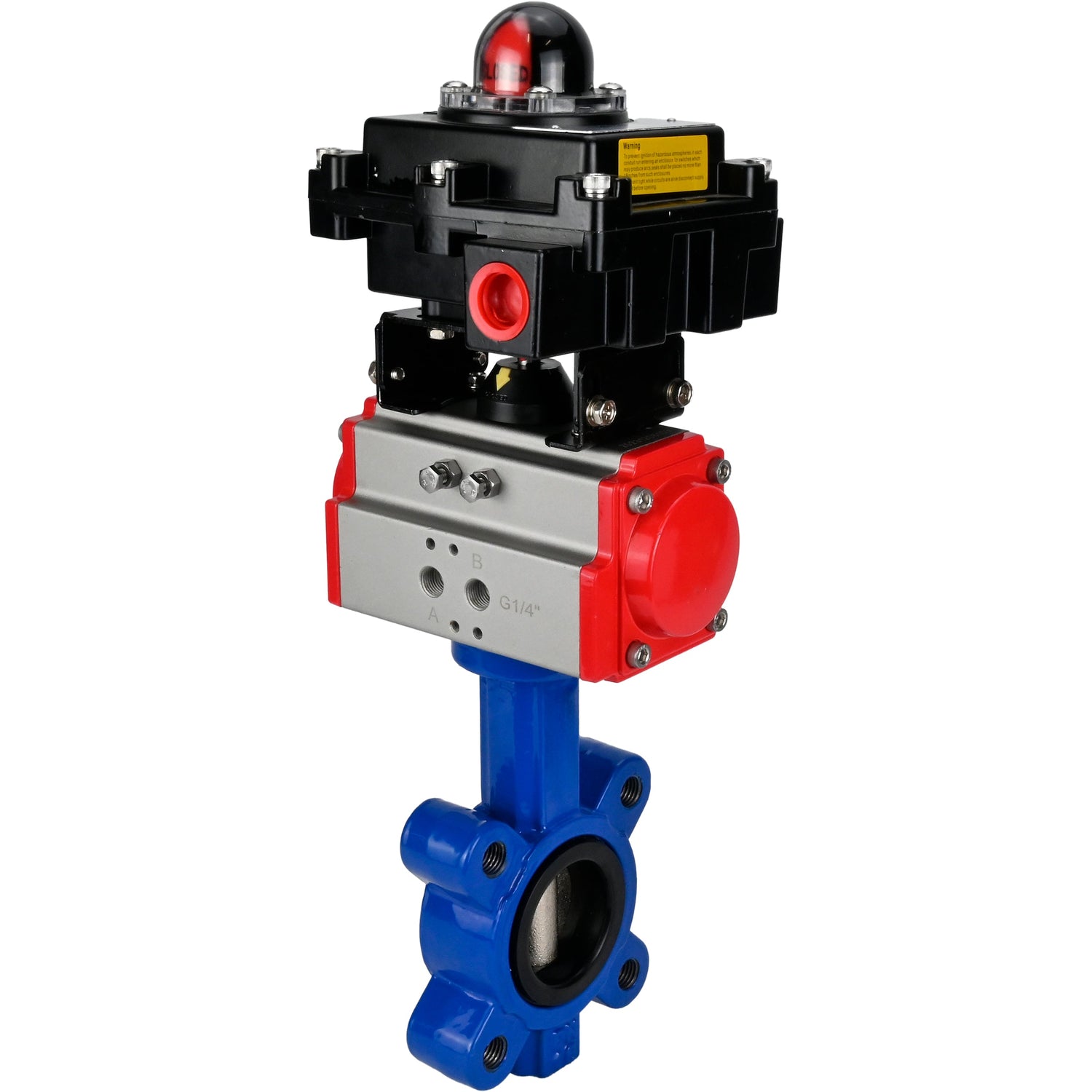

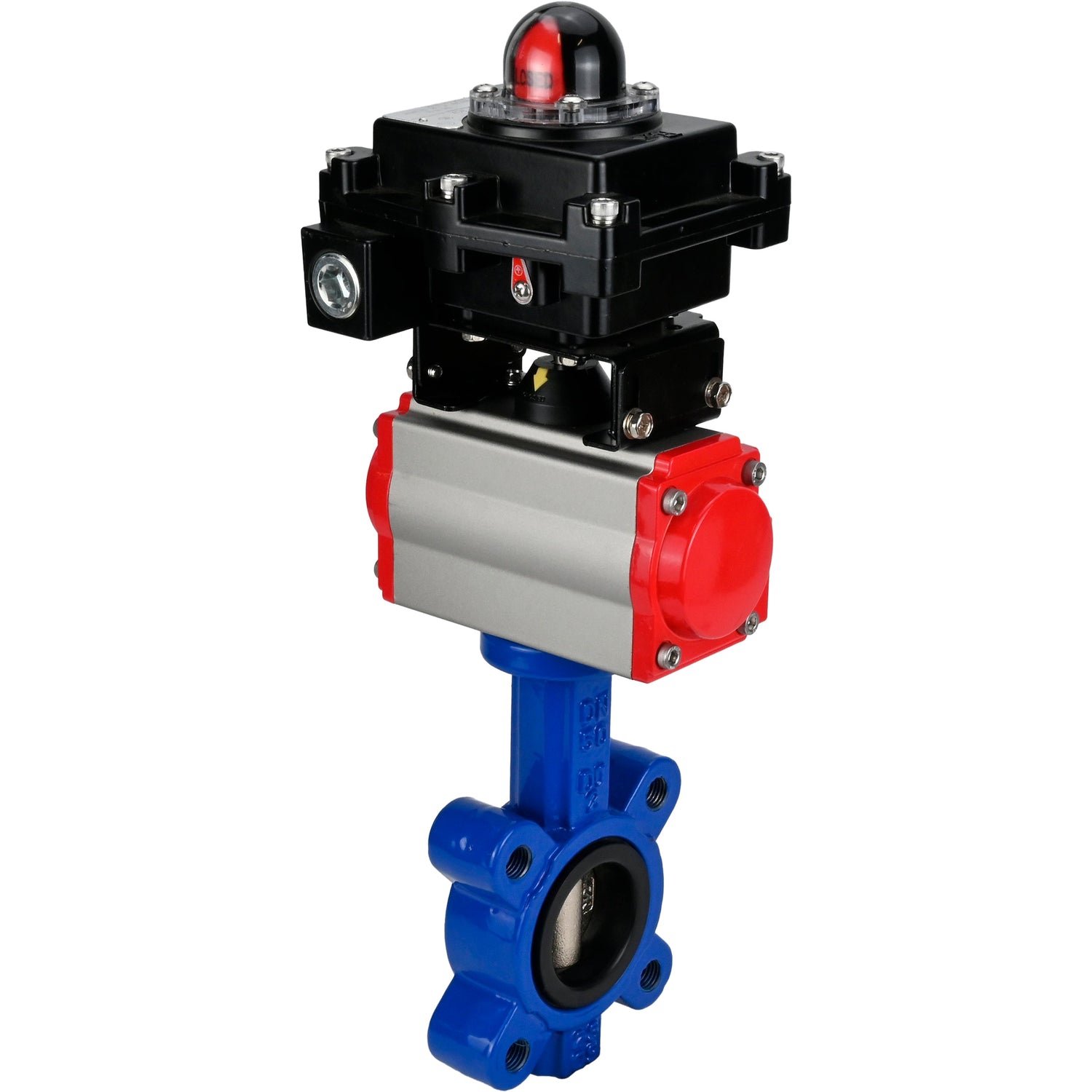

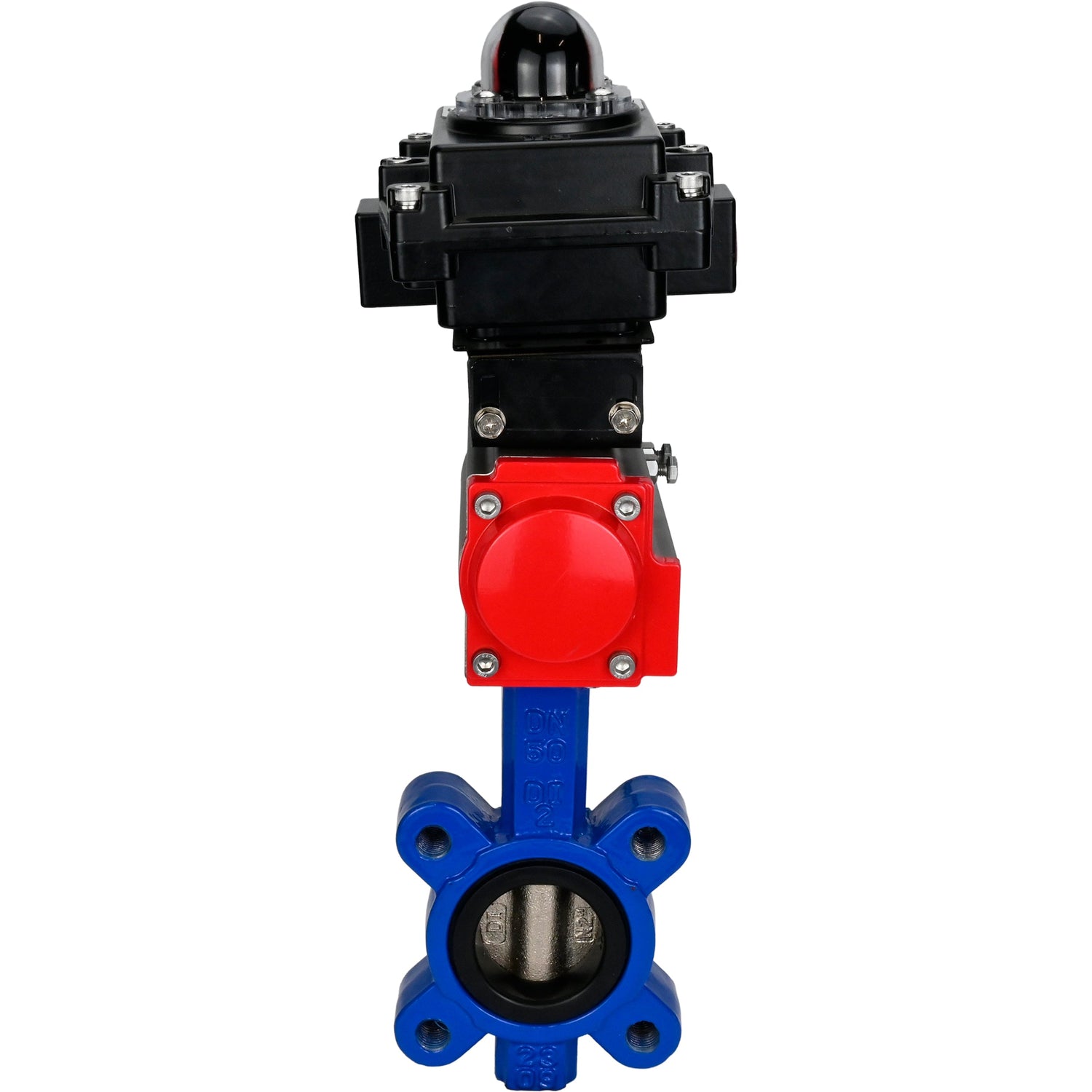

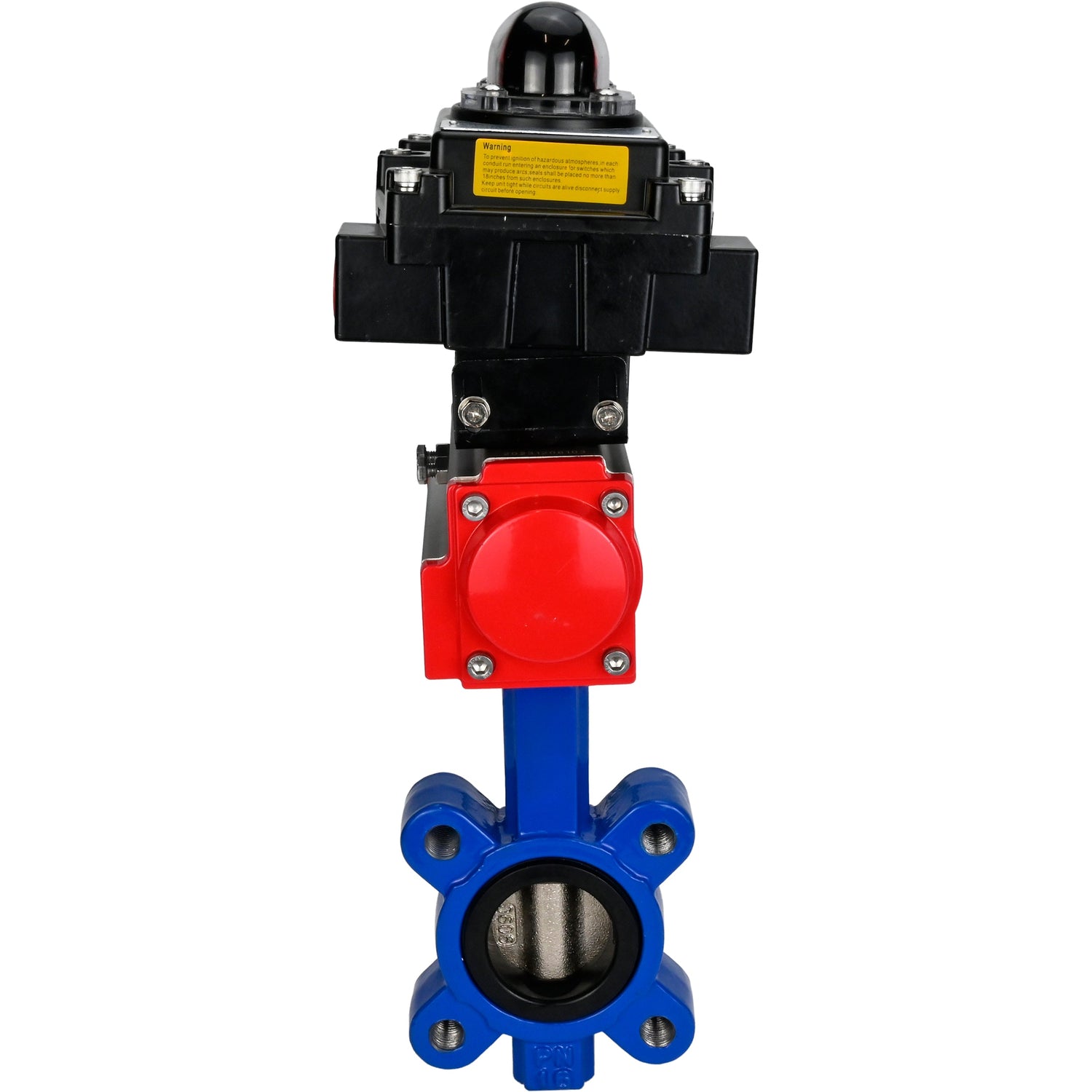

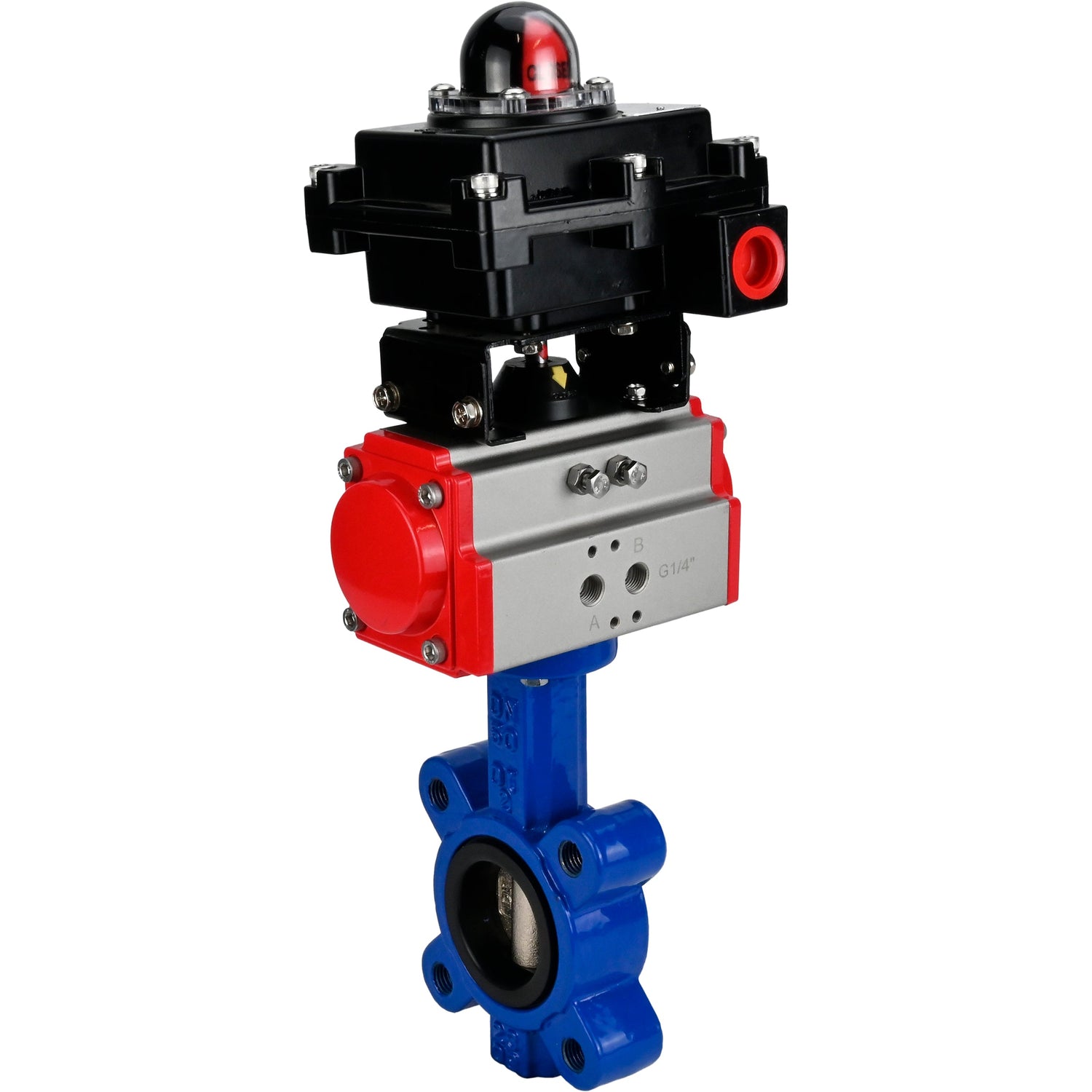

Vanne papillon d'eau Elephant WBV1616E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - fonte QT450, joint - EPDM, avec actionneur pneumatique double action PA-DA, BKV APL-410N EX

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DA double-acting pneumatic rotary actuators are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

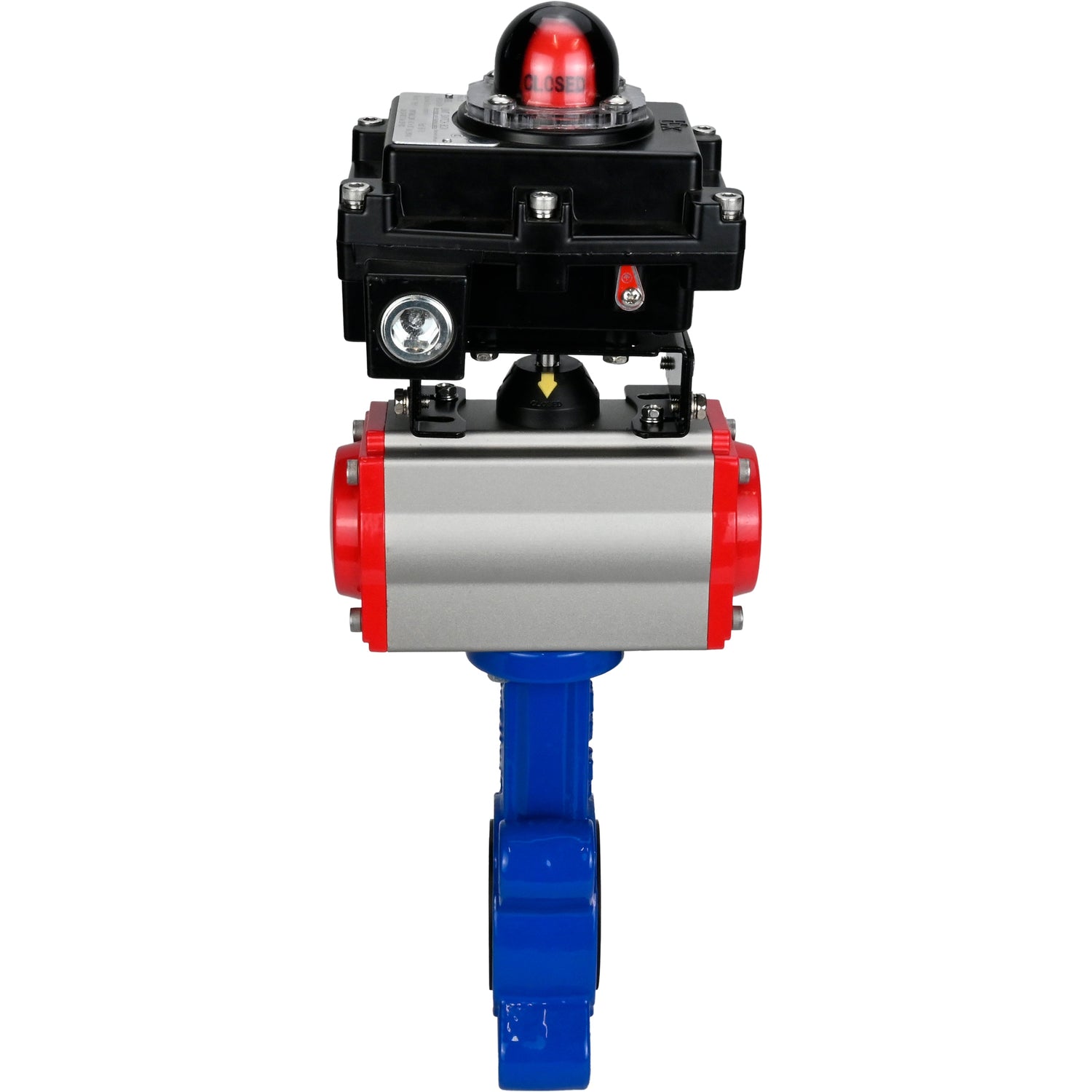

The limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off body of the pipeline valve. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical parameters of Water Butterfly Valve Elephant WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, with pneumatic actuator double action PA-DA, LSU APL-410N EX:

Butterfly valves WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, with pneumatic actuator double action PA-DA, LSU APL-410N EX

Dimensions and dimensions of butterfly valves Elephant WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, with pneumatic actuator double action PA-DA, LSU APL-410N EX:

Sketch Butterfly valves WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, with pneumatic actuator double action PA-DA, LSU APL-410N EX

Materials of butterfly valves Elephant WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, with pneumatic actuator double action PA-DA, LSU APL-410N EX:

Sketch of parts and materials Butterfly valves WBV1616E-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - EPDM, with pneumatic actuator double action PA-DA, LSU APL-410N EX

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

Material sketch of DA double-acting pneumatic actuators

Technical parameters of limit switch unit APL-410N EX:

Limit switch unit APL-410N EX

Dimensions and dimensions of limit switch unit APL-410N EX:

Sketch of dimensions and dimensions of limit switch unit APL-410N EX
