Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU: D050-26549

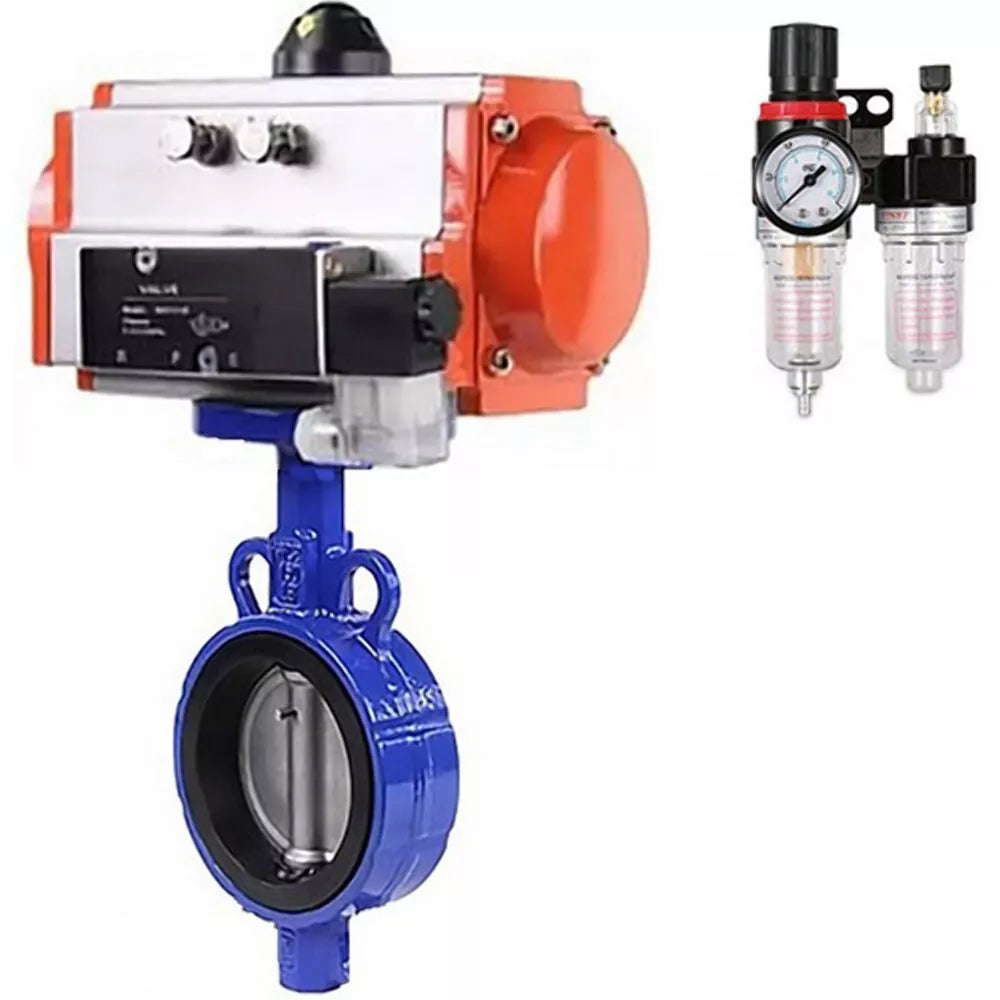

Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4M310-08 220V, BPV AFC2000

€288,61
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4M310-08 220V, BPV AFC2000 - DN40 / 16 bars está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The WBV1632E-2W-Fb butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DA pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4m310-08 220 V are used for control in pneumatic systems having NAMUR docking surface, for installation of actuators through through holes in the body.

The AFC2000 air treatment unit is designed to clean compressed air from dripping moisture and solid particles, remove condensate, automatically maintain the pressure at a set level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.





Technical parameters of Water Butterfly Valve Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, ATU AFC2000:

Nominal diameter DN, mm 40 - 300
Nominal pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +110
Working medium water, steam, aggressive media and liquids with abrasive content (cement, sand, alumina, etc.)
Flow direction double-sided
Control type DN40-200 - handle
DN250-300 - reducer
Pipeline connection interflanged
Body material cast iron QT450
Sealing material EPDM with wear resistant coating
Service life, years 10

Butterfly valves WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, ATU AFC2000





Dimensions and dimensions of butterfly valves Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, ATU AFC2000:

DN L, mm H, mm H1, mm D2, mm D1, mm n-d, mm
40 43 147 70 92 125 4- Ø23
50 43 147 70 92 125 4- Ø23
65 46 155 76 110 145 4- Ø23
80 46 164 92 121 160 8- Ø20
100 52 175 106 153 180 4- Ø23
125 56 194 119 176 210 4- Ø23
150 56 206 132 207 240 4- Ø25
200 60 237 162 259 295 4- Ø25
250 68 282 200 316 355 4-Ø28
300 78 311 225 370 410 4-Ø28

Sketch Butterfly valves WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, ATU AFC2000





Materials of butterfly valves Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, ATU AFC2000:

№ Part name Material
1 Body cast iron QT450
2 Disk 316L stainless steel
3 Seat seal EPDM+ wear resistant material (siliclone+graphite)
4 Stem 2Cr13 steel

Sketch of parts and materials Butterfly valves WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, ATU AFC2000





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of the pneumatic valve 4m310-08 220V:

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1,5...8
Working medium filtered compressed air
Ambient temperature t, ⁰C +5 to +50
Response frequency 5 cycles/s
Manual duplication is
Degree of protection IP 65
Mounting through holes in the housing
Enclosure material anodized aluminum
Response time 0.05 sec.





Main parameters of the AFC2000 air treatment unit:

Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0,5 ÷ 9
Breaking pressure, bar 15
Air connection 1/4”
Operating temperature, C -5 to +60
Filter particle size, µm 40
Oil viscosity ISO VG 32
Weight, kg 0,395
Set composition filter-moisture separator, pressure regulator, lubricator, bracket

Air treatment unit AFC2000

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    110 °C
  • Tipo de conexión
    bride compacte
  • Tipo de sello
    EPDM
  • Material del disco
    acier inoxydable AISI 316L
  • Anulación manual
    Non
  • Interruptores de límite
    Non
  • Tensión de alimentación
    220 V
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullAir treatment unit AFC2000 ELEPHANT
nullPneumatic valve ELEPHANT 4M310-08 spool type
nullButterfly valve for abrasive media Elephant WBV1632E-2W-Fb-H DN40-200 16 bar cast iron interflanged with handle
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Pago y seguridad

Métodos de pago

    Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.

    Variantes disponibles

    SKUTaille de la connexionPressionPrecio DisponibilidadCantidad Añadir al carrito
    D050-26549DN4016 bars €288,61 0 Disponibles
    D050-26550DN5016 bars €298,47 Agotado
    D050-26551DN6516 bars €307,60 Agotado
    D050-26552DN8016 bars €331,76 Agotado
    D050-26553DN10016 bars €346,12 Agotado
    D050-26554DN12516 bars €448,12 Agotado
    D050-26555DN15016 bars €548,08 Agotado
    D050-26556DN20016 bars €766,17 Agotado
    D050-26557DN25016 bars €1.388,07 Agotado
    D050-26558DN30016 bars €1.956,49 Agotado
