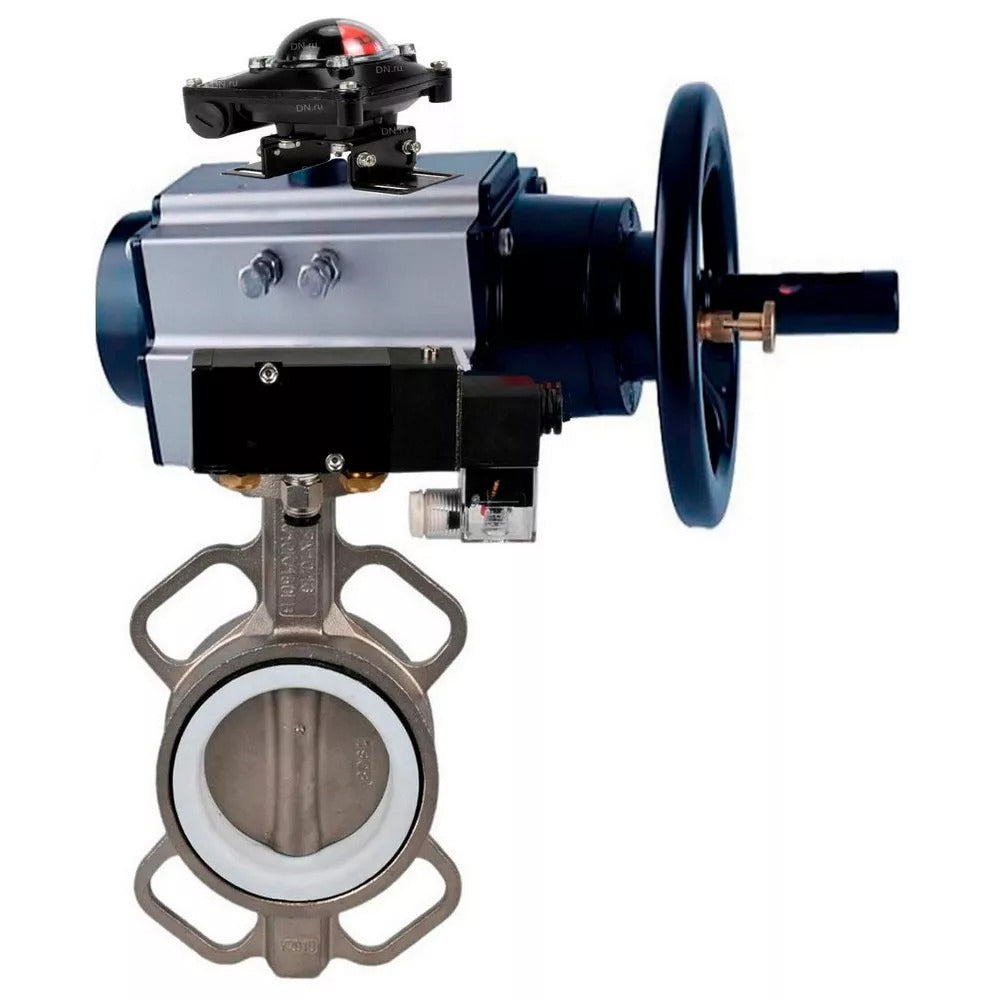

Vanne papillon d'eau Elephant WBV3432P-2W-Fb-H, matériau du corps - acier au carbone, matériau du disque - acier inoxydable AISI 316L, joint - PTFE, avec actionneur pneumatique double action PA-DA-105-1, 4V320-08 220V, BKV APL-410N EX
Vanne papillon d'eau Elephant WBV3432P-2W-Fb-H, matériau du corps - acier au carbone, matériau du disque - acier inoxydable AISI 316L, joint - PTFE, avec actionneur pneumatique double action PA-DA-105-1, 4V320-08 220V, BKV APL-410N EX - DN100 / 16 bars está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The butterfly valve is designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
PA-DA-105-1 double-acting pneumatic rotary actuators are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valve.
Technical parameters of Water Butterfly Valve Elephant WBV3432P-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-410N EX:
| Nominal pressure PN, bar | 16 |
| Flow direction | double-sided |
| Working medium temperature t, ⁰C | -20 to +85 for NBR |
| -20 to +120 for EPDM | |
| -10 to +180 for PTFE | |
| Ambient temperature t, ⁰C | -40 to +120 |
| Working medium | EPDM: cold and hot water, air without impurities of oil and grease, other media neutral to the material |
| PTFE: water, alkalis, acids, solvents and oxidizers | |
| NBR: water, mineral oils, hydrocarbons, | |
| oils, fats | |
| Connection to pipeline | interflange |
Butterfly valves WBV3432P-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-410N EX
Dimensions and dimensions of butterfly valves Elephant WBV3432P-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-410N EX:
| DN | A, mm | B, mm | A1, mm | W, mm |
| 150 | 225 | 140 | 495 | 200 |
Sketch Butterfly valves WBV3432P-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-410N EX
Materials of butterfly valves Elephant WBV3432P-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-410N EX:
| № | Name | Material |
| 1 | Body | carbon steel WCB |
| 2 | Cuff | PTFE |
| 3 | Disk | Stainless steel AISI 316L |
| 4 | Stem | Stainless steel AISI 316L |
| 5 | Stud | Stainless steel AISI 316L |
| 6 | Sleeve | PTFE |
| 7 | O-ring | NBR (nitrile) |
| 8 | plate | Carbon steel |
Sketch of parts and materials Butterfly valves WBV3432P-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, 4V320-08 220V, LSU APL-410N EX
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve 4V320-08 220V:
| Name | meaning |
| Type of pneumatic valve | slide valve |
| Working pressure, bar | 1.5 ÷ 1.8 |
| Supply voltage, V | 220 V |
| Total power, Va | 4.5 |
| Control | double-sided electromagnetic |
| Frequency of operation, cycle/sec | 5 |
Pneumatic valve 4V320-08 220V
Dimensions and dimensions of pneumatic valve 4V320-08 220V:
| Pneumatic valve model | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V
Technical parameters of limit switch unit APL-410N EX:
| Name | Value |
| Model of limit switch unit | APL-410N EX |
| Maximum voltage of limit switch, V | 250 |
| Working environment temperature, °C | -40 to +80 |
| Service life, years | 10 |
Limit switch unit APL-410N EX
Dimensions and dimensions of limit switch unit APL-410N EX:
| Model | D, mm | D1, mm | H, mm | L, mm | B, mm | M, mm |
| APL-410N EX | 9.5 | 5 | 174 | 177 | 178 | 8 |
Sketch of dimensions and dimensions of limit switch unit APL-410N EX
