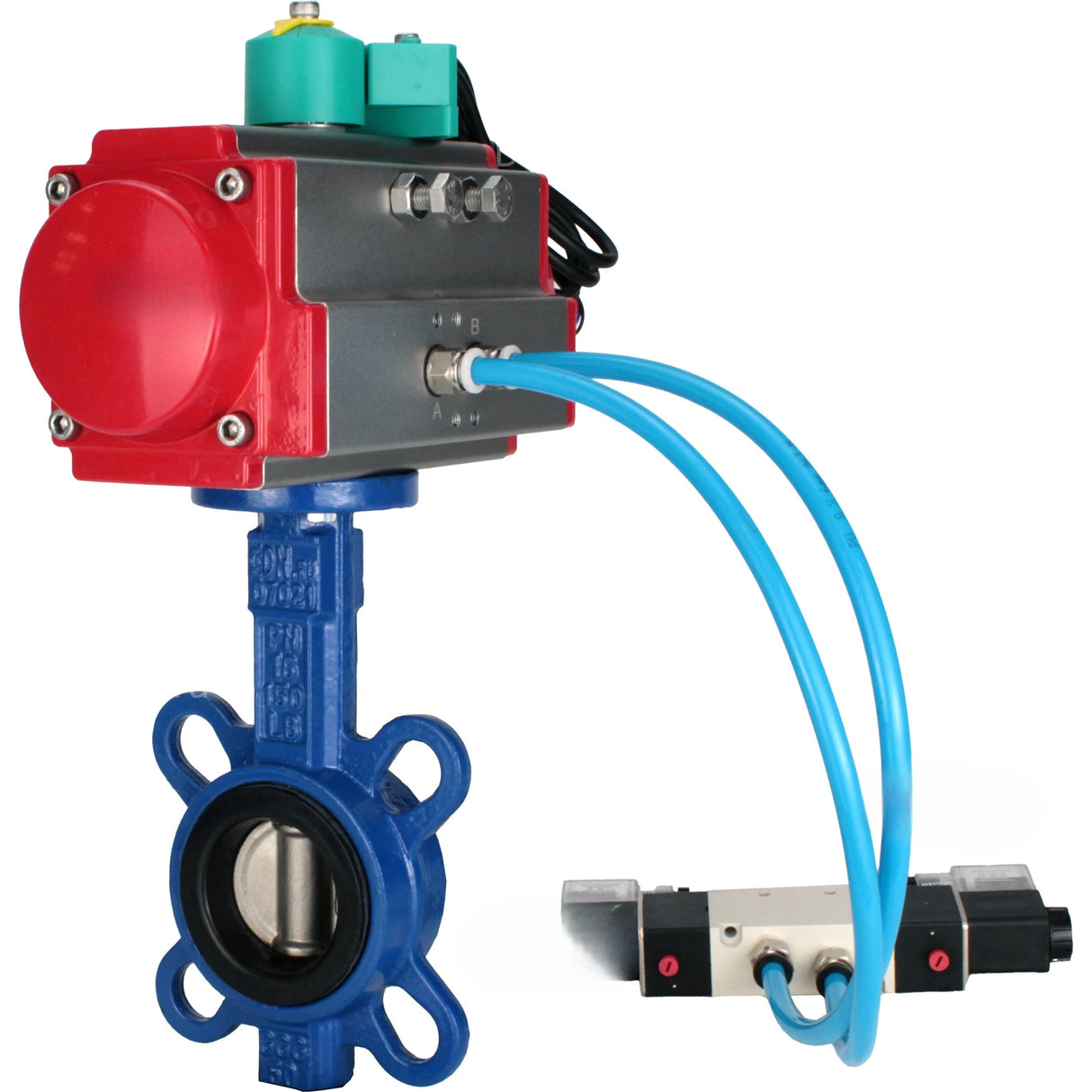

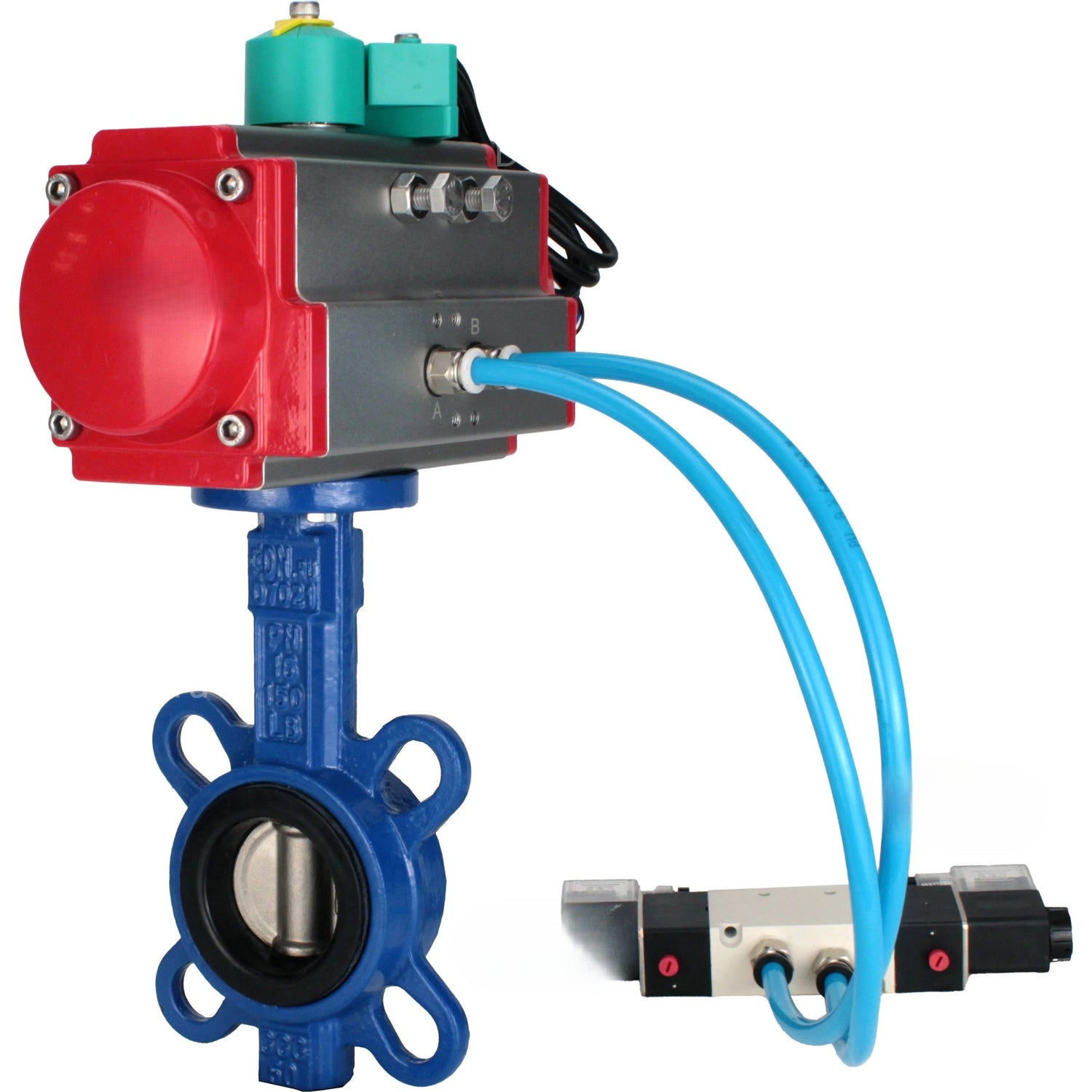

Water Butterfly Valve Elephant WBV1132N-2W-Fb-H DN40-300 16 bar body - GG25 cast iron, disc - 316L stainless steel, seal - NBR, with pneumatic actuator PA-DA-XXX, pneumatic distributor 4V320-10 220V and ALS200D magnetic switch
Water Butterfly Valve Elephant WBV1132N-2W-Fb-H DN40-300 16 bar body - GG25 cast iron, disc - 316L stainless steel, seal - NBR, with pneumatic actuator PA-DA-XXX, pneumatic distributor 4V320-10 220V and ALS200D magnetic switch - DN100 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
Butterfly valves are designed for use as shut-off or control valves to control flows in heat and water supply systems, as well as in industrial processes in the food, chemical, oil and gas, pulp and paper, and other industries.
PA-x-x pneumatic actuators are designed to automate the control of quarter-turn valves. PA-DA-x double-acting pneumatic actuators use two ports to supply the control fluid and generate movement in both directions, both opening and closing the valve. One port is used to move the piston in one direction, and the other to move it in the opposite direction.
The Elephant ALS200D magnetic switch is designed to convert the final shaft position values of pneumatic actuators or shut-off valves into electrical signals.
Technical characteristics of rotary disc valves Elephant WBV1132N-2W-Fb-H DN40-300 16 bar
| Characteristics | Value |
| Valve Type | Rotary disc |
| Diameter | 40-300 mm |
| Nominal Pressure | 16 bar |
| Working Medium Temperature | -20 to +110°C |
| Application | Water supply, heat supply, Chemical industry, Oil and gas industry, Food industry, Pulp and paper industry |
| Connection Type | Wafer |
| Control Type | Pneumatic actuator |
| Tightness Class | A |
| Country of Origin | China |
| Warranty | 12 months |
Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA-XXX
| Characteristics | Value |
| Pneumatic drive type | double-acting |
| Nominal pressure | 12 bar |
| Working pressure | 2...8 bar |
| Maximum particle diameter | less than 30 µm2 |
| Working medium | filtered compressed air or non-aggressive gases, oils |
| Adjustment range | ± 5° for rotation at 0° and 90° |
Technical characteristics of pneumatic valves Elephant 4V320-10 220V
| Characteristics | Value |
| Pneumatic valve model | 4V320-10 220V |
| Supply voltage | 220V |
| Design | spool-type |
| Nominal pressure | 12 bar |
| Working pressure | 1.5...8 bar |
| Ambient temperature | +5 to +50 ⁰C |
| Working medium | filtered compressed air |
| Response frequency | 5 cycles/sec |
| Protection rating | IP65 |
| Mounting | through through-holes in the housing |
| Housing material | anodized aluminum |
| Response time | 0.05 sec |
Technical specifications of the Elephant ALS200D magnetic switch
| Characteristics | Value |
| Housing Material | PP-GF30 plastic |
| Housing Protection Rating | IP67 |
| Compatible Devices | pneumatic actuators, any actuators with 90° shaft rotation |
| Shaft Angle Indicator | 0-90° |
| Contact Type | NO |
| Sensor Interaction Type | magnetic |
| Sensor Interaction Distance | 1÷6 mm |
| On/Off Switching Frequency | 0÷4.8 kHz |
| Visual Indication | two LEDs |
| Rated Voltage | 5÷240 V AC/DC |
| Rated Current | 0÷300 mA |
| Rated Power | 10 W |
| Ambient Temperature | -40 to +85 °C |
| Cable Terminal | 4 wires (2 wires/open, 2 wires/close) |
| Weight | 0.14 kg |
| Warranty | 12 months |
| Service Life | 10 years |
Overall and installation dimensions of butterfly valves Elephant WBV1132N-2W-Fb-H DN40-300 16 bar
| DN | A, mm | B, mm | E, mm | ØD, mm | Ød, mm | 4-Ødo, pcs-mm | HxH, mm |
| DN40 | 114 | 66 | 34 | 65 | 50 | 4-7 | 9х9 |
| DN50 | 131 | 72 | 43 | 65 | 50 | 4-7 | 9х9 |
| DN65 | 140 | 83 | 46 | 65 | 50 | 4-7 | 9х9 |
| DN80 | 150 | 95 | 46 | 65 | 50 | 4-7 | 9х9 |
| DN100 | 163 | 112 | 52 | 90 | 70 | 4-10 | 11х11 |
| DN125 | 178 | 125 | 56 | 90 | 70 | 4-10 | 14х14 |
| DN150 | 191 | 140 | 56 | 90 | 70 | 4-10 | 14х14 |
| DN200 | 238 | 172 | 60 | 125 | 102 | 4-12 | 17х17 |
| DN250 | 285 | 205 | 68 | 125 | 102 | 4-12 | 22х22 |
| DN300 | 315 | 245 | 78 | 150 | 125 | 4-14 | 22х22 |
Sketch of the dimensions of rotary disc valves Elephant WBV1132N-2W-Fb-H DN40-300 16 bar
Overall and installation dimensions of Elephant double-acting rotary pneumatic actuators PA-DA-XXX
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| PA-DA(SA)-052 | 30 | 41.5 | 65.5 | 72 | 92 | 65 | 30 | 80 | 36 | 50 | 11х11 | 14 | 147 | 40 | M5x8 | M6x10 |
| PA-DA(SA)-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 | 50 | 70 | 14х14 | 18 | 168 | 40 | M6x10 | M8x13 |
| PA-DA(SA)-083 | 46 | 57 | 98.5 | 108.7 | 128.7 | 92 | 30 | 80 | 50 | 70 | 17х17 | 21 | 204 | 40 | M6x10 | M8x13 |
| PA-DA(SA)-105 | 57.5 | 64 | 122.5 | 133 | 153 | 109.5 | 30 | 80 | 70 | 102 | 22х22 | 26 | 268 | 40 | M8x13 | M10x16 |
| PA-DA(SA)-130 | 67.5 | 74.5 | 145.5 | 155 | 185 | 127.5 | 30 | 130 | 70 | 102 | 22х22 | 26 | 301 | 55 | M8x13 | M10x16 |
| PA-DA(SA)-140 | 75 | 77 | 161 | 172 | 202 | 137.5 | 30 | 130 | 102 | 125 | 27х27 | 31 | 390 | 55 | M10x16 | M12x20 |
| PA-DA(SA)-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 | 102 | 125 | 27х27 | 31 | 458 | 55 | M10x16 | M12x20 |
| PA-DA(SA)-210 | 113 | 113 | 235.5 | 255 | 285 | 210 | 30 | 130 | - | 140 | 36х36 | 40 | 532 | 80 | - | M16x25 |
| PA-DA(SA)-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 | - | 165 | 46х46 | 50 | 718 | 80 | - | M20x25 |
Dimensional sketch of the Elephant double-acting rotary pneumatic actuators PA-DA-XXX
Overall and installation dimensions of the Elephant ALS200D magnetic switch
| A, mm | B, mm | C, mm | E, mm | d, mm |
| 75 | 30 | 51 | 40 | 5.5 |
Materials of parts of rotary disc valves Elephant WBV1132N-2W-Fb-H DN40-300 16 bar
| № | Name | Material |
| 1 | Body | GG25 cast iron |
| 2 | Seat Seal | NBR |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Stem | SS 416 stainless steel |
| 5 | Pin | SS 416 stainless steel |
| 6 | Bushing | PTFE |
| 7 | Sealing Ring | NBR |
| 8 | Plate | Carbon steel |
Sketch of materials for rotary disc valves Elephant WBV1132N-2W-Fb-H DN40-300 16 bar
Design of Elephant double-acting rotary pneumatic actuators PA-DA-XXX
| № | Part Name | Material |
| 1 | Indicator Screw | ABS plastic |
| 2 | Position Indicator | ABS plastic |
| 3 | Spring Clamp | 304 stainless steel |
| 4 | Metal Washer | 304 stainless steel |
| 5 | Thrust Washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Thrust Washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper Shaft Seal Ring | NBR |
| 10 | Upper Shaft Anti-Friction Ring | Engineering plastic |
| 11 | Shaft | Nickel-plated alloy steel |
| 12 | Lower Shaft Anti-Friction Ring | Engineering plastic |
| 13 | Lower Shaft Seal Ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting Screw Seal Ring | NBR |
| 16 | Adjusting Screw Washer | 304 stainless steel |
| 17 | Adjusting Screw Lock Nut | 304 stainless steel |
| 18 | Adjusting Screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston Guide Pad | Engineering plastic |
| 21 | Piston Anti-Friction Ring | Engineering plastic |
| 22 | Piston Seal Ring | NBR |
| 23 | Spring Kit | Spring steel |
| 24 | Cover Seal Ring | NBR |
| 25 | End Cover | Cast aluminum with polyester coating |
| 26 | Cover Screw | 304 stainless steel |
| 27 | Locking Screw | 304 stainless steel |
| 28 | Adapter | Carbon steel |
Sketch of Elephant double-acting rotary pneumatic actuators PA-DA-XXX
