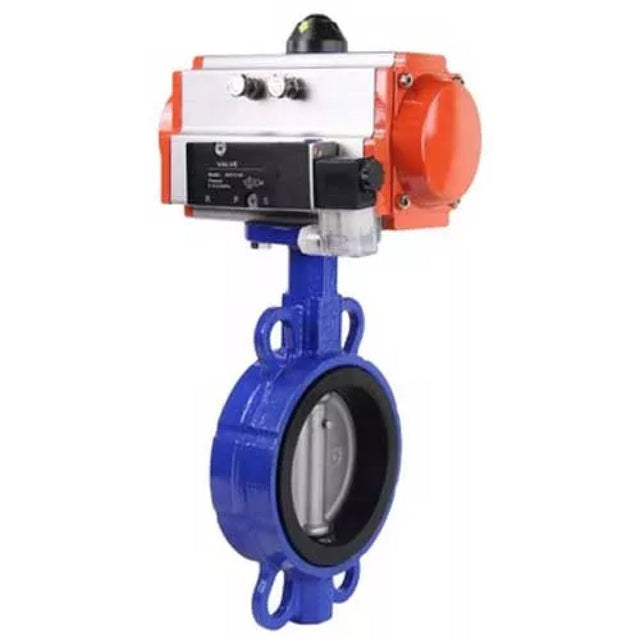

Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, avec actionneur pneumatique avec ressorts de rappel PA-SA, 4V320-10 220V
Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, avec actionneur pneumatique avec ressorts de rappel PA-SA, 4V320-10 220V - DN40 / 16 bars está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The WBV1632E-2W-Fb butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
PA-SA pneumatic actuators are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic actuators 4V320-10 220 V are used for control in pneumatic systems having NAMUR docking surface, to install the actuators through through holes in the body.
Technical parameters of Water Butterfly Valve Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-10 220V:
| Nominal diameter DN, mm | 40 - 300 |
| Nominal pressure PN, bar | 16 |
| Working medium temperature t, ⁰C | -20 to +110 |
| Working medium | water, steam, aggressive media and liquids with abrasive content (cement, sand, alumina, etc.) |
| Flow direction | double-sided |
| Control type | DN40-200 - handle |
| DN250-300 - reducer | |
| Pipeline connection | interflanged |
| Body material | cast iron QT450 |
| Sealing material | EPDM with wear resistant coating |
| Service life, years | 10 |
Butterfly valves WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-10 220V
Dimensions and dimensions of butterfly valves Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-10 220V:
| DN | L, mm | H, mm | H1, mm | D2, mm | D1, mm | n-d, mm |
| 40 | 43 | 147 | 70 | 92 | 125 | 4- Ø23 |
| 50 | 43 | 147 | 70 | 92 | 125 | 4- Ø23 |
| 65 | 46 | 155 | 76 | 110 | 145 | 4- Ø23 |
| 80 | 46 | 164 | 92 | 121 | 160 | 8- Ø20 |
| 100 | 52 | 175 | 106 | 153 | 180 | 4- Ø23 |
| 125 | 56 | 194 | 119 | 176 | 210 | 4- Ø23 |
| 150 | 56 | 206 | 132 | 207 | 240 | 4- Ø25 |
| 200 | 60 | 237 | 162 | 259 | 295 | 4- Ø25 |
| 250 | 68 | 282 | 200 | 316 | 355 | 4-Ø28 |
| 300 | 78 | 311 | 225 | 370 | 410 | 4-Ø28 |
Sketch Butterfly valves WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-10 220V
Materials of butterfly valves Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-10 220V:
| № | Part name | Material |
| 1 | Body | cast iron QT450 |
| 2 | Disk | 316L stainless steel |
| 3 | Seat seal | EPDM+ wear resistant material (siliclone+graphite) |
| 4 | Stem | 2Cr13 steel |
Sketch of parts and materials Butterfly valves WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-10 220V
Technical data of SA pneumatic actuators
| Design | with return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, ⁰C | - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air) |
| Adjustment range | ± 5 ° for rotation at 0 ° and 90 ° |
| Manual override | is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts are anti-corrosion coated) |
Materials of SA pneumatic actuator parts:
| № | Name | Material |
| 1 | Enclosure | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Material sketch of SA pneumatic actuator
Technical parameters of pneumatic valve 4V320-10 220V:
| Name | meaning |
| Type of pneumatic valve | slide valve |
| Working pressure, bar | 1.5 ÷ 1.8 |
| Supply voltage, V | 220 V |
| Total power, Va | 4.5 |
| Control | double-sided electromagnetic |
| Frequency of operation, cycle/sec | 5 |
Pneumatic valve 4V320-10 220V
Dimensions and dimensions of pneumatic valve 4V320-10 220V:
| Pneumatic valve model | 4V320-10 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve 4V320-10 220V
