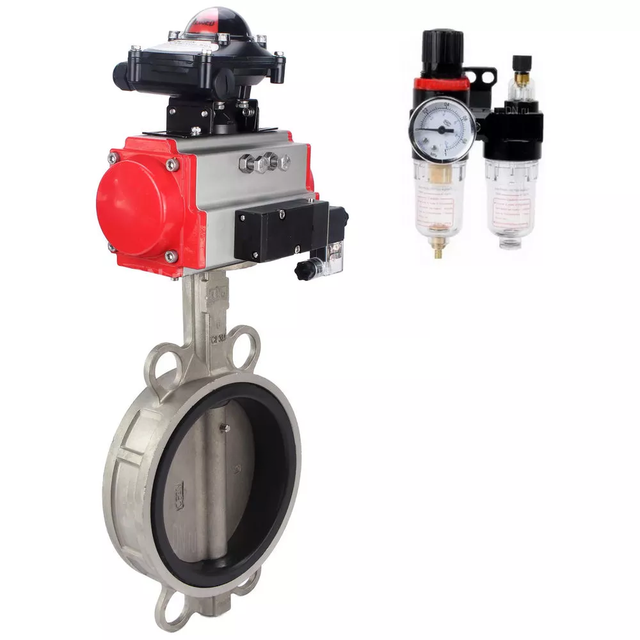

Water Butterfly Valve Elephant WBV3232V-2W-Fb-H, body - stainless steel 316L, disk - stainless steel 316L, seal - VITON, with pneumatic drive PA-DA, with pneumatic distributor 4V320-10 220V, LSU APL-210N, ATU AFC2000

Elephant WBV3232V-2W-Fb-H butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic valve Elephant 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The Elephant  APL-210N limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualise the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of fault detection.

The AFC2000 air treatment unit is designed to clean compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 litres/minute to 10,000 litres/minute. The lubricator (oil atomiser) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic valves.

Technical parameters Rotary disc gate valves WBV3232V-2W-Fb-H, stainless steel 316L, seal - VITON

Dimensions and dimensions of Butterfly valves Elephant WBV3232V-2W-Fb-H, stainless steel 316L, seal - VITON

Sketch of rotary disc gate valves Elephant WBV3232V-2W-Fb-H, stainless steel 316L, seal - VITON

Table of parts and materials for butterfly disc gate valves Elephant WBV3232V-2W-Fb-H, stainless steel 316L, seal - VITON
