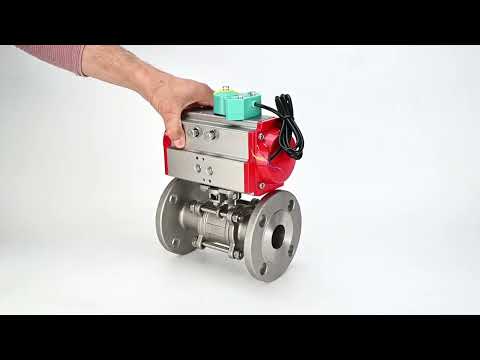

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar full bore, flanged, body - 304 stainless steel, seal - PTFE, with pneumatic drive PA-DA and ALS200D magnetic switch

€190,06
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shut-off valves in heating, water supply, steam, fuel, and compressed air and neutral gas systems. Valves of this series can be installed in systems that transport liquid and gaseous media (water, oil, steam, air, alcohols, glycol, etc.) that are non-aggressive to the valve materials.
Principle of operation: The working flow is shut off by a locking element, which is a ball with a through cylindrical hole. The ball is rotated around its axis using a handle mounted on the body. To completely shut off the flow, it is sufficient to turn it 90 degrees.
PA-DA-x double-acting pneumatic actuators use two ports to supply the control medium and create movement in both directions, both for opening and closing the valve. One port is used to move the piston in one direction, and the other is used to move it in the opposite direction.
The Elephant ALS200D magnetic switch is designed to convert the end positions of pneumatic actuators or shut-off valves into electrical signals. The magnetic switch operates based on the activation of two independent, fully sealed magnetic sensors located inside a U-shaped housing.





Technical specifications of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar

Characteristics Value
Nominal diameter 15-100 mm
Tightness class A
Seal type PTFE / Fluoroplastic / Teflon
Connection flanged
Valve device type two-way
Valve ball bore full-bore
Control type double-acting pneumatic actuator
Working fluid temperature -20 to +180 °C
Mediment water, steam, petroleum products, liquids, neutral media, gaseous media
Application area water supply, heat supply, pneumatic systems
Country of manufacture China
Service life 10 years





Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Characteristics Value
Pneumatic drive type double-acting
Nominal pressure 12 bar
Working pressure 2...8 bar
Maximum particle diameter less than 30 µm2
Working medium filtered compressed air or non-aggressive gases, oils
Adjustment range ± 5° for rotation at 0° and 90°





Technical specifications of the Elephant ALS200D magnetic switch

Characteristics Value
Housing Material PP-GF30 plastic
Housing Protection Rating IP67
Compatible Devices pneumatic actuators, any actuators with 90° shaft rotation
Shaft Angle Indicator 0-90°
Contact Type NO
Sensor Interaction Type magnetic
Sensor Interaction Distance 1÷6 mm
On/Off Switching Frequency 0÷4.8 kHz
Visual Indication two LEDs
Rated Voltage 5÷240 V AC/DC
Rated Current 0÷300 mA
Rated Power 10 W
Ambient Temperature -40 to +85 °C
Cable Terminal 4 wires (2 wires/open, 2 wires/close)
Weight 0.14 kg
Warranty 12 months
Service Life 10 years





Overall and installation dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar

DN H1, mm H2, mm Dm, mm Dk, mm L, mm ØC, mm
DN40/50 66 126 73 90 43 125
DN50 66 126 73 90 43 125
DN65 74 137 85 103 46 145
DN80 91 146 100 116 46 160
DN100 105 166 131 151 52 180
DN125 121 182 155 174 56 210
DN150 134 198 184 205 56 240
DN200 169 223 234 255 60 295
DN250 200 270 288 315 68 355
DN300 240 299 340 375 78 410

Sketch of the dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar





Overall and installation dimensions of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm I, mm J, mm M, mm N, mm Z, mm d, mm K L
PA-DA(SA)-052 30 41.5 65.5 72 92 65 30 80 36 50 11х11 14 147 40 M5x8 M6x10
PA-DA(SA)-065 36 47 81 88 108 72 30 80 50 70 14х14 18 168 40 M6x10 M8x13
PA-DA(SA)-083 46 57 98.5 108.7 128.7 92 30 80 50 70 17х17 21 204 40 M6x10 M8x13
PA-DA(SA)-105 57.5 64 122.5 133 153 109.5 30 80 70 102 22х22 26 268 40 M8x13 M10x16
PA-DA(SA)-130 67.5 74.5 145.5 155 185 127.5 30 130 70 102 22х22 26 301 55 M8x13 M10x16
PA-DA(SA)-140 75 77 161 172 202 137.5 30 130 102 125 27х27 31 390 55 M10x16 M12x20
PA-DA(SA)-160 87 87 184 197 227 159 30 130 102 125 27х27 31 458 55 M10x16 M12x20
PA-DA(SA)-210 113 113 235.5 255 285 210 30 130 - 140 36х36 40 532 80 - M16x25
PA-DA(SA)-270 147 147 299 326 356 273 30 130 - 165 46х46 50 718 80 - M20x25

Поворотные пневмоприводы DN.ru двойного действия PA-DA-XXX

Dimensional sketch of the Elephant double-acting rotary pneumatic actuators PA-DA-XXX





Overall and installation dimensions of the Elephant ALS200D magnetic switch

A, mm B, mm C, mm E, mm d, mm
75 30 51 40 5.5
Dimensional sketch of the Elephant ALS200D magnetic switch





Materials for ball valve parts Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar

№ Part name Material Quantity
1 Housing CF8 /AISI 304 stainless steel 1
2 Shut-off ball AISI 304 stainless steel 1
3 Bolt SS 201 stainless steel 4~6
4 Nut SS 201 stainless steel 6~12
5 Seal PTFE 1
6 Stem AISI 304 stainless steel 1
7 Packing gland SS 201 stainless steel 1
8 Cover CF8 /AISI 304 stainless steel 2
9 Seat rings PTFE 2
10 Thrust washer PTFE 1
11 Nut SS 201 stainless steel 1
12 Handle SS 201 stainless steel 1
13 Handle shell PVC 1
14 Lock SS 201 stainless steel 1

Sketch of materials for ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16-40/25/16 bar





Design of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

№ Part Name Material
1 Indicator Screw ABS plastic
2 Position Indicator ABS plastic
3 Spring Clamp 304 stainless steel
4 Metal Washer 304 stainless steel
5 Thrust Washer Engineering plastic
6 Housing Extruded aluminum alloy with hard anodizing
7 Thrust Washer Engineering plastic
8 Stopper Alloy steel
9 Upper Shaft Seal Ring NBR
10 Upper Shaft Anti-Friction Ring Engineering plastic
11 Shaft Nickel-plated alloy steel
12 Lower Shaft Anti-Friction Ring Engineering plastic
13 Lower Shaft Seal Ring NBR
14 Plug NBR
15 Adjusting Screw Seal Ring NBR
16 Adjusting Screw Washer 304 stainless steel
17 Adjusting Screw Lock Nut 304 stainless steel
18 Adjusting Screw 304 stainless steel
19 Piston Die-cast aluminum alloy
20 Piston Guide Pad Engineering plastic
21 Piston Anti-Friction Ring Engineering plastic
22 Piston Seal Ring NBR
23 Spring Kit Spring steel
24 Cover Seal Ring NBR
25 End Cover Cast aluminum with polyester coating
26 Cover Screw 304 stainless steel
27 Locking Screw 304 stainless steel
28 Adapter Carbon steel

Sketch of Elephant double-acting rotary pneumatic actuators PA-DA-XXX

Especificaciones
  • País de origen
    China
  • Temperatura máxima permitida
    180 °C
  • Tipo de conexión
    Flanged
  • Entorno operativo
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Tipo de sello
    PTFE / Fluoroplastic / Teflon
  • Material de bloqueo
    Stainless steel
  • Interruptores de límite
    No
  • Tipo de actuador neumático
    double-acting
