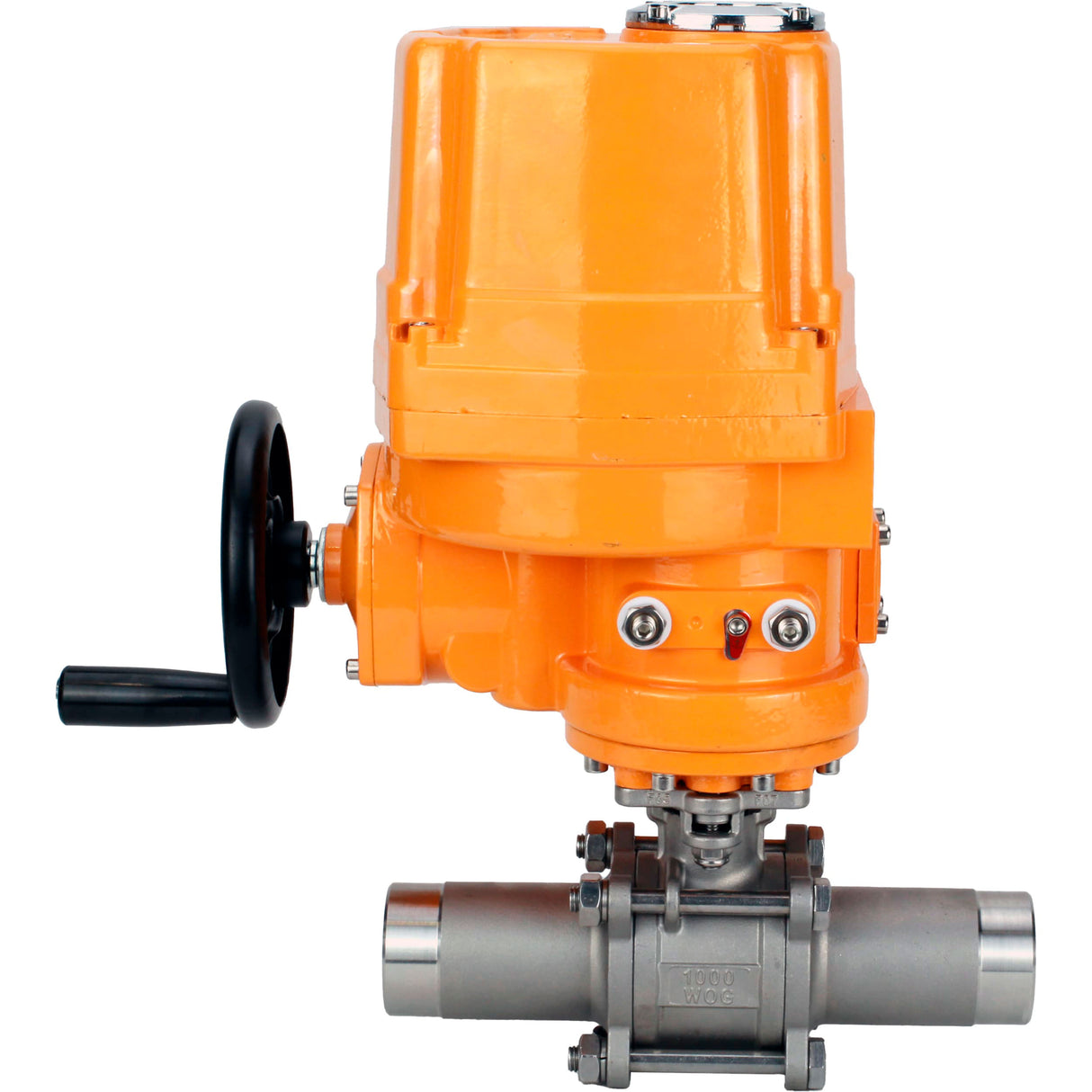

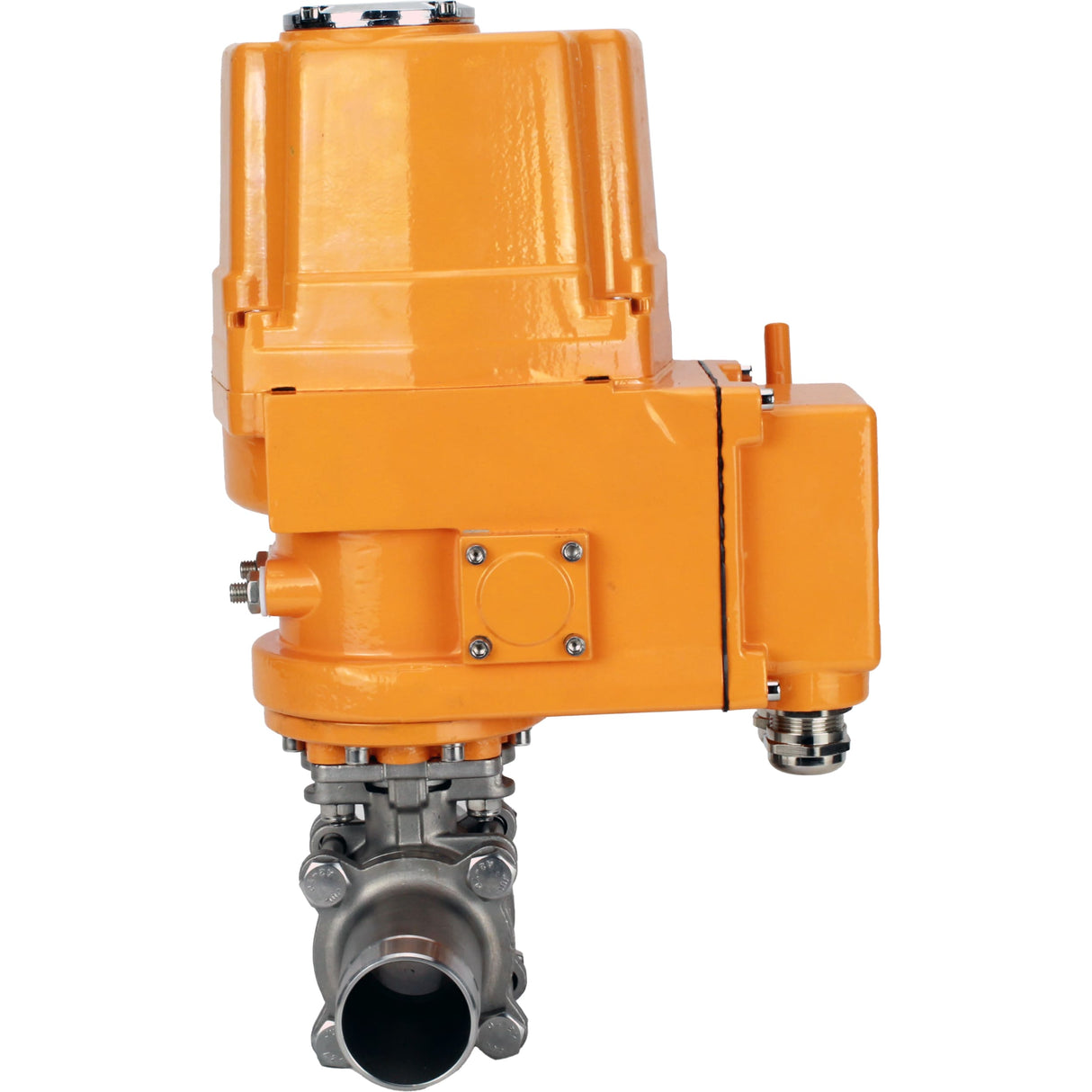

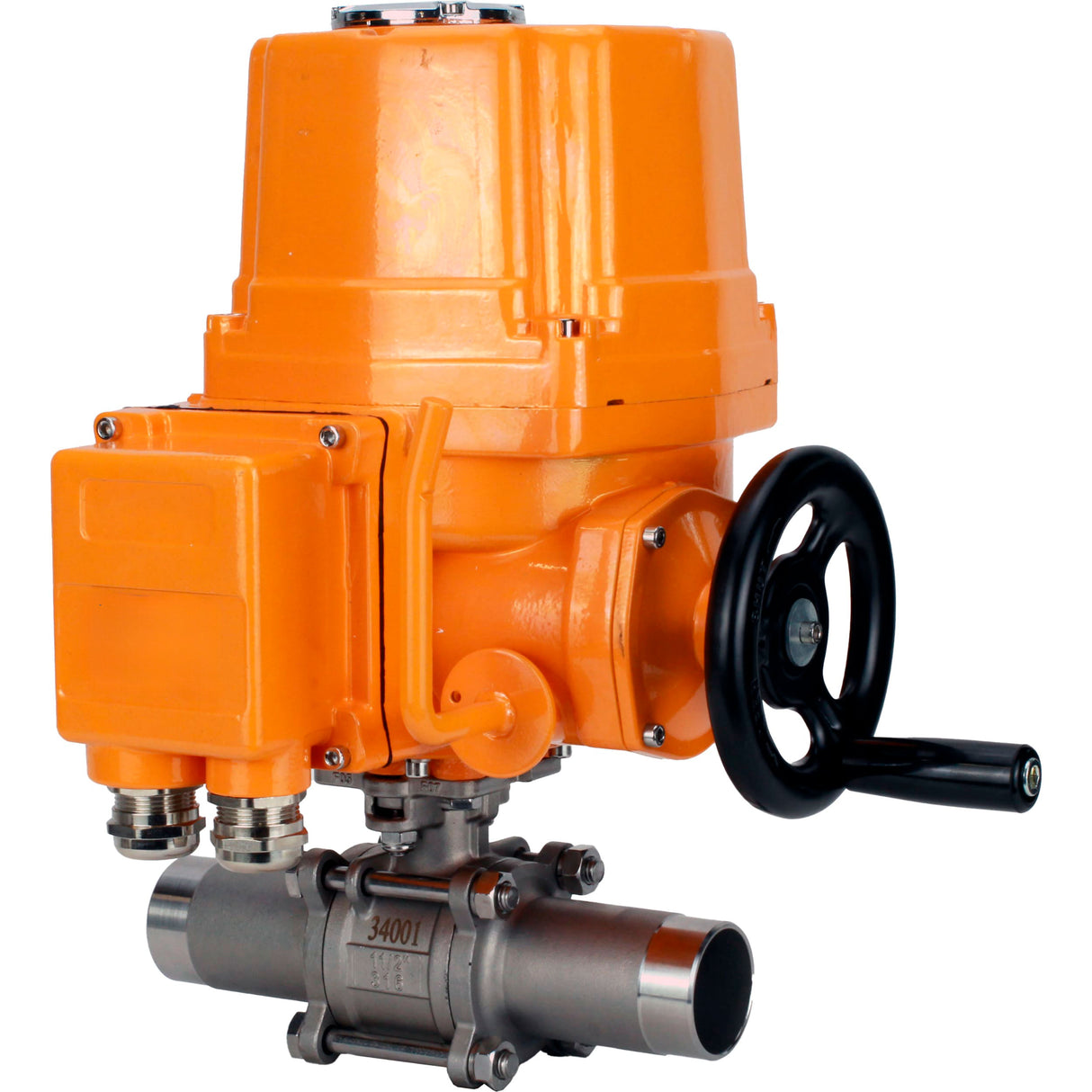

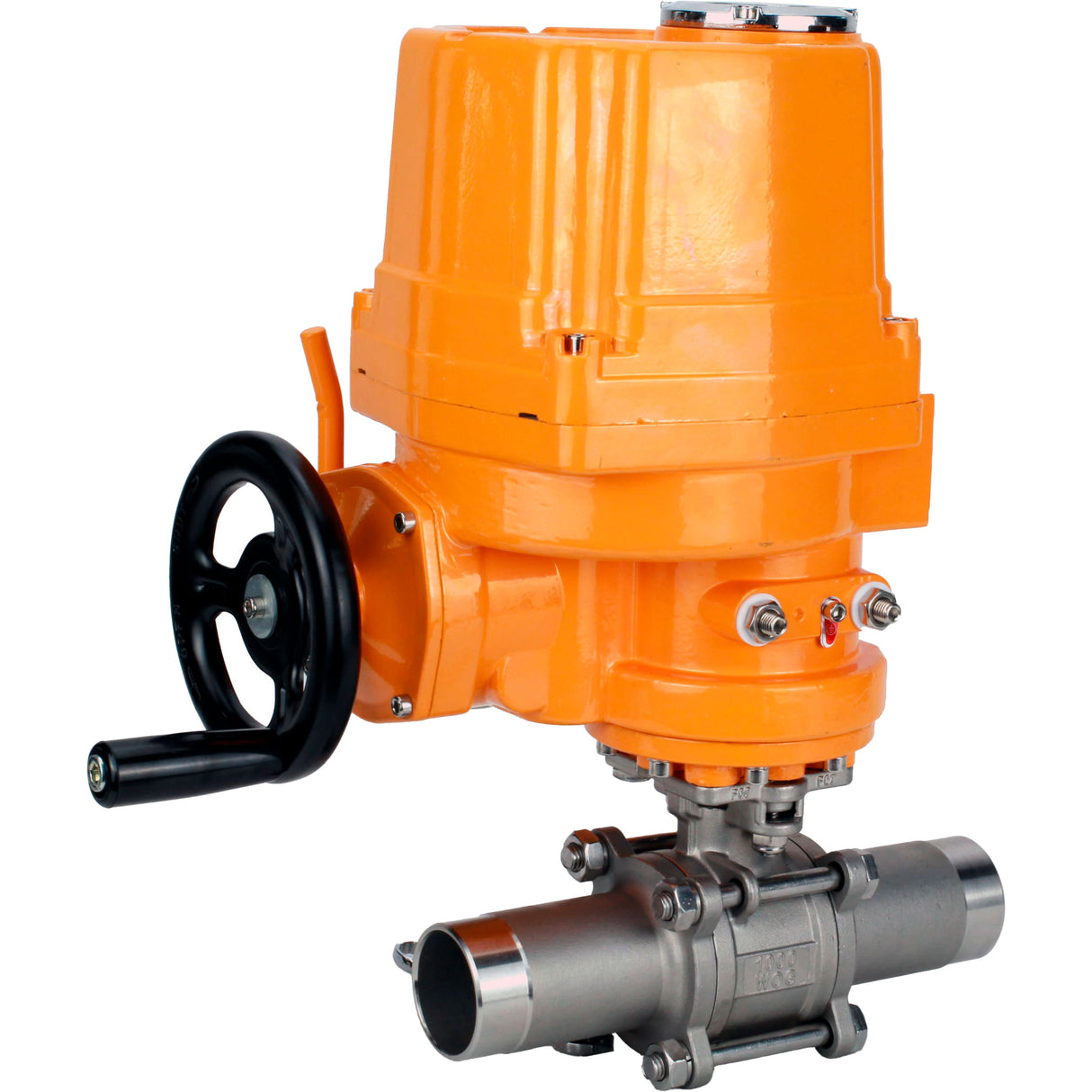

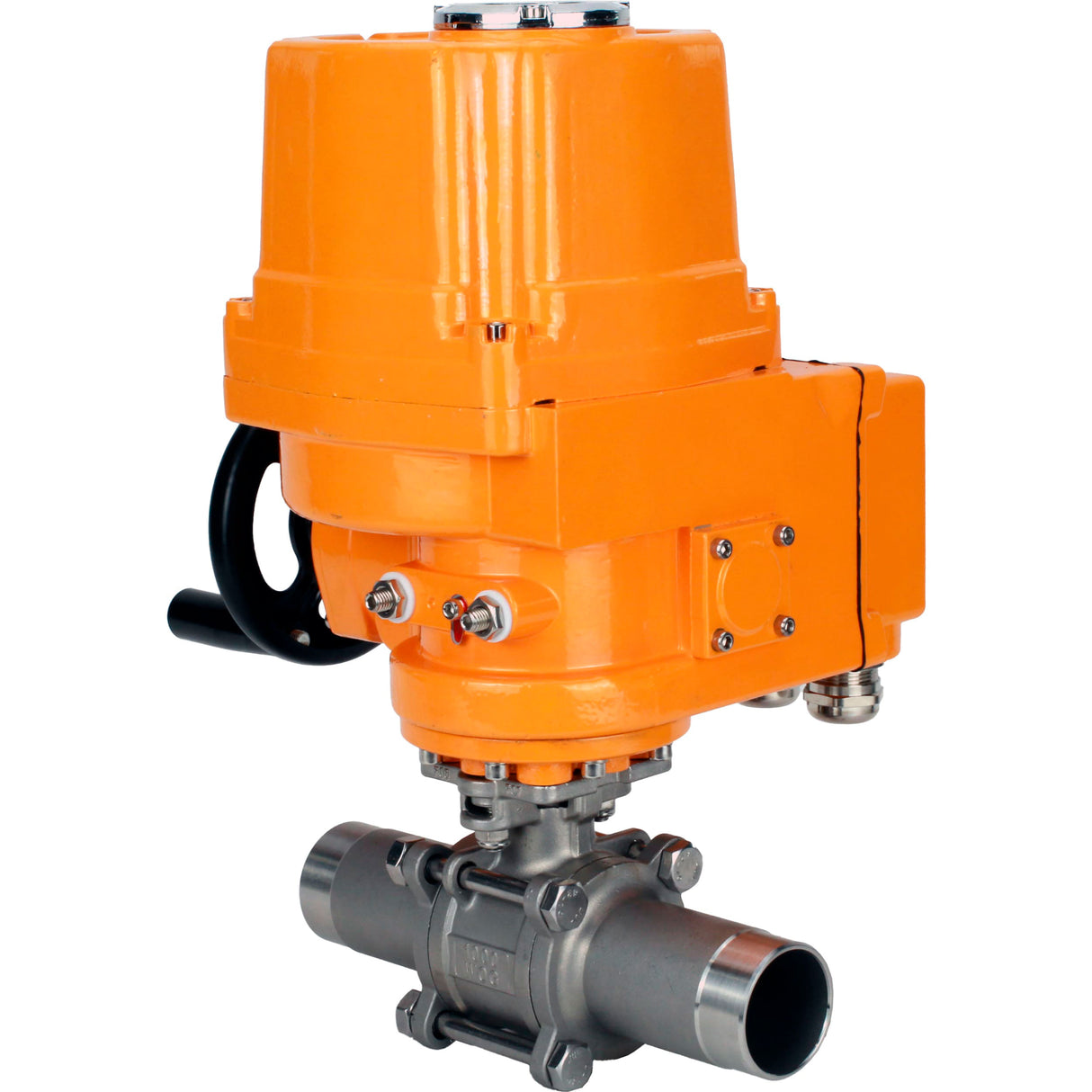

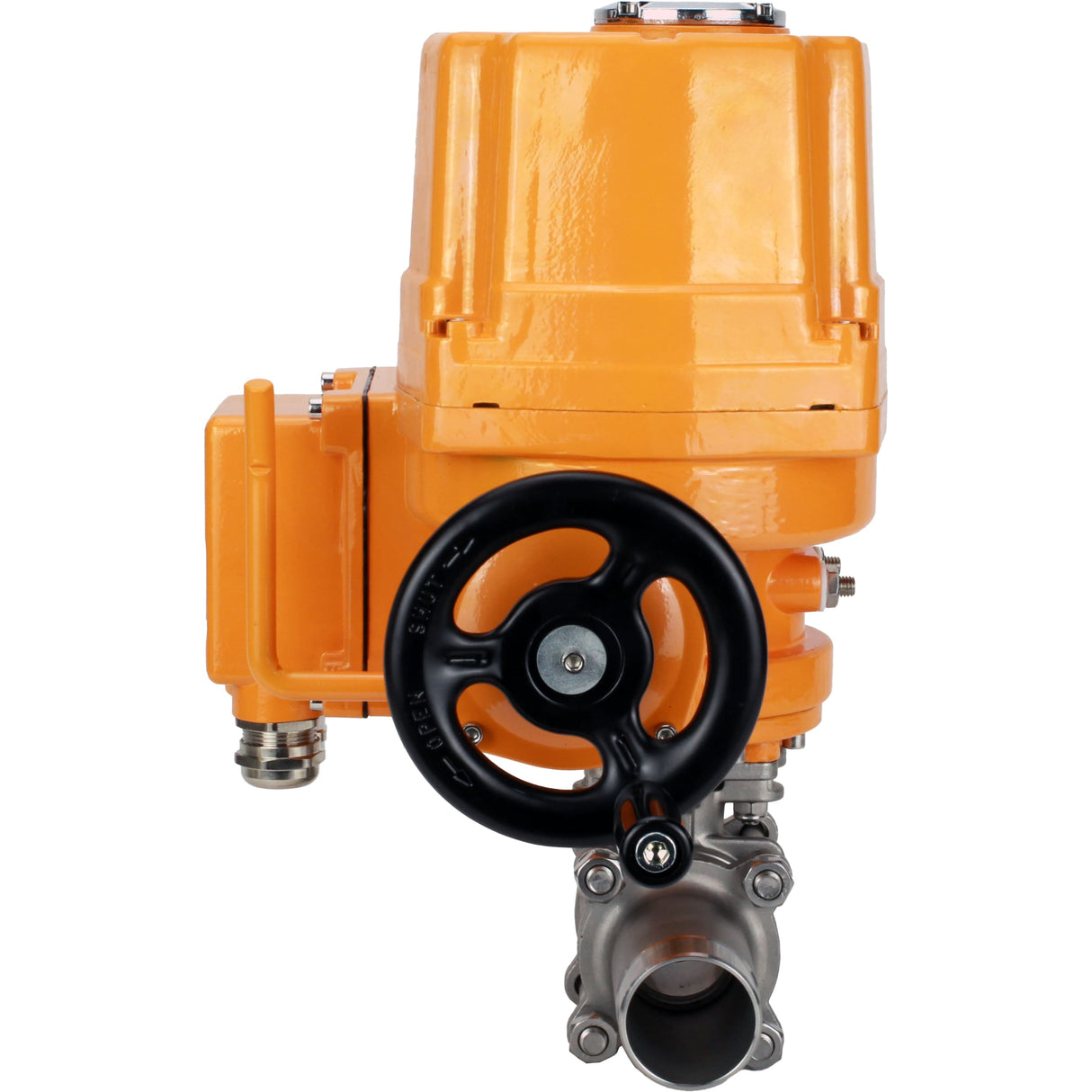

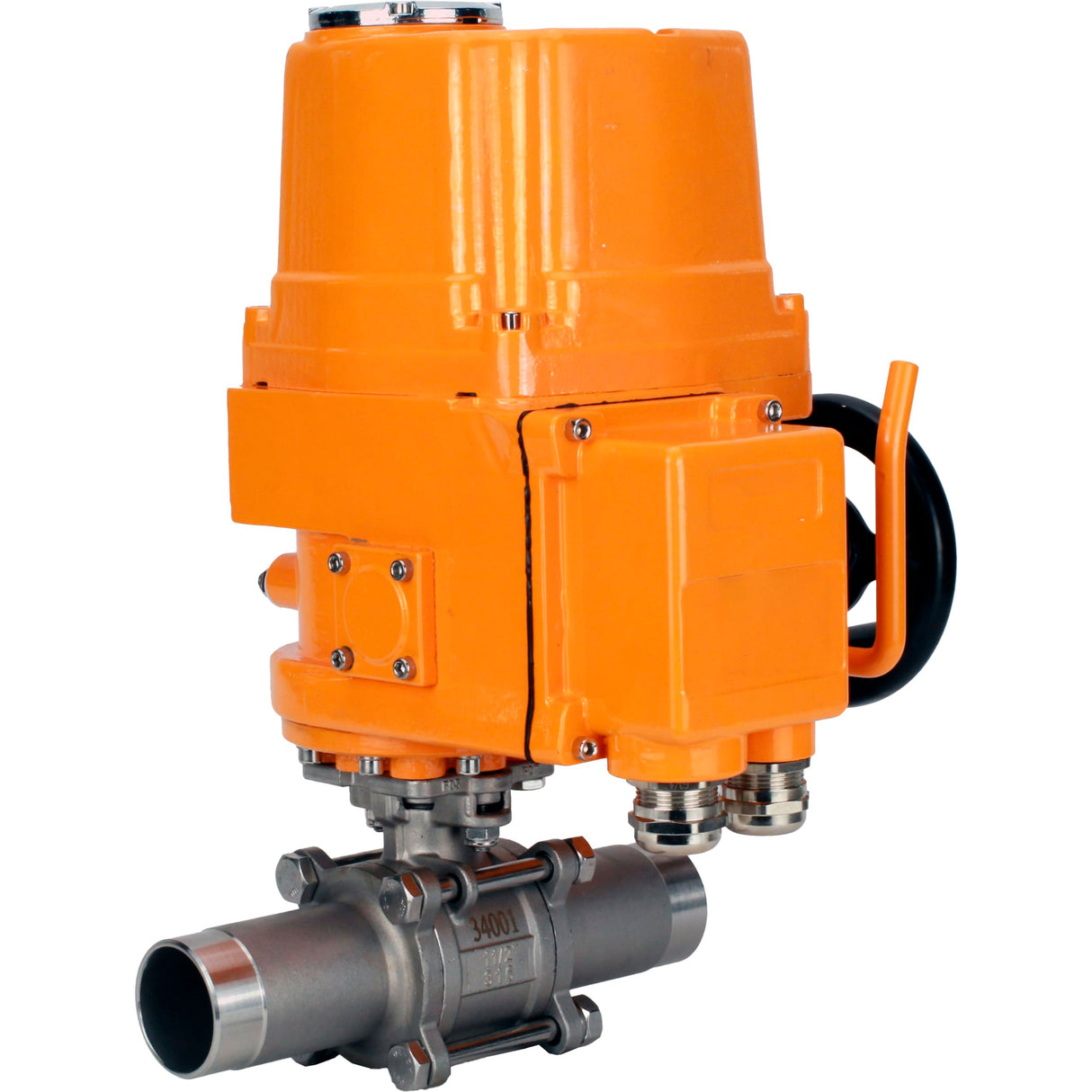

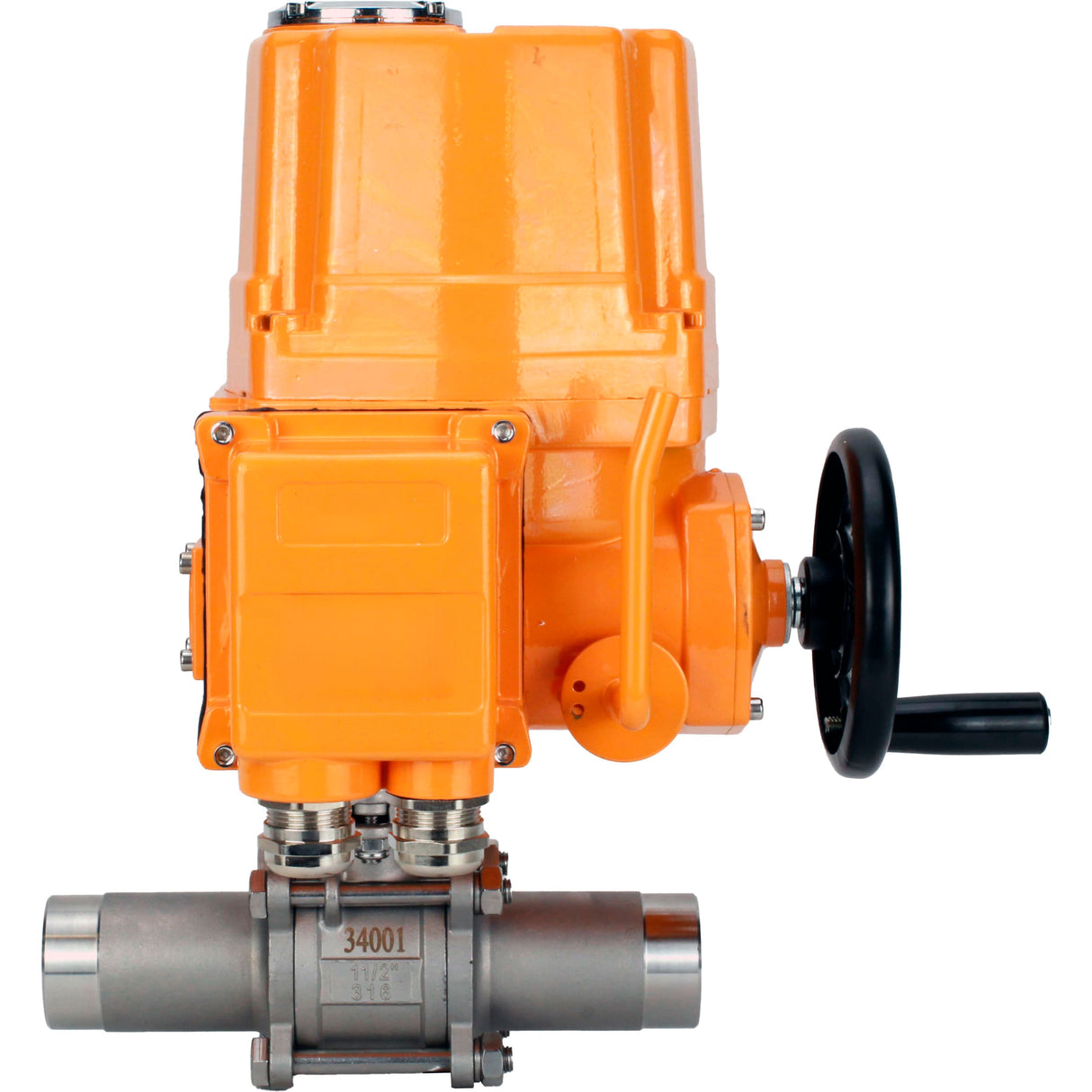

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V
Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V - DN10 / 63 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Explosion-proof quarter-turn electric actuators are designed for remote and local control of the rotation of a shut-off element by 0° ~ 270° of such types as a ball valve, etc. They are widely used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc. They are suitable for use in industrial explosion-hazardous areas.
Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V
| Name | Meaning |
| Connection type | for welding |
| Control type | With electric drive |
| Application | water supply, heat supply, industry |
| Crane ball passage | full bore |
| Climate performance | U1 |
| Working environment temperature, °C | from -20 to 180 |
| Joining | for welding |
| Control | Electric drive 220V |
| Sealing class | A |
| Water intake | No |
| Type of crane device | two-way |
| Working medium | water, steam, petroleum products, neutral media, gaseous media |
| Warranty, g. | 1 |
| Service life, years | 5 |
Sketch of overall dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V
Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V
| Model | L, mm | L1, mm | H, mm |
| DN10 | 130 | 255 | 265 |
| DN15 | 150 | 255 | 265 |
| DN20 | 155 | 255 | 265 |
| DN25 | 186 | 255 | 265 |
| DN32 | 195 | 255 | 265 |
| DN40 | 231 | 255 | 265 |
| DN50 | 243 | 255 | 265 |
| DN65 | 290 | 280 | 270 |
| DN80 | 302 | 280 | 270 |
| DN100 | 326 | 310 | 310 |
| DN125 | 360 | 310 | 310 |
Sketch of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V
Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive Elephant QT-EX-EM-O2-220VAC-U1 220V
| Item No. | Part name | Material |
| 1 | Frame | stainless steel 304 |
| 2 | Side element (2 pcs) | stainless steel 304 |
| 3 | Ball | stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | stainless steel 304 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Electric drives Elephant
Technical parameters of electric drives:
| Name | Meaning |
| Supply voltage | 220V |
| Ambient temperature | from -20°C to 60°C |
| Availability of manual backup | steering wheel |
| Limit switches | There is |
| Degree of protection of the case | IP67 |
Sketch of dimensions and sizes of electric drives
Dimensions and sizes of electric drives:
| Model | L | L1 | H |
| EX-010EM | 240 | 68 | 270 |
| EX-015EM | 240 | 68 | 270 |
| EX-020EM | 260 | 75 | 280 |
| EX-030EM | 290 | 82 | 320 |
| EX-050EM | 290 | 82 | 320 |
| EX-080EM | 333 | 82 | 320 |
| EX-100EM | 333 | 93 | 350 |
| EX-160EM | 333 | 93 | 350 |
| EX-200EM | 333 | 93 | 350 |
Electric drive device:
| Item No. | Details | Material |
| 1 | Drive casing | Aluminum |
| 2,23,33,38,40,64 | Shaft | Steel 45 |
| 3,39,46,48,51,66 | Sealing ring | Oil resistant rubber |
| 4.27 | bracket | Steel Q235 |
| 5 | Insulation gasket | Textolite |
| 6,9,16 | Bracket mounting screw | Steel 1Cr18Ni9Ti |
| 7.1 | Plate | Steel Q235 |
| 8 | Screw plug | Aluminum |
| 11,14 | Limit switch cam | Steel Q235 |
| 12,13 | Limit switch group | XK06-101-2530 |
| 15.32 | Sleeve | Brass H62 |
| 16,30,35,41,44,61 | Screw | Steel 1Cr18Ni9Ti |
| 17,18 | Disk | Steel Q235 |
| 19 | Mechanical limiting cam | Steel Q235 |
| 20 | Drive casing | Aluminum |
| 21.25 | Mounting screw | Steel 35 |
| 22 | Sight glass seal | Steel 1Cr18Ni9Ti |
| 24 | Indication plate | Aluminum |
| 26 | Capacitor | CEM 2GR 220nJ |
| 28 | Terminal block | 1Pcs T |
| 29 | Heating element | NTA-1/005 |
| 31,36 | Washer | Stainless steel |
| 34 | Through cover | MHQ50 |
| 37,39 | Lock washer, sealing ring | Steel 1Cr18Ni9Ti |
| 42 | Torque switch group | XK06-101-2530 |
| 43,48 | Torque switch mechanism | Steel Q235 |
| 45 | Flywheel cover | Aluminum |
| 47.69 | First stage gear | Zinc alloy ZQAL10-5-5 |
| 49 | Limit screw | Steel 35 |
| 50 | Hairpin | Steel 1Cr18Ni9Ti |
| 52 | Clutch handle | Steel 45 |
| 53 | Fork block | Aluminum |
| 54 | Thrust washer | Zinc alloy |
| 55,56 | Separator fork | Zinc alloy ZQAL10-5-5 |
| 57 | Retaining ring | Steel 1Cr18Ni9Ti |
| 58.6 | Disk, main gear | Zinc alloy ZQAL10-5-5 |
| 59.68 | Second and first stage worm | Steel 40Cr |
| 62,67 | Seal | Aluminum |
| 63 | Motor | - |
| 65 | Clutch | Steel ZG20 |
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Steam, Petroleum Products, Neutral Media, Gaseous Media
-
Tipo de sello
-
Interruptores de límite
-
Modelo del actuador
Reseñas (0)
Reseñas (0)
Ball valve ELEPHANT BVxxP 3pc -FP-W-ISO-H LONG DN10-150 63-16 bar stainless steel full bore welded with ISO-flange and handle
Electric quarter-turn actuator ELEPHANT QT-EX-xEM-O2-x-U1 explosion-proofPago y seguridad
