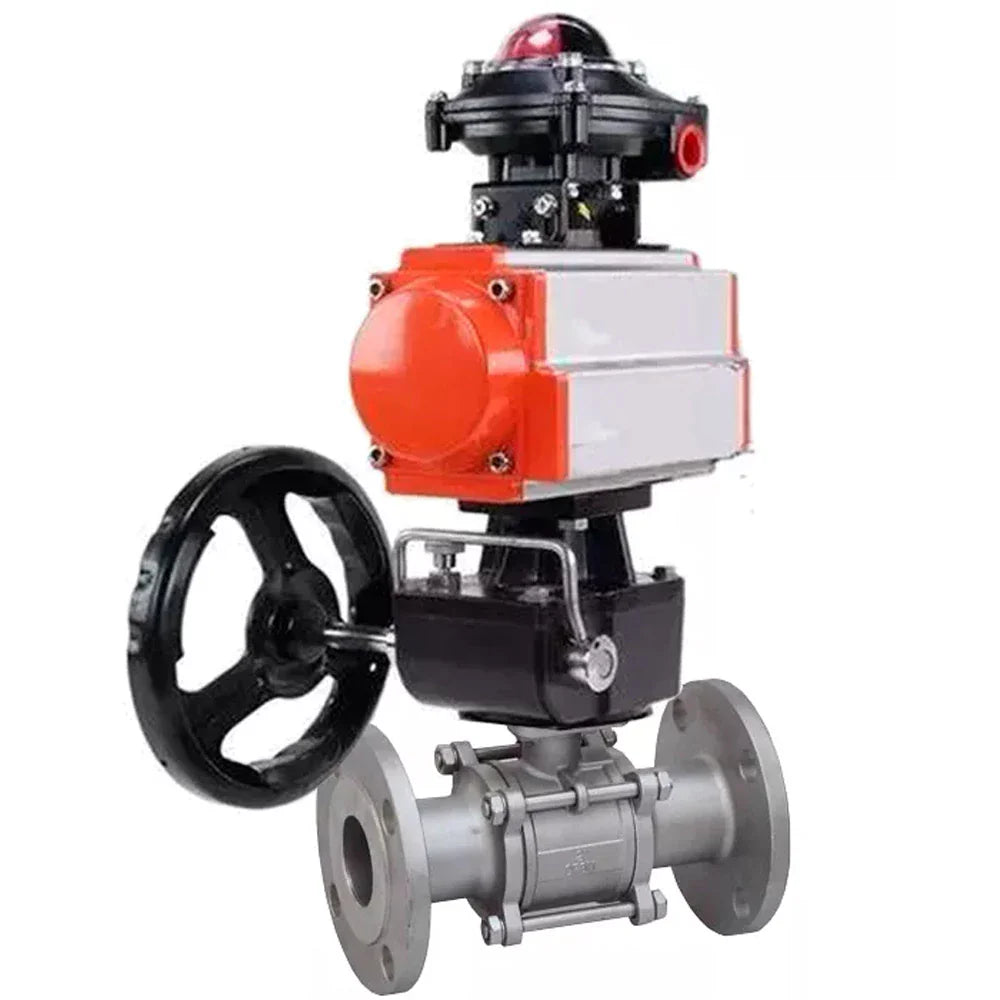

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA LSU APL-210N, manual backup MON3-700-T38-ISO
Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA LSU APL-210N, manual backup MON3-700-T38-ISO - DN100 / 25 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heating, water supply, steam, fuel, and compressed air and neutral gas pneumatic systems. BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems that transport liquid and gaseous media (water, steam, petroleum products, liquid media, neutral media, gaseous media) that are non-aggressive to the valve materials.
The Elephant PA-DA pneumatic actuator is designed to automate the control process of industrial shut-off valves - gate valves, ball valves. Elephant pneumatic actuators are designed for indoor and outdoor use. All internal and external parts have an anti-corrosion coating.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H
| Name | Value |
| Working medium temperature, °C | from -20 to 150 |
| Valve type | two-way |
| Application | water supply, heat supply, pneumatic systems |
| Working medium | water, steam, petroleum products, liquid media, neutral media, gaseous media |
| Connection to pipeline | flanged |
| Water supply | no |
| Type of passage section | full bore |
| Tightness class | A |
| Control type | With pneumatic drive |
| Connection | flanged |
| Control | double-acting pneumatic drive |
| End switches | no |
| Pneumatic distributor | yes |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H
| Dn | D | L | L1 | F | G | E |
| 65 | 185 | 290 | 204 | 128,7 | 77 | 133 |
| 80 | 200 | 310 | 204 | 128,7 | 77 | 133 |
| 100 | 235 | 350 | 268 | 153 | 77 | 180 |
Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H
Table of ball valve parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H
| № | Part name | Quantity, pcs | Material |
| 1 | Flange part | 2 | AISI 316 stainless steel |
| 2 | Pin | 4/6/8 | AISI 304 stainless steel |
| 3 | Nut | 8/12/16 | AISI 304 stainless steel |
| 4 | Gasket | 8/12/16 | AISI 304 stainless steel |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | AISI 316 stainless steel |
| 7 | Housing | 1 | AISI 316 stainless steel |
| 8 | Thrust bearing | 1 | PTFE |
| 9 | Rod | 1 | AISI 316 stainless steel |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust ring | 1 | AISI 304 stainless steel |
| 12 | Positioning screw | 1 | AISI 304 stainless steel |
| 13 | Movable cover | 1 | AISI 304 stainless steel |
| 14 | Positioning bolt | 1 | AISI 304 stainless steel |
| 15 | Hex nut | 1 | AISI 304 stainless steel |
| 16 | Handle | 1 | SS 201 stainless steel + PVC |
| 17 | Locking pin | 1 | SS 201 stainless steel |
Sketch of crane parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H
Technical parameters of the PA-DA pneumatic actuator
| Name | Meaning |
| Model | PA-DA |
| Pressure, bar | 2 ÷ 8 |
| Availability of a manual backup | NO |
Table of parts and materials for PA-DA pneumatic actuator
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | 304 stainless steel |
| 4 | Metal washer | 304 stainless steel |
| 5 | Pressure washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Pressure washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper shaft seal ring | NBR |
| 10 | Upper shaft anti-friction ring | Engineering plastic |
| 11 | Shaft | Alloy steel Nickel-plated |
| 12 | Lower shaft anti-friction ring | Engineering plastic |
| 13 | Lower shaft seal ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting screw seal ring | NBR |
| 16 | Adjusting screw washer | 304 stainless steel |
| 17 | Adjusting screw lock nut | 304 stainless steel |
| 18 | Adjusting screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston guide plate | Engineering plastic |
| 21 | Piston anti-friction ring | Engineering plastic |
| 22 | Piston sealing ring | NBR |
| 23 | Spring set | Spring steel |
| 24 | Cover sealing ring | NBR |
| 25 | End cover | Die-cast aluminum with polyester coating |
| 26 | Cover screw | Stainless steel 304 |
| 27 | Lock screw | Stainless steel 304 |
| 28 | Adapter | Carbon steel |
Technical parameters of the Elephant APL-210N limit switch unit
| Name | Meaning |
| Limit switch block model | APL-210N |
| Service life, years | 10 |
Technical parameters of manual backups Elephant MON
| Name | Meaning |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Table of parts and materials of manual backup Elephant MON
| № | Name | Material |
| 1 | Pneumatic actuator mounting rod | 45 Steel |
| 2 | Sealing ring | EPDM |
| 3 | Retaining spring | Spring Steel |
| 4 | Upper end cap | Aluminum Alloy |
| 5 | Screw | 304 Steel |
| 6 | Retaining bracket (main rod) | 304 Steel |
| 7 | Housing | Aluminum Alloy |
| 8 | Sealing ring | EPDM |
| 9 | Reducer | Cast Iron |
| 10 | Transition coupling | Cast Iron |
| 11 | Reducer rod | Cast Iron |
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
-
Tipo de sello
-
Material de bloqueo
-
Interruptores de límite
-
Tipo de actuador neumático
