Ball valves Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore wafer, stai – Valve Elephant
Elephant  |  SKU: D160-47030

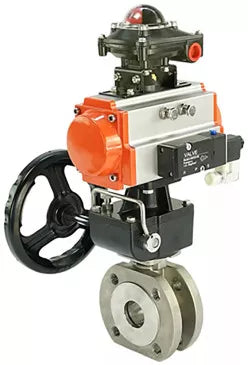

Ball valves Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore wafer, stainless steel SS316, PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with LSU APL-210N, with manual Doubler MON

€1.213,61
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore wafer, stainless steel SS316, PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with LSU APL-210N, with manual Doubler MON - DN100 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The HDM worm gear manual doubleturn actuator with reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off device: valve, crane or disk gate. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors, which monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. The visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.





Technical parameters Elephant BV3232P-FP-Fb-ISO-H 16 bar ball valves, full bore, flanged, SS316 stainless steel, sealing - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-08 220V, with LSU APL-210N, with manual Doubler MON:

Nominal diameter DN, mm 15 - 100
Nominal pressure PN, bar 16
Ambient temperature, ⁰C from -50 to +200
Working medium water, steam, oil products and other liquid or gaseous media neutral to the materials used
Connection to pipeline interflange
Control type manual (handle)
Ball passage full bore without constriction
Complement electric or pneumatic actuator can be installed (ISO 5211-2001)

Elephant BV3232P-FP-Fb-ISO-H 16 bar ball valves, full bore, flanged, SS316 stainless steel, sealing - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-08 220V, with LSU APL-210N, with manual Doubler MON





Dimensions and dimensions Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, sealing - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-08 220V, with LSU APL-210N, with manual Doubler MON:

DN d D2 D1 D T C N-MM L H W SxS А B IS05211
15 15 45 65 95 2 14 4-М12 42 70 130 9x9 50 36 F03/F05
20 20 58 75 105 2 16 4-М12 48 86 130 9x9 50 36 F03/F05
25 25 68 85 115 2 16 4-М12 50 93 165 11x11 50 42 F04/F05
32 32 78 100 140 2 16 4-М16 60 101 165 11x11 50 42 F04/F05
40 36 88 110 150 3 16 4-М16 65 121 190 14x14 70 50 F05/F07
50 46 102 125 165 3 18 4-М16 80 129 190 14x14 70 50 F05/F07
65 58 122 145 185 3 18 4-М16 110 140 255 17x17 102 70 F07/F10
80 73 138 160 200 3 20 8-М16 120 157 315 17x17 102 70 F07/F10
100 90 158 180 220 3 20 8-М16 150 180 325 17x17 102 70 F07/F10

Sketch of dimensions and dimensions Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-08 220 V, with LSU APL-210N, with manual Doubler MON





Parts and materials table Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-08 220V, with LSU APL-210N, with manual Doubler MON:

№ Parts Material
1 Nut Steel 304
2 Handle Steel 201+PVC
3 Washer Steel 304
4 Locking ring Steel 304
5 Thrust washer Steel 304
6 Gland washer Steel 304
7 Gland PTFE
8 Stop gasket PTFE
9 Rod Steel 316
10 Ball cover Steel 316
11 Ball Steel 316
12 Ball seal PTFE
13 Gasket PTFE
14 Body Steel 316

Parts and material sketch Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-08 220V, with LSU APL-210N, with manual Doubler MON





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of the handwheel MON:

Name Value
Climatic version U,UHL,T,OM
Degree of protection, IP 67
Connection type ISO 5211
Manual doubler MON





Dimensions and dimensions of the handwheel MON:

Model MON1-250-T26-ISO MON2-450-T28-ISO MON3-700-T38-ISO MON4-1200-T54-ISO
b1, mm 14 17 22 27
N, mm 22 22 28 32
b2, mm 14 17 22 27
M, mm 16 18 22 30
D1, mm Ø50 Ø70 Ø102 Ø102
4-M1, mm 4-M6 4-M8 4-M10 4-M10
D2, mm Ø70 Ø102 Ø125 Ø125
4-M2, mm 4-M8 4-M10 4-M12 4-M12
E, mm 70x70 95x95 114x114 129x129
D3, mm Ø50 Ø70 Ø102 Ø125
4-Ø1, mm 4-Ø6.5 4-Ø8.5 4-Ø10.5 4-Ø12.5
D4, mm Ø70 Ø102 Ø125 Ø140
4-Ø2, mm 4-Ø8.5 4-Ø10.5 4-Ø12.5 4-Ø16.5
A, mm 90 125 140 188.5
B, mm 55 64 71 93
ØC, mm Ø88 Ø110 Ø129 Ø174
F, mm 115 135 166 202
T, mm 44 62.5 70 94
Y, mm 145 178 212 280
H, mm 120 133 180 195
S, mm 53 56.5 68.7 84
K, mm 10 13 12.5 15
Ø hand wheel, mm 180 200 280 320
Sketch of dimensions and dimensions of the MON handwheel MON





MON handwheel materials:

№ Name Material
1 Stem for mounting the pneumatic actuator Steel 45
2 Sealing ring EPDM
3 Fixing spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Locking bracket (main rod) Steel 304
7 Housing Aluminum alloy
8 Sealing ring EPDM
9 Gear unit Cast iron BCh50
10 Transition coupling Cast iron BCh40
11 Gear stem Cast iron BCh40

Materials of the handwheel





Technical parameters of limit switch unit APL-210N:

Name Value
Model of limit switch unit APL-210N
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-210N





Dimensions and dimensions of the APL-210N limit switch unit:

Model H, mm L, mm B, mm D, mm D1, mm M
APL-210N 77 112 88 10 5 20x1.5





Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Especificaciones
  • País de origen
    China
  • Apertura de puerto
    full bore
  • Temperatura máxima permitida
    200 °C
  • Tipo de conexión
    Compact flanged
  • Entorno operativo
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Tipo de sello
    PTFE
  • Interruptores de límite
    have
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullLimit switch unit ELEPHANT APL-210N
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BV3232P-FP-Fb-ISO-H DN15-100 16 bar
nullHandwheel ELEPHANT MONx-x-x-ISO for pneumatic actuators and quarter-turn valves
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Pago y seguridad

Métodos de pago

    Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.

    Variantes disponibles

    SKUConnection sizePressurePrecio DisponibilidadCantidad Añadir al carrito
    D160-47030DN10016 bar €1.213,61 0 Disponibles
    D160-46964DN1516 bar €545,73 Agotado
    D160-46965DN2016 bar €552,12 Agotado
    D160-46966DN2516 bar €498,47 Agotado
    D160-46967DN3216 bar €581,04 Agotado
    D160-47000DN4016 bar €682,44 Agotado
    D160-47001DN5016 bar €746,13 Agotado
    D160-47002DN6516 bar €828,54 Agotado
    D160-47003DN8016 bar €959,81 Agotado
