Ball valves Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless s – Valve Elephant
Elephant  |  SKU: D160-49072

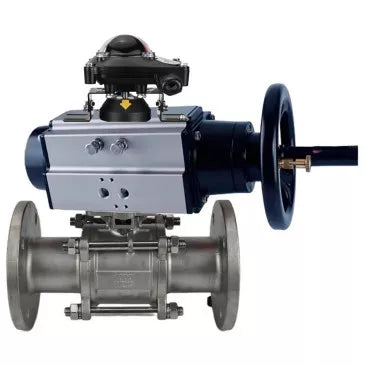

Ball valves Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 NAMUR 220V, with LSU APL-210N

€1.151,06
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 NAMUR 220V, with LSU APL-210N - DN80 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.

Pneumatic valves are used for control in pneumatic systems having NAMUR docking surface, for installation of valves through through holes in the body. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are designed for use with quarter-turn pneumatic actuators.

The limit switch unit is designed for visual and electrical signaling of end positions of the valve shut-off body: valve, tap or disk gate. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors that monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. The visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.



Technical parameters Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V, with LSU APL-210N:

Nominal diameter DN, mm 15 - 100
Nominal pressure PN, bar 16
Ambient temperature, ⁰C from -50 to +200
Working medium water, steam, oil products and other liquid or gaseous media neutral to the materials used
Connection to pipeline interflange
Control type manual (handle)
Ball passage full bore without constriction
Complement electric or pneumatic actuator can be installed (ISO 5211-2001)

Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V, with LSU APL-210N





Dimensions and dimensions Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V, with LSU APL-210N:

DN d, mm D2, mm D1, mm D, mm T, mm C, mm L, mm A, mm E, mm
80 15 45 65 95 14 14 42 495 200

Sketch of dimensions and dimensions Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V, with LSU APL-210N





Parts and materials table Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V, with LSU APL-210N:

№ Parts Material
1 Nut Steel 304
2 Handle Steel 201+PVC
3 Washer Steel 304
4 Locking ring Steel 304
5 Thrust washer Steel 304
6 Gland washer Steel 304
7 Gland PTFE
8 Stop gasket PTFE
9 Rod Steel 316
10 Ball cover Steel 316
11 Ball Steel 316
12 Ball seal PTFE
13 Gasket PTFE
14 Body Steel 316

Parts and material sketch Elephant BV3232P-FP-Fb-ISO-H, full bore wafer, stainless steel SS316, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4M310-08 220V, with LSU APL-210N





Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1





Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1





PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator





Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design Spool-type
Test pressure (body strength test. Not for operation!), bar 10
Working pressure (recommended range for normal operation), bar 1.5 ÷ 8
Valve type 5/2 five-port, two-position
Working medium purified air (40 µm filter fineness)
Operating temperature, °C 0 to +60
Actuation frequency 5 cycles per second
Manual override yes
Protection rating/insulation class IP65/F
Connection to pneumatic actuator NAMUR-compliant mounting surface (VDI/VDE3845)
Body material anodized aluminum
Effective cross-sectional area, mm2 25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere) 2 - PT1/4”
Air inlet port size (to pneumatic valve) G1/4”
Air outlet port size (to pneumatic actuator) 2 x Ø19.2 mm
Response time, sec 0.05
Supply voltage, V 220AC/24DC
Coil power 220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg 0.35
Average service life, cycles 10,000,000





Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A C D E F G H I K L J N M
mm
40 24 28 32 40 21,5 69 45 17,5 135 29,3 40 27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№ Part Name Material
1 Connector Engineering plastic
2 Nut POM + carbon steel
3 Coil Copper
4 Control Elements —
5 Plate Carbon steel
6 Piston POM
7 Control Valve Seat Engineering plastic
8 Valve Body Aluminum alloy
9 Spool Aluminum alloy
10 O-Ring Seal HNBR
11 Rear Cover Engineering plastic
12 Filter Synthetic material
13 Piston POM
14 Spring Stainless steel
15 Manual Override Engineering plastic
16 Rear Seat Aluminum alloy
17 Spring Seat Aluminum alloy
18 Type C Towing Shackle 65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Technical parameters of limit switch unit APL-210N:

Name Value
Model of limit switch unit APL-210N
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-210N



Dimensions and dimensions of the APL-210N limit switch unit:

Model H, mm L, mm B, mm D, mm D1, mm M
APL-210N 77 112 88 10 5 20x1.5



Reseñas (0)

Documentación
nullLimit switch unit ELEPHANT APL-210N
nullPneumatic valve ELEPHANT 4M310-08 spool type
nullBall valve ELEPHANT BV3232P-FP-Fb-ISO-H DN15-100 16 bar
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
