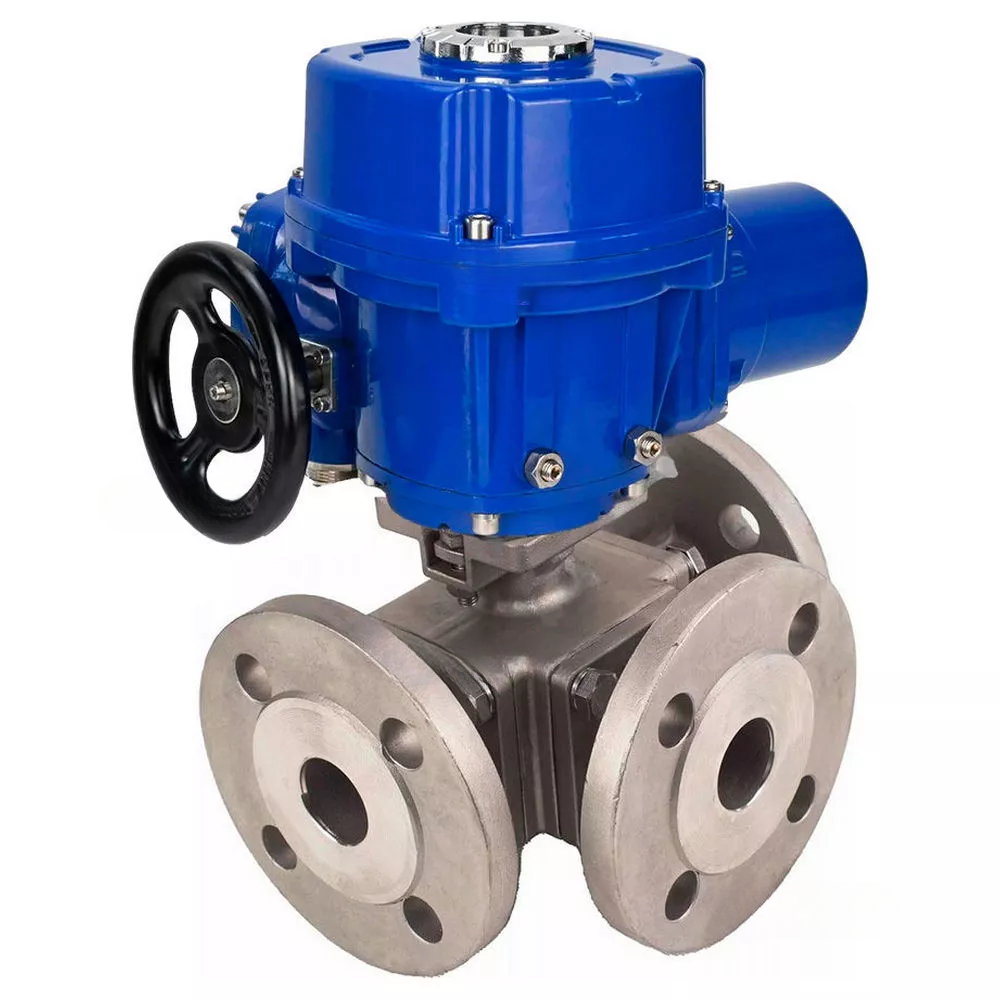

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-M-O2-220VAC-U1 with torque couplings and steering wheel
Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-M-O2-220VAC-U1 with torque couplings and steering wheel - DN20 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The ball valve is used as a shut-off valve, as well as for mixing and separating the working medium flows in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials.
Quarter-turn electric actuators are designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off element. They are used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc.
Technical characteristics of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-M-O2-220VAC-U1 with torque couplings and steering wheel
| Name | Meaning |
| Nominal pressure PN, bar | 16 |
| Connection type | flanged |
| Control type | With electric drive |
| Application | water supply, heat supply |
| Crane ball passage | full bore |
| Climate performance | U1 |
| Working environment temperature, °C | from -25 to 180 |
| Joining | flanged |
| Control | Electric drive 380V |
| Sealing class | A |
| Water intake | No |
| Type of crane device | three-way |
| Three-way valve type | L |
| Working medium | water, steam, petroleum products, neutral media, gaseous media |
| Warranty, g. | 1 |
| Service life, years | 10 |
Sketch of overall dimensions and sizes of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-M-O2-220VAC-U1 with torque couplings and steering wheel
Dimensions and sizes of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-M-O2-220VAC-U1 with torque couplings and steering wheel
| Model | L, mm | D, mm | k, mm | d, mm | d1, mm | X, mm | H, mm |
| DN20 | 160 | 105 | 75 | 18 | 58 | 215 | 281 |
| DN25 | 180 | 115 | 85 | 25 | 64 | 215 | 281 |
| DN32 | 200 | 140 | 100 | 32 | 78 | 215 | 281 |
| DN40 | 220 | 150 | 110 | 38 | 88 | 215 | 281 |
| DN50 | 240 | 165 | 125 | 49 | 99 | 215 | 281 |
| DN65 | 260 | 185 | 145 | 65 | 122 | 270 | 276 |
| DN80 | 280 | 200 | 160 | 80 | 138 | 270 | 276 |
| DN100 | 325 | 220 | 180 | 100 | 158 | 270 | 276 |
Sketch of parts and materials of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-M-O2-220VAC-U1 with torque couplings and steering wheel
Table of parts and materials of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore three-way, stainless steel SS316, flanged, seal - PTFE, with quarter-turn electric drive Elephant QT-N-M-O2-220VAC-U1 with torque couplings and steering wheel
| Item No. | Part name | Material |
| 1 | Frame | Stainless steel SS316 |
| 2 | Ball | Stainless steel SS316 |
| 3 | Sealing | PTFE |
| 4 | Case cover | Stainless steel SS316 |
| 5 | Bolt | Stainless steel SS304 |
| 6 | Pad | PTFE |
| 7 | screw | Stainless steel SS304 |
| 8 | Pad | PTFE |
| 9 | Rod seal | PTFE |
| 10 | Bolt | Stainless steel SS304 |
| 11 | Seal | Stainless steel SS304 |
| 13 | Stock | Stainless steel SS316 |
Electric drives Elephant QT-NM-O2-220VAC-U1
Technical parameters of electric drives Elephant QT-NM-O2-220VAC-U1
| Name | Meaning |
| Electric drive model | QT-NM-O2-220VAC-U1 |
| Supply voltage | 220V |
| Availability of manual backup | steering wheel |
| Limit switches | No |
Sketch of dimensions and sizes of electric drives Elephant QT-NM-O2-220VAC-U1
Dimensions and sizes of electric drives Elephant QT-NM-O2-220VAC-U1
| Model | QT-N-005M-O2-380VAC-U1 | QT-N-010M-O2-380VAC-U1 | QT-N-020M-O2-380VAC-U1 |
| H, mm | 281 | 281 | 276 |
| H1, mm | 170 | 170 | 197 |
| H2, mm | 77 | 77 | 99 |
| D, mm | Ø 120 | Ø 120 | Ø 180 |
| L, mm | 215 | 215 | 270 |
| L1, mm | 310 | 310 | 350 |
| L2, mm | 170 | 170 | 191 |
| L3, mm | 121 | 121 | 160 |
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Steam, Petroleum Products, Neutral Media, Gaseous Media
-
Tipo de sello
-
Interruptores de límite
-
Modelo del actuador
Reseñas (0)
Reseñas (0)
Ball valve ELEPHANT BV32xP 4pc -SP-3x-T-ISO-H
Ball valve ELEPHANT BV3232P 4pc -FP-3x-F-ISO-H
Electric quarter-turn actuator ELEPHANT QT-N-xM-O2-x-U1 with torque coupling and hand wheelPago y seguridad
