Vanne papillon d'eau Elephant WBV1432N-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU: D050-37811

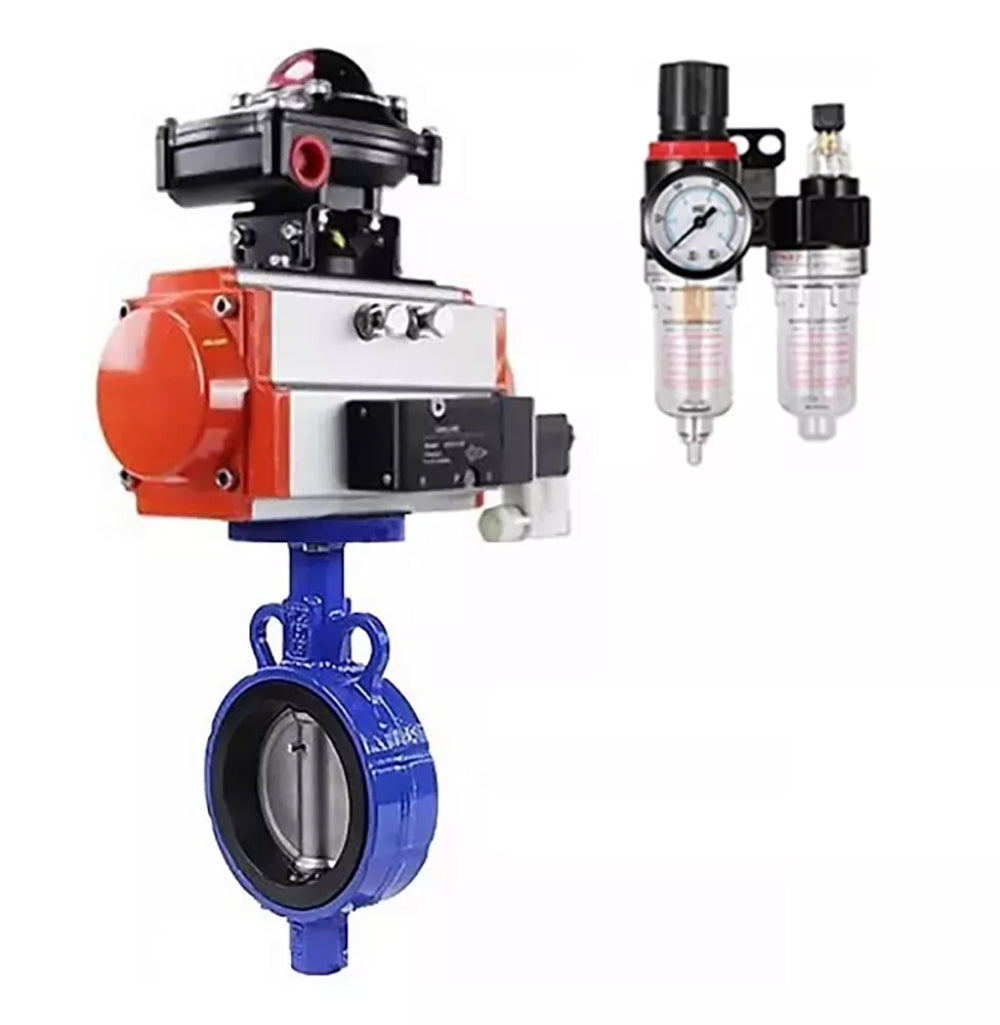

Vanne papillon d'eau Elephant WBV1432N-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - acier inoxydable AISI 316L, joint - NBR, avec actionneur pneumatique avec ressorts de rappel PA-SA, 4V320-08 220V, BKV APL-410N EXBPV AFC2000

€506,18
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valves.

Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at the preset level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.





Technical parameters of Water Butterfly Valve Elephant WBV1432N-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:

Nominal diameter DN, mm 40 - 300
Working pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +90 (short-term up to +120)
Working medium water, mineral oils, hydrocarbons, oils, fats
Flow direction double-sided
Connection to pipeline interflanged
Body material cast iron GGG50
Sealing material NBR
Service life, years 10

Butterfly valves WBV1432N-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000





Dimensions and dimensions of butterfly valves Elephant WBV1432N-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:

DN A B C E L ØD Ød 4-Ødo HxH (bolt stem square)
mm
40 114 66 26 34 210 65 50 4-7
50 131 72 26 43 220 65 50 4-7 9х9
65 140 83 26 46 220 65 50 4-7 9х9
80 150 95 26 46 220 65 50 4-7 9х9
100 163 112 28 52 264 90 70 4-10 11х11
125 178 125 28 56 264 90 70 4-10 14х14
150 191 140 28 56 264 90 70 4-10 14х14
200 238 172 34 60 364 125 102 4-12 17х17
250 285 205 36 68 504 125 102 4-12 22х22
300 315 245 36 78 504 150 125 4-14 22х22

Sketch Butterfly valves WBV1432N-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000





Materials of butterfly valves Elephant WBV1432N-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:

№ Name Material
1 Body cast iron GGG50
2 Seat seal NBR
3 Disk stainless steel 316L
4 Stem stainless steel AISI 416
5 Pin stainless steel AISI 420
6 Sleeve PTFE
7 O-ring NBR
8 plate carbon steel

Sketch of parts and materials Butterfly valves WBV1432N-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of limit switch unit APL-410N EX:

Name Value
Model of limit switch unit APL-410N EX
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-410N EX





Dimensions and dimensions of limit switch unit APL-410N EX:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8


Sketch of dimensions and dimensions of limit switch unit APL-410N EX





Main parameters of the AFC2000 air treatment unit:

Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0,5 ÷ 9
Breaking pressure, bar 15
Air connection 1/4”
Operating temperature, C -5 to +60
Filter particle size, µm 40
Oil viscosity ISO VG 32
Weight, kg 0,395
Set composition filter-moisture separator, pressure regulator, lubricator, bracket

Air treatment unit AFC2000

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    120 °C
  • Tipo de conexión
    bride compacte
  • Tipo de sello
    NBR
  • Material del disco
    acier inoxydable AISI 316L
  • Anulación manual
    Non
  • Interruptores de límite
    Oui
  • Sensor de retroalimentación
    Interrupteurs de fin de course
  • Tensión de alimentación
    220 V
  • Tipo de actuador neumático
    avec ressorts de rappel

Reseñas (0)

Documentación
nullAir treatment unit AFC2000 ELEPHANT
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV1432N-2W-Fb-H DN40-300
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
