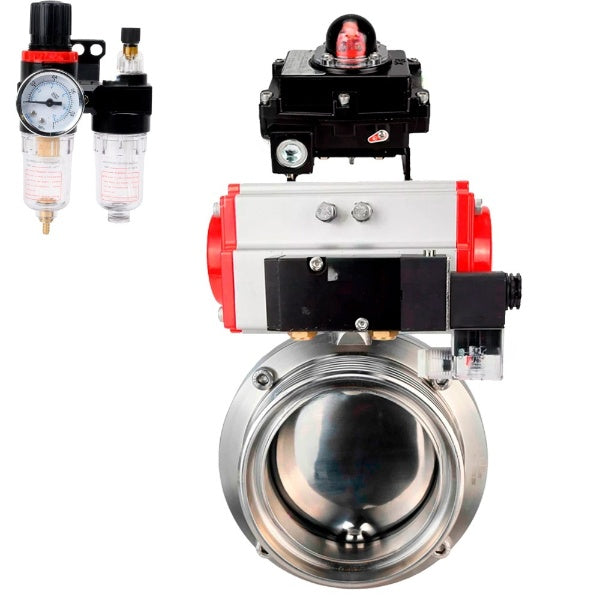

Water Butterfly valves Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-410N EX, ATU AFC2000

The butterfly valve is designed to be used as a shut-off or control valve for flow control in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
Elephant pneumatic rotary actuators double-acting PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface, for installing distributors through through holes in the body. Electromagnetic control is carried out using 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC voltage coils. Depending on the model, the distributors have one-way or two-way control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. They are intended for use with quarter-turn pneumatic actuators.
The limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. In a sealed box, as a rule, there are two mechanical switches rated for voltage up to 250 V, which track the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch block there is a two-color hemisphere of the visual indicator. If the connected pipeline fittings are closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of the pipeline fittings (open / closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.
The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the elements of the pneumatic system.

Technical characteristics of the Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSUAPL-410N EX, ATU AFC2000

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators
