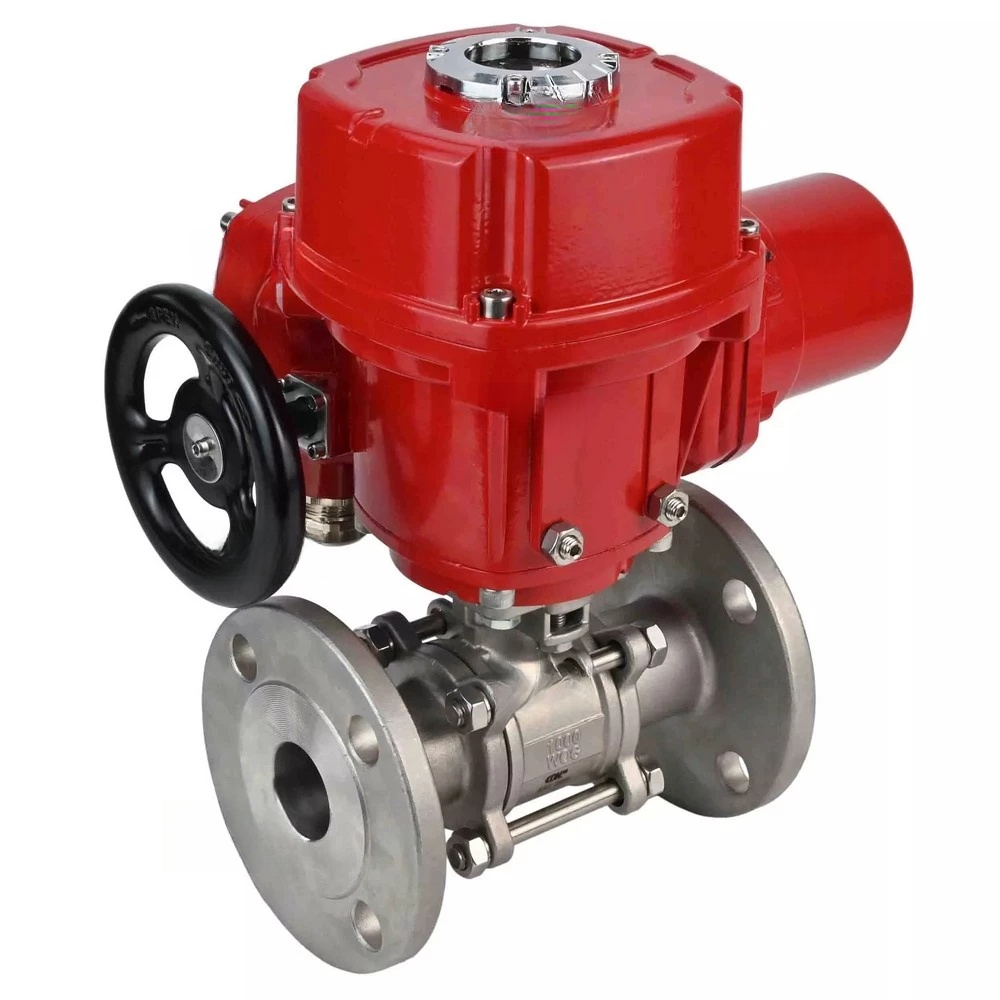

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16 bar full-bore three-piece, flanged, 304 stainless steel, seal - PTFE, with electric quarter-turn drive Elephant explosion-proof QT-EX-EM-O2-220VAC-U1
Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-100 16 bar full-bore three-piece, flanged, 304 stainless steel, seal - PTFE, with electric quarter-turn drive Elephant explosion-proof QT-EX-EM-O2-220VAC-U1 - DN15 / 40 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
Ball valves are used as shut-off valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials.
Explosion-proof quarter-turn electric actuators are designed for remote and local control of 90° rotation of shut-off valves such as ball valves. They are widely used in various industries, including gas, oil, metallurgy, food processing, housing and utilities, and more. They are suitable for use in industrial explosion-hazardous areas.
Technical characteristics of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar
| Name | Value |
| Nominal pressure, bar | DN15-50 – 40 |
| DN65-80 – 25 | |
| DN100 – 16 | |
| Working fluid | from -20 to +180 |
| Pipeline connection | water, steam, petroleum products, and other liquid or gaseous media neutral to valve materials |
| Ball valve bore type | flanged |
| Ball valve tightness class | full bore |
| Service life, years | A according |
| Average life, opening/closing cycles | 10 |
| Average resource, opening/closing cycles | 60000 |
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar
| DN | L, mm | D, mm | L1, mm | H, mm |
| Ду15 | 130 | 95 | 240 | 270 |
| Ду20 | 150 | 105 | 240 | 270 |
| Ду25 | 160 | 115 | 240 | 270 |
| Ду32 | 180 | 140 | 240 | 270 |
| Ду40 | 200 | 150 | 240 | 270 |
| Ду50 | 230 | 165 | 240 | 270 |
| Ду65 | 290 | 185 | 240 | 270 |
| Ду80 | 310 | 200 | 240 | 270 |
| Ду100 | 350 | 234 | 240 | 270 |
| Ду100 22х22, F10 | 350 | 220 | 260 | 280 |
Sketch of the overall dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar
Table of parts and materials for ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN15-100 16 bar
| № | Part Name | Material | Quantity |
| 1 | Body | CF8M stainless steel / AISI 304 | 1 |
| 2 | Ball | AISI 304 stainless steel | 1 |
| 3 | Bolt | SS 201 stainless steel | 4~6 |
| 4 | Nut | SS 201 stainless steel | 6~12 |
| 5 | Seal | PTFE | 1 |
| 6 | Stem | AISI 304 stainless steel | 1 |
| 7 | Seal | SS 201 stainless steel | 1 |
| 8 | Cover | CF8M stainless steel / AISI 304 | 2 |
| 9 | Seat Rings | PTFE | 2 |
| 10 | Thrust Washer | PTFE | 1 |
| 11 | Nut | SS 201 stainless steel | 1 |
Technical parameters of Elephant QT-EX-xEM-O2-220VAC-U1 electric drives
| Name | Значение |
| Supply voltage | 220V |
| Availability of a manual backup | steering wheel |
| Limit switches | Yes |
Dimensions and sizes of electric drives Elephant QT-EX-xEM-O2-220VAC-U1
| Model | QT-EX-010EM-O2-220VAC-U1 | QT-EX-015EM-O2-220VAC-U1 | QT-EX-020EM-O2-220VAC-U1 |
| W | 160 | 160 | 160 |
| K | 70 | 70 | 80 |
| K1 | 230 | 230 | 250 |
| A | Ø90 | Ø90 | Ø120 |
| B | Ø70 | Ø70 | Ø102 |
| D | Ø50 | Ø50 | Ø70 |
| F | Ø16 | Ø16 | Ø30 |
| L | 240 | 240 | 260 |
| L1 | 68 | 68 | 75 |
| Н | 270 | 270 | 280 |
| n-C | 4-M8 | 4-M8 | 4-M10 |
| n-E | 4-M6 | 4-M6 | 4-M8 |
Sketch of the overall dimensions and sizes of the Elephant QT-EX-xEM-O2-220VAC-U1 electric drives
Table of parts and materials for electric drives Elephant QT-EX-xEM-O2-220VAC-U1
| № | Name | Material |
| 1 | Drive Housing | Aluminum |
| 2,23,33, 38,40,64 | Shaft | 45 steel |
| 3,39, 46,48, 51,66 | O-Ring | Oil-resistant rubber |
| 4,27 | Bracket | Q235 steel |
| 5 | Insulation Gasket | Textile laminate |
| 6,9, 16 | Bracket Mounting Screw | 1Cr18Ni9Ti steel |
| 7,1 | Plate | Q235 steel |
| 8 | Plug Screw | Aluminum |
| 11,14 | Limit Switch Cam | Q235 steel |
| 12,13 | Limit Switch Group | XK06-101-2530 |
| 15,32 | Bushing | H62 brass |
| 16,30, 35,41, 44,61 | Screw | 1Cr18Ni9Ti steel |
| 17,18 | Disc | Q235 steel |
| 19 | Mechanical Limit Cam | Q235 steel |
| 20 | Drive Housing | Aluminum |
| 21,25 | Mounting Screw | 35 steel |
| 22 | Sight Glass Seal | 1Cr18Ni9Ti steel |
| 24 | Indication Plate | Aluminum |
| 26 | Capacitor | CEM 2GR 220nJ |
| 28 | Terminal Block | 1Pcs TX-1502 6 |
| 29 | Heater Element | NTA-1/005 |
| 31,36 | Washer | Stainless steel |
| 34 | Through Cover | MHQ50 |
| 37,39 | Locking Washer, O-Ring | 1Cr18Ni9Ti steel |
| 42 | Torque Switch Group | XK06-101-2530 |
| 43,48 | Torque Switch Mechanism | Q235 steel |
| 45 | Flywheel Cover | Aluminum |
| 47,69 | First Stage Gear | ZQAL10-5-5 zinc alloy |
| 49 | Limit Screw | steel 35 |
| 50 | Stud | 1Cr18Ni9Ti steel |
| 52 | Coupling Handle | 45 steel |
| 53 | Yoke Block | aluminum |
| 54 | Thrust Washer | zinc alloy ZQAL10-5-5 |
| 55,56 | Separator Yoke | zinc alloy ZQAL10-5-5 |
| 57 | Snap Ring | 1Cr18Ni9Ti steel |
| 58,6 | Disc, Main Gear | zinc alloy ZQAL10-5-5 |
| 59,68 | Second and First Worm steps | 40Cr steel |
| 62,67 | Oil seal | aluminum |
| 63 | Motor | - |
| 65 | Clutch | ZG20 steel |
Sketch of parts and materials for electric drives Elephant QT-EX-xEM-O2-220VAC-U1
