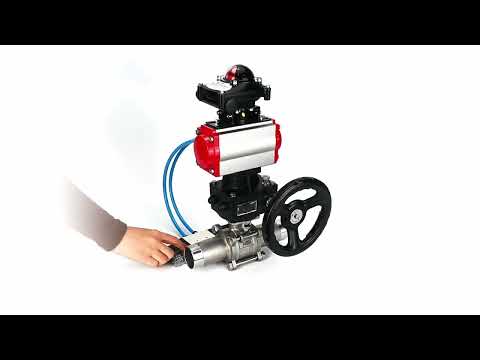

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG, body material - Stainless steel AISI 304, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA, 4V320-10 220V, LSU APL-210N, handwheel MON

Ball valve Elephant BV3131P(3pc)-FP-W-ISO-H LONG is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3131P(3pc)-FP-W-ISO-H LONG series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.

Double-acting pneumatic actuator Elephant PA-DA is designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic valve Elephant 4V320-10 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.

The Elephant APL-210N limit switch box is an electrical device designed for opening and closing of the working circuit and for visualisation of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

The Elephant MON manual doubleturn actuator with worm gear and HDM reduction gearbox enables manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

Technical parameters of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual doubler MON:

Sketch of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual override MON

Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual doubler MON:

Detail and material sketch of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG

Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG:

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

Material sketch of DA double-acting pneumatic actuators

Pneumatic valve Elephant 4V320-08 220V

Technical parameters of the Elephant 4V320-08 220V pneumatic valve

Limit switch unit Elephant APL-210N

Technical parameters of limit switch unit Elephant APL-210N

Table of parts and materials of the limit switch unit Elephant APL-210N:

Wiring diagram for Elephant APL-210N limit switch unit

Sketch of the Elephant MON handwheel.

Technical parameters of Elephant MON handwheels:

Sketch of parts and materials for the Elephant MON handwheel.

Parts and materials table for the Elephant MON handwheel:
