Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 – Valve Elephant
Elephant  |  SKU: D160-61425

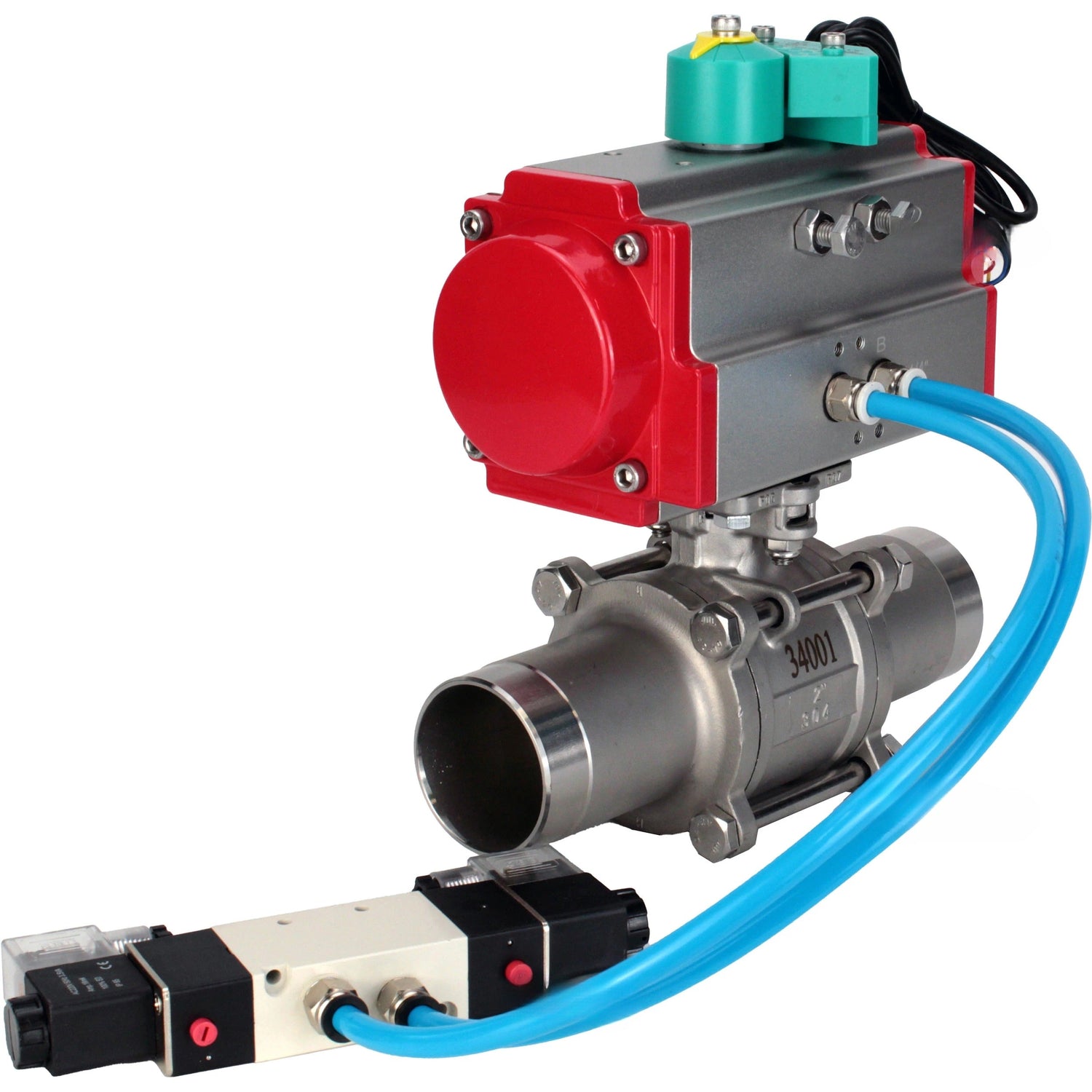

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar full bore, body - 304 stainless steel, seal - PTFE, for welding, with PA-DA pneumatic actuator, pneumatic distributor 4V320-08 220V and ALS200D magnetic switch

€224,45
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shutoff valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials.
PA-DA-x double-acting pneumatic actuators use two ports to supply the control fluid and create movement in both directions, both for opening and closing the valve. One port is used to move the piston in one direction, and the other to move it in the opposite direction.





Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar

Characteristics Value
Nominal diameter 10-150 mm
Tightness class A
Seal type PTFE / Fluoroplastic / Teflon
Connection weld-on
Valve device type two-way
Valve ball bore full-bore
Control type double-acting pneumatic actuator
Working fluid temperature -20 to +180 °C
Mediment water, steam, petroleum products, liquids, neutral media, gaseous media
Application area water supply, heat supply, industry
Country of manufacture China
Service life 5 years





Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA

Characteristics Value
Pneumatic drive type double-acting
Nominal pressure 12 bar
Working pressure 2...8 bar
Maximum particle diameter less than 30 µm2
Working medium filtered compressed air or non-aggressive gases, oils
Adjustment range ± 5° for rotation at 0° and 90°





Technical characteristics of the Elephant ALS200D magnetic switch for pneumatic actuators

Characteristics Value
Housing Material PP-GF30 plastic
Housing Protection Rating IP67
Compatible Devices pneumatic actuators, any actuators with 90° shaft rotation
Shaft Angle Indicator 0-90°
Contact Type NO
Sensor Interaction Type magnetic
Sensor Interaction Distance 1÷6 mm
On/Off Switching Frequency 0÷4.8 kHz
Visual Indication two LEDs
Rated Voltage 5÷240 V AC/DC
Rated Current 0÷300 mA
Rated Power 10 W
Ambient Temperature -40 to +85 °C
Cable Terminal 4 wires (2 wires/open, 2 wires/close)
Weight 0.14 kg
Warranty 12 months
Service Life 10 years





Overall and installation dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar

DN d D B H L
10 12 17.2 2.1 50 130
15 15 21.3 2.1 55 150
20 20 26.9 2.1 66 155
25 25 33.7 2.8 71 186
32 32 42.4 2.8 81 195
40 38 48.3 2.8 87 231
50 50 60.3 2.8 91 243
65 64 76.1 3.0 119 290
80 76 88.9 3.0 125 302
100 100 114.3 3.0 159 326
125 125 141.3 3.4 186 360
150 150 168.3 3.4 207 390
Sketch of the dimensions of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar




Overall and installation dimensions of Elephant double-acting rotary pneumatic actuators PA-DA

Model A B C D E F G H I J M N Z d K L
PA-DA(SA)-052 30 41.5 65.5 72 92 65 30 80 36 50 11х11 14 147 40 M5x8 M6x10
PA-DA(SA)-065 36 47 81 88 108 72 30 80 50 70 14х14 18 168 40 M6x10 M8x13
PA-DA(SA)-083 46 57 98.5 108.7 128.7 92 30 80 50 70 17х17 21 204 40 M6x10 M8x13
PA-DA(SA)-105 57.5 64 122.5 133 153 109.5 30 80 70 102 22х22 26 268 40 M8x13 M10x16
PA-DA(SA)-130 67.5 74.5 145.5 155 185 127.5 30 130 70 102 22х22 26 301 55 M8x13 M10x16
PA-DA(SA)-140 75 77 161 172 202 137.5 30 130 102 125 27х27 31 390 55 M10x16 M12x20
PA-DA(SA)-160 87 87 184 197 227 159 30 130 102 125 27х27 31 458 55 M10x16 M12x20
PA-DA(SA)-210 113 113 235.5 255 285 210 30 130 - 140 36х36 40 532 80 - M16x25
PA-DA(SA)-270 147 147 299 326 356 273 30 130 - 165 46х46 50 718 80 - M20x25
Dimensional sketch of the Elephant double-acting rotary pneumatic actuators PA-DA



Overall and installation dimensions of the Elephant ALS200D magnetic switch for pneumatic actuators

A, mm B, mm C, mm E, mm d, mm
75 30 51 40 5.5
Dimensional sketch of the Elephant ALS200D magnetic switch for pneumatic drives



Materials of ball valve parts BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar

№ Parts Material
1 Housing AISI 304 stainless steel
2 Side Element (2 pcs) AISI 304 stainless steel
3 Ball AISI 304 stainless steel
4 Ball Seal PTFE
5 Rod Seal PTFE
6 Bushing AISI 304 stainless steel
7 Rod AISI 304 stainless steel
8 Washer Stainless steel
9 Nut A2-70 stainless steel
10 Bolt A2-70 stainless steel
Sketch of ball valve materials Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar




Design of Elephant double-acting rotary pneumatic actuators PA-DA

№ Part Name Material
1 Indicator Screw ABS plastic
2 Position Indicator ABS plastic
3 Spring Clamp 304 stainless steel
4 Metal Washer 304 stainless steel
5 Thrust Washer Engineering plastic
6 Housing Extruded aluminum alloy with hard anodizing
7 Thrust Washer Engineering plastic
8 Stopper Alloy steel
9 Upper Shaft Seal Ring NBR
10 Upper Shaft Anti-Friction Ring Engineering plastic
11 Shaft Nickel-plated alloy steel
12 Lower Shaft Anti-Friction Ring Engineering plastic
13 Lower Shaft Seal Ring NBR
14 Plug NBR
15 Adjusting Screw Seal Ring NBR
16 Adjusting Screw Washer 304 stainless steel
17 Adjusting Screw Lock Nut 304 stainless steel
18 Adjusting Screw 304 stainless steel
19 Piston Die-cast aluminum alloy
20 Piston Guide Pad Engineering plastic
21 Piston Anti-Friction Ring Engineering plastic
22 Piston Seal Ring NBR
23 Spring Kit Spring steel
24 Cover Seal Ring NBR
25 End Cover Cast aluminum with polyester coating
26 Cover Screw 304 stainless steel
27 Locking Screw 304 stainless steel
28 Adapter Carbon steel
Sketch of Elephant double-acting rotary pneumatic actuators PA-DA





Technical characteristics of the pneumatic distributor Elephant 4V320-08 220V

Characteristics Value
Pneumatic valve model 4V320-08 220V
Supply voltage 220V
Pneumatic valve type spool
Nominal pressure 12 bar
Working pressure 1.5 ÷ 8 bar
Ambient temperature -5 to +50 ⁰C
Working medium purified air (40 µm filter fineness)
Response frequency 5 cycles/sec
Protection rating IP65
Control two-way electromagnetic
Housing material aluminum alloy and technopolymer
Response time 0.05 sec
Working channel diameter 3/8"





Overall and installation dimensions of the pneumatic distributor Elephant 4V320-08 220V

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4

Dimensional sketch of the Elephant 4V320-08 220V pneumatic valve



Especificaciones
  • País de origen
    China
  • Temperatura máxima permitida
    180 °C
  • Tipo de conexión
    Welded
  • Entorno operativo
    Water, Steam, Petroleum products, Liquid media, Neutral media, Gaseous media
  • Tipo de sello
    PTFE / Fluoroplastic / Teflon
  • Material de bloqueo
    Stainless steel
  • Interruptores de límite
    No
  • Tipo de actuador neumático
    double-acting
