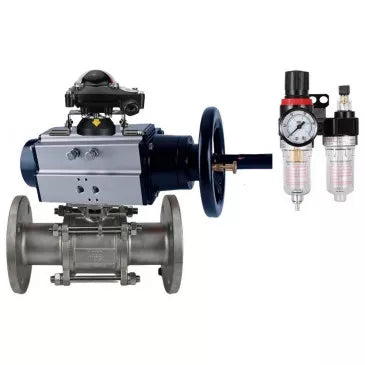

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-pie – Valve Elephant
Elephant  |  SKU: D160-47672

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, with ATU A

€1.081,10
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, with ATU A - DN65 / 25 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off valve.
Pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off valve.
Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at the set level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.






Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, with ATU A:

Parameter

Value

Nominal pressure PN, bar

25

Working medium temperature, °C

From -20 to 180

Type of valve device

Two-way

Application

Water supply, Heat supply, Pneumatic systems

Working medium

Water, steam, oil products, liquid media, neutral media, gaseous media

Connection to pipeline

Flanged

Type of passage section

Full bore

Control type

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

Yes

Presence of pneumatic distributor

Yes

Presence of electro-pneumatic positioner

No

Warranty, years

1


Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, with ATU A:

DN ØD, mm ØD1, mm ØD2, mm L, mm A, mm Е, mm I, mm В, mm C, mm
65 185 145 122 290 495 200 162 88 139
80 200 160 140 310 495 200 162 88 139
100 22х22, F10 220 180 158 350 495 200 162 88 139

Краны шаровые DN.ru BV3131P(3pc)-FP-F-ISO-H Ду65-100 Ру16-25, трехсоставные полнопроходные фланцевые, нержавеющая сталь SS304, уплотнение - PTFE, с пневмоприводом PA-DA-105-1 двойного действия, пневмораспределителем 4V320-08 220В, БКВ APL-410N EX, с БПВ A



Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-DA-105-1 double acting, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, with ATU A:

№

Part name

Material

Quantity

1

Body

Steel SS304 / SS316

1

2

Ball

Steel S304 / S316

1

3

Bolt

Steel S201 / S304

4~6

4

Nut

Steel S201 / S304

6~12

5

Seal

PTFE

1

6

Stem

Steel SS304 / SS316

1

7

Gland

Steel S201 / S304

1

8

Cover

Steel WCB/CF8/CF8M

2

9

Seat rings

PTFE

2

10

Thrust washer

PTFE

1




Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1





Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1





PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator





Technical parameters of pneumatic valve Elephan 4V320-08

Name

Value

Type of pneumatic valve

Spool valve

Pneumatic valve model

4V320-08

Working pressure, bar

1.5 ÷ 8

Supply voltage, V

220 V

Response frequency, cycle/sec

5




Dimensions and sizes of the pneumatic valve Elephant 4V320-08

Model of pneumatic valve 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4





Technical parameters of limit switch units Elephant APL-410N EX

Name Value
Model of limit switch unit APL-410N EX
egree of protection of the housing, IP 65
Service life, years 10





Dimensions and sizes of limit switch units Elephant APL-410N EX:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8



Table of parts and materials for limit switch unit Elephant APL-410N EX:

№

Part name

Material

1

Visual indicator

ABS plastic / polycarbonate

2

Visual indicator cover

Polycarbonate

3

Label

-

4

Cover screws

Stainless steel

5

Enclosure cover

Pressure die-cast aluminum

6

Shaft

Stainless steel

7

Limit switches

-

8

Cams (eccentrics)

Polycarbonate

9

Body

Pressure die-cast aluminum

10

Terminal block

-

11

Grounding terminal

Stainless steel

12

Hole (thread) for cable entry

-

13

Bracket

Stainless steel




Technical parameters of air preparation unit Elephant AFC2000

Name Value
Working pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filterable particle size, µm 40 µm
Weight, kg 0.395




Dimensions and sizes of air treatment unit Elephant AFC2000:

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5



Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Especificaciones
  • País de origen
    China
  • Apertura de puerto
    full bore
  • Temperatura máxima permitida
    180 °C
  • Tipo de conexión
    Flanged
  • Entorno operativo
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Tipo de sello
    PTFE
  • Interruptores de límite
    have
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullAir treatment unit AFC2000 ELEPHANT
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
