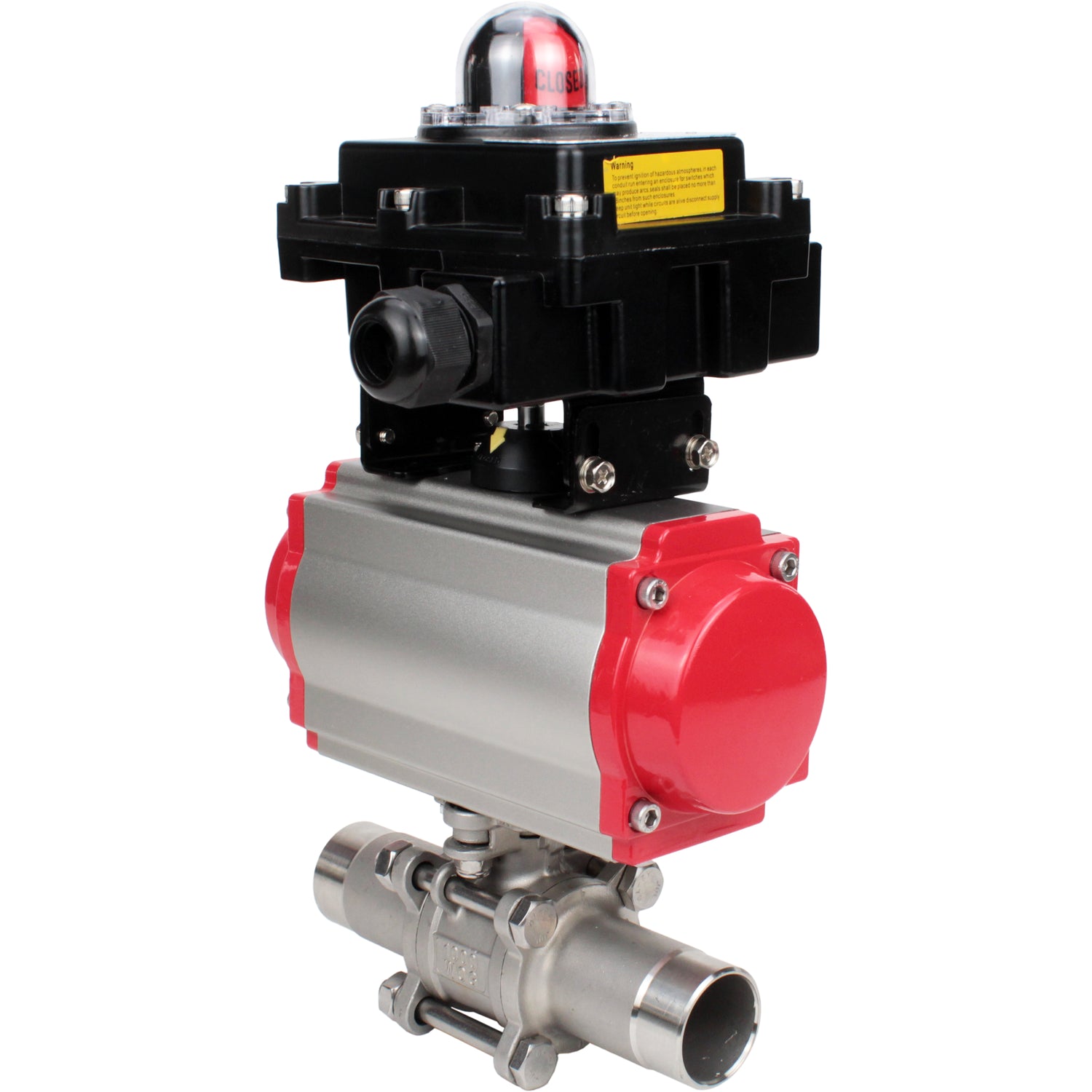

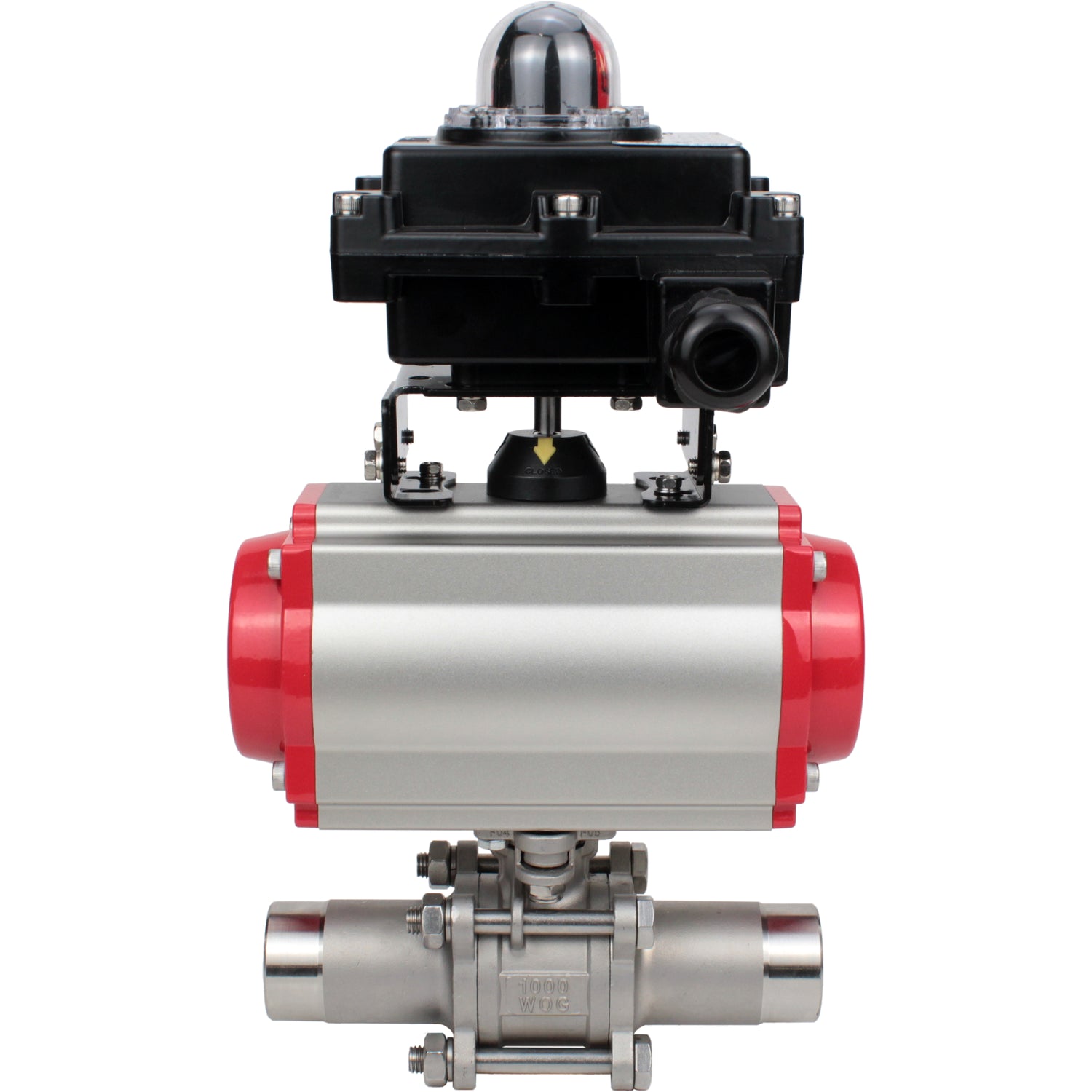

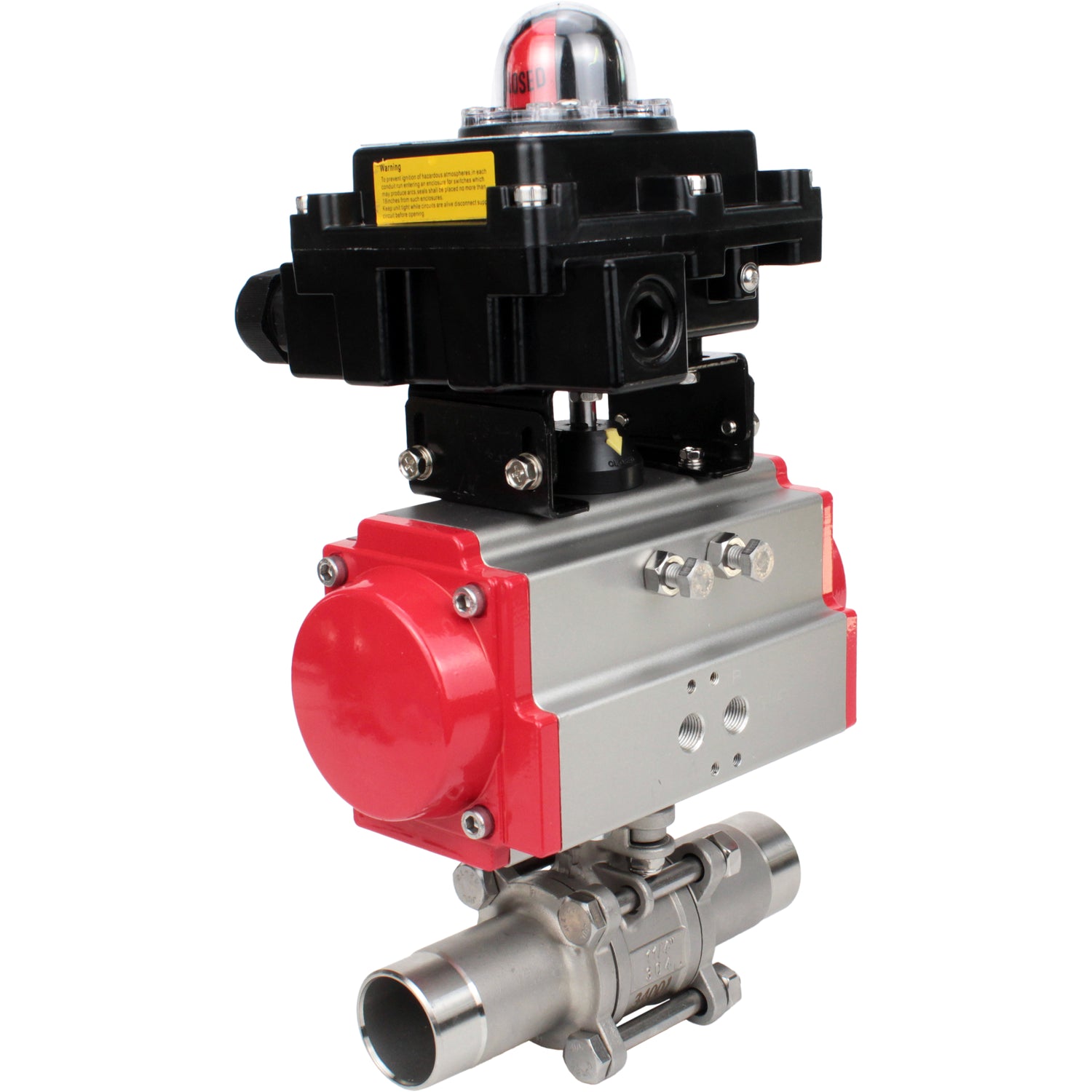

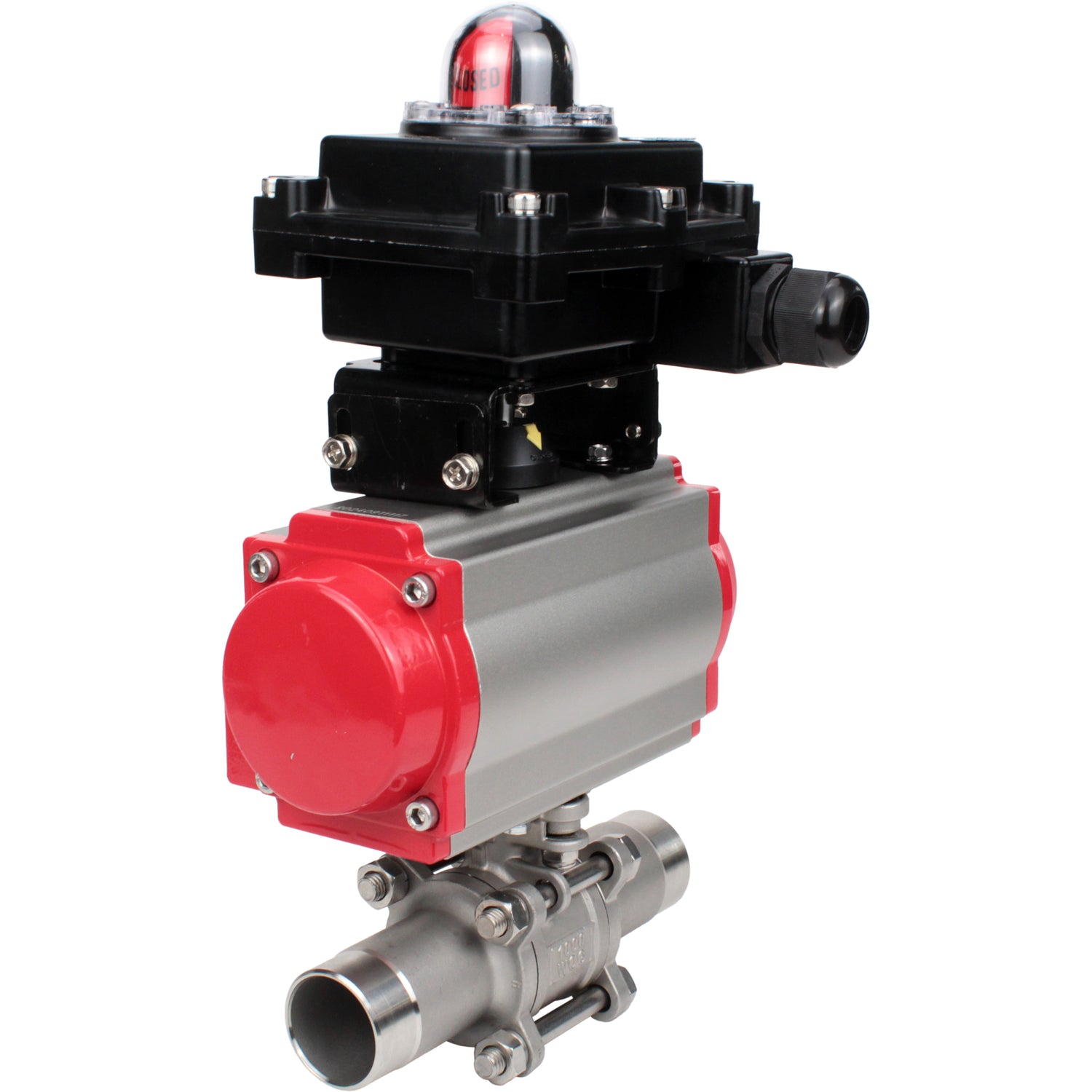

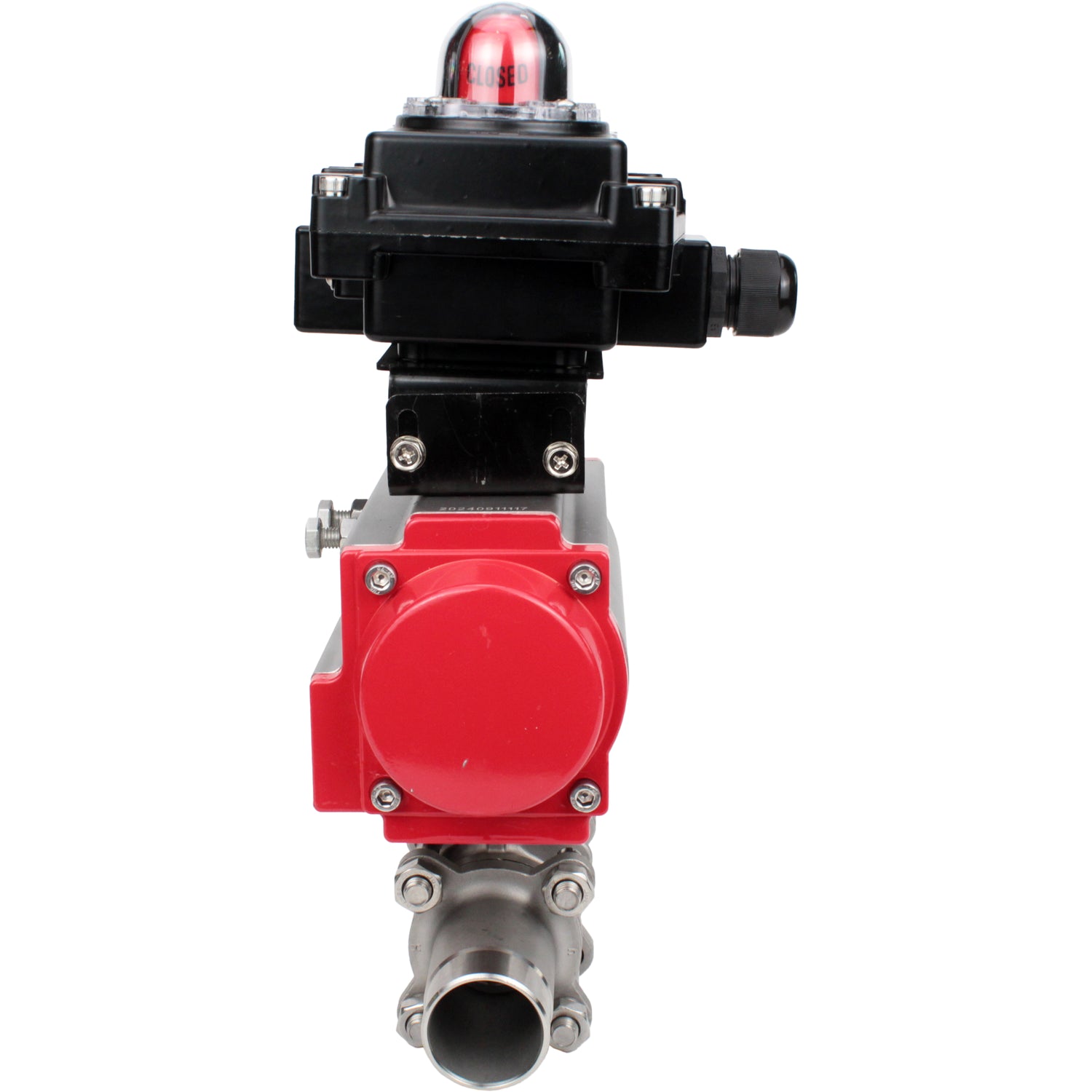

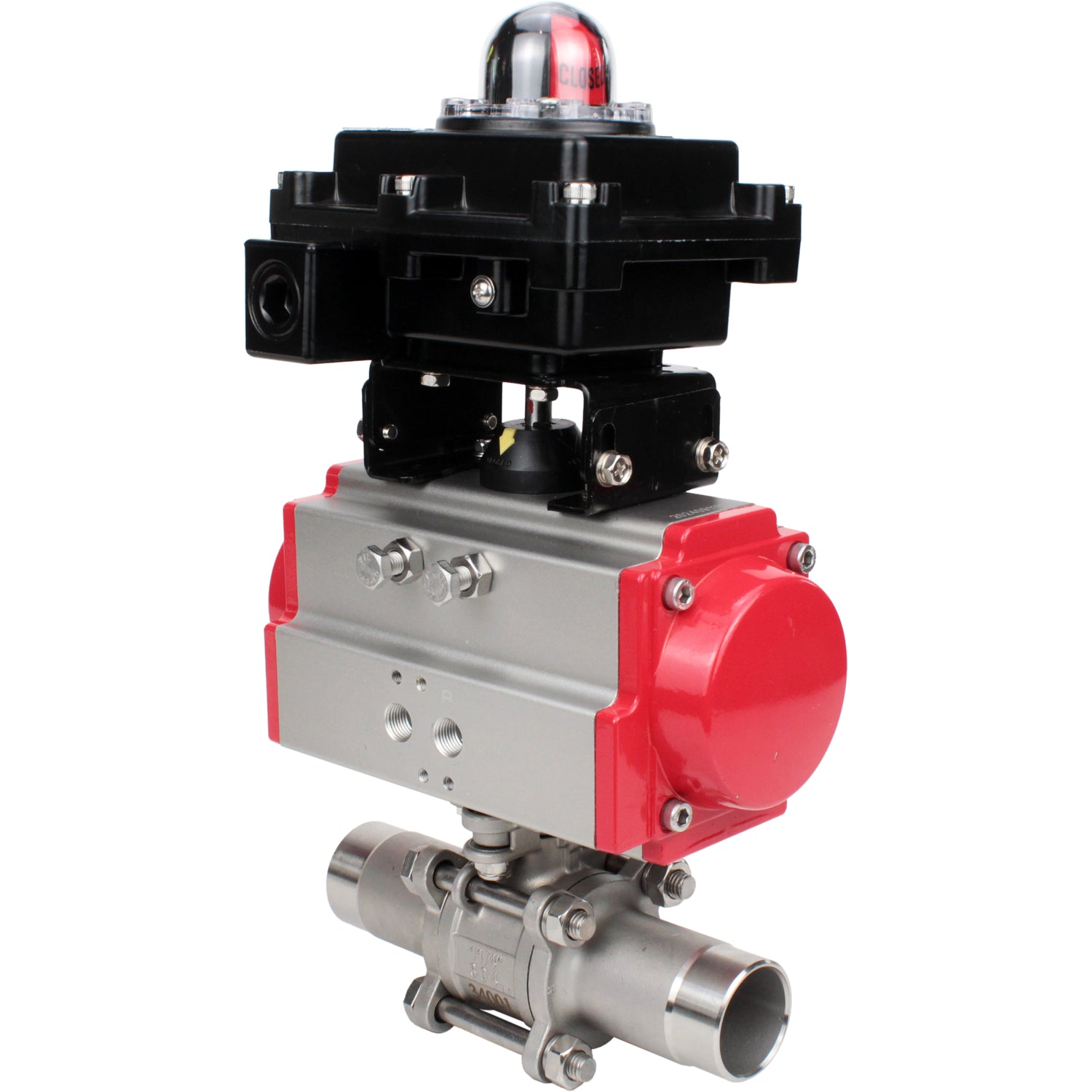

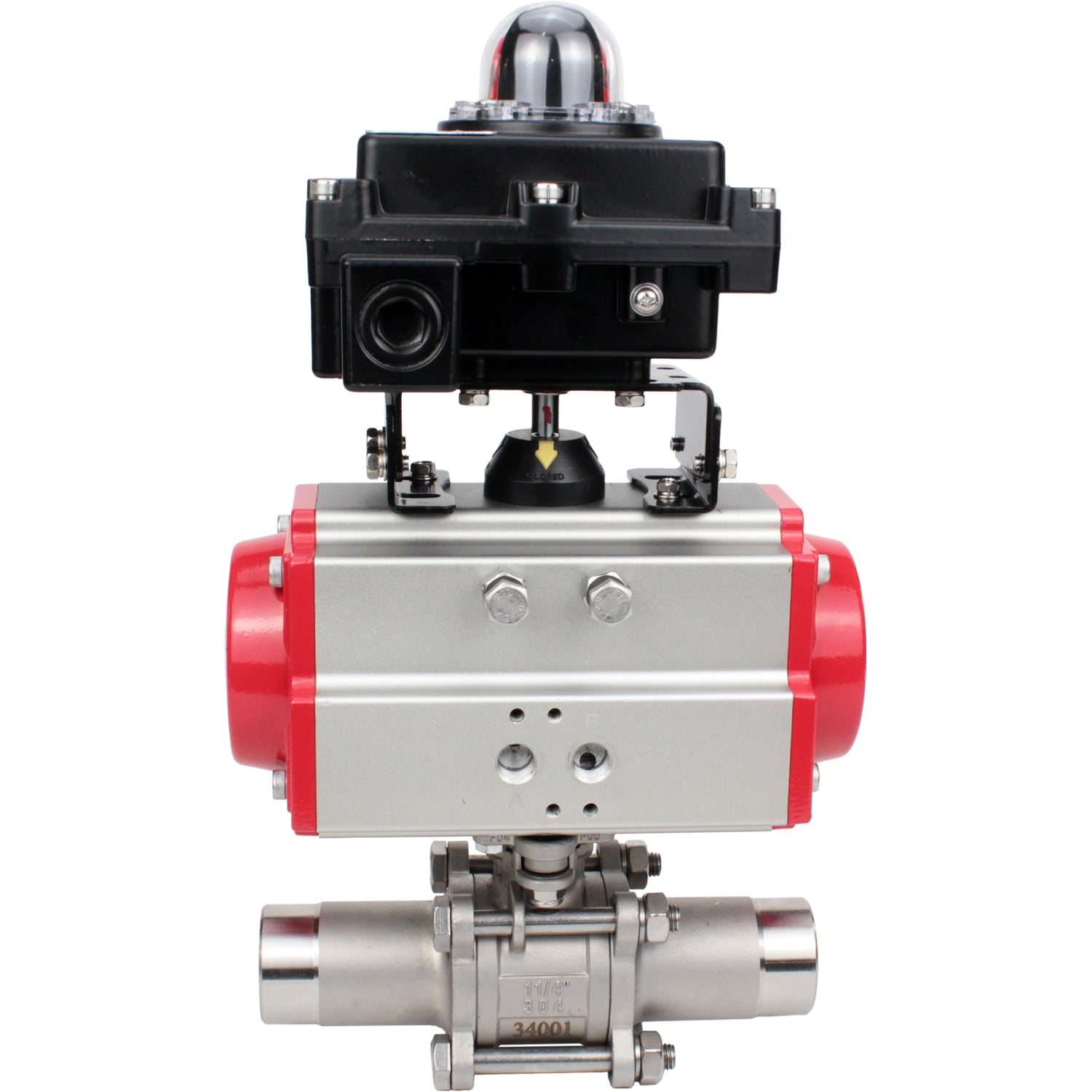

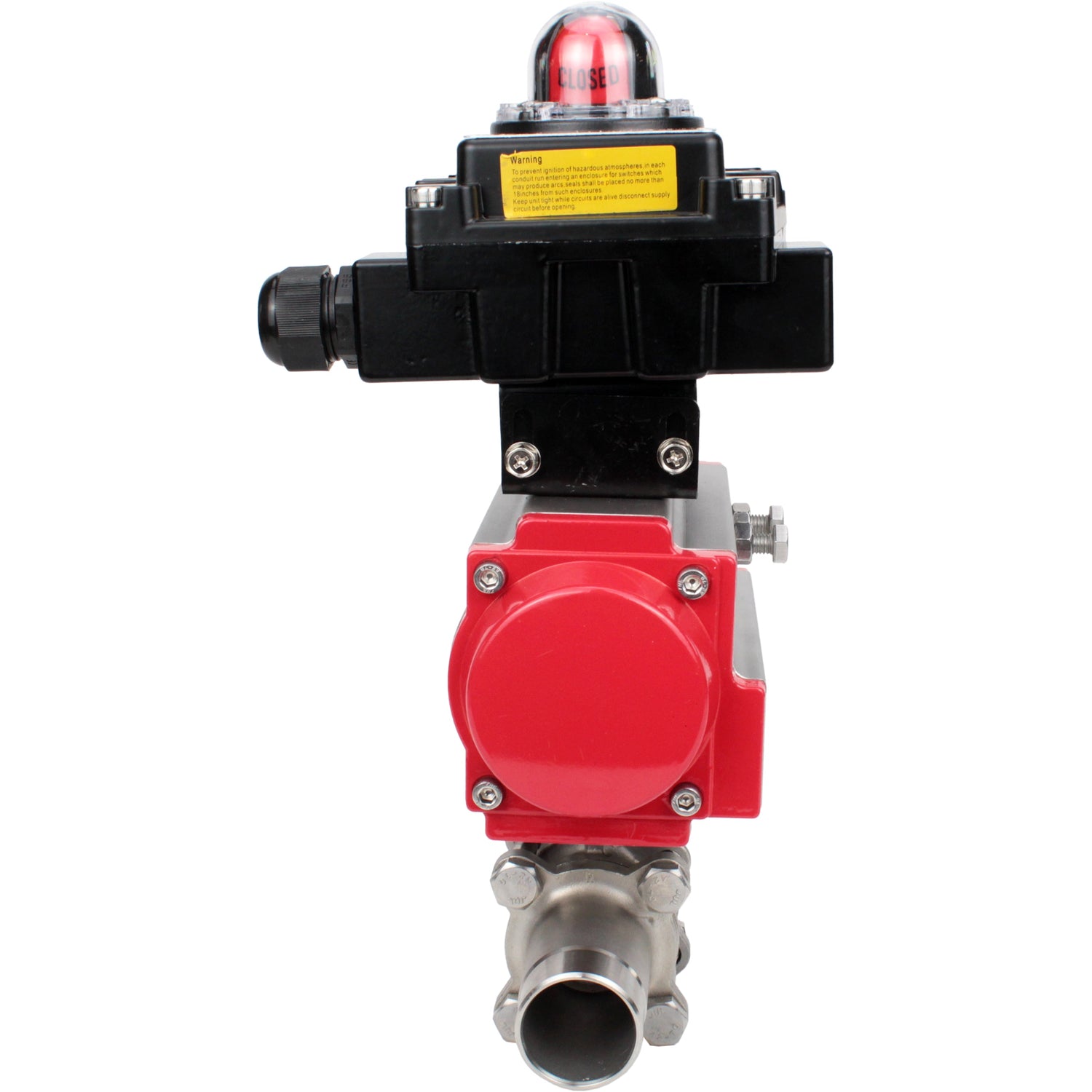

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-SA and limit switch block APL-410N EX

€275,07
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 full bore, body - stainless steel 304, welded, with pneumatic actuator Elephant PA-SA and limit switch block APL-410N EX - DN10 / 63 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators Elephant double-acting rotary PA-DA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of the pipeline valve. As a rule, a sealed box contains two mechanical switches rated for voltage up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the limit switch unit, it Weightomes possible to transmit information about the position of the pipeline valve (open / closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.



Technical parameters of Elephant BV3131P(3pc)-FP-W-ISO-H LONG ball valves DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with Elephant PA-SA pneumatic actuator and APL-410N EX limit switch unit:

Name Meaning
Working environment temperature, °C from -20 to 180
Type of crane device two-way
Application water supply, heat supply, industry
Working environment water, steam, petroleum products, neutral media, gaseous media
Connection to the pipeline for welding
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining for welding
Control pneumatic actuator with return springs
Availability of limit switches There is
Availability of pneumatic distributor No
Availability of electropneumatic positioner No
Average service life, years 5
Warranty, g. 1





Sketch of the dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator Elephant PA-SA and limit switch block APL-410N EX


Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator Elephant PA-SA and limit switch block APL-410N EX:

DN d, mm D, mm B, mm H, mm L, mm E, mm
10 12 17,2 2,1 50 130 120
15 15 21,3 2,1 55 150 120
20 20 26,9 2,1 66 155 135
25 25 33,7 2,8 71 186 160
32 32 42,4 2,8 81 195 170
40 38 48,3 2,8 87 231 190
50 50 60,3 2,8 91 243 220
65 64 76,1 3,0 119 290 280
80 76 88,9 3,0 125 302 280
100 100 114,3 3,0 159 326 330
100 100 114,3 3,0 159 326 330
125 125 141,3 3,4 186 360 330
150 150 168,3 3,4 207 390 330






Sketch of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator Elephant PA-SA and limit switch block APL-410N EX




Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 304, for welding, with pneumatic actuator Elephant PA-SA and limit switch block APL-410N EX:

Item No. Part name Material
1 Frame stainless steel 304
2 Side element (2 pcs) stainless steel 304
3 Ball stainless steel 304
4 Ball seal PTFE
5 Rod seal PTFE
6 Sleeve stainless steel 304
7 Stock stainless steel 304
8 Washer stainless steel
9 screw steel A2-70
10 Bolt steel A2-70





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs





Limit Switch Block Elephant APL-410N EX



Technical parameters of the limit switch unit Elephant APL-410N EX

Name Meaning
Limit switch block model APL-410N EX
Ambient temperature, °C from -25 to 80
Service life, years 10





Sketch of the dimensions and sizes of the limit switch block Elephant APL-410N EX





Dimensions and sizes of the limit switch unit Elephant APL-410N EX:

Model APL-410N EX
A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
Ød1, mm Ø5
Ød2, mm Ø9.5





Sketch of parts and materials of limit switch blocks Elephant APL-410N EX




Table of parts and materials of limit switch blocks Elephant APL-410N EX

Item No. Detail Material
1 Visual indicator ABS plastic / polycarbonate
2 Visual indicator cover polycarbonate
3 Label
4 Cover screws stainless steel
5 BKV housing cover aluminum die casting
6 Shaft stainless steel
7 Limit switches
8 Cams (eccentrics) polycarbonate
9 BKV case aluminum die casting
10 Terminal block
11 Ground terminal stainless steel
12 Hole (thread) for cable entry
13 bracket stainless steel





Passports and certificates

Data sheet for Elephant pneumatic valve 4m310-08

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Data sheet for limit switch unit Elephant APL-410N EX
