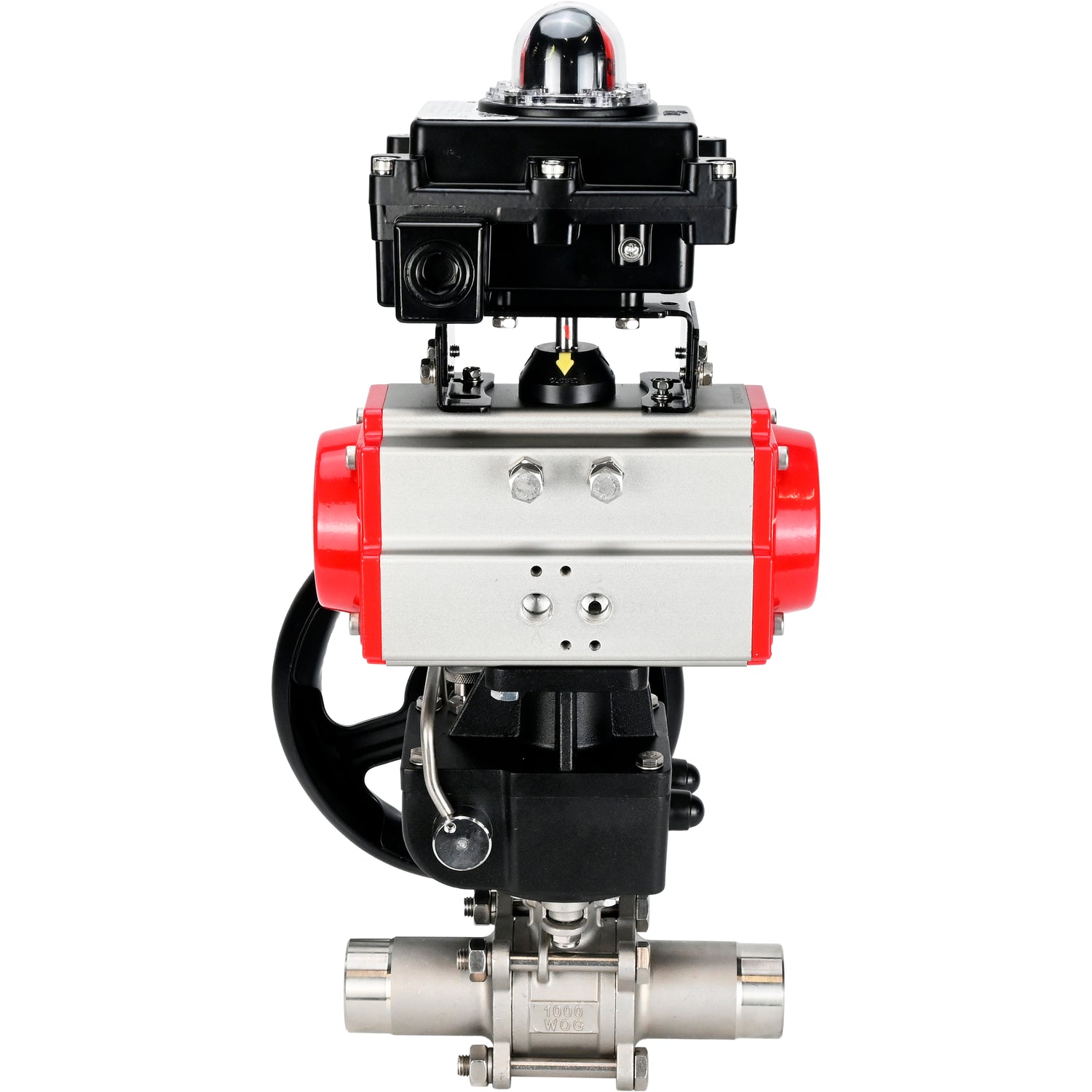

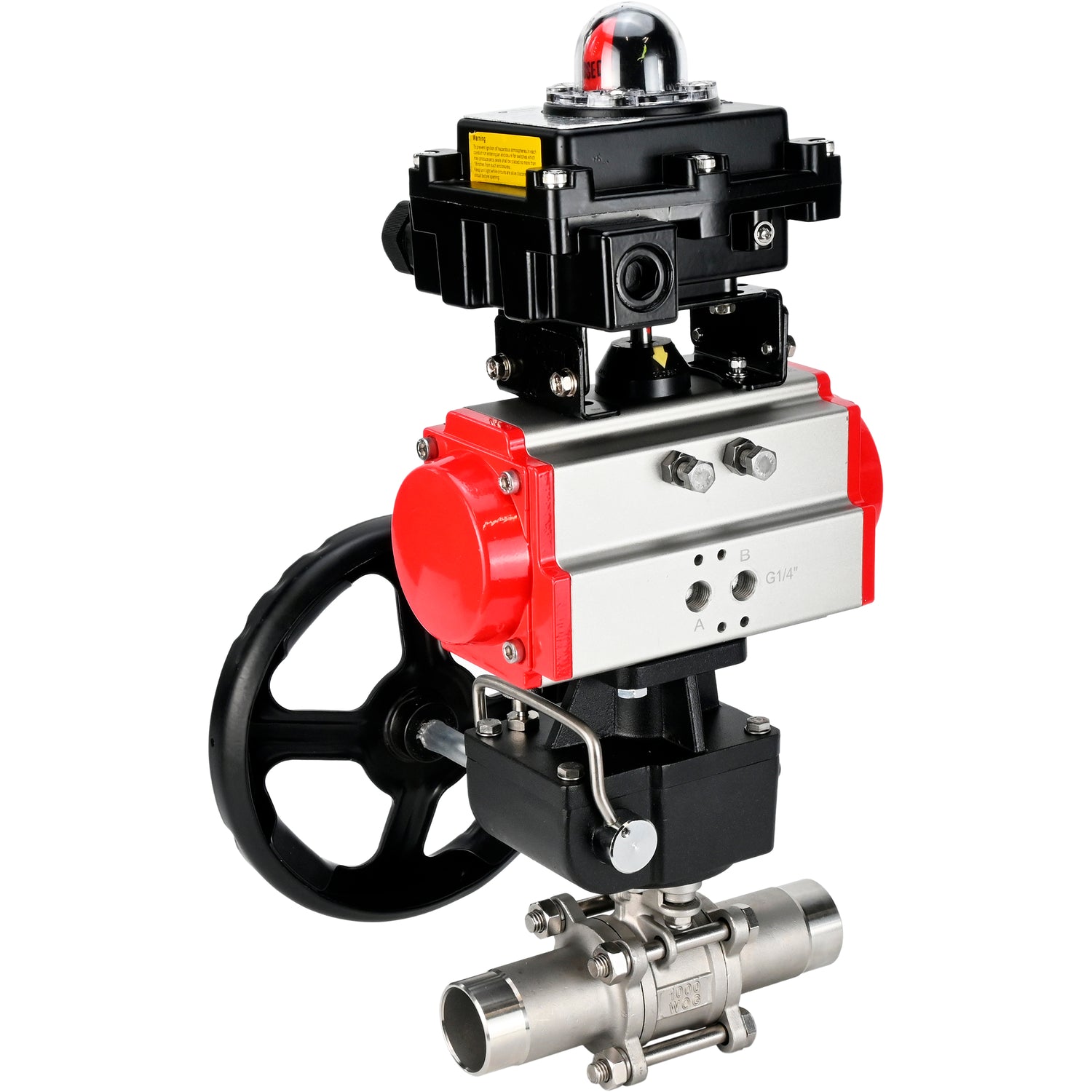

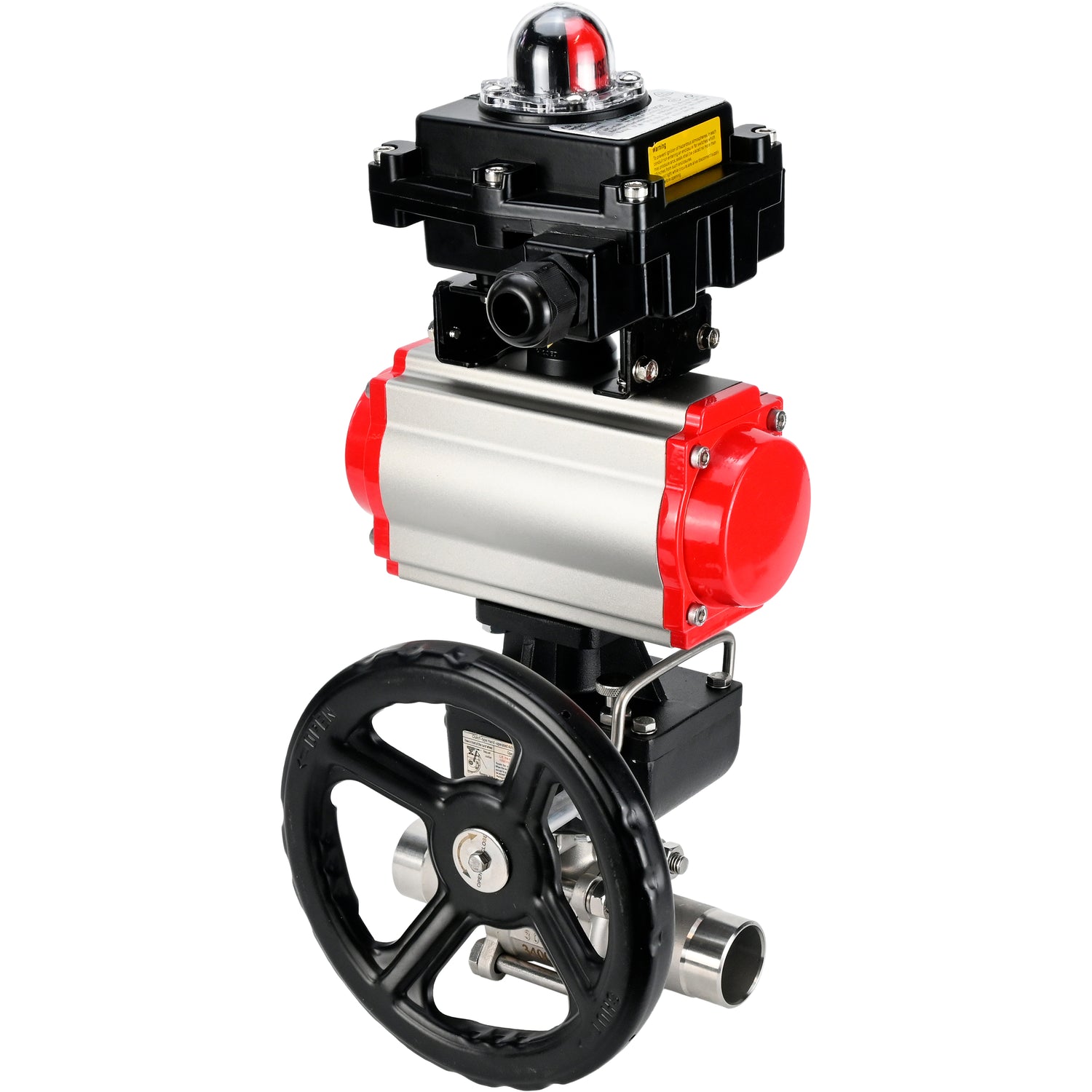

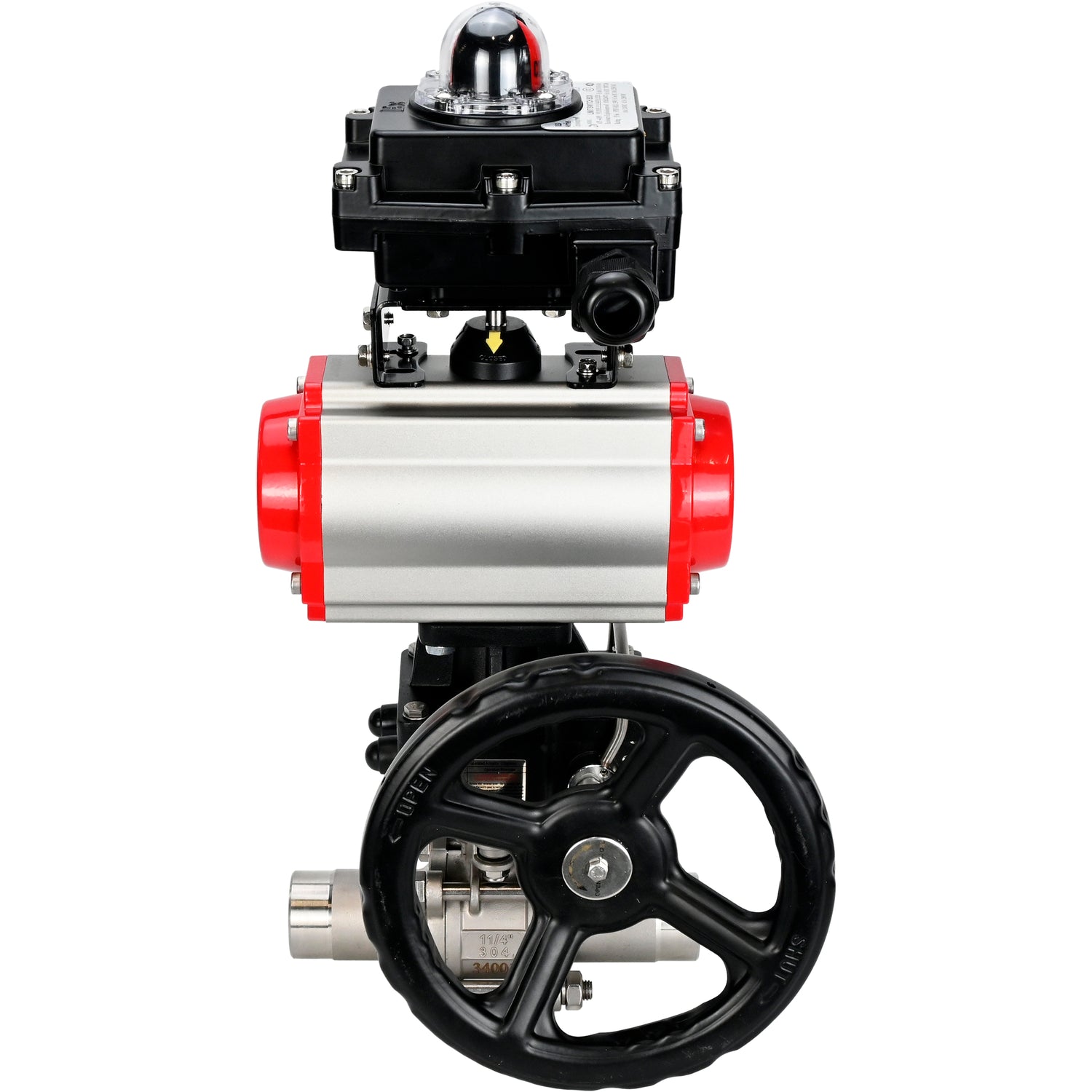

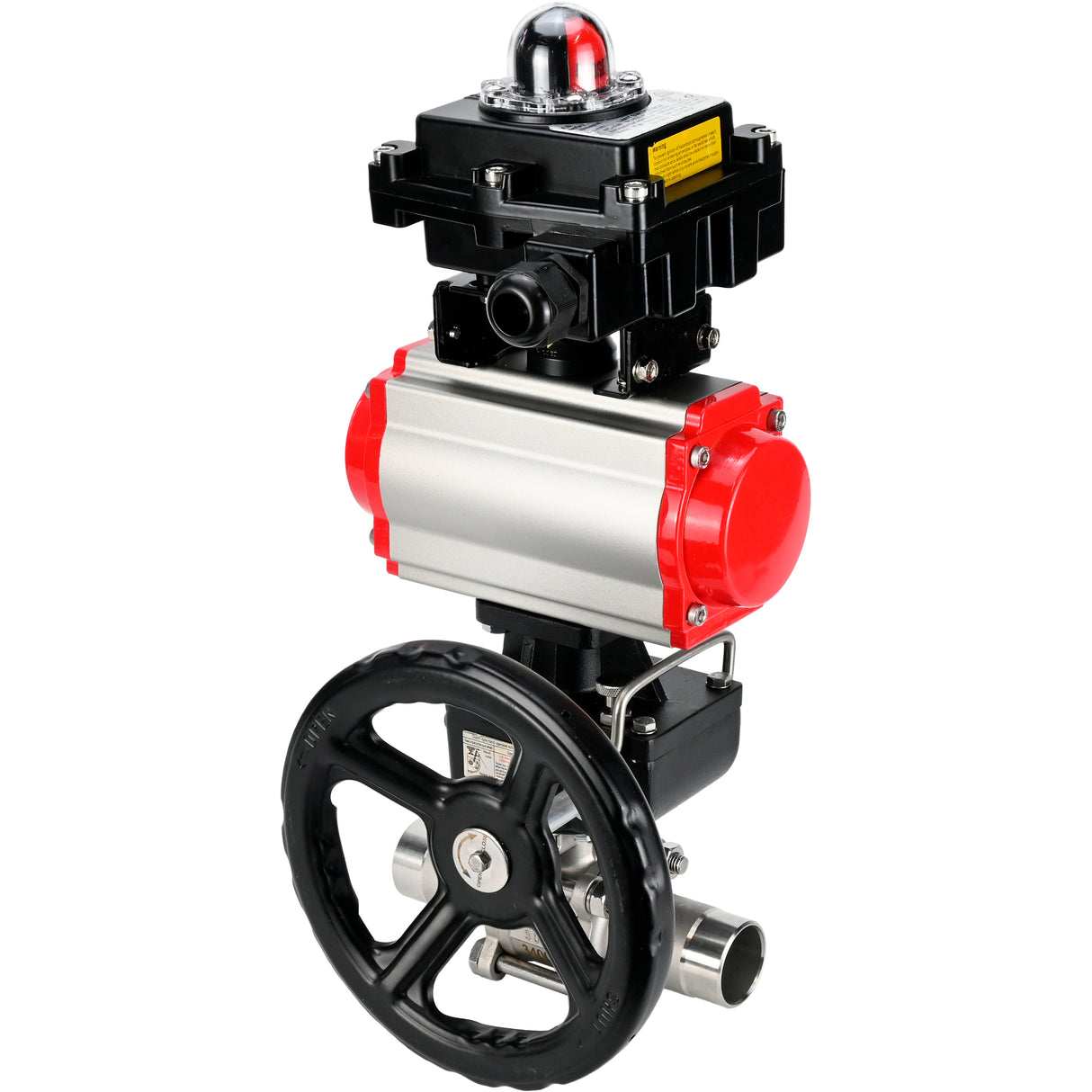

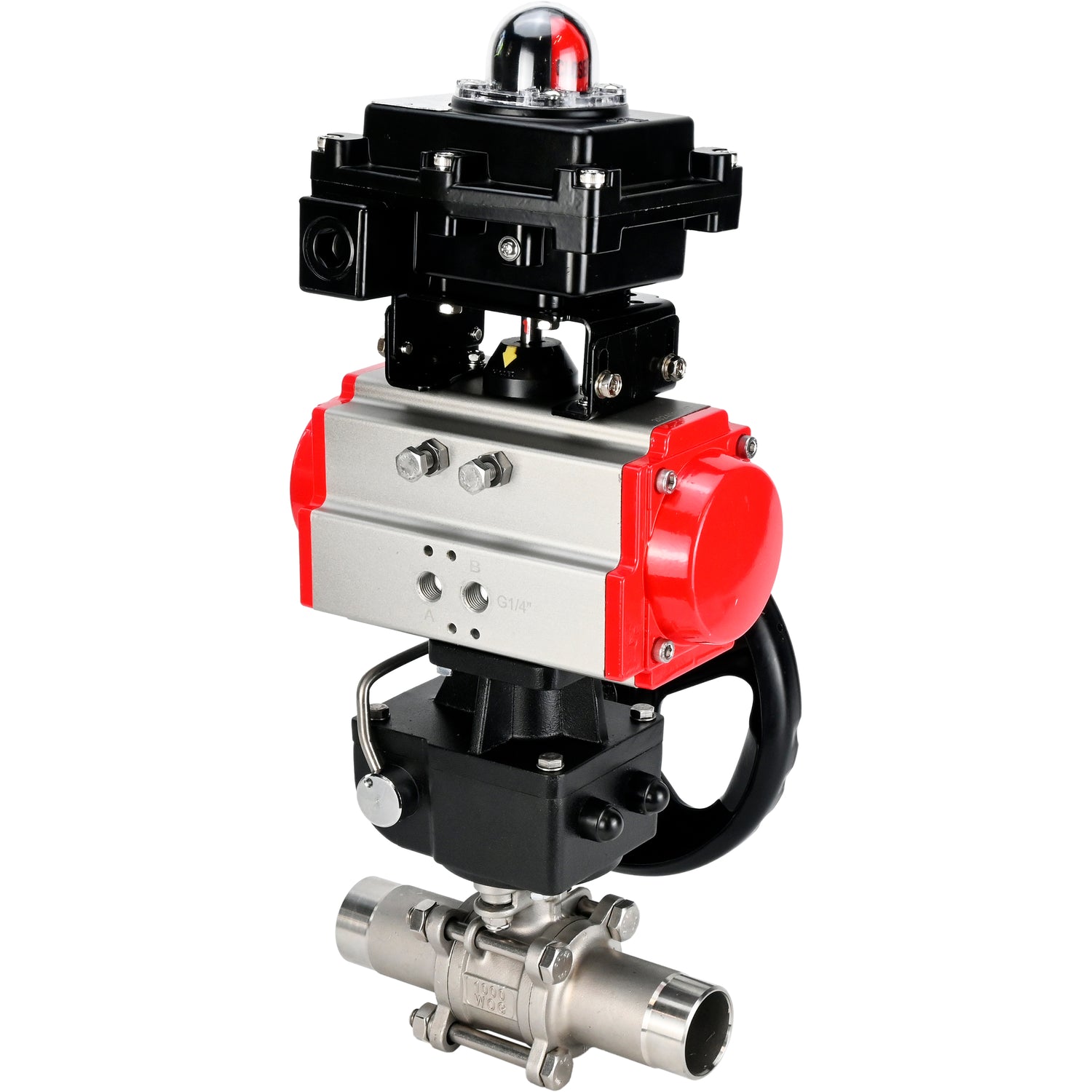

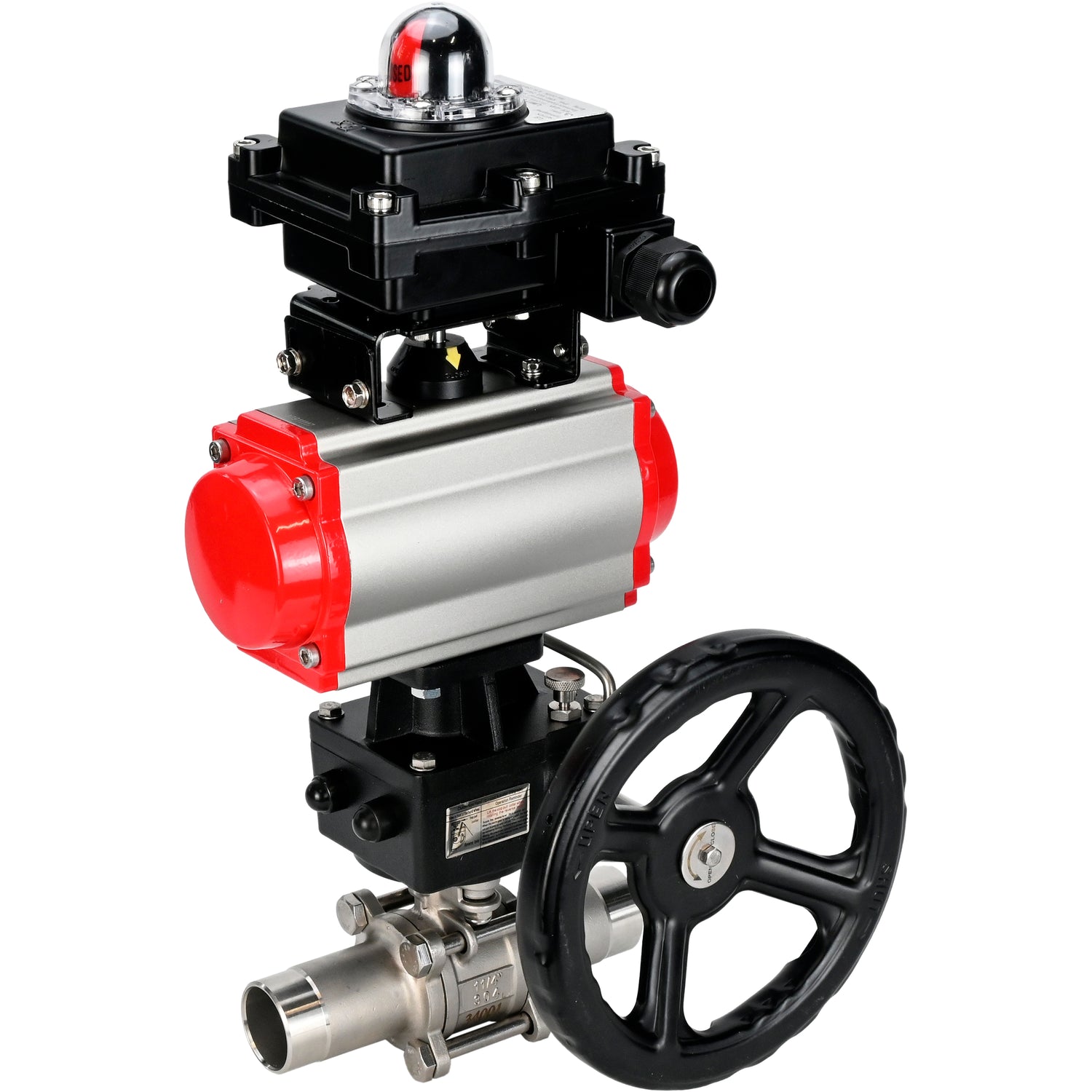

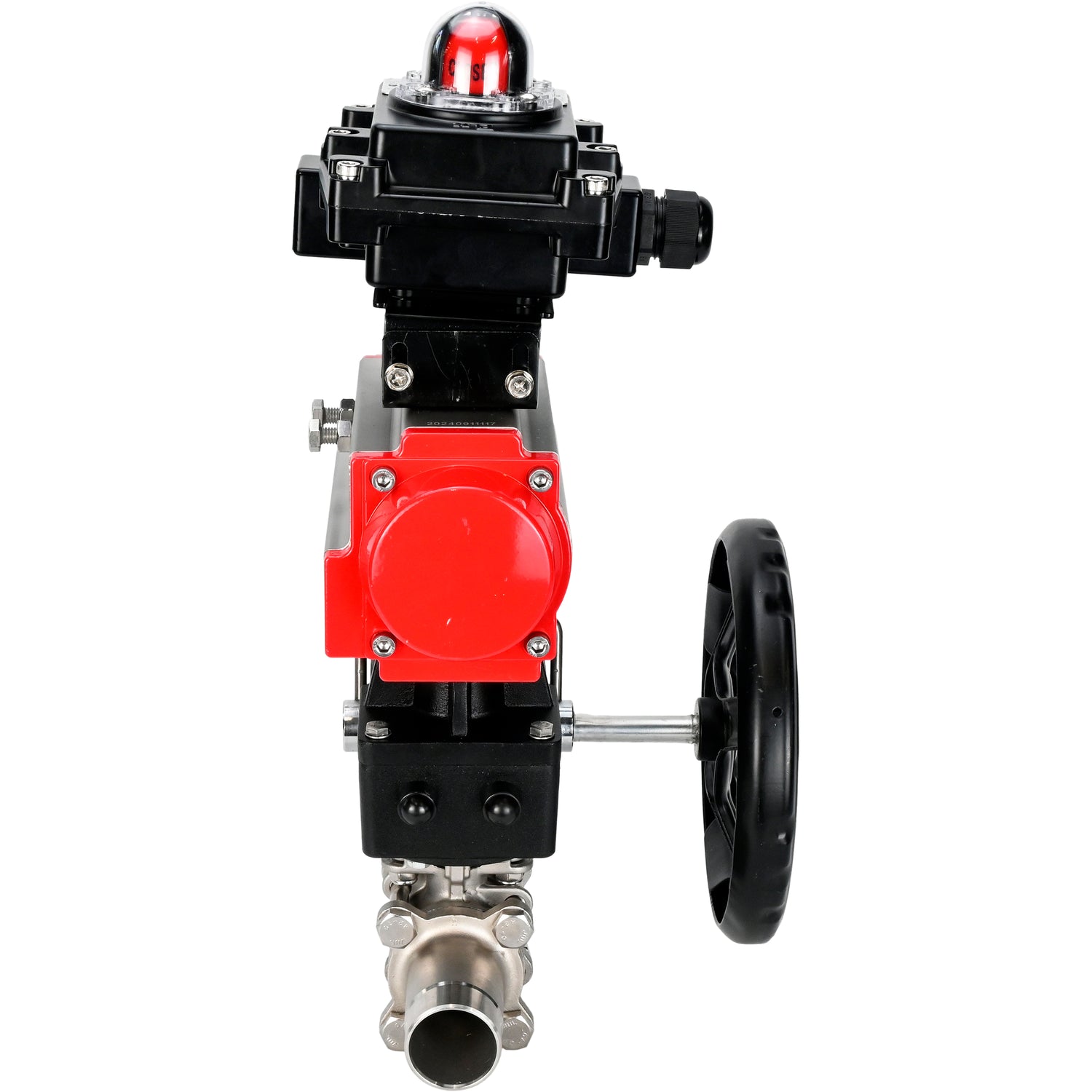

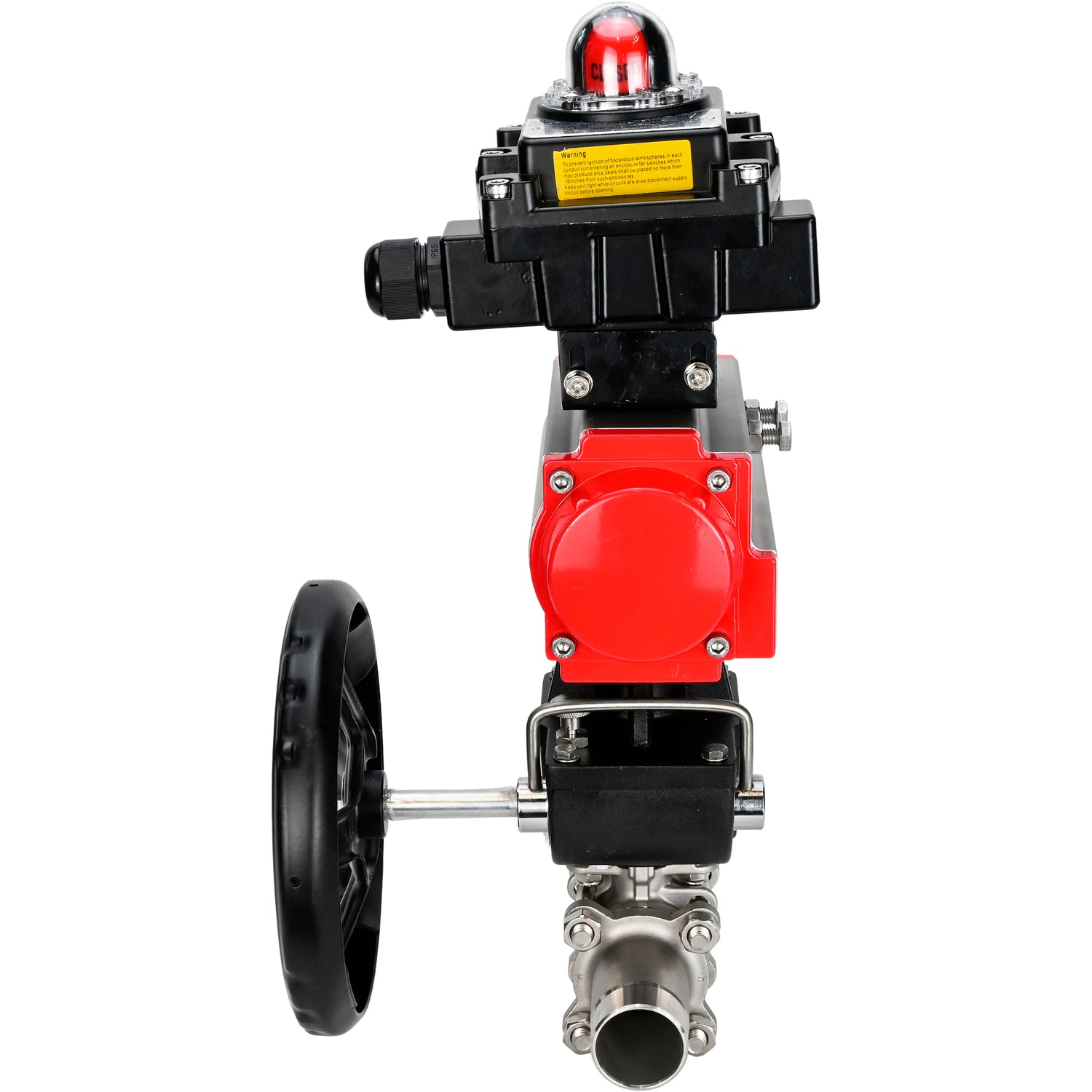

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, welded, with Elephant PA-DA pneumatic actuator, Elephant MON gearbox and APL- limit switch block 410N EX

€846,52
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, welded, with Elephant PA-DA pneumatic actuator, Elephant MON gearbox and APL- limit switch block 410N EX - DN100 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators Elephant double-acting rotary PA-DA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The manual override with worm gear and reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution for the entire range of manual override tasks.

The limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of the pipeline valve. As a rule, a sealed box contains two mechanical switches rated for voltage up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the limit switch unit, it becomes possible to transmit information about the position of the pipeline valve (open / closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.





Technical parameters of Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, welded, with Elephant PA-DA pneumatic actuator, Elephant MON gearbox and APL- limit switch block 410N EX

Name Meaning
Working environment temperature, °C from -20 to 180
Type of crane device two-way
Application water supply, heat supply, industry
Working environment water, steam, petroleum products, neutral media, gaseous media
Connection to the pipeline for welding
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining for welding
Control double acting pneumatic actuator
Availability of limit switches No
Availability of pneumatic distributor No
Availability of electropneumatic positioner There is
Average service life, years 5
Warranty, g. 1





Sketch of overall dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, welded, with Elephant PA-DA pneumatic actuator, Elephant MON gearbox and APL- limit switch block 410N EX


Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, welded, with Elephant PA-DA pneumatic actuator, Elephant MON gearbox and APL- limit switch block 410N EX

DN d, mm D, mm B, mm H, mm L, mm E, mm
10 12 17,2 2,1 50 130 120
15 15 21,3 2,1 55 150 120
20 20 26,9 2,1 66 155 135
25 25 33,7 2,8 71 186 160
32 32 42,4 2,8 81 195 170
40 38 48,3 2,8 87 231 190
50 50 60,3 2,8 91 243 220
65 64 76,1 3,0 119 290 280
80 76 88,9 3,0 125 302 280
100 100 114,3 3,0 159 326 330
100 100 114,3 3,0 159 326 330
125 125 141,3 3,4 186 360 330
150 150 168,3 3,4 207 390 330





Sketch of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, welded, with Elephant PA-DA pneumatic actuator, Elephant MON gearbox and APL- limit switch block 410N EX




Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-W-ISO-H LONG DN50-150 full bore, body - stainless steel 304, welded, with Elephant PA-DA pneumatic actuator, Elephant MON gearbox and APL- limit switch block 410N EX

Item No. Part name Material
1 Frame stainless steel 304
2 Side element (2 pcs) stainless steel 304
3 Ball stainless steel 304
4 Ball seal PTFE
5 Rod seal PTFE
6 Sleeve stainless steel 304
7 Stock stainless steel 304
8 Washer stainless steel
9 screw steel A2-70
10 Bolt steel A2-70





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Manual backups Elephant MON





Technical parameters of manual backups Elephant MON

Name Meaning
Manual backup model MON
Climate performance U, UHL, T, OM
Installation method horizontal/vertical
Degree of protection, IP 67
Connection type ISO 5211





Sketch of dimensions and sizes of manual backups Elephant MON



Dimensions and sizes of manual backup valves Elephant MON:

Model MON2-450-T28-ISO MON3-700-T38-ISO MON4-1200-T54-ISO
b1, mm 17 22 27
N, mm 22 28 32
b2, mm 17 22 27
M, mm 18 22 30
D1, mm Ø70 Ø102 Ø102
4-M1, mm 4-M8 4-M10 4-M10
D2, mm Ø102 Ø125 Ø125
4-M2, mm 4-M10 4-M12 4-M12
E, mm 95x95 114x114 129x129
D3, mm Ø70 Ø102 Ø125
4-Ø1, mm 4-Ø8.5 4-Ø10.5 4-Ø12.5
D4, mm Ø102 Ø125 Ø140
4-Ø2, mm 4-Ø10.5 4-Ø12.5 4-Ø16.5
A, mm 125 140 188.5
B, mm 64 71 93
ØC, mm Ø110 Ø129 Ø174
F, mm 135 166 202
T, mm 62.5 70 94
Y, mm 178 212 280
H, mm 133 180 195
S, mm 56.5 68.7 84
K, mm 13 12.5 15
Ø steering wheel, mm 200 280 320





Sketch of parts and materials of manual backups Elephant MON




Table of parts and materials of manual backups Elephant MON:

Item No. Details Material
1 Rod for mounting pneumatic actuator steel 45
2, 8 Sealing ring EPDM
3 Locking spring spring steel
4 Top end cap aluminum alloy
5 Screw steel 304
6 Fixing bracket (main rod) steel 304
7 Frame aluminum alloy
9 Reducer cast iron VCh50
10 Transition coupling cast iron VCh40
11 Gearbox rod cast iron VCh40





Limit Switch Block Elephant APL-410N EX



Technical parameters of the limit switch unit Elephant APL-410N EX

Name Meaning
Limit switch block model APL-410N EX
Ambient temperature, °C from -25 to 80
Service life, years 10





Sketch of the dimensions and sizes of the limit switch block Elephant APL-410N EX





Dimensions and sizes of the limit switch unit Elephant APL-410N EX:

Model APL-410N EX
A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
Ød1, mm Ø5
Ød2, mm Ø9.5





Sketch of parts and materials of the limit switch block Elephant APL-410N EX



Table of parts and materials of the limit switch block Elephant APL-410N EX:

Item No. Detail Material
1 Visual indicator ABS plastic / polycarbonate
2 Visual indicator cover polycarbonate
3 Label
4 Cover screws stainless steel
5 BKV housing cover aluminum die casting
6 Shaft stainless steel
7 Limit switches
8 Cams (eccentrics) polycarbonate
9 BKV case aluminum die casting
10 Terminal block
11 Ground terminal stainless steel
12 Hole (thread) for cable entry
13 bracket stainless steel





Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Data sheet for limit switch unit Elephant APL-410N EX



Especificaciones
  • País de origen
    China
  • Apertura de puerto
    full bore
  • Temperatura máxima permitida
    180 °C
  • Tipo de conexión
    For welding
  • Entorno operativo
    Water, Steam, Petroleum Products, Neutral Media, Gaseous Media
  • Tipo de sello
    PTFE
  • Interruptores de límite
    have
  • Tipo de actuador neumático
    double action
