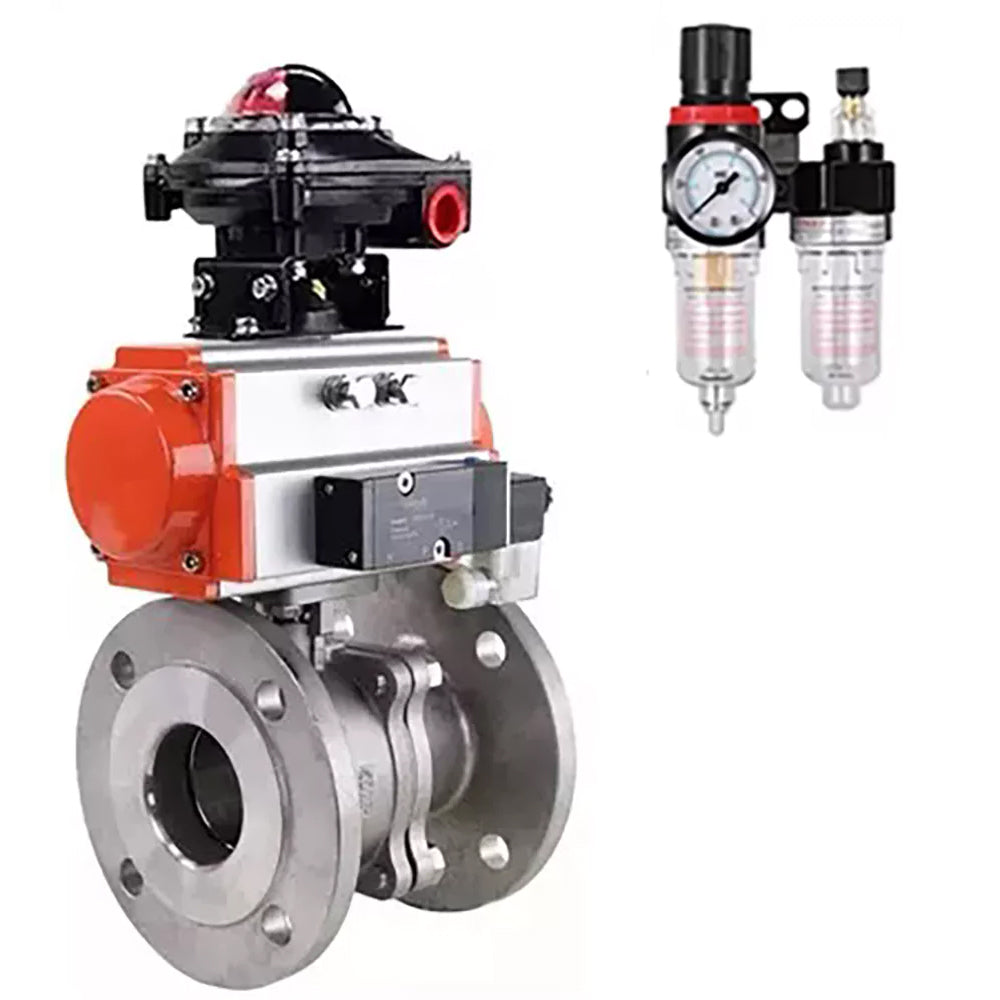

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-410N Ex, ATU AFC2000

Ball valve Elephant BV3232P(2pc)-FP-F-ISO-H is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3232P(2pc)-FP-F-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.

Double-acting pneumatic actuator Elephant PA-DA is designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic valve Elephant 4V320-08 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.

The Elephant APL-410N EX limit switch box is an electrical device designed for opening and closing of the working circuit and for visualisation of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

The AFC2000 air treatment unit is designed to clean compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 litres/minute to 10,000 litres/minute. The lubricator (oil atomiser) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic valves.

Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-08 220V, BCV APL-410N EX, BCV AFC2000:

Dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-08 220V, BCV APL-410N EX, BCV AFC2000:

Sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-08 220V, ball valve APL-410N EX, ball valve AFC2000

Detail and material sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H

Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-H:

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

Material sketch of DA double-acting pneumatic actuators

Technical parameters of the Elephant 4V320-08 220V pneumatic valve

Limit switch unit Elephant APL-410N EX

Technical parameters of limit switch unit Elephant APL-410N Ex

Table of parts and materials of the limit switch unit Elephant APL-410N EX:

Main parameters of the Elephant AFC2000 air treatment unit
