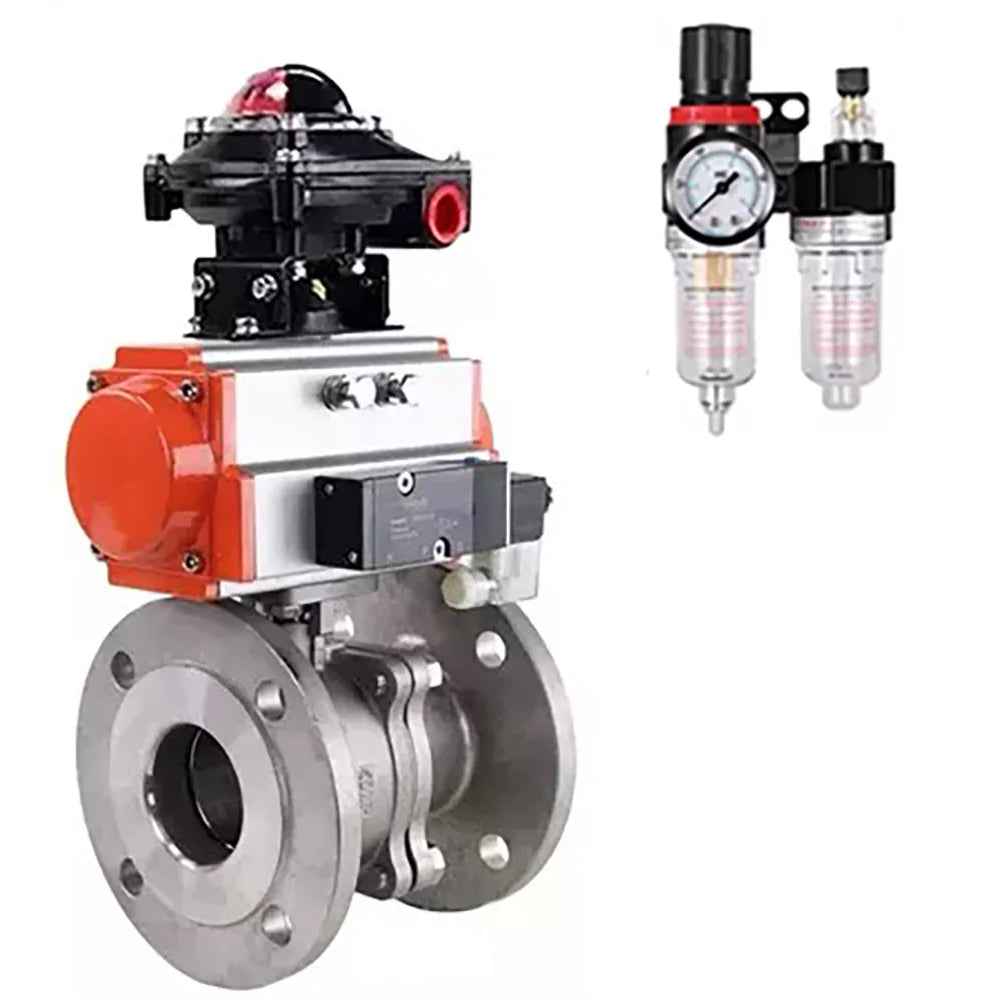

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator with return springs PA-SA, 4V320-08 220V, LSU APL-210N, ATU AFC2000

The Elephant BV3232P(2pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3232P(2pc)-FP-F-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials.

The pneumatic actuator Elephant PA-SA with return springs is designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Elephant pneumatic actuators are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.

Pneumatic distributor Elephant 4V320-08 220V is used to change the direction, start, stop the flow of compressed air in the pneumatic system depending on the external control action.

The Elephant APL-210N limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. As a rule, a sealed box contains two mechanical switches rated for up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.

The AFC2000 air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the pneumatic system elements with a large range of throughput from 500 liters/minute to 10,000 liters/minute. The lubricator (oil sprayer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic distributors.

Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-08 220V, LSU APL-210N, ATU AFC2000:

Sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-08 220V, LSU APL-210N, ATU AFC2000

Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-08 220V, LSU APL-210N, ATU AFC2000:

Detail and material sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H

Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-H:

Technical data of SA pneumatic actuators with return springs:

SA pneumatic actuators rotary with return springs

Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Sketch of dimensions of SA pneumatic actuators with return springs

Materials of parts of SA pneumatic actuators with return springs:

Material sketch of SA pneumatic actuators with return springs

Technical parameters of the Elephant 4V320-08 220V pneumatic valve

Limit Switch Block Elephant APL-210N

Technical parameters of the limit switch unit Elephant APL-210N

Table of parts and materials of the limit switch block Elephant APL-210N:

Main parameters of the air preparation unit Elephant AFC2000
