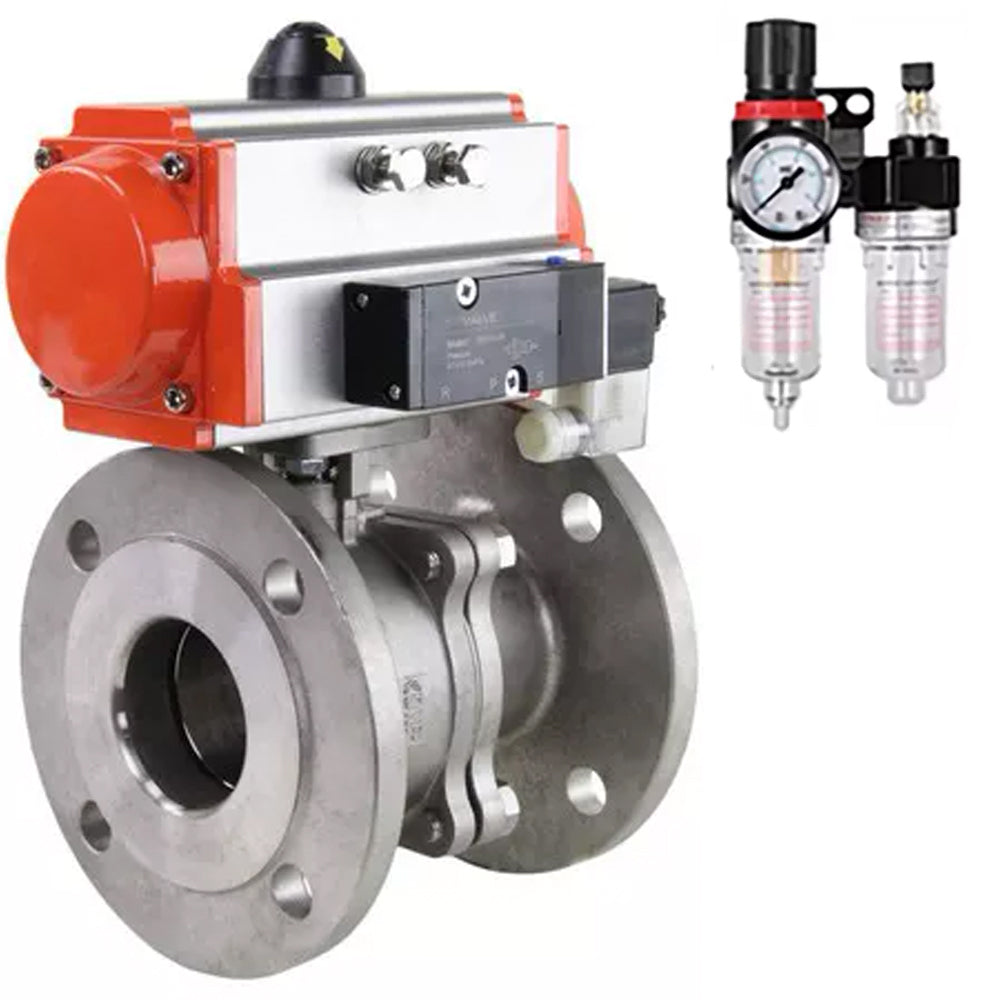

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, body material - Stainles – Valve Elephant
Elephant  |  SKU: D160-57048

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator with return springs PA-SA, 4V320-10 220VATU AFC2000

€457,42
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valve Elephant BV3232P(2pc)-FP-F-ISO-H is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3232P(2pc)-FP-F-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.

Pneumatic actuator Elephant PA-SA with return springs is designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Elephant 4V320-10 220V pneumatic valve is used to change the direction, start and stop the compressed air flow in the pneumatic system depending on the external control action.

The AFC2000 air treatment unit is designed to clean compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 litres/minute to 10,000 litres/minute. The lubricator (oil atomiser) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic valves.





Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic valve 4V320-10 220V, ATU AFC2000:

Name Meaning
Type of crane device two-way
Application heat supply
Working environment water, air, steam, industrial water, oil, oil products
Connection to the pipeline flanged
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining flanged
Control pneumatic actuator with return springs
Availability of pneumatic distributor There is





Sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-10 220V, ATU AFC2000



Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with pneumatic actuator PA-SA with return springs, pneumatic distributor 4V320-10 220V, ATU AFC2000:

DN d, mm D, mm D1, mm D2, mm C, mm t, mm L, mm W, mm H, mm H1, mm A, mm B, mm KxK (rod) N-∅Z, pcs-mm
15 15 95 65 45 16 2 115 127 79 8 36 42 9х9 4-∅14
20 20 105 75 58 18 2 120 127 83 9 36 42 9х9 4-∅14
25 25 115 85 68 18 2 125 165 94 14 42 50 11х11 4-∅14
32 32 140 100 78 18 2 130 165 115 15 42 50 11х11 4-∅18
40 38 150 110 88 18 3 140 186 115 17 50 70 14х14 4-∅18
50 50 165 125 102 20 3 150 186 120 20 50 70 14х14 4-∅18
65 65 185 145 122 19 3 170 260 151 22 70 102 17х17 4-∅18
80 76 200 160 138 21 3 180 321 158 21 70 102 17х17 8-∅18
100 99 220 180 158 21 3 190 321 188 20 70 102 17х17 8-∅18



Sketch of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H





Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H:

Item No. Name of parts Material
1 Frame AISI 316 steel
2 Ball Stainless steel SS316
3 Bolt stainless steel
4 Thrust washer PTFE
5 Stock Stainless steel SS316
6 Flange element (2 pcs) AISI 316 steel
7 Ball seal (2 pcs) PTFE





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs



Technical parameters of the pneumatic distributor Elephant 4V320-10 220V

Name Meaning
Type of pneumatic distributor spool valve
Model of pneumatic distributor 4V320-10 220V
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Response frequency, cycles/sec 5





Main parameters of the air preparation unit Elephant AFC2000

Working pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0.5 ÷ 9
Destruction pressure, bar 15
Air connection 1/4"
Operating temperature, C from -5 to +60
Size of filtered particles, µm 40
Oil viscosity ISO VG 32
Weight, kg 0.395
Kit composition filter-moisture separator, pressure regulator, lubricator, bracket

Especificaciones
  • País de origen
    China
  • Temperatura máxima permitida
    210 °C
  • Tipo de conexión
    Flanged
  • Entorno operativo
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Tipo de sello
    PTFE / PTFE / Teflon
  • Material de bloqueo
    Stainless steel AISI 316
  • Tipo de actuador neumático
    with return springs

Reseñas (0)

Documentación
nullAir treatment unit AFC2000 ELEPHANT
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 140 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 40 63 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-ISO-H
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
