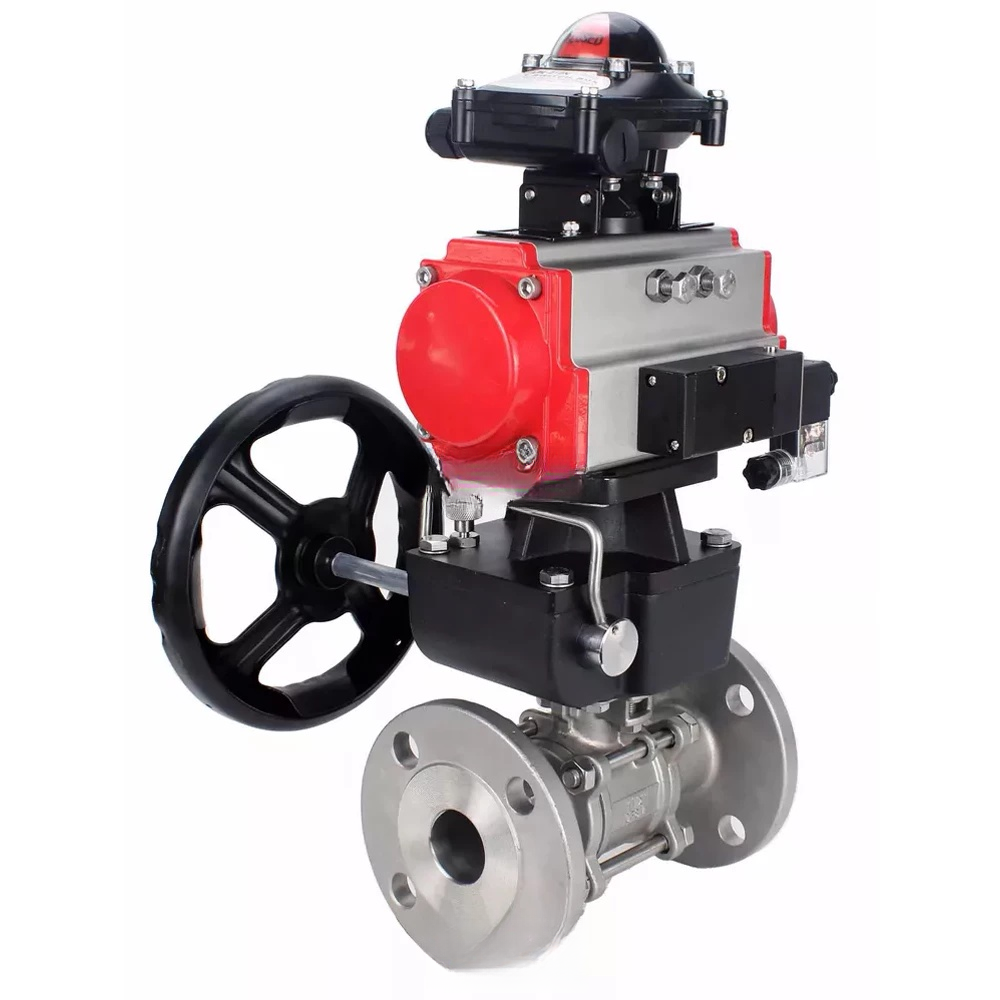

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA pneumatic distributor 4M310-08 24V, LSU APL-410N Ex, manual backup MON3-700-T38-ISO
Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA pneumatic distributor 4M310-08 24V, LSU APL-410N Ex, manual backup MON3-700-T38-ISO - DN100 / 25 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heat supply systems, water supply systems, steam, fuel systems, and pneumatic systems with compressed air and neutral gases. The BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems transporting liquid and gaseous media (water, steam, petroleum products, liquids, neutral media, and gaseous media) that are non-corrosive to the valve materials.
The Elephant PA-DA pneumatic actuator is designed to automate the control of industrial shut-off valves, such as globe valves and ball valves. Elephant pneumatic actuators are designed for both indoor and outdoor use. All internal and external components have an anti-corrosion coating.
Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
| Name | Value |
| Working fluid temperature, °C | from -20 to 150 |
| Tap type | two-way |
| Application | water supply, heat supply, pneumatic systems |
| Working fluid | water, steam, petroleum products, liquids, neutral media, gaseous media |
| Pipeline connection | flanged |
| Water-drawable | no |
| Flow section type | full bore |
| Tightness class | A |
| Control type | with pneumatic actuator |
| Connection | flanged |
| Control | double-acting pneumatic actuator |
| Presence of limit switches | no |
| Presence of pneumatic valve | yes |
| Average service life, years | 10 |
| Country of manufacture | China |
Dimensions and sizes of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
| DN mm | D, mm | L, mm | L1, mm | F, mm | G, mm | E, mm |
| 65 | 185 | 290 | 204 | 128,7 | 77 | 133 |
| 80 | 200 | 310 | 204 | 128,7 | 77 | 133 |
| 100 | 235 | 350 | 268 | 153 | 77 | 180 |
Sketch of a ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
Table of parts and materials for a ball valve Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar
| № | Part Name | Quantity, pcs | Material |
| 1 | Flange | 2 | Stainless steel AISI 316 |
| 2 | Stud | 4/6/8 | Stainless steel AISI 304 |
| 3 | Nut | 8/12/16 | Stainless steel AISI 304 |
| 4 | Gasket | 8/12/16 | Stainless steel AISI 304 |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | Stainless steel AISI 316 |
| 7 | Housing | 1 | Stainless steel AISI 316 |
| 8 | Thrust Pad | 1 | PTFE |
| 9 | Plunger | 1 | Stainless steel AISI 316 |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust Ring | 1 | Stainless steel AISI 304 |
| 12 | Positioning Screw | 1 | Stainless steel AISI 304 |
| 13 | Sliding Cover | 1 | Stainless steel AISI 304 |
| 14 | Positioning Bolt | 1 | Stainless steel AISI 304 |
| 15 | Hex Nut | 1 | Stainless steel AISI 304 |
| 16 | Handle | 1 | Stainless steel SS 201 + PVC |
| 17 | Lock Stopper | 1 | Stainless steel SS 201 |
Technical parameters of the PA-DA pneumatic drive
| Name | Meaning |
| Model | PA-DA |
| Pressure, bar | 2 ÷ 8 |
| Availability of a manual backup | steering wheel |
Table of parts and materials for the Elephant PA-DA pneumatic actuator
| № | Part Name | Material |
| 1 | Indicator Screw | ABS plastic |
| 2 | Position Indicator | ABS plastic |
| 3 | Spring Clamp | 304 stainless steel |
| 4 | Metal Washer | 304 stainless steel |
| 5 | Thrust Washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Thrust Washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper Shaft Seal Ring | NBR |
| 10 | Upper Shaft Anti-Friction Ring | Engineering plastic |
| 11 | Shaft | Nickel-plated alloy steel |
| 12 | Lower Shaft Anti-Friction Ring | Engineering plastic |
| 13 | Lower Shaft Seal Ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting Screw Seal Ring | NBR |
| 16 | Adjusting Screw Washer | 304 stainless steel |
| 17 | Adjusting Screw Lock Nut | 304 stainless steel |
| 18 | Adjusting Screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston Guide Pad | Engineering plastic |
| 21 | Piston Anti-Friction Ring | Engineering plastic |
| 22 | Piston Seal Ring | NBR |
| 23 | Spring Kit | Spring steel |
| 24 | Cover Seal Ring | NBR |
| 25 | End Cover | Cast aluminum with polyester coating |
| 26 | Cover Screw | 304 stainless steel |
| 27 | Locking Screw | 304 stainless steel |
| 28 | Adapter | Carbon steel |
Sketch of parts and materials for the Elephant PA-DA pneumatic drive
Technical parameters of the pneumatic distributor Elephant 4M310-08 24V
| Name | Value |
| Pneumatic Valve Type | spool |
| Pneumatic Valve Model | 4M310-08 24V |
| Operating Pressure, Bar | 1.5 ÷ 8 |
| Supply Voltage | 220V |
| Actuation Frequency, Cycles/Sec | 5 |
Technical parameters of the Elephant APL-410N EX limit switch unit
| Name | Meaning |
| Model | APL-410N EX |
| Service life, years | 10 |
Technical parameters of manual overrides Elephant MON
| Name | Meaning |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Table of parts and materials for the Elephant MON manual override
| № | Name | Material |
| 1 | Pneumatic actuator mounting rod | 45 Steel |
| 2 | O-ring | EPDM |
| 3 | Retaining spring | Spring Steel |
| 4 | Top end cap | Aluminum Alloy |
| 5 | Screw | 304 Steel |
| 6 | Retaining bracket (main rod) | 304 Steel |
| 7 | Housing | Aluminum Alloy |
| 8 | O-ring | EPDM |
| 9 | Gearbox | Cast Iron |
| 10 | Reducer coupling | Cast Iron |
| 11 | Gearbox rod | Cast Iron |
Sketch of parts and materials for the manual backup Elephant MON
