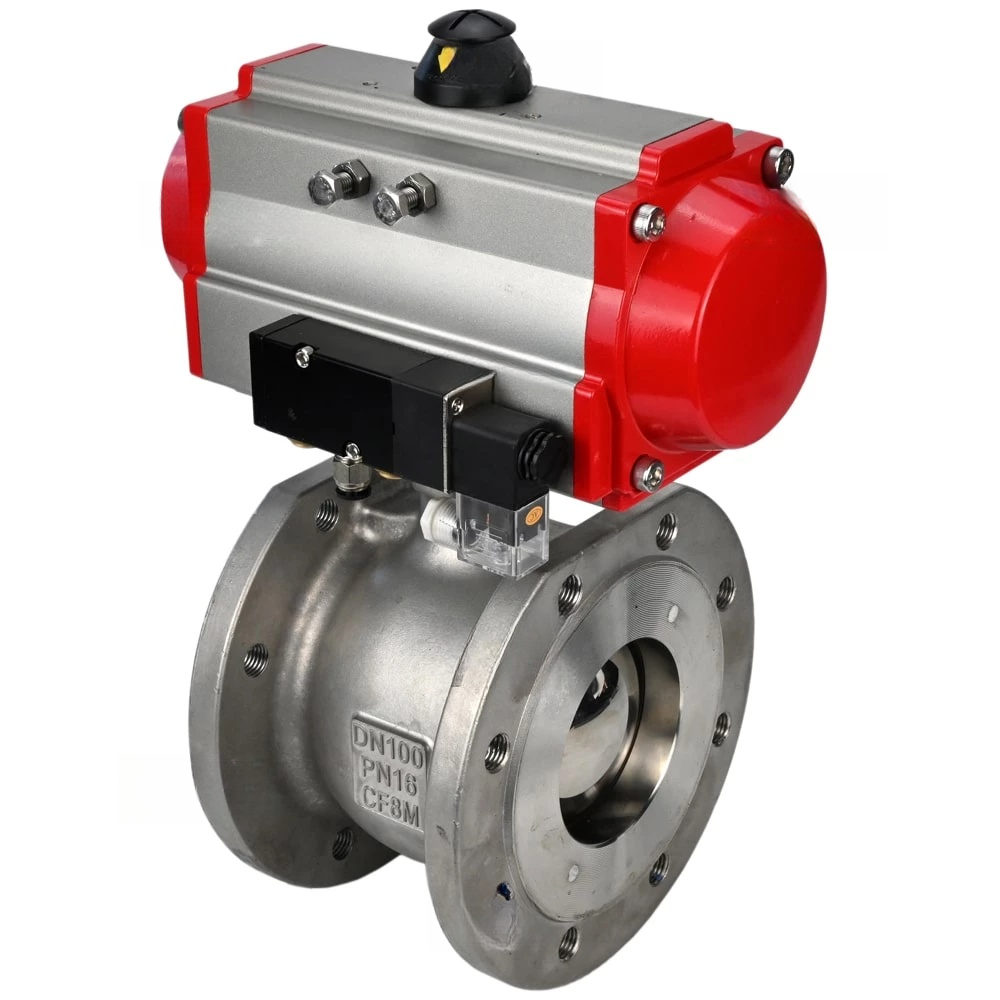

Ball valves Elephant BV3232P-FP-Fb-ISO-H DN15-100 16 bar stainless, full bore, double-acting PA-DA-052-105 pneumatic actuators with flange connections and 4M310-08 24V pneumatic distributor
Ball valves Elephant BV3232P-FP-Fb-ISO-H DN15-100 16 bar stainless, full bore, double-acting PA-DA-052-105 pneumatic actuators with flange connections and 4M310-08 24V pneumatic distributor - DN32 with DA-065 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
Ball valves are used as shut-off valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials. Ball valves are not permitted for use as control valves.
PA-DA-x double-acting pneumatic actuators use two ports to supply the control fluid and create movement in both directions, both for opening and closing the valve. One port is used to move the piston in one direction, and the other to move it in the opposite direction.
Technical characteristics of ball valves Elephant BV3232P-FP-Fb-ISO-H DN15-100 16 bar
| Characteristics | Value |
| Nominal diameter | 15-100 mm |
| Tightness class | A |
| Seal type | PTFE / Fluoroplastic / Teflon |
| Connection | wafer |
| Valve device type | two-way |
| Valve ball bore | full-bore |
| Control type | double-acting pneumatic actuator |
| Working fluid temperature | -50 to +200 °C |
| Fluid | water, steam, petroleum products, liquids, neutral media, gaseous media |
| Application area | water supply, heat supply, pneumatic systems |
| Country of origin | China |
Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA
| Name | Value |
| Pneumatic Actuator Type | Double-acting |
| Pneumatic Actuator Operating Pressure, Bar | 6.0 |
| Actuator Rotation Angle, ° | 90 |
| Actuator Adjustment Range, ° | 5 |
| Country of Origin | China |
| Operating Environment | Indoor and outdoor use |
| Position Indicator | Open/Closed |
| Coating | All internal and external parts have an anti-corrosion coating |
Overall and installation dimensions of ball valves Elephant BV3232P-FP-Fb-ISO-H DN15-100 16 bar
| DN | d, mm | D2, mm | L, mm | Z, mm |
| 15 | 15 | 45 | 42 | 147 |
| 20 | 20 | 58 | 48 | 147 |
| 25 | 25 | 68 | 50 | 147 |
| 32 | 32 | 78 | 60 | 147 |
| 40 | 36 | 88 | 65 | 204 |
| 50 | 46 | 102 | 80 | 204 |
| 65 | 58 | 122 | 110 | 204 |
| 80 | 73 | 138 | 120 | 204 |
| 100 | 90 | 158 | 150 | 268 |
Overall and installation dimensions of Elephant double-acting rotary pneumatic actuators PA-DA
| Model | A | B | C | D | E | F | G | H | I | J | M | N | Z | d | K | L |
| PA-DA(SA)-052 | 30 | 41.5 | 65.5 | 72 | 92 | 65 | 30 | 80 | 36 | 50 | 11х11 | 14 | 147 | 40 | M5x8 | M6x10 |
| PA-DA(SA)-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 | 50 | 70 | 14х14 | 18 | 168 | 40 | M6x10 | M8x13 |
| PA-DA(SA)-083 | 46 | 57 | 98.5 | 108.7 | 128.7 | 92 | 30 | 80 | 50 | 70 | 17х17 | 21 | 204 | 40 | M6x10 | M8x13 |
| PA-DA(SA)-105 | 57.5 | 64 | 122.5 | 133 | 153 | 109.5 | 30 | 80 | 70 | 102 | 22х22 | 26 | 268 | 40 | M8x13 | M10x16 |
| PA-DA(SA)-130 | 67.5 | 74.5 | 145.5 | 155 | 185 | 127.5 | 30 | 130 | 70 | 102 | 22х22 | 26 | 301 | 55 | M8x13 | M10x16 |
| PA-DA(SA)-140 | 75 | 77 | 161 | 172 | 202 | 137.5 | 30 | 130 | 102 | 125 | 27х27 | 31 | 390 | 55 | M10x16 | M12x20 |
| PA-DA(SA)-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 | 102 | 125 | 27х27 | 31 | 458 | 55 | M10x16 | M12x20 |
| PA-DA(SA)-210 | 113 | 113 | 235.5 | 255 | 285 | 210 | 30 | 130 | - | 140 | 36х36 | 40 | 532 | 80 | - | M16x25 |
| PA-DA(SA)-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 | - | 165 | 46х46 | 50 | 718 | 80 | - | M20x25 |
Materials of ball valve parts BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar
| № | Name | Material |
| 4 | Retaining Ring | AISI 304 stainless steel |
| 5 | Thrust Washer | AISI 304 stainless steel |
| 6 | Seal Washer | AISI 304 stainless steel |
| 7 | Seal | PTFE |
| 8 | Thrust Gasket | PTFE |
| 9 | Rod | AISI 316 stainless steel |
| 10 | Ball Cap | AISI 316 stainless steel |
| 11 | Ball | AISI 316 stainless steel |
| 12 | Ball Seal | PTFE |
| 13 | Gasket | PTFE |
| 14 | Housing | AISI 316 stainless steel |
Design of Elephant double-acting rotary pneumatic actuators PA-DA
| № | Part Name | Material |
| 1 | Indicator Screw | ABS plastic |
| 2 | Position Indicator | ABS plastic |
| 3 | Spring Clamp | 304 stainless steel |
| 4 | Metal Washer | 304 stainless steel |
| 5 | Thrust Washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Thrust Washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper Shaft Seal Ring | NBR |
| 10 | Upper Shaft Anti-Friction Ring | Engineering plastic |
| 11 | Shaft | Nickel-plated alloy steel |
| 12 | Lower Shaft Anti-Friction Ring | Engineering plastic |
| 13 | Lower Shaft Seal Ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting Screw Seal Ring | NBR |
| 16 | Adjusting Screw Washer | 304 stainless steel |
| 17 | Adjusting Screw Lock Nut | 304 stainless steel |
| 18 | Adjusting Screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston Guide Pad | Engineering plastic |
| 21 | Piston Anti-Friction Ring | Engineering plastic |
| 22 | Piston Seal Ring | NBR |
| 23 | Spring Kit | Spring steel |
| 24 | Cover Seal Ring | NBR |
| 25 | End Cover | Cast aluminum with polyester coating |
| 26 | Cover Screw | 304 stainless steel |
| 27 | Locking Screw | 304 stainless steel |
| 28 | Adapter | Carbon steel |
