Elephant  |  SKU: D160-37273

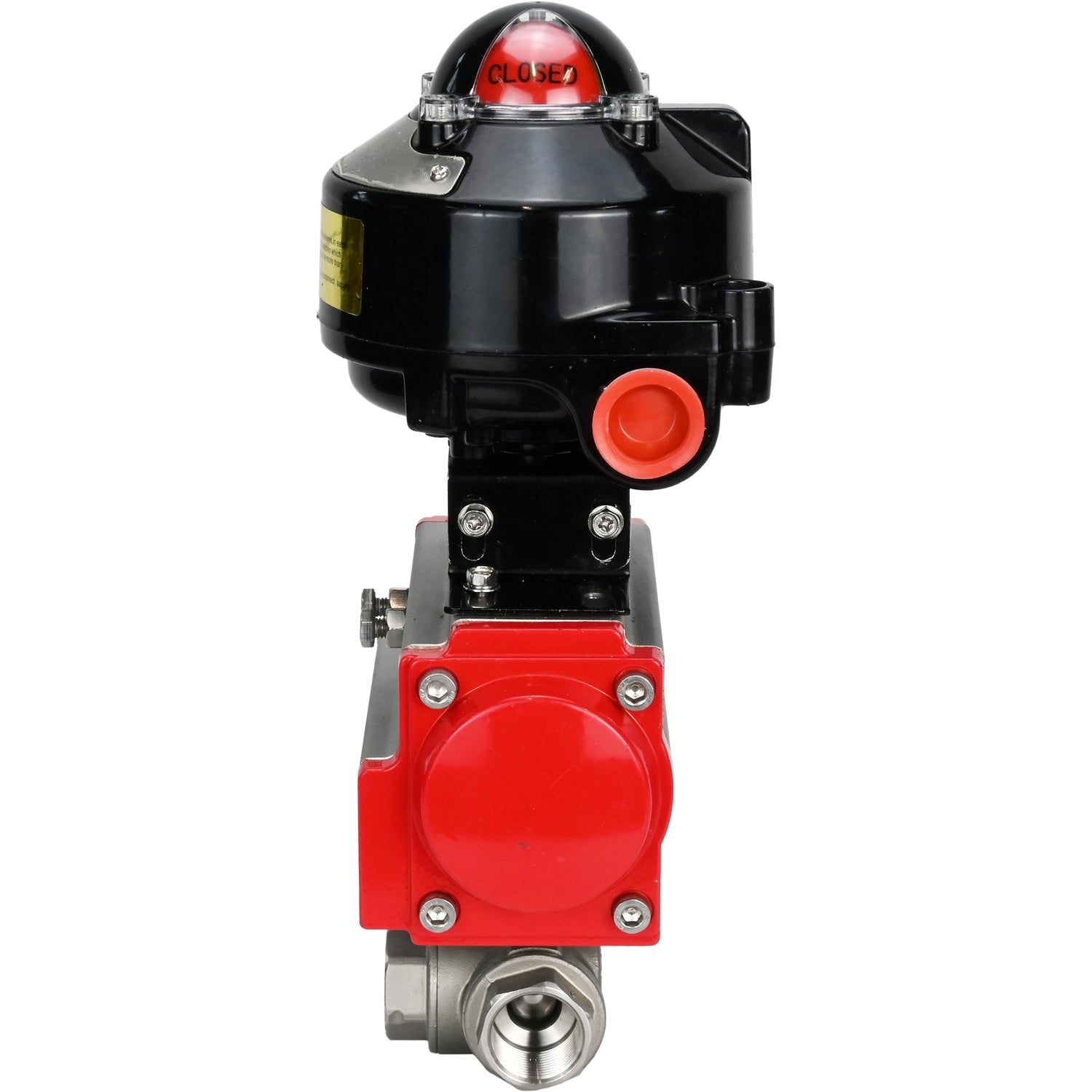

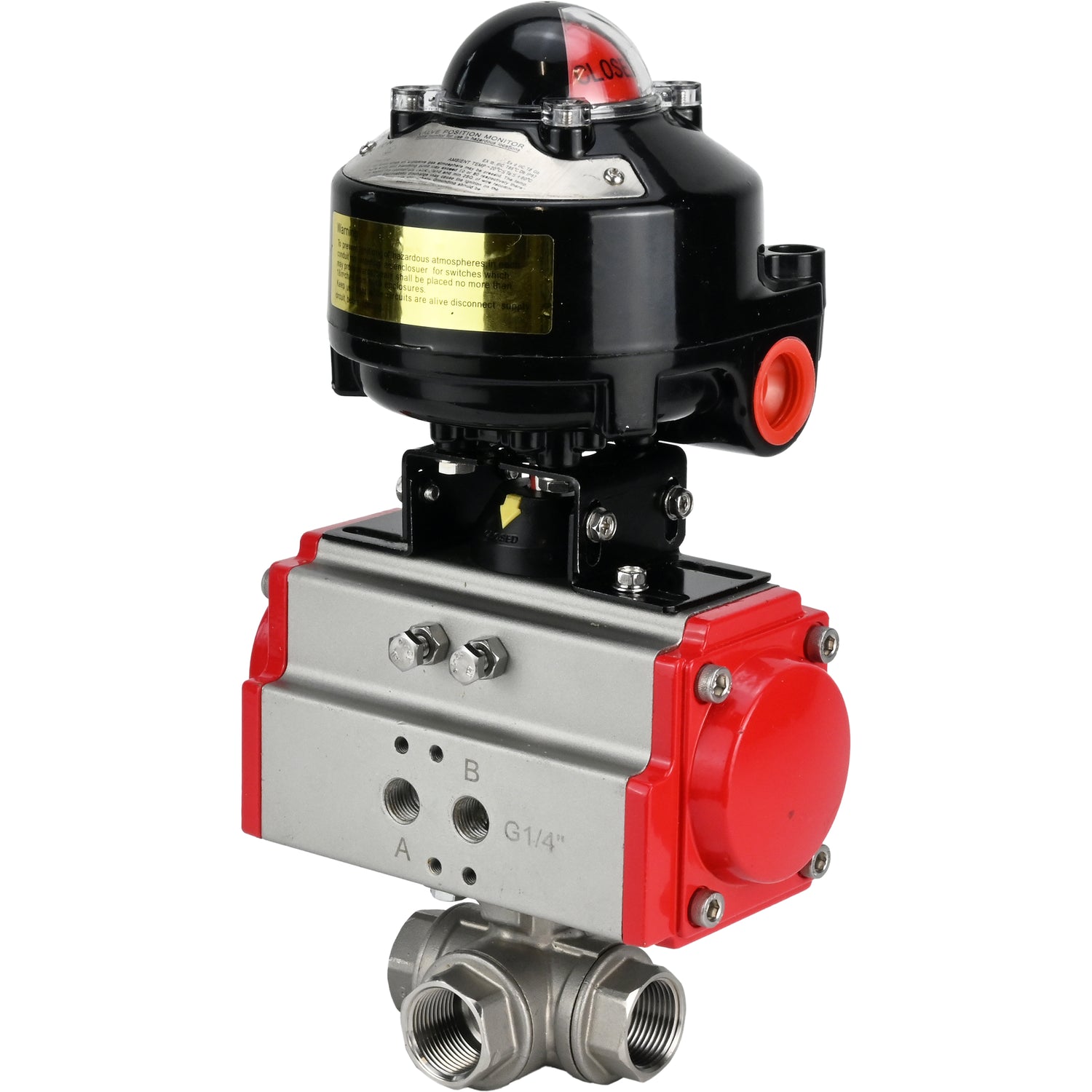

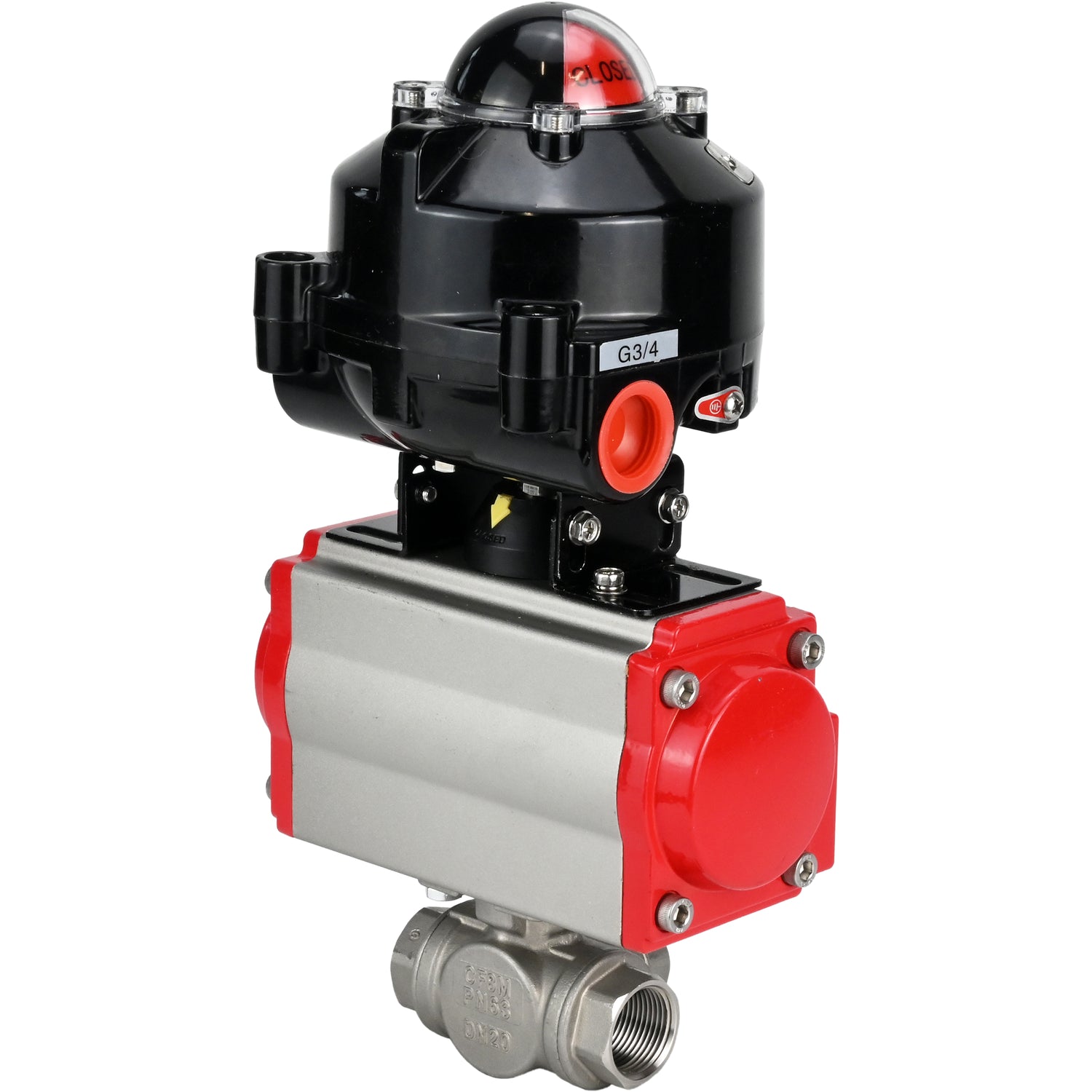

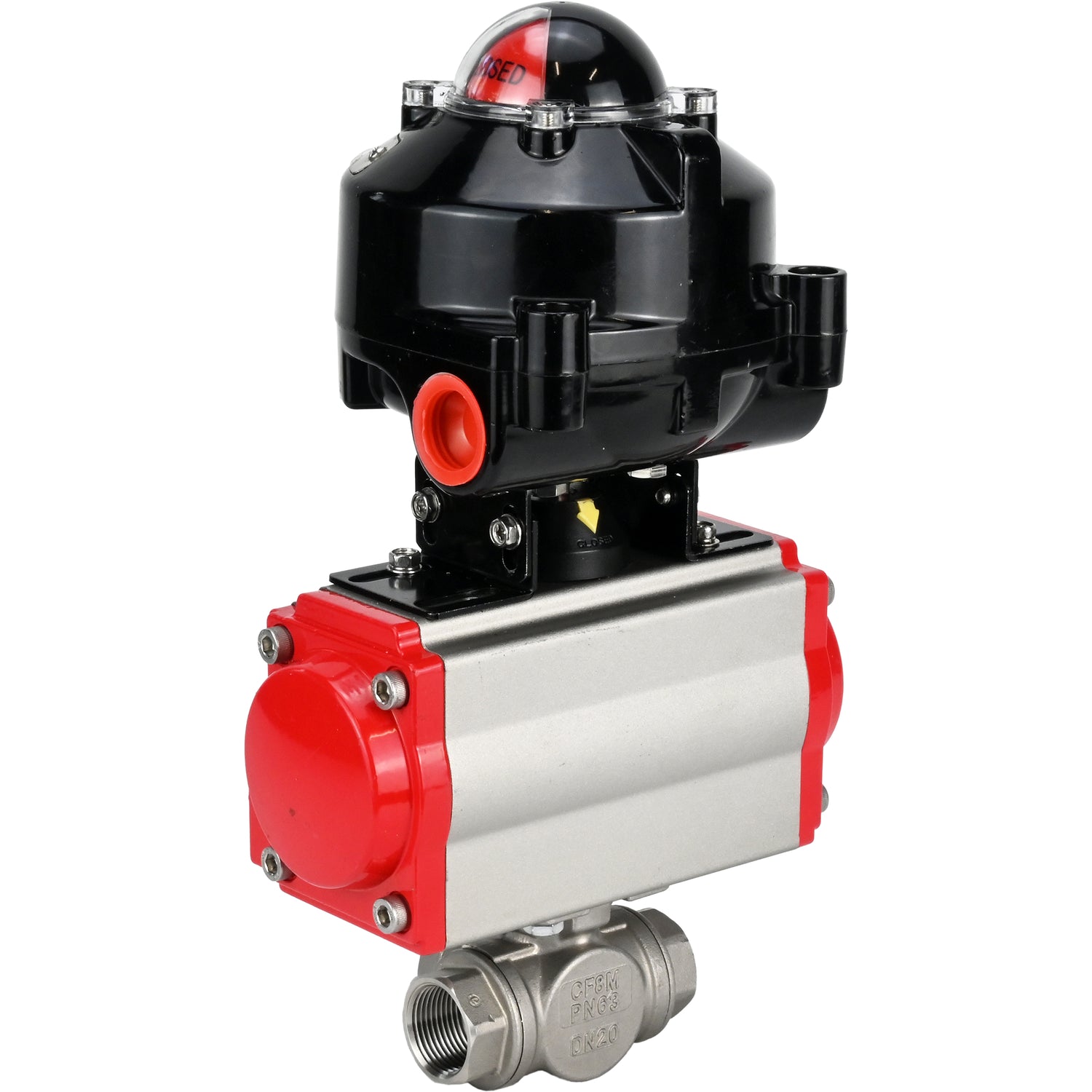

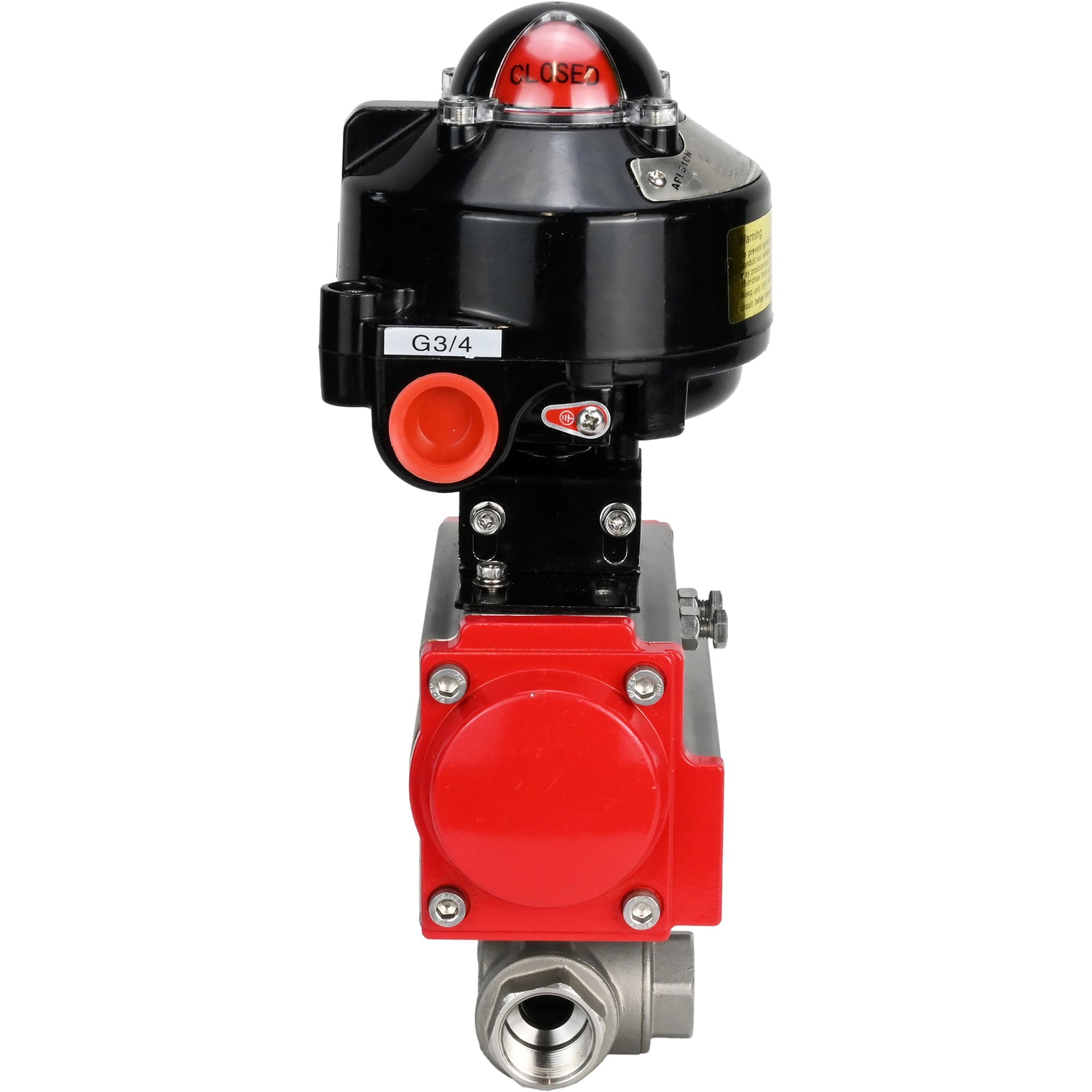

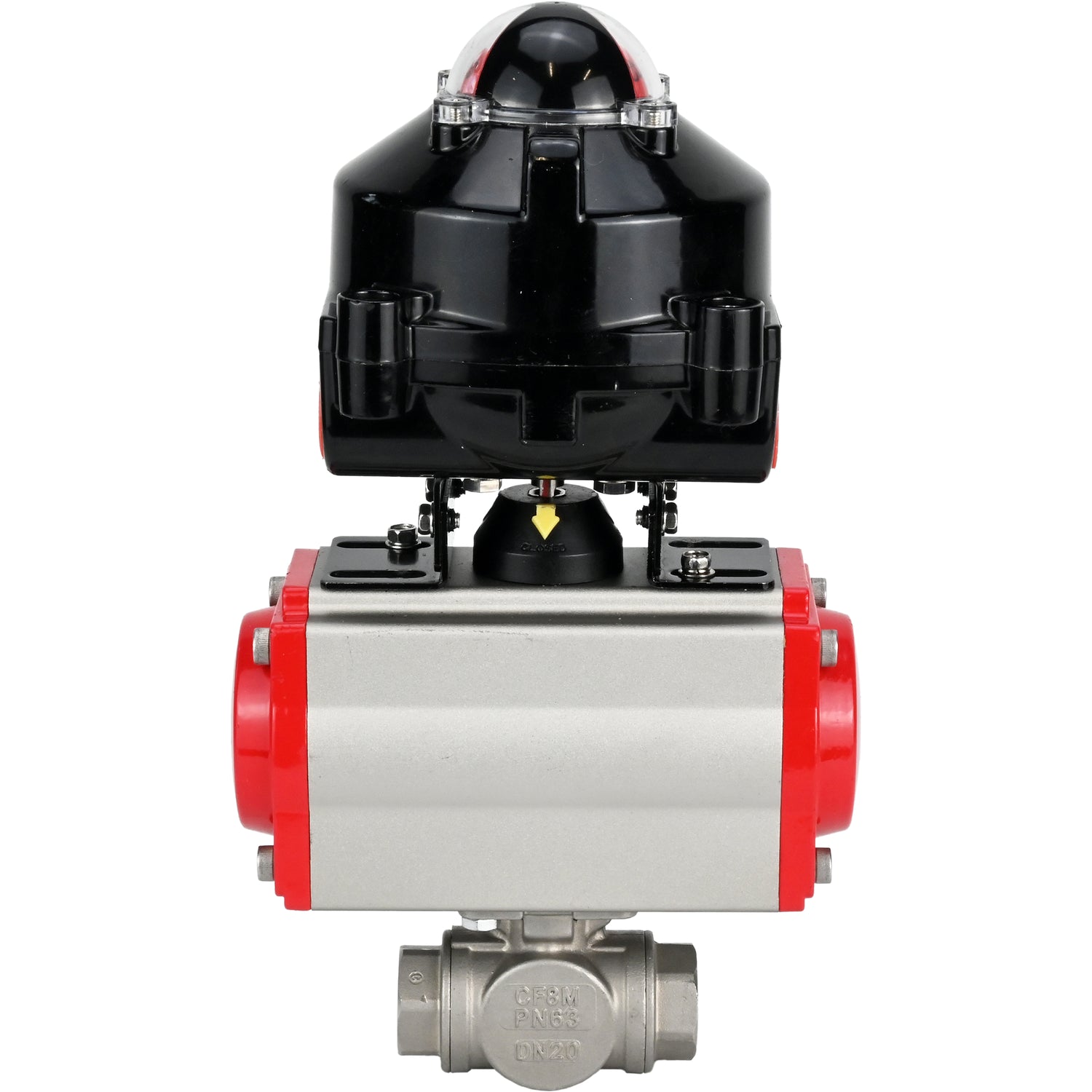

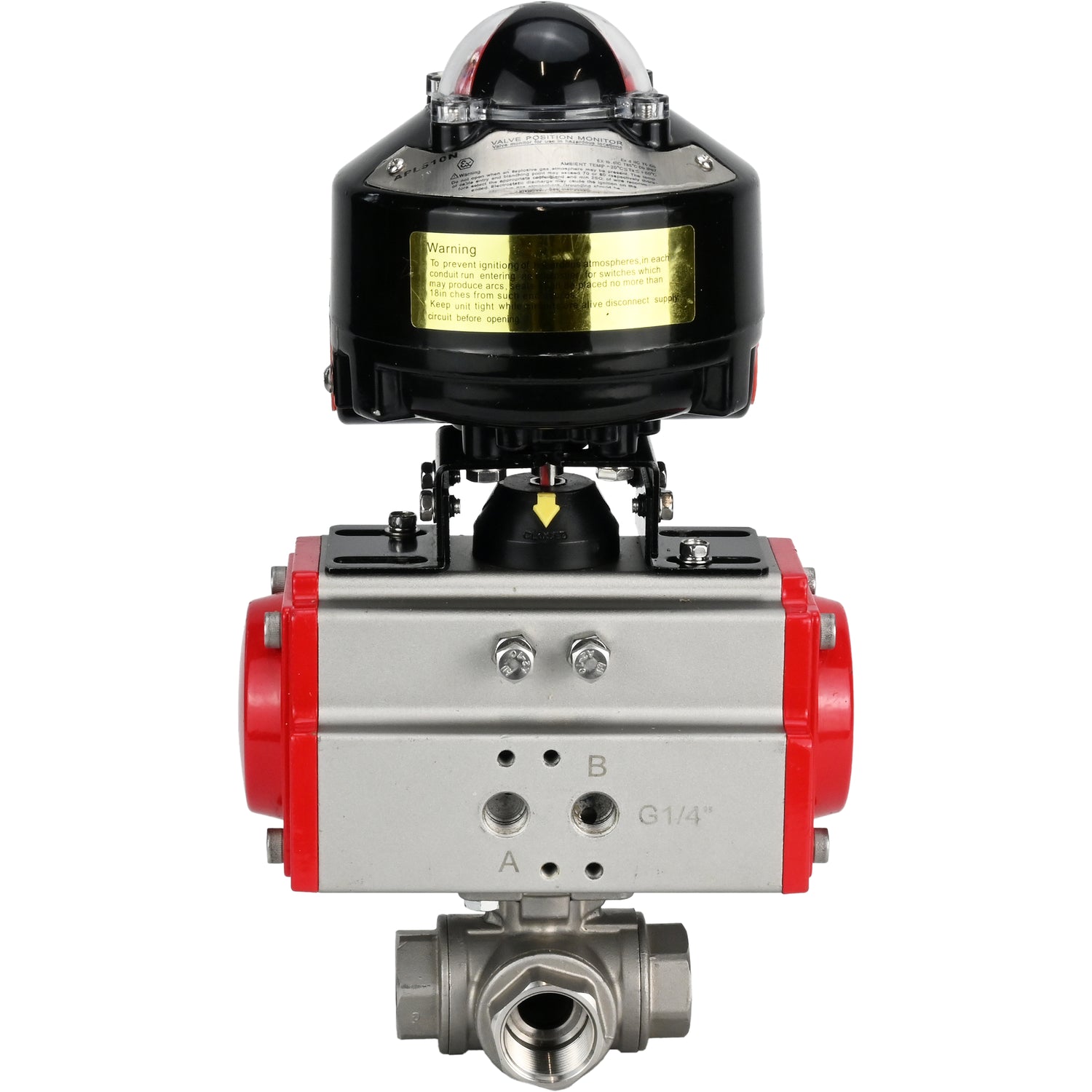

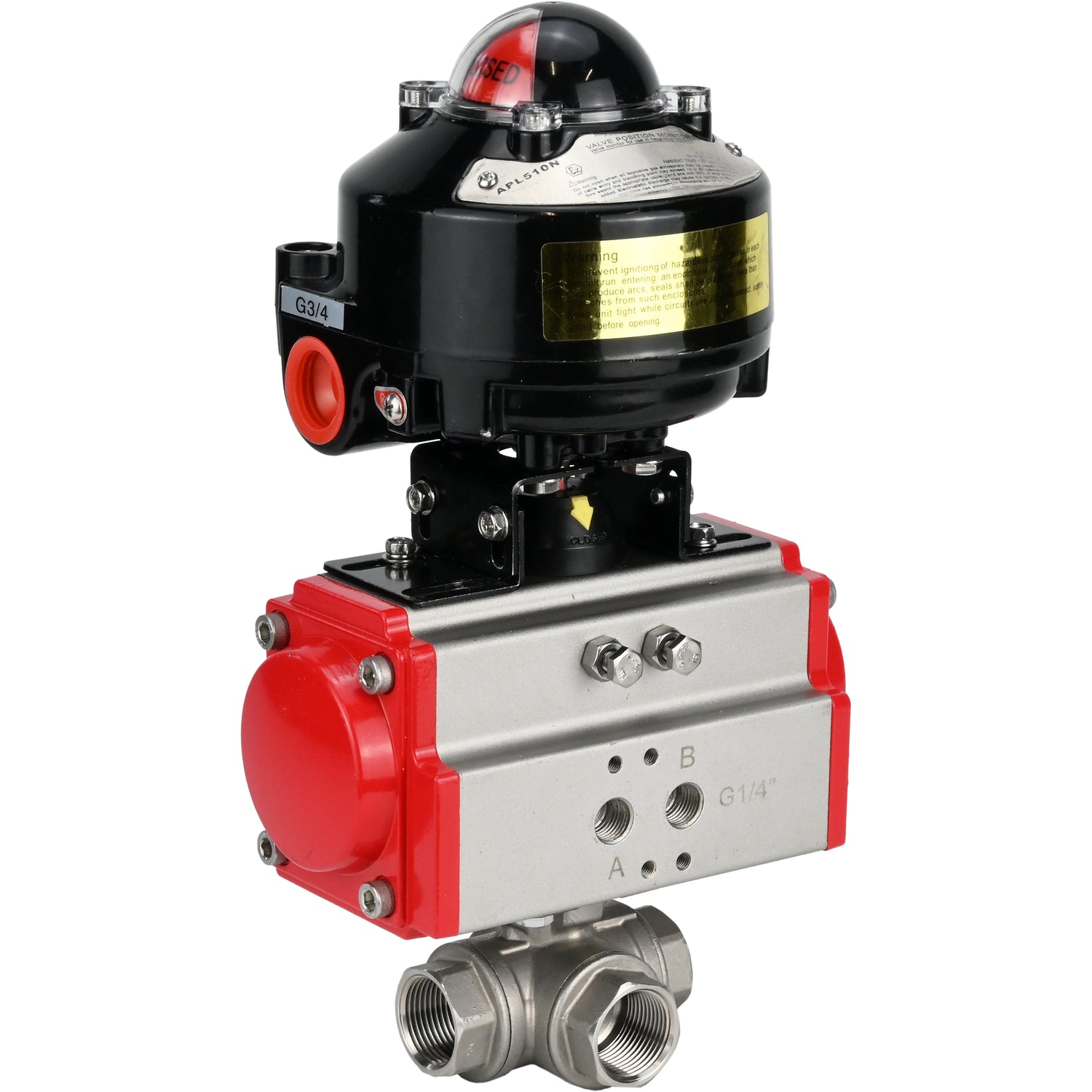

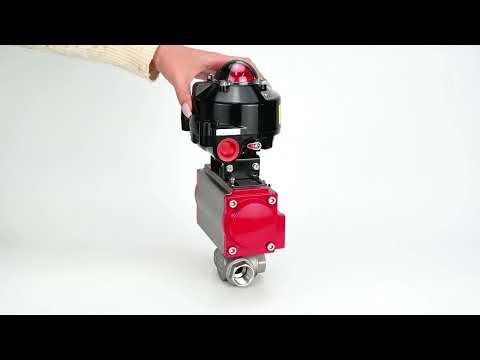

Ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052 -083 and LSU APL-510N-EX

€286,08
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052 -083 and LSU APL-510N-EX - DN10 / 63 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic actuators PA-DA are designed to automate the process of controlling industrial shut-off valves - gates, ball valves. Pneumatic actuators Elephant are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Limit switch unit Elephant APL-510N-EX is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of fault detection.





Technical parameters of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052 -083 and LSU APL-510N-EX:

Parameter

Value

Nominal diameter DN, mm

40 – 300

Nominal pressure PN, MPa (kg/cm²)

1.6 (16)

Flow direction

Two-way

Maximum working medium temperature t, ⁰C

Up to +110

Working medium

Cold and hot water, air without oil and grease, stationary conditioning, slightly aggressive media, other media neutral to the material

Control type

Bare stem (without handle) / with handle / with electric actuator / with gearbox


Materials of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052 -083 and LSU APL-510N-EX:

№

Part name

Material

Quantity

1

Cover

SS316

3

2

Seat rings

PPL

4

3

Connection gasket

PTFE/RPTFE

3

4

Thrust washer

PTFE/RPTFE

1

5

Seal

PTFE

1

6

Stem

SS304 / SS316

1

7

Gland

SS304

1

8

Ball

S304 / S316

1

9

Body

SS316

1





Overall and installation dimensions of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, body - stainless steel SS316, seal - PTFE, with pneumatic actuator Elephant PA-DA 052 -083 and LSU APL-510N-EX:

DN D, mm L±1.5, mm L1, mm H1, mm H, mm T, mm C, mm ISO
5211
10 10 71 55 13 56 100 9 F03/F04
15 12 71 55 13 55 131 9 F03/F04
20 15 82 63 10 73 131 9 F03/F04
25 18 98 72 13 78,5 167 11 F04/F05
32 25 118 92 12 90 167 11 F04/F05
40 32 122 100 20 115 193 14 F05/F07
50 38 150 119 19 122 193 14 F05/F07
65 50 178 142 20 138 242 17 F07/F10
80 64 202 163 18 163 150 17 F07/F10
100 78 231 192 25 192 154 17 F07/F10



Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Characteristics of limit switch unit APL-510N-EX:

Parameter Value
Body weatherproof IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a 90° shaft rotation
Full swivel angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection Screw terminal clamps, 8 points (0.08 – 2.5 mm²)
Cable entry thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Nominal current, A 16
Permissible ambient temperature, °C from -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8





Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Especificaciones
  • País de origen
    China
  • Apertura de puerto
    standard bore
  • Temperatura máxima permitida
    200 °C
  • Tipo de conexión
    Threaded
  • Entorno operativo
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Tipo de sello
    PTFE
  • Interruptores de límite
    have
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Pago y seguridad

Métodos de pago

    Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.

    Variantes disponibles

    SKUConnection sizePressurePrecio DisponibilidadCantidad Añadir al carrito
    D160-37273DN1063 bar €286,08 0 Disponibles
    D160-37264DN10063 bar €1.782,62 Agotado
    D160-37272DN1563 bar €285,07 Agotado
    D160-37271DN2063 bar €299,01 Agotado
    D160-37270DN2563 bar €312,53 Agotado
    D160-37269DN3263 bar €366,38 Agotado
    D160-37268DN4063 bar €426,78 Agotado
    D160-37267DN5063 bar €479,94 Agotado
    D160-37266DN6563 bar €999,20 Agotado
    D160-37265DN8063 bar €1.330,70 Agotado
