Elephant  |  SKU: D160-40051

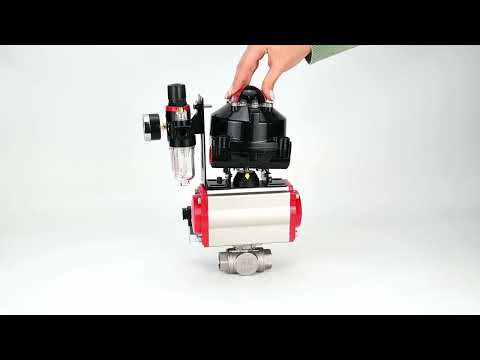

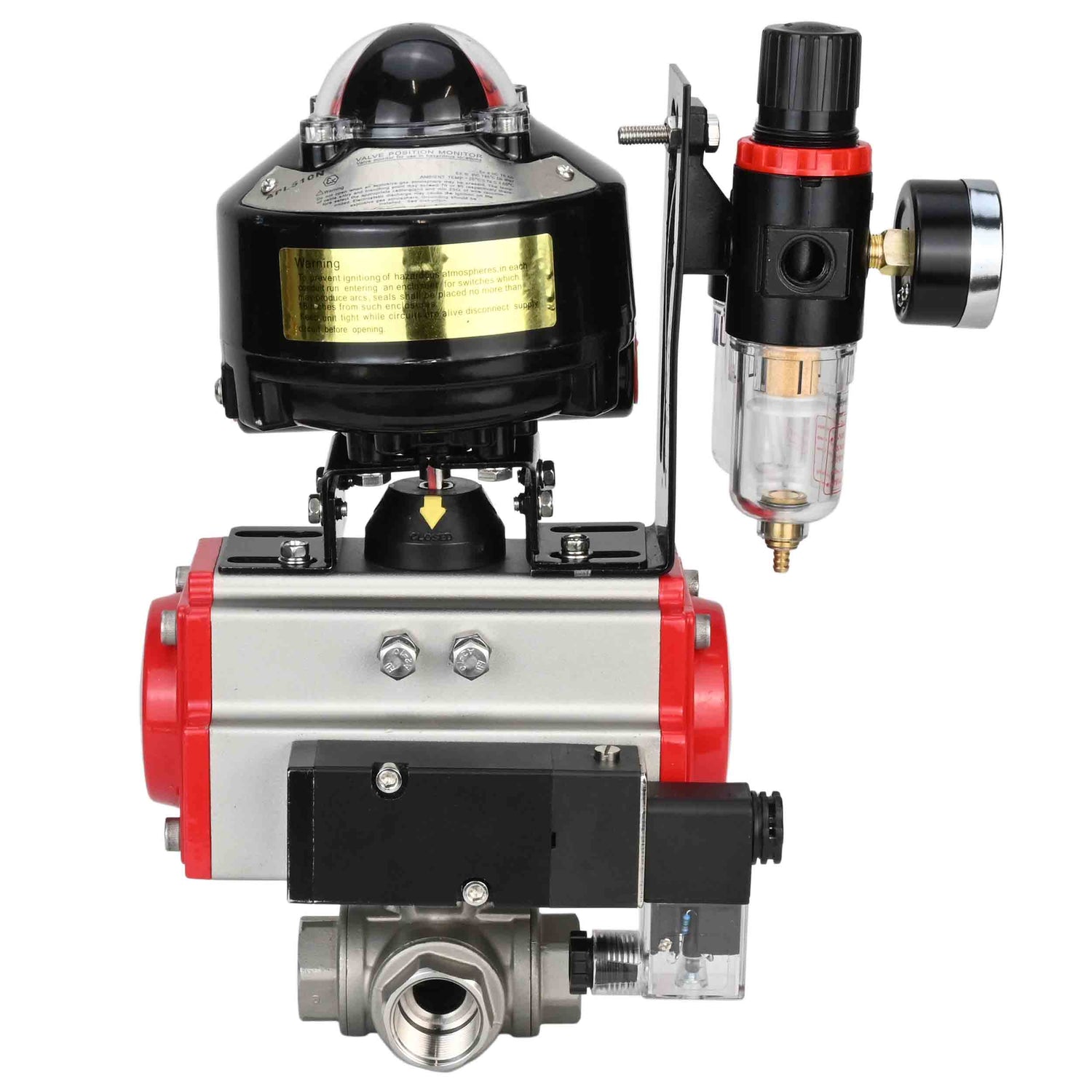

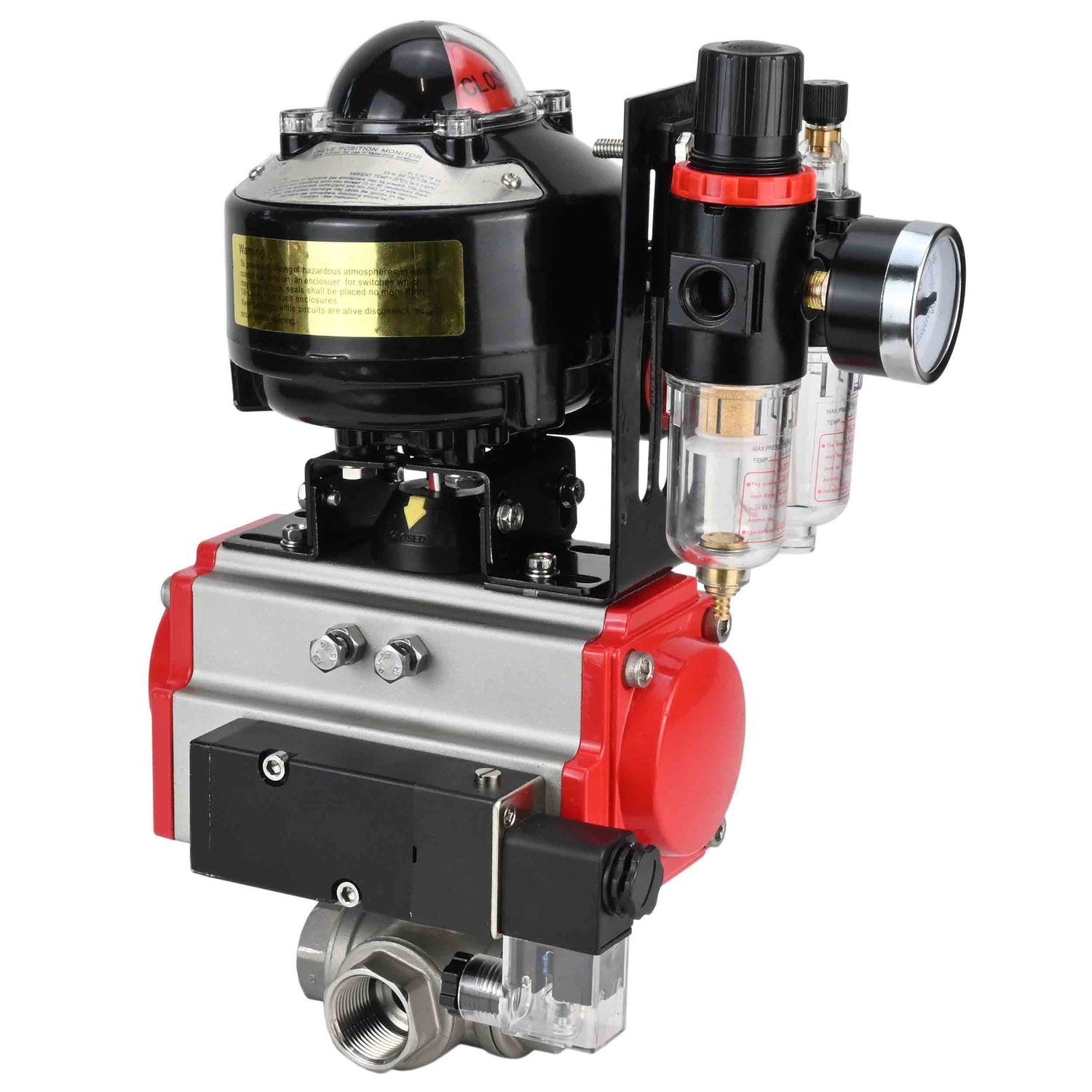

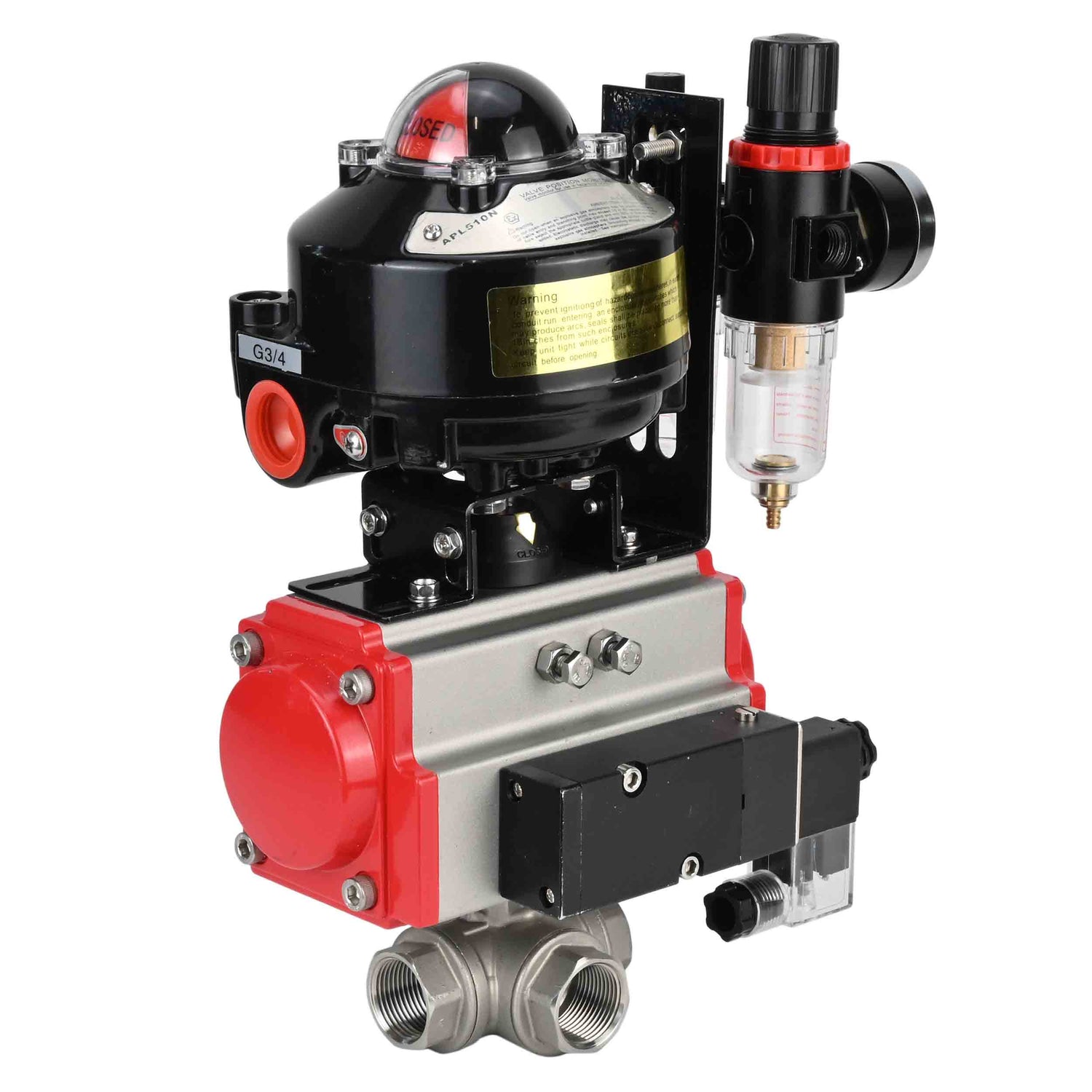

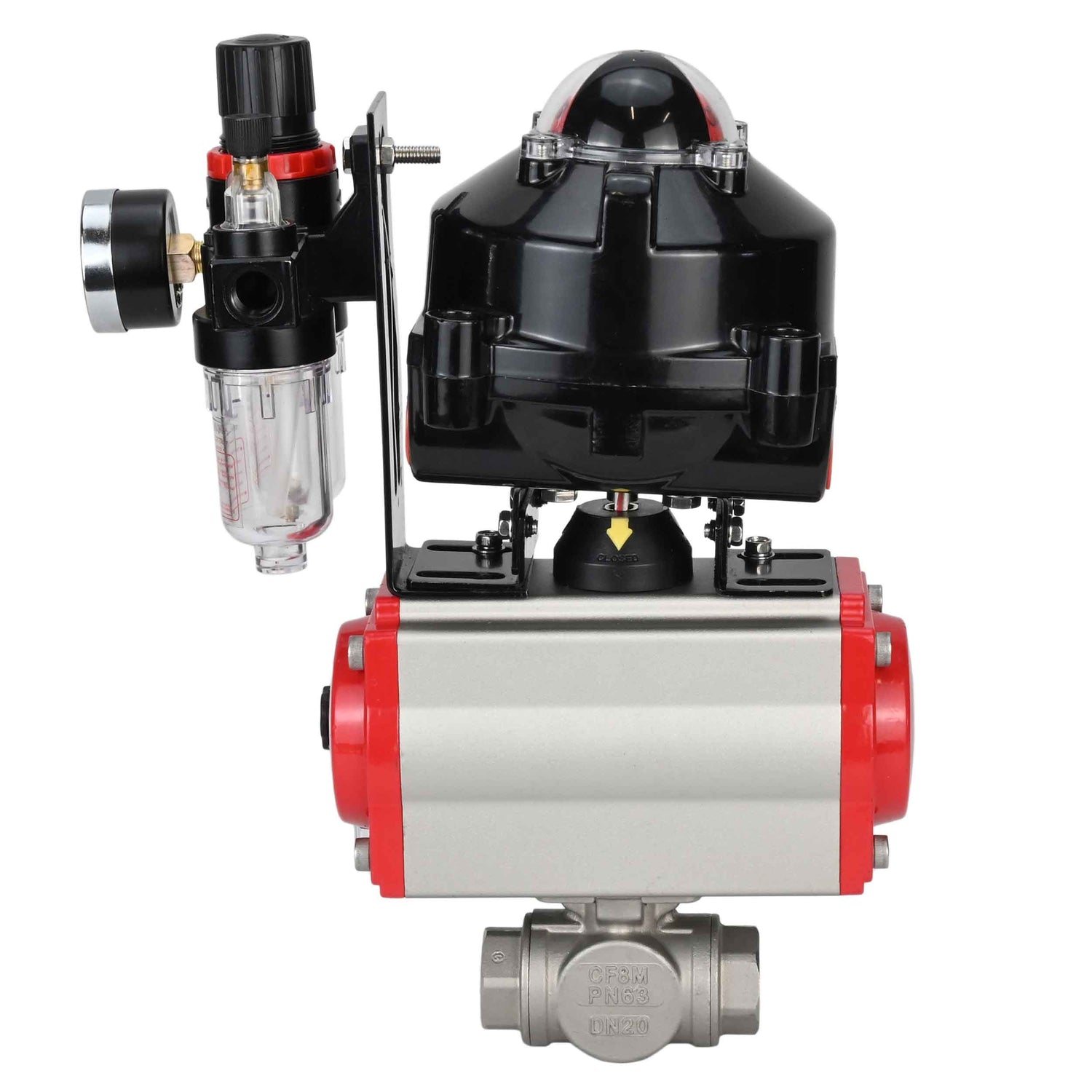

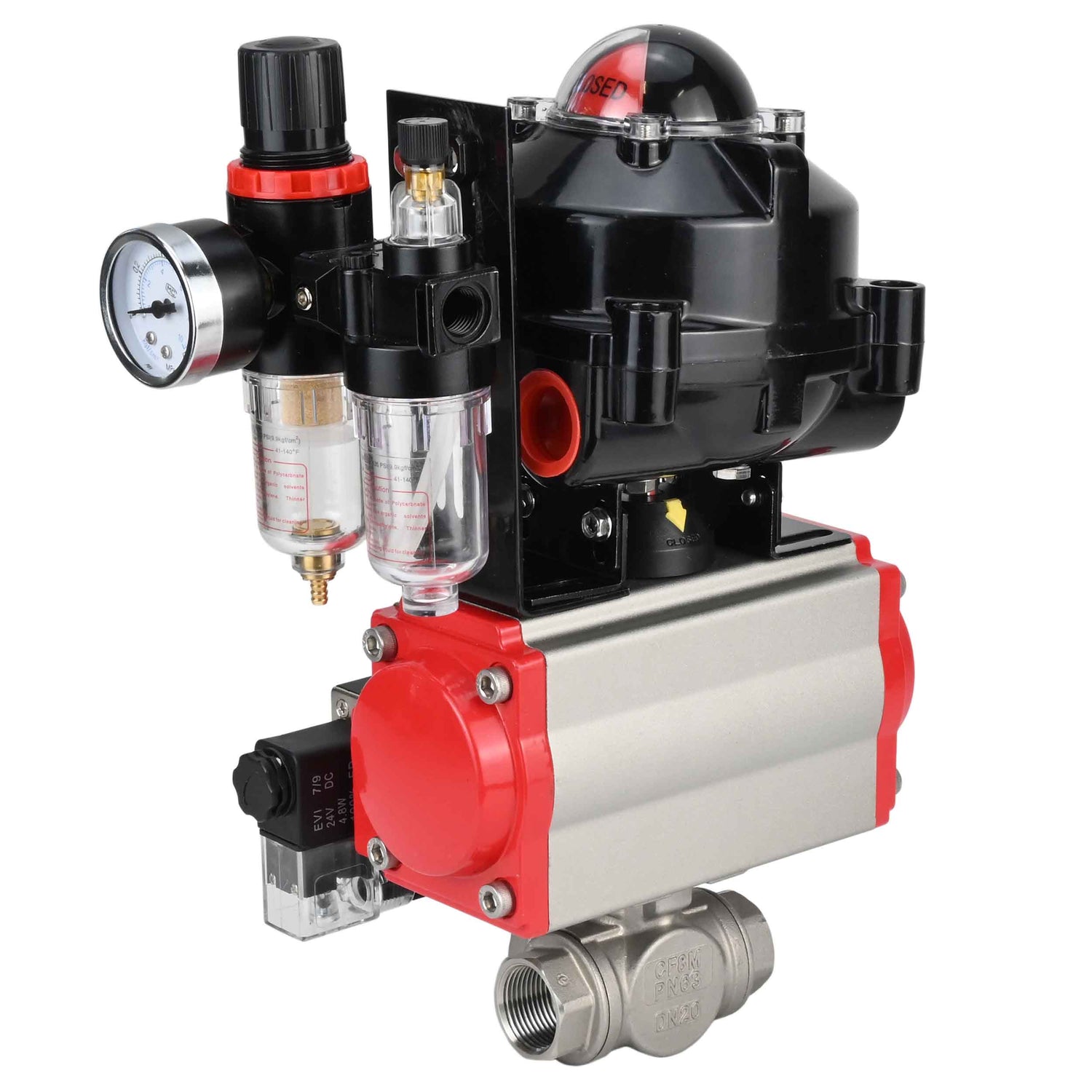

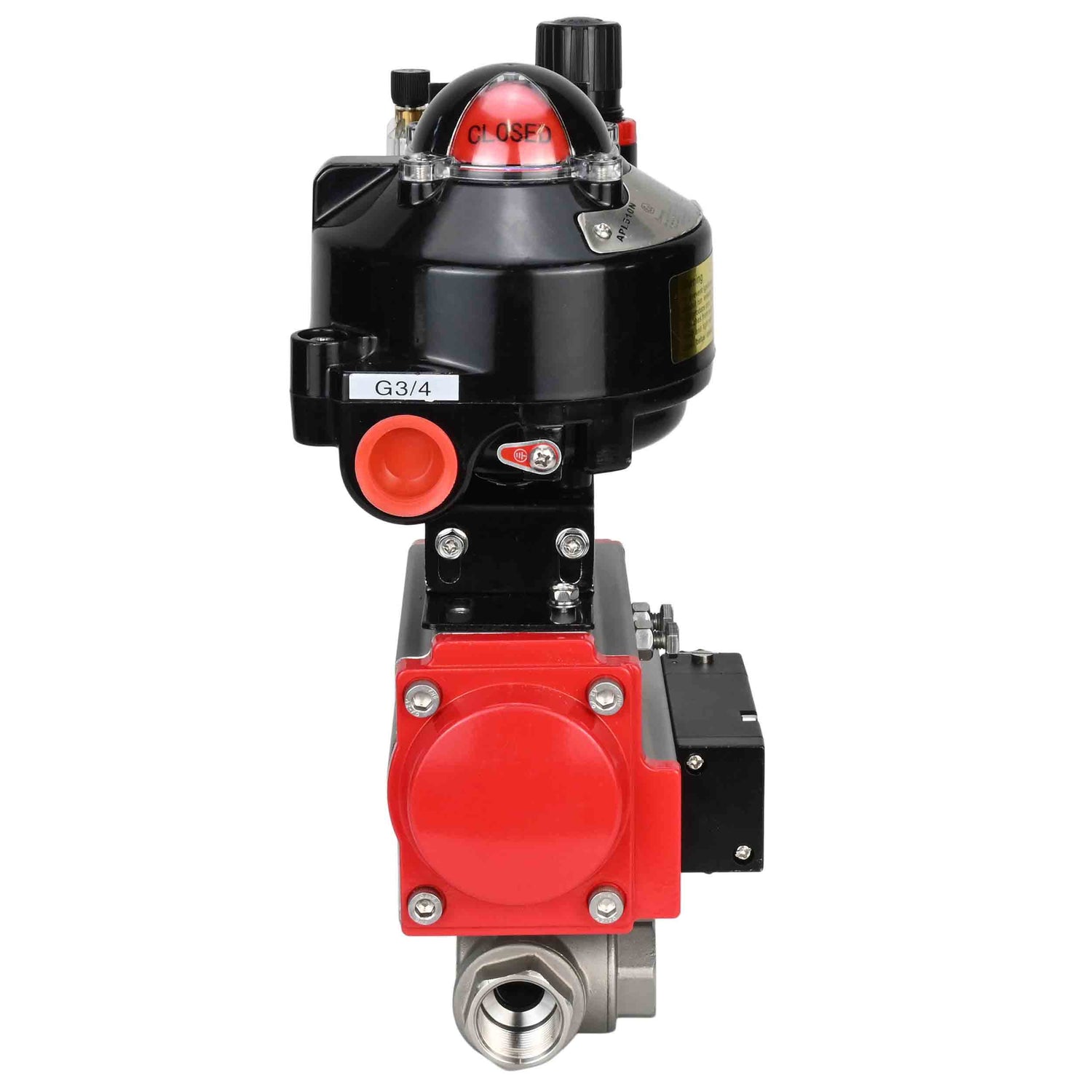

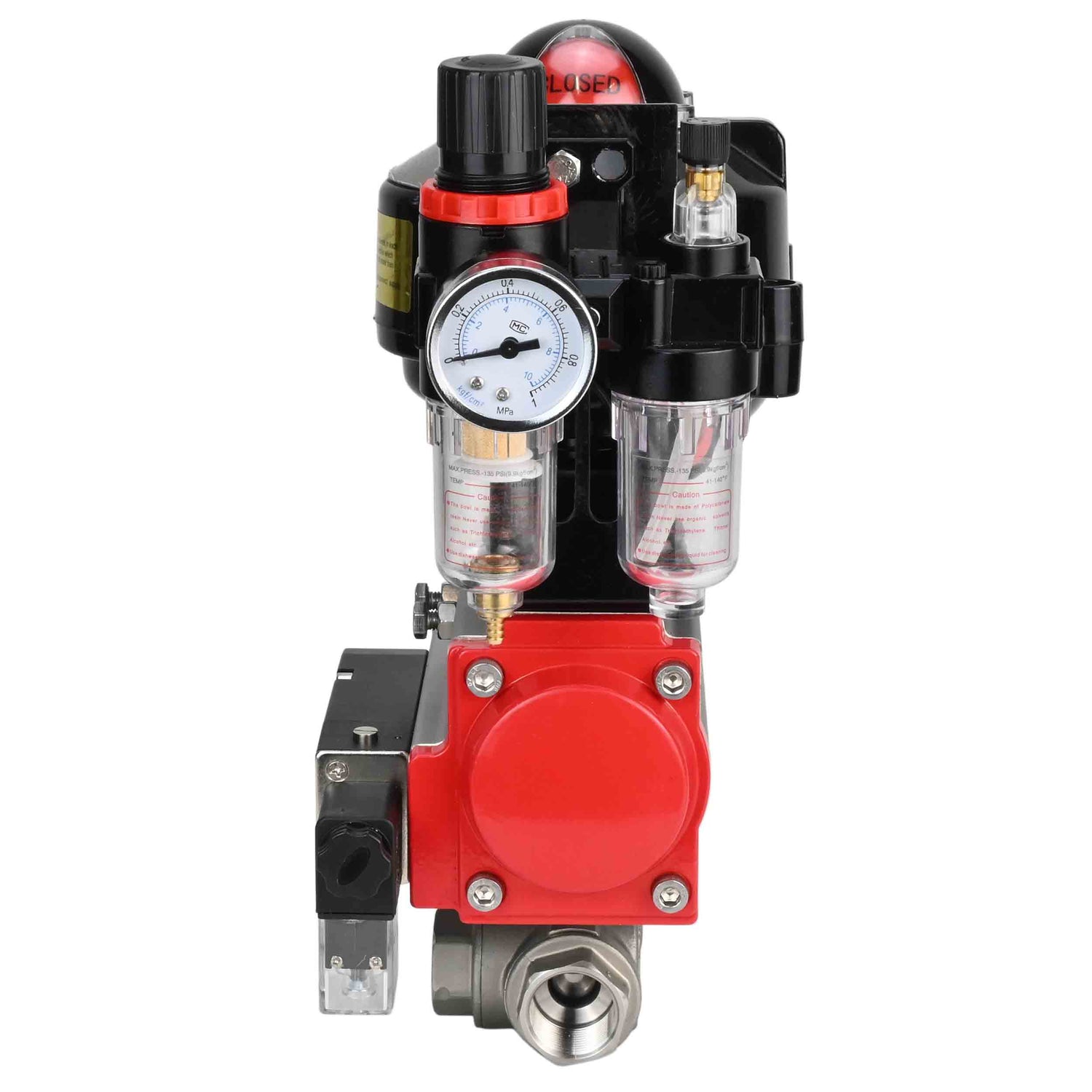

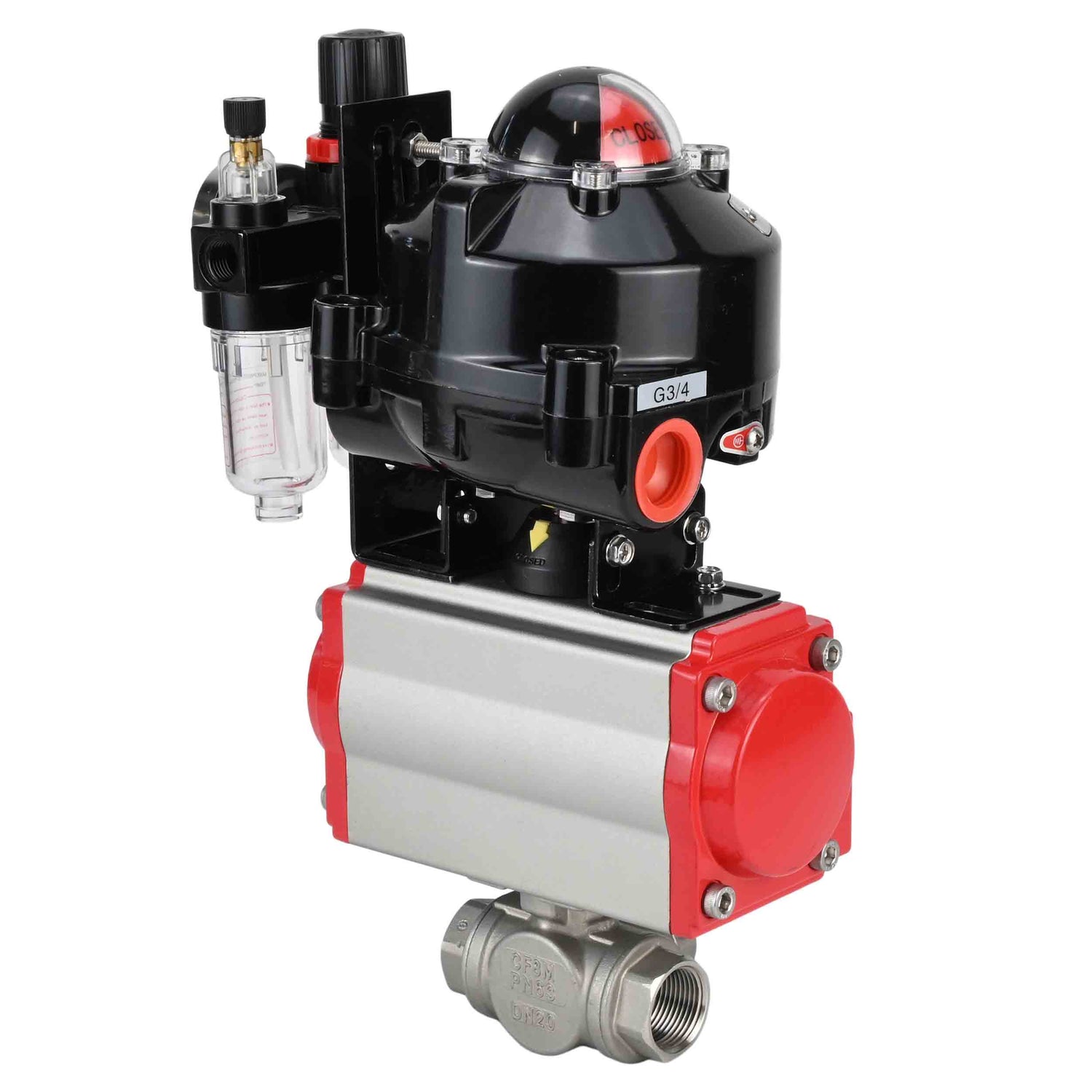

Ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 NAMUR 220V ATU AFC2000 LSU APL-510N-EX

€387,29
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 NAMUR 220V ATU AFC2000 LSU APL-510N-EX - DN10 / 63 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic actuators PA-DA are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators Elephant are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Air treatment unit AFC2000 is designed to clean compressed air from moisture and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from a reservoir in the compressed air flow to the elements of the pneumatic system with a large capacity range from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
Limit switch unit Elephant APL-510N-EX is an electrotechnical device designed to open and close the working circuit and to visualize positions of the shut-off valve. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.







Technical parameters of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V ATU AFC2000 LSU APL-510N-EX:

Parameter

Value

Nominal diameter DN, mm

40 – 300

Nominal pressure PN, MPa (kg/cm²)

1.6 (16)

Flow direction

Two-way

Maximum working medium temperature t, ⁰C

Up to +110

Working medium

Cold and hot water, air without oil and grease, stationary conditioning, slightly aggressive media, other media neutral to the material

Control type

Bare stem (without handle) / with handle / with electric actuator / with gearbox


Materials of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V ATU AFC2000 LSU APL-510N-EX:

№

Part name

Material

Quantity

1

Cover

SS316

3

2

Seat rings

PPL

4

3

Connection gasket

PTFE/RPTFE

3

4

Thrust washer

PTFE/RPTFE

1

5

Seal

PTFE

1

6

Stem

SS304 / SS316

1

7

Gland

SS304

1

8

Ball

S304 / S316

1

9

Body

SS316

1





Overall and installation dimensions of ball valves Elephant BV3232P-SP-3L-T 3-way L-type, threaded, standard bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-083 pneumatic distributor 4M310-08 220V ATU AFC2000 LSU APL-510N-EX:

DN D L L1 H X Y
10 10 71 153 98 88 162
15 12 71 153 98 88 162
20 15 82 153 98 88 162
25 18 98 153 98 88 162
32 25 118 153 98 88 162
40 32 122 174 115 88 162
50 38 150 174 115 88 162
65 50 178 216 135 88 162
80 64 202 216 135 88 162
100 78 231 216 135 88 162



Technical data of pneumatic actuators PA-DA:

Design Double-acting
Nominal pressure PN, bar 12
Operating pressure, bar 2…8
Operating medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C • from -20 to +80
• from -40 to +80 (low-temperature version)
• from -20 to +160 (in dry air)
Adjustment range ± 5° for rotation at 0° and 90°
Manual duplication yes
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts have an anti-corrosion coating)




Pneumatic actuator component materials PA-DA:

№ Name Material
1 Body extruded aluminum
2 Side caps cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator body plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Bushing aluminum





Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design Spool-type
Test pressure (body strength test. Not for operation!), bar 10
Working pressure (recommended range for normal operation), bar 1.5 ÷ 8
Valve type 5/2 five-port, two-position
Working medium purified air (40 µm filter fineness)
Operating temperature, °C 0 to +60
Actuation frequency 5 cycles per second
Manual override yes
Protection rating/insulation class IP65/F
Connection to pneumatic actuator NAMUR-compliant mounting surface (VDI/VDE3845)
Body material anodized aluminum
Effective cross-sectional area, mm2 25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere) 2 - PT1/4”
Air inlet port size (to pneumatic valve) G1/4”
Air outlet port size (to pneumatic actuator) 2 x Ø19.2 mm
Response time, sec 0.05
Supply voltage, V 220AC/24DC
Coil power 220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg 0.35
Average service life, cycles 10,000,000





Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A C D E F G H I K L J N M
mm
40 24 28 32 40 21,5 69 45 17,5 135 29,3 40 27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№ Part Name Material
1 Connector Engineering plastic
2 Nut POM + carbon steel
3 Coil Copper
4 Control Elements —
5 Plate Carbon steel
6 Piston POM
7 Control Valve Seat Engineering plastic
8 Valve Body Aluminum alloy
9 Spool Aluminum alloy
10 O-Ring Seal HNBR
11 Rear Cover Engineering plastic
12 Filter Synthetic material
13 Piston POM
14 Spring Stainless steel
15 Manual Override Engineering plastic
16 Rear Seat Aluminum alloy
17 Spring Seat Aluminum alloy
18 Type C Towing Shackle 65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Main parameters of air treatment unit AFC2000:

Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0,5 ÷ 9
Fracture pressure, bar 15
Air connection 1/4"
Operating temperature, ⁰C from -5 to +60
Size of filtered particles, µm 40
Oil viscosity ISO VG 32
Weight, kg 0,395
Set contents filter-moisture separator, pressure regulator, lubricator, bracket





Characteristics of limit switch unit APL-510N-EX:

Parameter Value
Body weatherproof IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a 90° shaft rotation
Full swivel angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection Screw terminal clamps, 8 points (0.08 – 2.5 mm²)
Cable entry thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Nominal current, A 16
Permissible ambient temperature, °C from -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8



Especificaciones
  • País de origen
    China
  • Apertura de puerto
    standard bore
  • Temperatura máxima permitida
    200 °C
  • Tipo de conexión
    Threaded
  • Entorno operativo
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Tipo de sello
    PTFE
  • Interruptores de límite
    have
  • Tipo de actuador neumático
    double action
