Elephant  |  SKU: D160-46926

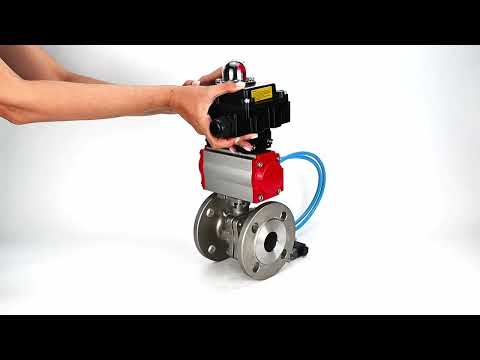

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX

€1.089,44
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX - DN100 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Pneumatic Elephant rotary actuators with return spring PA-DA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.





Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE

Parameter Value
Operating Medium Temperature, °C -50 to 200
Application Heating Supply
Working Medium Water, Air, Steam, Technical Water, Oil, Petroleum Products
Pipeline Connection Flanged
Water-drawing No
Type of Flow Passage Full Bore
Ball Valve Tightness Class A
Control Type Pneumatic Actuator
Connection Type Flanged
Control Pneumatic Actuator with Return Springs
Limit Switches Yes
Pneumatic Distributor Yes
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions of ball valves BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE

DN d, mm D, mm D1, mm D2, mm C, mm t, mm L, mm W, mm H, mm H1, mm A, mm B, mm KxK (rod) N-∅Z, pcs-mm
15 15 95 65 45 16 2 115 127 79 8 36 42 9х9 4-∅14
20 20 105 75 58 18 2 120 127 83 9 36 42 9х9 4-∅14
25 25 115 85 68 18 2 125 165 94 14 42 50 11х11 4-∅14
32 32 140 100 78 18 2 130 165 115 15 42 50 11х11 4-∅18
40 38 150 110 88 18 3 140 186 115 17 50 70 14х14 4-∅18
50 50 165 125 102 20 3 150 186 120 20 50 70 14х14 4-∅18
65 65 185 145 122 19 3 170 260 151 22 70 102 17х17 4-∅18
80 76 200 160 138 21 3 180 321 158 21 70 102 17х17 8-∅18
100 99 220 180 158 21 3 190 321 188 20 70 102 17х17 8-∅18

Sketch dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE



Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE


№ Part Name Material
1 Body Steel 316
2 Ball Seal RPTFE
3 Ball Steel 316
4,6,12 Bolt, Nut Steel 304
5,10 Seal PTFE
7 Pipe Section Steel 316
8 Stem Steel 316
9 Packing PTFE
11 Packing Steel 304

Parts and materials sketch for ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve Elephant 4V320-08 220V

Name Value
Pneumatic distributor model 4V320-08 220V
Operating pressure, bar 1.5 ÷ 8
Supply voltage, V 220V
Actuation frequency, cycles/sec 5





Dimensions and dimensions of Elephant 4V320-08 220V pneumatic directional control valve

Model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 22
S, mm 20
T, mm 6.5
U, mm 2.4
H, mm 82.4
Sketch of dimensions and dimensions of pneumatic valve Elephant




Technical parameters of limit switch unit Elephant APL-410N EX

Name Value
Limit switch box model APL-410N EX
Service life, years 10





Dimensions and dimensions of limit switch unit Elephant APL-410N EX

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8
Sketch of dimensions and dimensions of limit switch unit Elephant APL-410N EX







Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Especificaciones
  • País de origen
    China
  • Apertura de puerto
    full bore
  • Temperatura máxima permitida
    200 °C
  • Tipo de conexión
    Flanged
  • Entorno operativo
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Tipo de sello
    PTFE
  • Interruptores de límite
    have
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullLimit switch ELEPHANT APL-410N EX explosion-proof
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
