Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bor – Valve Elephant
Elephant  |  SKU: D160-49304

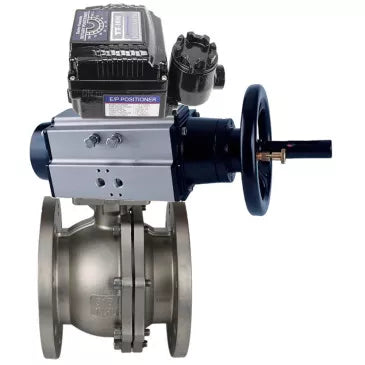

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback

€1.703,57
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback - DN100 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. Use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Electropneumatic rotary positioner is used to control pneumatic rotary actuators by means of electric controller or control system with analog DC output signal range from 4 to 20 mA.







Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback:

Parameter

Value

Nominal pressure PN, bar

16

Working medium temperature, °C

From -50 to 200

Type of valve device

Two-way

Application

Heat supply

Working medium

Water, air, steam, technical water, oil, oil products

Connection to pipeline

Flanged

Type of flow cross-section

Full-bore

Tightness class

A

Type of control

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of pneumatic distributor

No

Presence of electro-pneumatic positioner

Yes

Warranty, years

1

Country of manufacture

China






Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback:

Model L, mm S, mm C, mm H, mm A, mm E, mm ØD, mm ØD1, mm ØD2, mm
DN80 180 62.5 117.5 220 495 200 200 168 138
DN100 190 62.5 117.5 221 495 200 221 180 157








Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H DN80-100 16 bar, full bore flanged, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT- 1000RSN without feedback:

№

Part name

Material

1

Body

Steel 316

2

Ball seal

RPTFE

3

Ball

Steel 316

4, 6, 12

Bolt, nut

Steel 304

5, 10

Seal

PTFE

7

Spigot

Steel 316

8

Stem

Steel 316

9

Gland

PTFE

11

Gland component

Steel 304








Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1



Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1



PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator



Technical parameters of electropneumatic rotary positioners Elephant YT-1000RSN

Name Value
Model of electropneumatic positioner YT-1000RSN
Control input signal, mA 4 ~ 20
Internal resistance, Ohm 250(±15)
Inlet pressure, bar 1,4~7
Lever travel angle 0~90°
Compressed air connection thread 1/4″
Pressure gauge connection thread 1/8″
Cable gland G1/2″
Protection type IP66
Compressed air flow rate, l/min 3
Outlet air flow rate, l/min 80
Body material aluminum casting



Dimensions and sizes of electropneumatic rotary positioners Elephant YT-1000RSN:

Positioner model YT-1000RSI
A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
Q, mm 33
R, mm 80.25
S, mm 62.5
T, mm 8
U1, mm 70
U2, mm 93
V1, mm 40
V2, mm 63
W, mm 26
X, mm 32
Y, mm 9
Z, mm 24



Especificaciones
  • País de origen
    China
  • Apertura de puerto
    full bore
  • Temperatura máxima permitida
    200 °C
  • Tipo de conexión
    Flanged
  • Entorno operativo
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Tipo de sello
    PTFE
  • Interruptores de límite
    no
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
