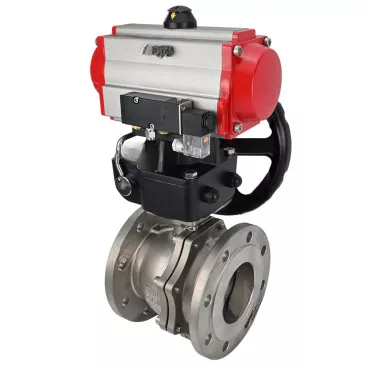

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator and MON-ISO reducer

€3.055,22
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator and MON-ISO reducer - DN200 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Pneumatic Elephant double-acting pneumatic actuators PADA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
Manual doubler with worm gear and reduction reducer allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is designed to provide the most effective and efficient solution to the full range of manual override applications.






Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator and MON-ISO reducer:

Parameter

Value

Nominal pressure PN, bar

16

Working medium temperature, °C

From -29 to 150

Type of valve device

Two-way

Application

Water supply, heat supply, industry

Working medium

Water, air, neutral media

Connection to pipeline

Flanged

Type of flow cross-section

Full-bore

Tightness class

A

Type of control

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of pneumatic distributor

No

Presence of electro-pneumatic positioner

No

Average service life, years

10

Warranty, years

1

Country of manufacture

China


Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator and MON-ISO reducer:

DN L D D1 D2 f b H n–Ød Rod square ISO 5211 Weight, kg
mm
200 400 340 295 268 2 24 180 12–Ø22 27х27 F12/F14 118
250 450 405 355 320 2 26 296 12–Ø26 27х27 F12/F14 206
300 610 460 410 378 2 28 305 12–Ø26 36х36 F14 266



Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator and MON-ISO reducer:

№

Part name

Material

1

Body

Stainless steel 316

2

Gasket

Stainless steel 316 + graphite

3

Cover

Stainless steel 316

4

Nut

Stainless steel ASTM A193 Gr.B8M Cl2

5

Bolt

Stainless steel ASTM A193 Gr.B8M Cl2

6

Ball seal

PTFE

7

Ball

Stainless steel 316

8

Stem

Stainless steel 316

9

Thrust washer

PTFE

10

Stem seal

PTFE

11

Gland packing

Stainless steel 316

12

Bolt

Stainless steel ASTM A193 Gr.B8M Cl2

13

Support frame

Stainless steel 304

14

Gasket

Stainless steel 304

15

Stud

Stainless steel ASTM A193 Gr.B8M Cl2

16

Nut

Stainless steel ASTM A193 Gr.B8M Cl2

17

Cushioning gasket

Stainless steel

18

Stud

Stainless steel ASTM A193 Gr.B8M Cl2

19

Nut

Stainless steel ASTM A193 Gr.B8M Cl2

20

Gear transmission

Steel 45

22

Screw

Stainless steel ASTM A193 Gr.B8M Cl2




Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators




Technical parameters of manual doubler Elephant MON-ISO

Parameter

Value

Manual doubler model

MON-ISO

Mounting method

Horizontal/Vertical

Protection rating, IP

67

Type of connection

ISO 5211





Dimensions and sizes of manual doubler Elephant MON-ISO:

Model MON4-1200-T54-ISO
b1, mm 27
N, mm 32
b2, mm 27
M, mm 30
D1, mm Ø102
4-M1, mm 4-M10
D2, mm Ø125
4-M2, mm 4-M12
E, mm 129x129
D3, mm Ø125
4-Ø1, mm 4-Ø12.5
D4, mm Ø140
4-Ø2, mm 4-Ø16.5
A, mm 188.5
B, mm 93
ØC, mm Ø174
F, mm 202
T, mm 94
Y, mm 280
H, mm 195
S, mm 84
K, mm 15
Ø handwheel, mm 320


Parts and materials table for manual doubler Elephant MON:

№

Name

Material

1

Stem for pneumatic actuator mounting

Steel

2

Sealing ring

EPDM

3

Locking spring

Spring steel

4

Upper end cover

Aluminum alloy

5

Screw

Steel 304

6

Locking bracket (main link)

Steel 304

7

Body

Aluminum alloy

8

Sealing ring

EPDM

9

Gearbox

Cast iron BCh50

10

Transition coupling

Cast iron BCh40

11

Gearbox stem

Cast iron BCh40
