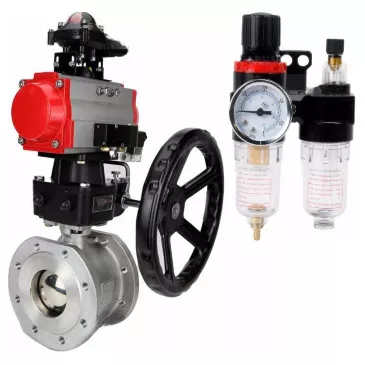

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, pneumatic distributor 4M310-08 NAMUR 220V, LSU APL-210N, MON gearbox -ISO and ATU AFC2000

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials. The use of ball valves as control valves is not allowed.

Pneumatic actuators Elephant double-acting rotary PADA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, distributors have one-sided or two-sided control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. Intended for use with quarter-turn pneumatic actuators.

The manual override with worm gear and reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution for the entire range of manual override tasks.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off element of the valve: valve, tap or butterfly valve. It is installed on top of the surface of the pneumatic drive and connected to the DIN standard drive shaft. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. Visual indication of the position can be seen on the body of the unit there is a 3D visual indicator RED - CLOSED and GREEN - OPEN.

The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant from the reservoir to the compressed air flow to the elements of the pneumatic system.





Technical parameters of Elephant BV3232P(2pc)-FP-F-ISO-R ball valves DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, 4M310-08 220V pneumatic distributor, APL-210N LSU, MON-ISO reducer and AFC2000 ATU:

Name	Meaning
Nominal pressure PN, bar	16
Working environment temperature, °C	from -29 to 150
Type of crane device	two-way
Application	water supply, heat supply, industry
Working environment	water, air, neutral environments
Connection to the pipeline	flanged
Water intake	No
Type of flow section	full bore
Control type	With pneumatic drive
Joining	flanged
Control	double acting pneumatic actuator
Availability of limit switches	No
Availability of pneumatic distributor	There is
Availability of electropneumatic positioner	No
Average service life, years	10
Warranty, y.	1



Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-210N, reducer MON-ISO and ATU AFC2000:



Sketch of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-210N, reducer MON-ISO and ATU AFC2000



Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-210N, reducer MON-ISO and ATU AFC2000:





Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators



Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130



Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№	Part name	Material
1	Indicator screw	ABS plastic
2	Position indicator	ABS plastic
3	Spring clip	stainless steel 304
4	Metal washer	stainless steel 304
5	Pressure washer	engineering plastic
6	Housing	hard anodized extruded aluminum alloy
7	Pressure washer	engineering plastic
8	Limiter	alloy steel
9	Shaft sealing ring upper	NBR
10	Upper shaft sliding ring	engineering plastic
11	Shaft	nickel plated alloy steel
12	Shaft sliding ring lower	engineering plastic
13	Shaft O-ring lower	NBR
14	Plug	NBR
15	Seal ring of adjusting screws	NBR
16	Washer of adjusting screw	stainless steel 304
17	Lock nut of adjusting screw	stainless steel 304
18	Adjusting screw	stainless steel 304
19	Piston	die-cast aluminum alloy
20	Piston guide plate	engineering plastic
21	Piston sliding ring	engineering plastic
22	Piston O-ring	NBR
23	Spring set	spring steel
24	Cover O-ring	NBR
25	End cap	cast aluminum with polyester coating
26	Cover screw	stainless steel 304
27	Stop screw	stainless steel 304
28	Adapter	carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design	Spool-type
Test pressure (body strength test. Not for operation!), bar	10
Working pressure (recommended range for normal operation), bar	1.5 ÷ 8
Valve type	5/2 five-port, two-position
Working medium	purified air (40 µm filter fineness)
Operating temperature, °C	0 to +60
Actuation frequency	5 cycles per second
Manual override	yes
Protection rating/insulation class	IP65/F
Connection to pneumatic actuator	NAMUR-compliant mounting surface (VDI/VDE3845)
Body material	anodized aluminum
Effective cross-sectional area, mm2	25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere)	2 - PT1/4”
Air inlet port size (to pneumatic valve)	G1/4”
Air outlet port size (to pneumatic actuator)	2 x Ø19.2 mm
Response time, sec	0.05
Supply voltage, V	220AC/24DC
Coil power	220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg	0.35
Average service life, cycles	10,000,000





Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A	C	D	E	F	G	H	I	K	L	J	N	M
mm
40	24	28	32	40	21,5	69	45	17,5	135	29,3	40	27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№	Part Name	Material
1	Connector	Engineering plastic
2	Nut	POM + carbon steel
3	Coil	Copper
4	Control Elements	—
5	Plate	Carbon steel
6	Piston	POM
7	Control Valve Seat	Engineering plastic
8	Valve Body	Aluminum alloy
9	Spool	Aluminum alloy
10	O-Ring Seal	HNBR
11	Rear Cover	Engineering plastic
12	Filter	Synthetic material
13	Piston	POM
14	Spring	Stainless steel
15	Manual Override	Engineering plastic
16	Rear Seat	Aluminum alloy
17	Spring Seat	Aluminum alloy
18	Type C Towing Shackle	65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR





Manual backup Elephant MON-ISO



Technical parameters of the manual backup Elephant MON-ISO





Sketch of dimensions and sizes of manual backup Elephant MON-ISO





Dimensions and sizes of the manual backup Elephant MON-ISO:





Sketch of parts and materials of manual backup Elephant MON-ISO



Table of parts and materials of the manual backup Elephant MON-ISO:





Limit Switch Blocks Elephant APL-210N



Technical parameters of limit switch units Elephant APL-210N





Sketch of dimensions and sizes of limit switch blocks Elephant APL-210N



Dimensions and sizes of limit switch blocks Elephant APL-210N

Table of parts and materials of limit switch blocks Elephant APL-210N





Air preparation unit Elephant AFC2000



Technical parameters of the air preparation unit Elephant AFC2000





Sketch of the dimensions and sizes of the air preparation unit Elephant AFC2000



Dimensions and sizes of the air preparation unit Elephant AFC2000:







Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs
