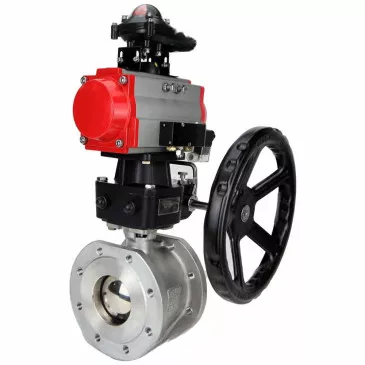

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bor – Valve Elephant
Elephant  |  SKU: D160-49451

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, pneumatic distributor 4V320-08 220V, LSU APL-510N EX and gearbox MON-ISO

€3.287,50
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, pneumatic distributor 4V320-08 220V, LSU APL-510N EX and gearbox MON-ISO - DN200 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

Elephant pneumatic double-acting rotary actuators PADA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The worm gear manual doubleturn actuator with reduction gear allows the manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.



Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

Parameter Value
Nominal Pressure PN, bar 16
Operating Temperature, °C -29 to 150
Valve Type Two-way
Application Water supply, heating, industry
Working Medium Water, air, neutral media
Pipeline Connection Flanged
Water-drawing No
Bore Type Full bore
Control Type With pneumatic actuator
Connection Type Flanged
Operation Double-acting pneumatic actuator
Limit Switches No
Pneumatic Distributor Yes
Electro-pneumatic Positioner No
Average Service Life, years 10
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

DN L D D1 D2 f b H n–Ød Rod square ISO 5211 Weight, kg
mm
200 400 340 295 268 2 24 180 12–Ø22 27х27 F12/F14 118
250 450 405 355 320 2 26 296 12–Ø26 27х27 F12/F14 206
300 610 460 410 378 2 28 305 12–Ø26 36х36 F14 266

Sketch dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316





Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

№ Part Name Material
1 Body Stainless steel 316
2 Gasket Stainless steel 316 + Graphite
3 Cover Stainless steel 316
4 Nut Stainless steel ASTM A193 Gr.B8M Cl2
5 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
6 Ball Seal PTFE
7 Ball Stainless steel 316
8 Stem Stainless steel 316
9 Support Pad PTFE
10 Stem Seal PTFE
11 Packing Seal Stainless steel 316
12 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
13 Support Frame Stainless steel 304
14 Gasket Stainless steel 304
15 Stud Stainless steel ASTM A193 Gr.B8M Cl2
16 Nut Stainless steel ASTM A193 Gr.B8M Cl2
17 Cushioning Gasket Stainless steel
18 Stud Stainless steel ASTM A193 Gr.B8M Cl2
19 Nut Stainless steel ASTM A193 Gr.B8M Cl2
20 Gear Transmission Steel 45
22 Screw Stainless steel ASTM A193 Gr.B8M Cl2

Parts and materials sketch for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve Elephant 4V320-08 220V

Parameter Value
Type of Pneumatic Valve Spool-type
Pneumatic Valve Model 4V320-08 220V
Operating Pressure, bar 1.5 ÷ 8
Supply Voltage, V 220V
Actuation Frequency, cycles/sec 5







Dimensions and dimensions of Elephant 4V320-08 220V pneumatic directional control valve

Parameter Value (mm)
A 71.9
B 45
C 94.4
D 27
E 69
F 40
I 24
K 40
L 188.8
M 69.4
N 50
O 83.4
P 22
S 20
T 6.5
U 2.4
H 82.4

Sketch of dimensions and dimensions of pneumatic valve Elephant 4V320-08 220V





Technical parameters of the handwheel Elephant MON-ISO

Name Value
Manual override model MON-ISO
Climatic version U, UHL, T, OM
Mounting method Horizontal/Vertical
Protection rating, IP 67
Connection type ISO 5211






Dimensions and dimensions of the handwheel Elephant MON-ISO

Parameter Value
Model MON4-1200-T54-ISO
b1, mm 27
N, mm 32
b2, mm 27
M, mm 30
D1, mm Ø102
4-M1, mm 4-M10
D2, mm Ø125
4-M2, mm 4-M12
E, mm 129×129
D3, mm Ø125
4-Ø1, mm 4-Ø12.5
D4, mm Ø140
4-Ø2, mm 4-Ø16.5
A, mm 188.5
B, mm 93
ØC, mm Ø174
F, mm 202
T, mm 94
Y, mm 280
H, mm 195
S, mm 84
K, mm 15
Handwheel Ø, mm 320

Sketch of dimensions and dimensions of handwheel Elephant MON-ISO





Parts and materials table for the handwheel Elephant MON-ISO

№ Component Material
1 Stem for pneumatic actuator mounting Steel 45
2,8 O-ring EPDM
3 Retaining spring Spring steel
4 Upper end cap Aluminum alloy
5 Screw Steel 304
6 Retaining bracket (main linkage) Steel 304
7 Housing Aluminum alloy
9 Gearbox Cast iron BC50
10 Adapter coupling Cast iron BC40
11 Gearbox stem Cast iron BC40

Sketch of parts and materials of the handwheel Elephant MON-ISO





Technical parameters of Elephant AFC2000 air treatment unit

Parameter Value
Operating pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filtered particle size, µm 40 µm
Weight, kg 0.395







Technical parameters of limit switch units Elephant APL-510N EX

Parameter Value
Model of limit switch block APL-510N EX
Ambient temperature, °C from -20 to 66
Service life, years 10







Dimensions and dimensions of Elephant APL-510N EX limit switch units

Parameter Value
Model of limit switch block APL-510N EX
A, mm 118
B, mm 118
C, mm 138.4
D, mm 17
E, mm 19
F, mm 7
G, mm 3
H, mm 4
I, mm 59
J, mm 59
K, mm 59
L, mm 59
M, mm 121.4
Ød1, mm 50
Ød2, mm 5
Sketch of dimensions and dimensions of Elephant APL-510N EX limit switch units


Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs







Especificaciones
  • País de origen
    China
  • Apertura de puerto
    full bore
  • Temperatura máxima permitida
    150 °C
  • Tipo de conexión
    Flanged
  • Entorno operativo
    Water, Air, Neutral Media
  • Tipo de sello
    PTFE
  • Interruptores de límite
    no
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullAir treatment unit AFC2000 ELEPHANT
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
