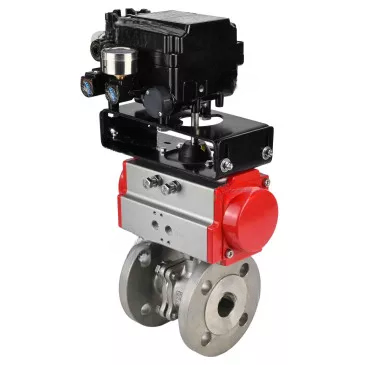

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator and YT-1000RSN pneumatic positioner
Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator and YT-1000RSN pneumatic positioner - DN200 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Elephant pneumatic double-acting rotary actuators PADA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
| Parameter | Value |
|---|---|
| Nominal Pressure PN, bar | 16 |
| Operating Temperature, °C | -29 to 150 |
| Valve Type | Two-way |
| Application | Water supply, heating, industry |
| Working Medium | Water, air, neutral media |
| Pipeline Connection | Flanged |
| Water-drawing | No |
| Bore Type | Full bore |
| Control Type | With pneumatic actuator |
| Connection Type | Flanged |
| Operation | Double-acting pneumatic actuator |
| Limit Switches | No |
| Pneumatic Distributor | Yes |
| Electro-pneumatic Positioner | No |
| Average Service Life, years | 10 |
| Warranty, years | 1 |
| Country of Manufacture | China |
Dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
| DN | L | H | ØD | ØD1 | ØD2 | A | E | S | C |
| 200 | 400 | 180 | 340 | 295 | 268 | 405 | 174 | 62.5 | 117.5 |
| 250 | 450 | 296 | 405 | 355 | 320 | 465 | 199 | 62.5 | 117.5 |
| 300 | 610 | 305 | 460 | 410 | 378 | 542 | 257 | 62.5 | 117.5 |
Sketch dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel 316 |
| 2 | Gasket | Stainless steel 316 + Graphite |
| 3 | Cover | Stainless steel 316 |
| 4 | Nut | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 5 | Bolt | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 6 | Ball Seal | PTFE |
| 7 | Ball | Stainless steel 316 |
| 8 | Stem | Stainless steel 316 |
| 9 | Support Pad | PTFE |
| 10 | Stem Seal | PTFE |
| 11 | Packing Seal | Stainless steel 316 |
| 12 | Bolt | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 13 | Support Frame | Stainless steel 304 |
| 14 | Gasket | Stainless steel 304 |
| 15 | Stud | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 16 | Nut | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 17 | Cushioning Gasket | Stainless steel |
| 18 | Stud | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 19 | Nut | Stainless steel ASTM A193 Gr.B8M Cl2 |
| 20 | Gear Transmission | Steel 45 |
| 22 | Screw | Stainless steel ASTM A193 Gr.B8M Cl2 |
Parts and materials sketch for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316
Technical parameters of pneumatic actuator Elephant
| Parameter | Value |
|---|---|
| Design | Double-acting |
| Control Pressure, bar | 2 ÷ 8 |
| Manual Override | No |
Dimensions and dimensions of pneumatic actuator Elephant
| Model | DA-140 | DA-160 | DA-210 |
| G, mm | 25 | 30 | 40 |
| M, mm | 80 | 130 | 130 |
| N, mm | 30 | 30 | 30 |
| f0, mm | 62 | 62 | 79 |
| P, mm | 30 | 30 | 30 |
| B1, mm | 308 | 465 | 542 |
| C, mm | 67.5 | 87.5 | 113 |
| E, mm | 157 | 199 | 257 |
| J | 4-M8x12 | 4-M10x16 | |
| K | 4-M10x16 | 4-M12x20 | 4-M12x20 |
| F, mm | 36 | 38 | 38 |
| A1, mm | 210 | 310 | 390 |
| D, mm | 70 | 87.5 | 113 |
| H | F10 | F10 | - |
| I | F12 | F12 | F14 |
| L | 22x22 | 27x27 | 36x36 |
Sketch of dimensions and dimensions of pneumatic actuator Elephant
Parts and materials table for pneumatic actuator Elephant
| № | Part Name | Qty | Material | Coating |
|---|---|---|---|---|
| 1 | Body | 1 | Extruded aluminum | Hard anodized |
| 2 | Side plugs | 2 | Cast aluminum | - |
| 3 | Gear | 1 | Stainless steel | Nickel-plated |
| 4 | Piston | 2 | Steel/Aluminum | Oxidation / Galvanized zinc |
| 5 | Plugs | 8 | Stainless steel | - |
| 6 | Piston ring | 2 | NBR | - |
| 7 | Springs | 0-12 | Spring steel | Epoxy coating |
| 8 | Piston bearing | 2 | Engineering plastic | - |
| 9 | Piston ring | 2 | NBR | - |
| 10 | Plug | 2 | NBR | - |
| 11 | Stop ring | 2 | Engineering plastic | - |
| 12 | Ring | 1 | Engineering plastic | - |
| 13 | Washer | 1 | Stainless steel | - |
| 14 | Spring clamp | 2 | Stainless steel | - |
| 15 | Indicator | 1 | Plastic | - |
| 16 | Indicator housing | 1 | Plastic | - |
| 17 | Bearing | 1 | Engineering plastic | - |
| 18 | Cam | 1 | Steel | Oxidation / Galvanized zinc |
| 19 | Bearing | 1 | NBR | - |
| 20 | Bearing | 1 | Engineering plastic | - |
| 21 | Bearing | 1 | Engineering plastic | - |
| 22 | O-ring | 2 | NBR | - |
| 23 | O-ring | 2 | NBR | - |
| 24 | Bearing | 2 | Stainless steel | - |
| 25 | Adjustment nut | 2 | Stainless steel | - |
| 26 | Adjustment screw | 2 | Stainless steel | - |
| 27 | Bushing | 2 | Aluminum | - |
Technical parameters of electropneumatic rotary positioners Elephant
| Parameter | Value |
|---|---|
| Control Input Signal, mA | 4 ~ 20 |
| Internal Resistance, Ohm | 250(±15) |
| Input Pressure, bar | 1.4 ~ 7 |
| Lever Travel Angle | 0 ~ 90° |
| Compressed Air Connection Thread | 1/4″ |
| Gauge Connection Thread | 1/8″ |
| Cable Entry | G1/2″ |
| Protection Type | IP66 |
| Compressed Air Consumption, L/min | 3 |
| Air Output Flow, L/min | 80 |
| Housing Material | Cast Aluminum |
Dimensions and dimensions of electropneumatic rotary positioners Elephant
| Parameter | Value (mm) |
|---|---|
| Model | YT-1000RSI |
| A | 224.3 |
| B | 166.5 |
| C | 117.5 |
| D | 132.3 |
| E | 6 |
| F | 122 |
| G | 45 |
| H | 45 |
| I | 23 |
| J | 27 |
| K | 32.5 |
| L | 35.5 |
| M | 91.8 |
| N | 37.2 |
| O | 43.5 |
| P | 26.5 |
| Q | 33 |
| R | 80.25 |
| S | 62.5 |
| T | 8 |
| U1 | 70 |
| U2 | 93 |
| V1 | 40 |
| V2 | 63 |
| W | 26 |
| X | 32 |
| Y | 9 |
| Z | 24 |
Passports and certificates
Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs
Especificaciones
Especificaciones
-
País de origen
-
Apertura de puerto
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Air, Neutral Media
-
Tipo de sello
-
Interruptores de límite
-
Tipo de actuador neumático
Reseñas (0)
Reseñas (0)
Documentación
Documentación
Electropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection
Electropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
Pneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
