Elephant | SKU: D160-69688

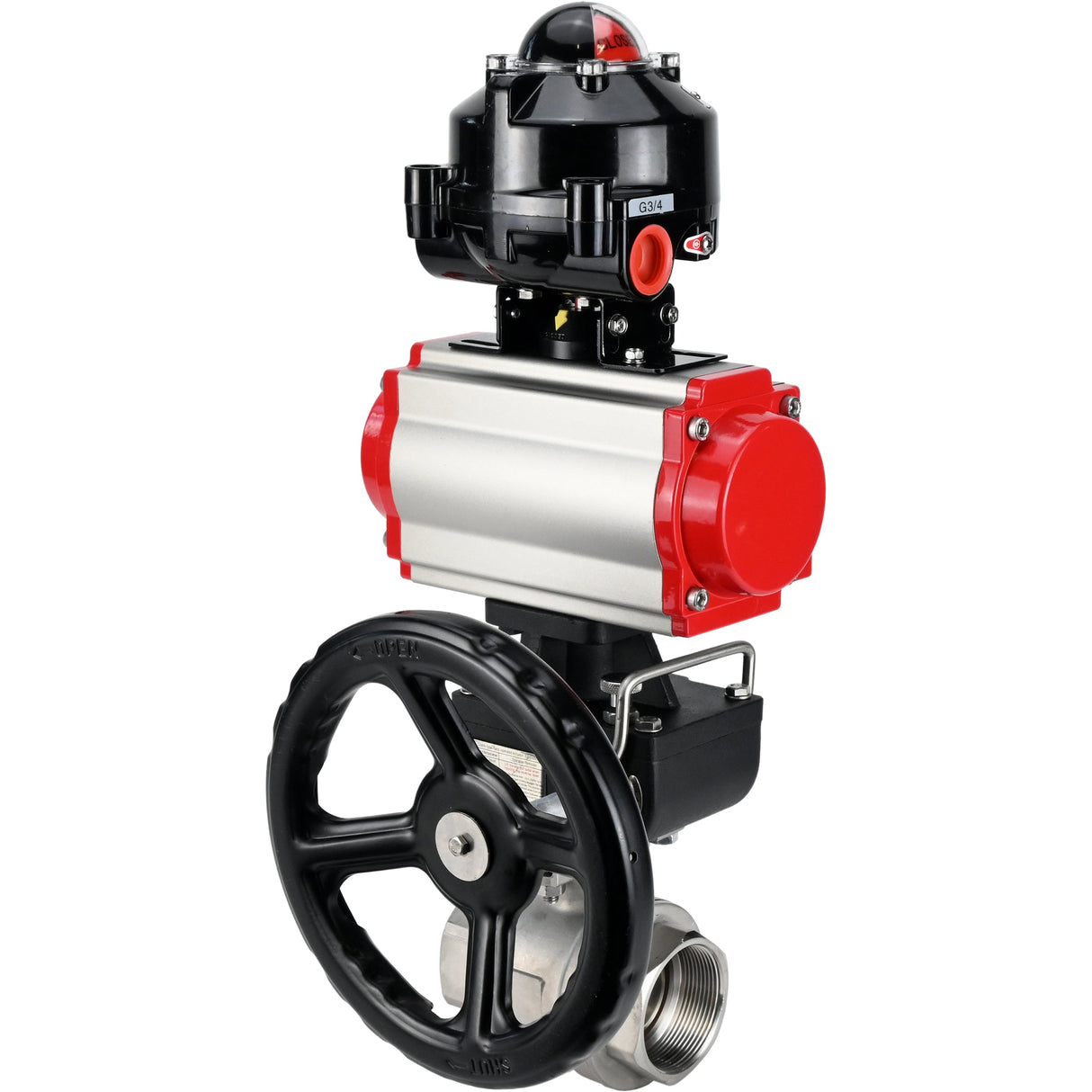

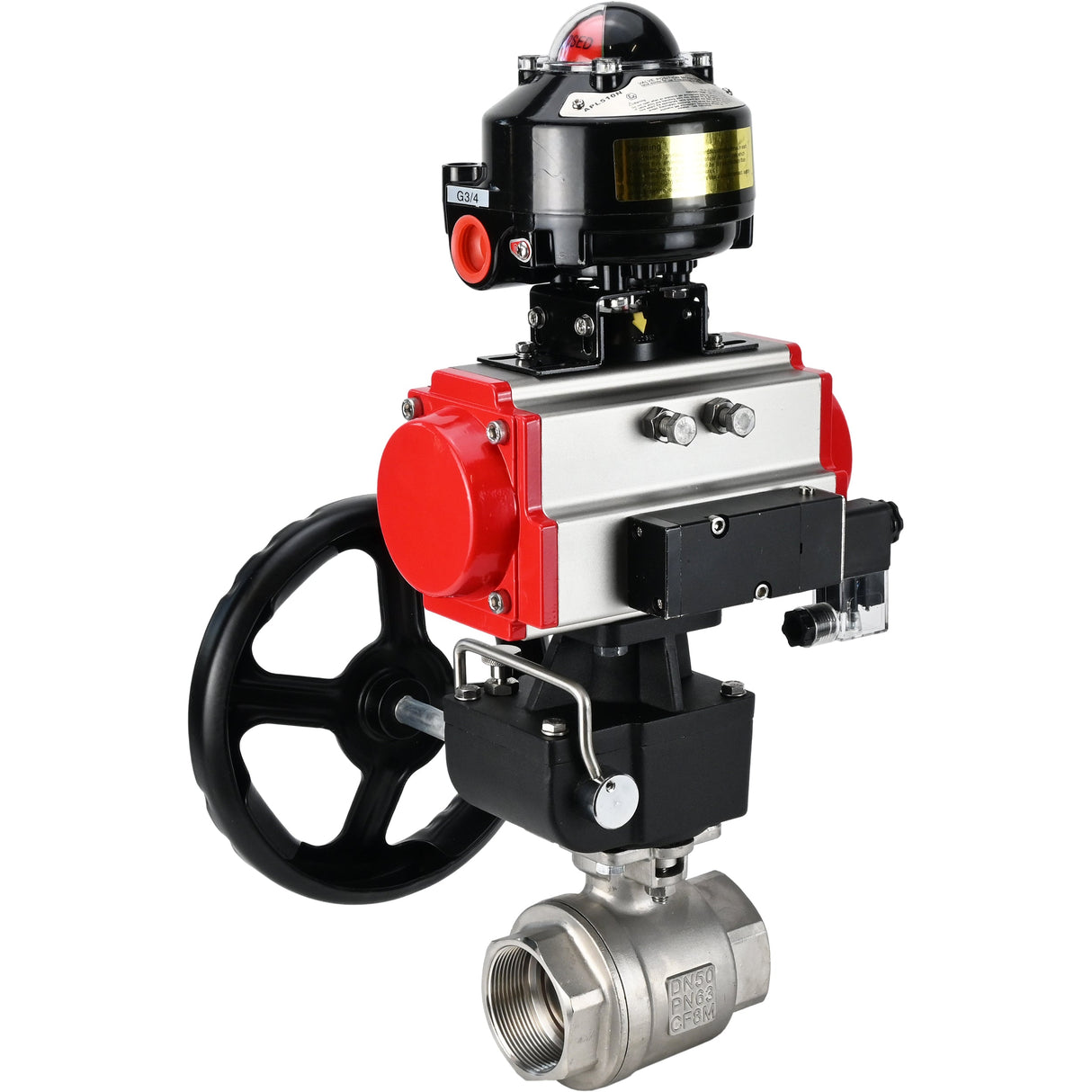

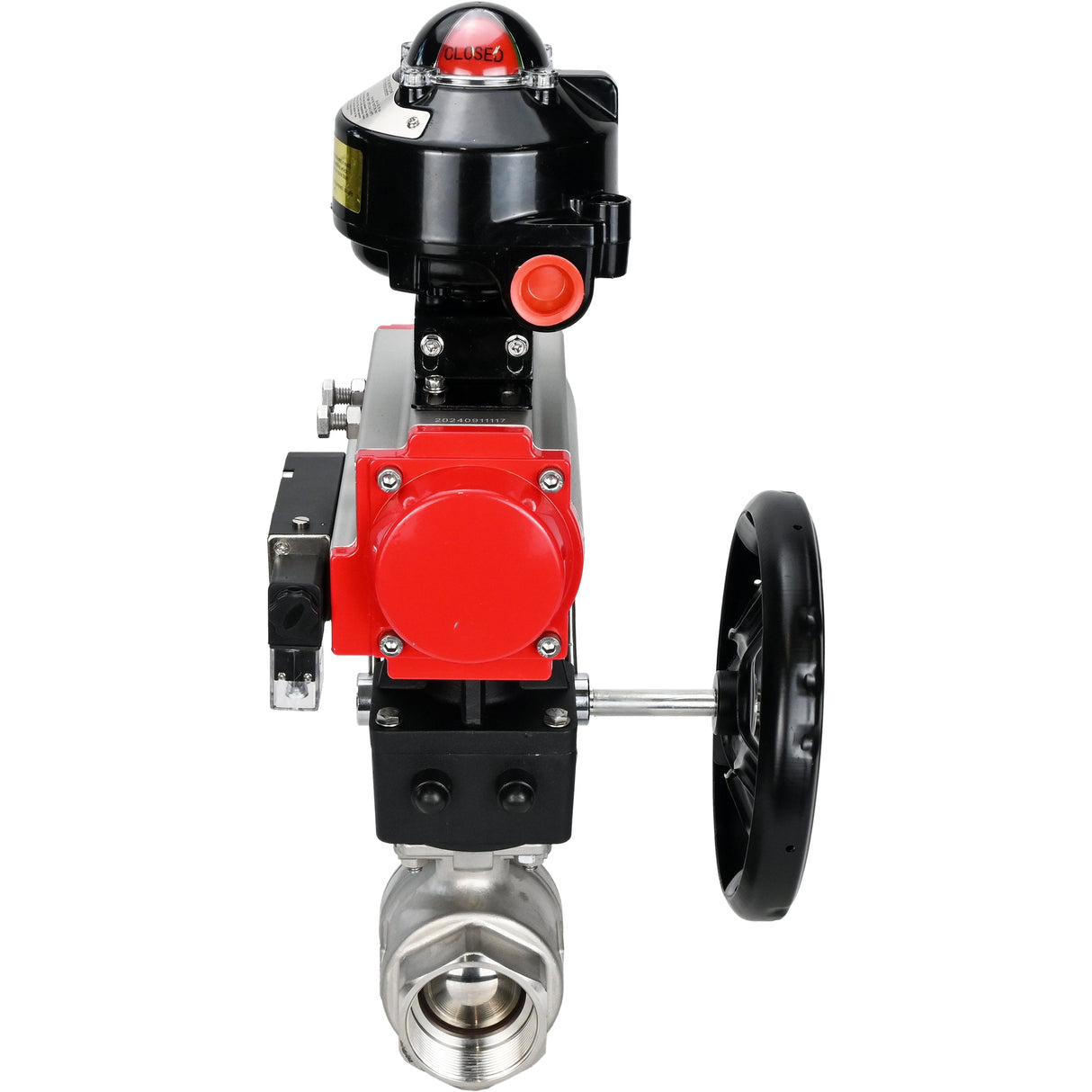

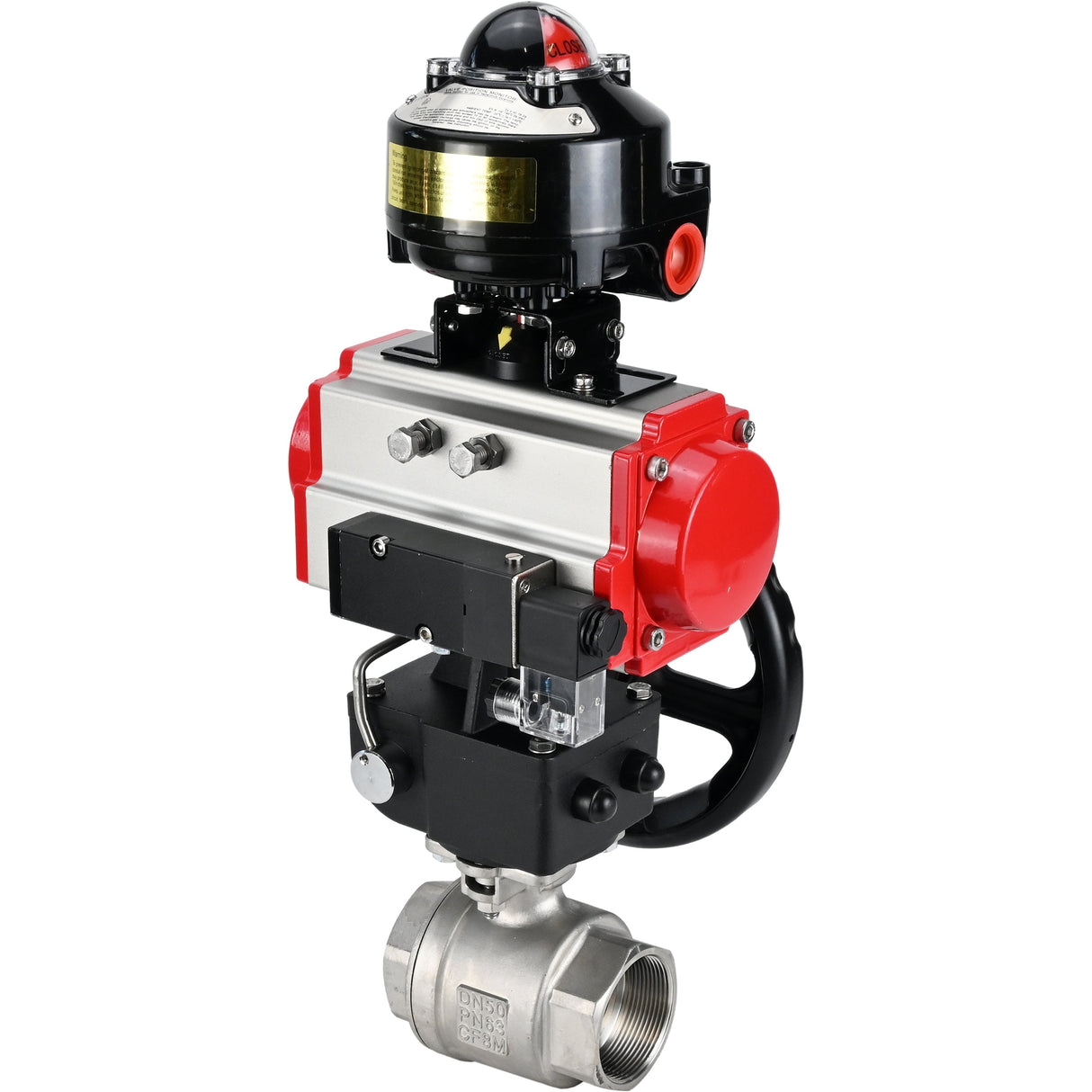

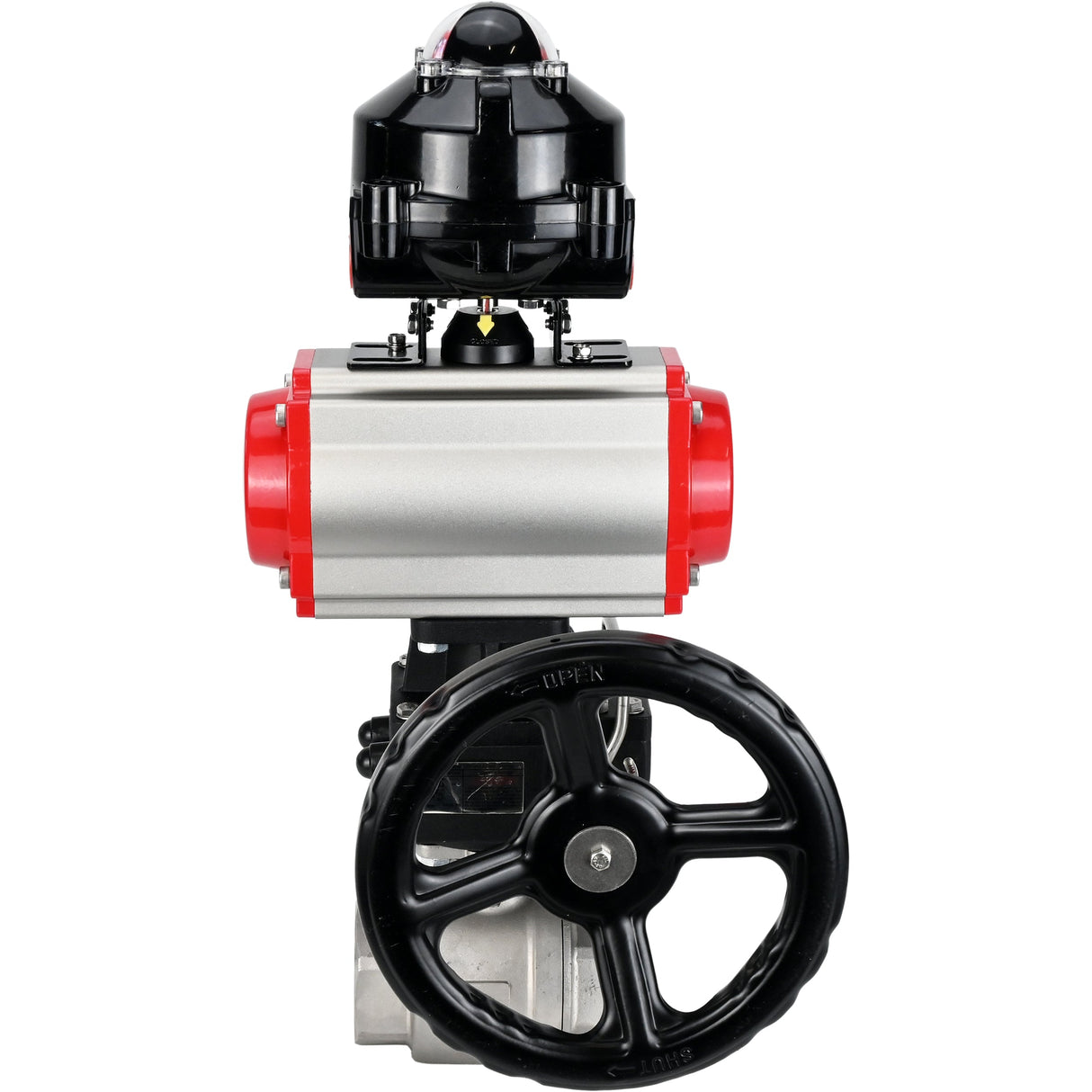

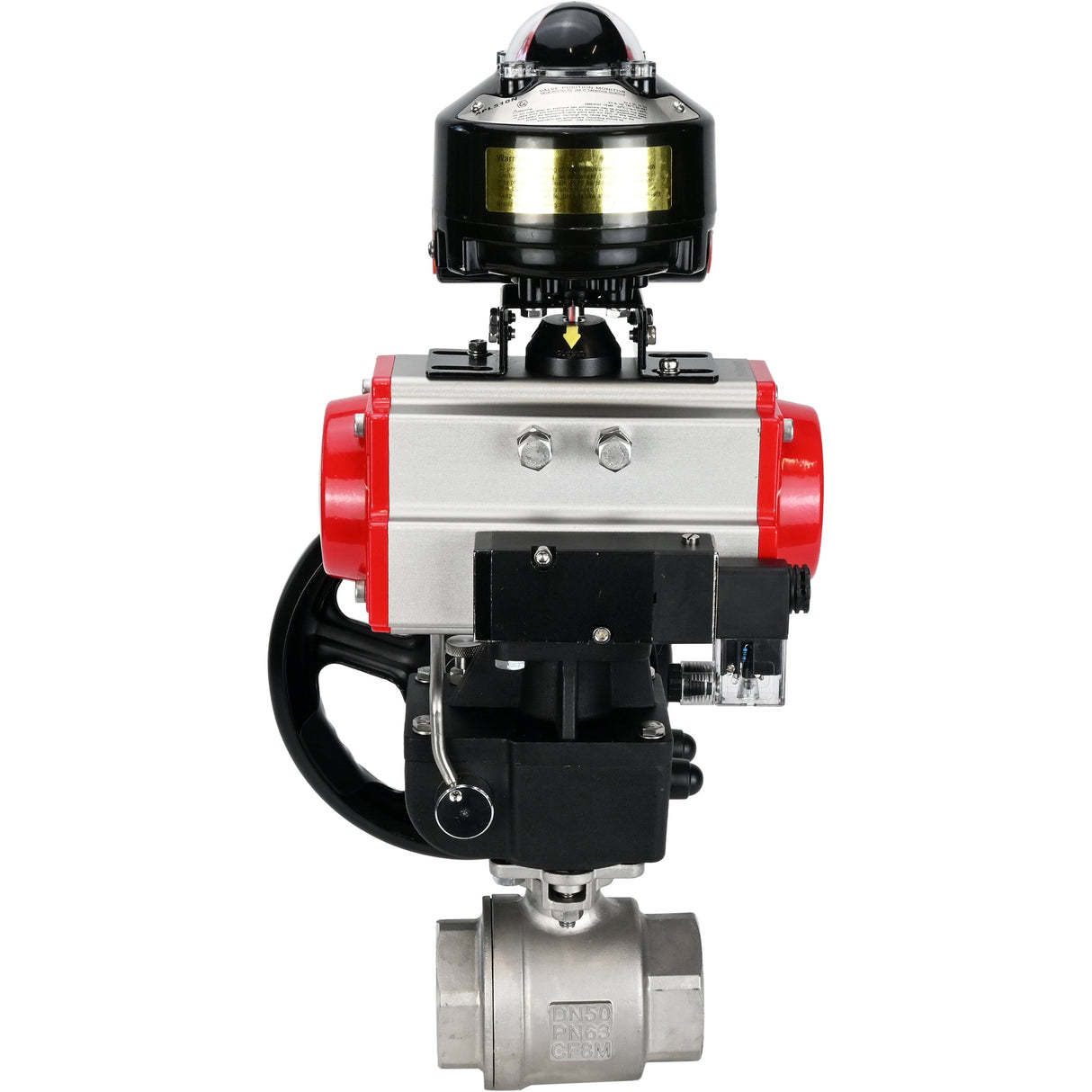

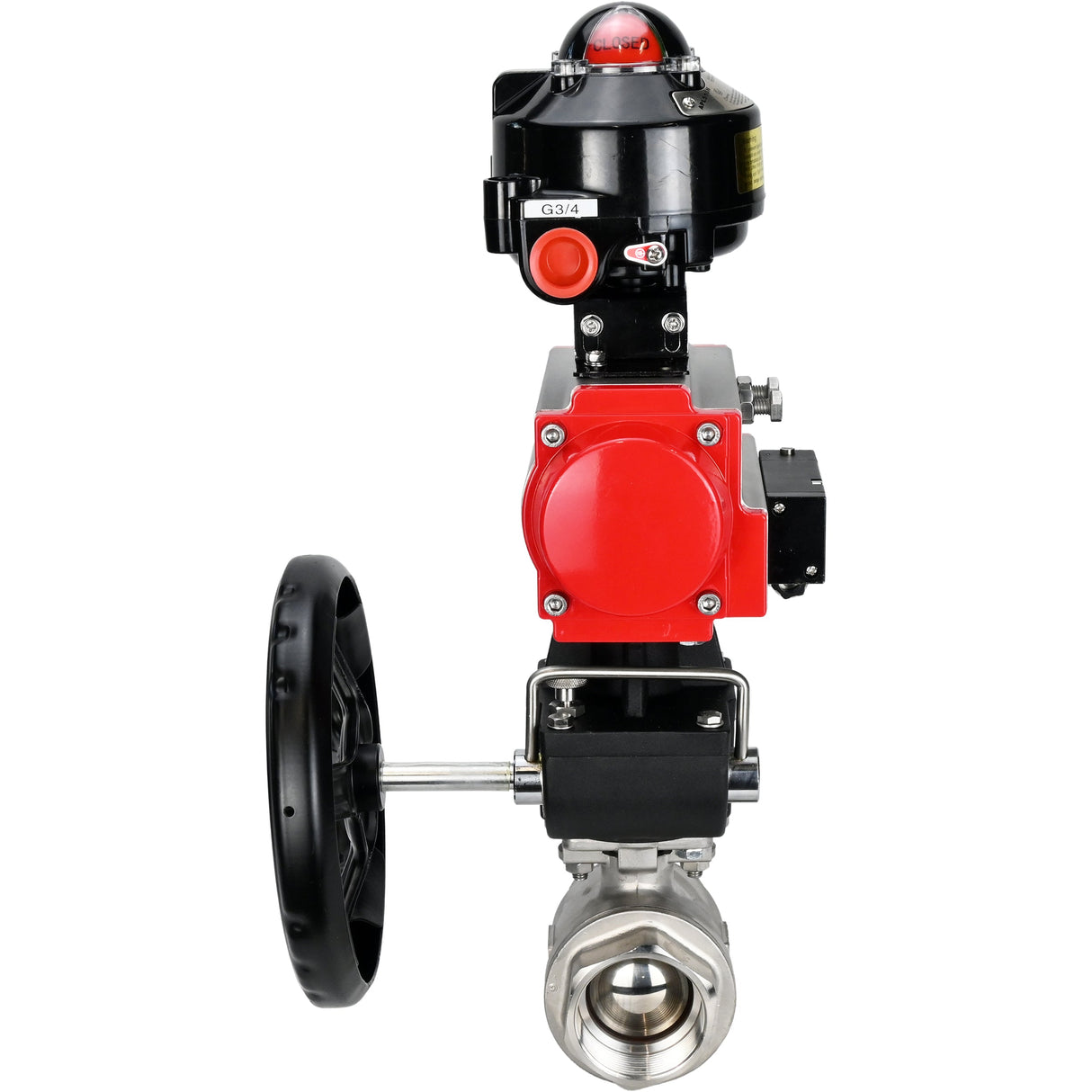

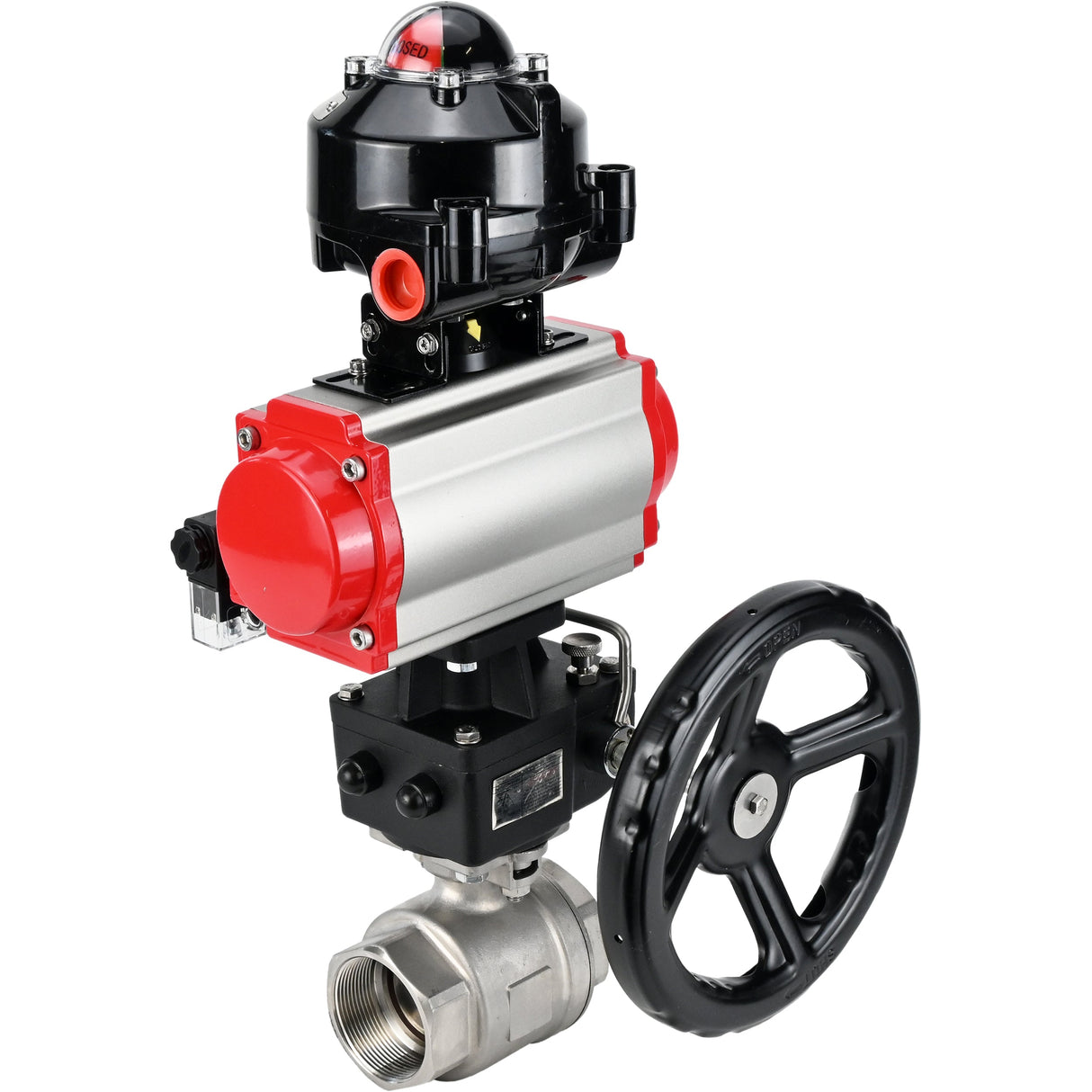

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-105 pneumatic distributor 4M310-08 NAMUR 24V gearbox MON LSU APL-510N-EX

€502,69

Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Connection size

Pressure

Variantes del producto

Ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-105 pneumatic distributor 4M310-08 NAMUR 24V gearbox MON LSU APL-510N-EX - DN10 / 63 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Pneumatic actuators PA-DA are designed to automate the process of controlling industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
The Elephant MON manual doubler with worm gear and HDM reduction gearbox allows manual adjustment of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is intended to provide the most effective and efficient solution to the full range of manual override applications.
Unit of Elephant APL-510N-EX limit switches is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of limit switch units, it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical characteristics of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-105 pneumatic distributor 4M310-08 24V gearbox MON limit switch unit APL-510N-EX:

Nominal diameter DN, mm	25–32
Operating pressure PN, bar	16
Working medium temperature t, °C	From -20 to +120
Working medium	Cold and hot water, air without oil and grease, other media neutral to the material
Flow direction	Two-way
Body material	Aluminum alloy
Type of control	Manual (handle)
Additional option	Electric or pneumatic actuator installation possible (ISO 5211-2001)

Materials of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-105 pneumatic distributor 4M310-08 24V gearbox MON limit switch unit APL-510N-EX:

№	Part name	Material
1, 6	Body	Stainless steel SS316
2, 4	Ball seal	PTFE
3	Ball	Stainless steel SS316
5	Sealing ring	PTFE
7	Stem	Stainless steel SS316
8	Stem seal	VITON
9	Stem nut	Stainless steel SS316

Dimensions and installation sizes of ball valves Elephant BV3232P(2pc)-FP-T-ISO-H threaded, full bore, stainless steel body. steel SS316, seal - PTFE, with pneumatic drive Elephant PA-DA 052-105 pneumatic distributor 4M310-08 24V gearbox MON limit switch unit APL-510N-EX

DN	Ød, mm	L, mm	H, mm	H1, mm	Rod, mm	Thread inch	ISO flange
10	10	63	34	68	9x9	3/8"	F03, F04
15	15	58	37	68	9x9	1/2"	F03, F04
20	20	66	40	75	9x9	3/4"	F03, F04
25	24	72	54	88	11x11	1"	F04, F05
32	32	83	60	94	11x11	1 1/4"	F04, F05
40	38	95	70	118	14x14	1 1/2"	F05, F07
50	49	110	68	125	14x14	2"	F05, F07
65	64	147	94.5	143	17x17	2 1/2"	F07, F10
80	76	169	103.5	152	17x17	3"	F07, F10
100	98	204	122	169	19x19	4"	F07, F10

Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator	DA - double-acting
Nominal pressure PN, bar	12
Working pressure, bar	2...8
Working medium	filtered compressed air
Maximum particle diameter of the working medium, µm2	≤30
Ambient temperature, ⁰C	-20 to +80
Swivel angle, °	0 - 90
Swivel angle adjustment, %	±5
Position indicator	open/closed
Top connection standard	NAMUR
Air connection standard	NAMUR
Average life, cycles closed/open	70 000 (for non-aggressive media and medium pressure and temperature values)

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130

Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

№	Part name	Material
1	Indicator screw	ABS plastic
2	Position indicator	ABS plastic
3	Spring clip	stainless steel 304
4	Metal washer	stainless steel 304
5	Pressure washer	engineering plastic
6	Housing	hard anodized extruded aluminum alloy
7	Pressure washer	engineering plastic
8	Limiter	alloy steel
9	Shaft sealing ring upper	NBR
10	Upper shaft sliding ring	engineering plastic
11	Shaft	nickel plated alloy steel
12	Shaft sliding ring lower	engineering plastic
13	Shaft O-ring lower	NBR
14	Plug	NBR
15	Seal ring of adjusting screws	NBR
16	Washer of adjusting screw	stainless steel 304
17	Lock nut of adjusting screw	stainless steel 304
18	Adjusting screw	stainless steel 304
19	Piston	die-cast aluminum alloy
20	Piston guide plate	engineering plastic
21	Piston sliding ring	engineering plastic
22	Piston O-ring	NBR
23	Spring set	spring steel
24	Cover O-ring	NBR
25	End cap	cast aluminum with polyester coating
26	Cover screw	stainless steel 304
27	Stop screw	stainless steel 304
28	Adapter	carbon steel

Material sketch of DA double-acting pneumatic actuators

Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design	Spool-type
Test pressure (body strength test. Not for operation!), bar	10
Working pressure (recommended range for normal operation), bar	1.5 ÷ 8
Valve type	5/2 five-port, two-position
Working medium	purified air (40 µm filter fineness)
Operating temperature, °C	0 to +60
Actuation frequency	5 cycles per second
Manual override	yes
Protection rating/insulation class	IP65/F
Connection to pneumatic actuator	NAMUR-compliant mounting surface (VDI/VDE3845)
Body material	anodized aluminum
Effective cross-sectional area, mm2	25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere)	2 - PT1/4”
Air inlet port size (to pneumatic valve)	G1/4”
Air outlet port size (to pneumatic actuator)	2 x Ø19.2 mm
Response time, sec	0.05
Supply voltage, V	220AC/24DC
Coil power	220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg	0.35
Average service life, cycles	10,000,000

Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A	C	D	E	F	G	H	I	K	L	J	N	M
mm
40	24	28	32	40	21,5	69	45	17,5	135	29,3	40	27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№	Part Name	Material
1	Connector	Engineering plastic
2	Nut	POM + carbon steel
3	Coil	Copper
4	Control Elements	—
5	Plate	Carbon steel
6	Piston	POM
7	Control Valve Seat	Engineering plastic
8	Valve Body	Aluminum alloy
9	Spool	Aluminum alloy
10	O-Ring Seal	HNBR
11	Rear Cover	Engineering plastic
12	Filter	Synthetic material
13	Piston	POM
14	Spring	Stainless steel
15	Manual Override	Engineering plastic
16	Rear Seat	Aluminum alloy
17	Spring Seat	Aluminum alloy
18	Type C Towing Shackle	65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Materials of the manual doubler Elephant-HDM

№	Name	Material
1	Stem for pneumatic actuator mounting	Steel
2	Sealing ring	EPDM
3	Locking spring	Spring steel
4	Upper end cover	Aluminum alloy
5	Screw	Steel 304
6	Locking bracket (main link)	Steel 304
7	Body	Aluminum alloy
8	Sealing ring	EPDM
9	Gearbox	Cast iron BCh50
10	Transition coupling	Cast iron BCh40
11	Gearbox stem	Cast iron BCh40

Characteristics of limit switch unit APL-510N-EX:

Parameter	Value
Body	weatherproof IP67/ NEMA4 4X,7,9 explosion-proof E EX d IIC T6
Compatible devices	- quarter-turn pneumatic actuators; - any actuators with a 90° shaft rotation
Full swivel angle	90°
Cable glands	2 x NPT 3/4”
Electrical connection	Screw terminal clamps, 8 points (0.08 – 2.5 mm²)
Cable entry thread	2 x NPT 3/4”
Type of visual indicator	two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors	two mechanical switches two proximity sensors
Nominal voltage, V	250
Nominal current, A	16
Permissible ambient temperature, °C	from -20 to +66
Average life, cycles	10 000 000
Weight, kg	1.8

Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Especificaciones

País de origen

China
Apertura de puerto

full bore
Temperatura máxima permitida

200 °C
Tipo de conexión

Threaded
Entorno operativo

Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
Tipo de sello

PTFE
Interruptores de límite

have
Tipo de actuador neumático

double action
