Elephant | SKU: D050-81987

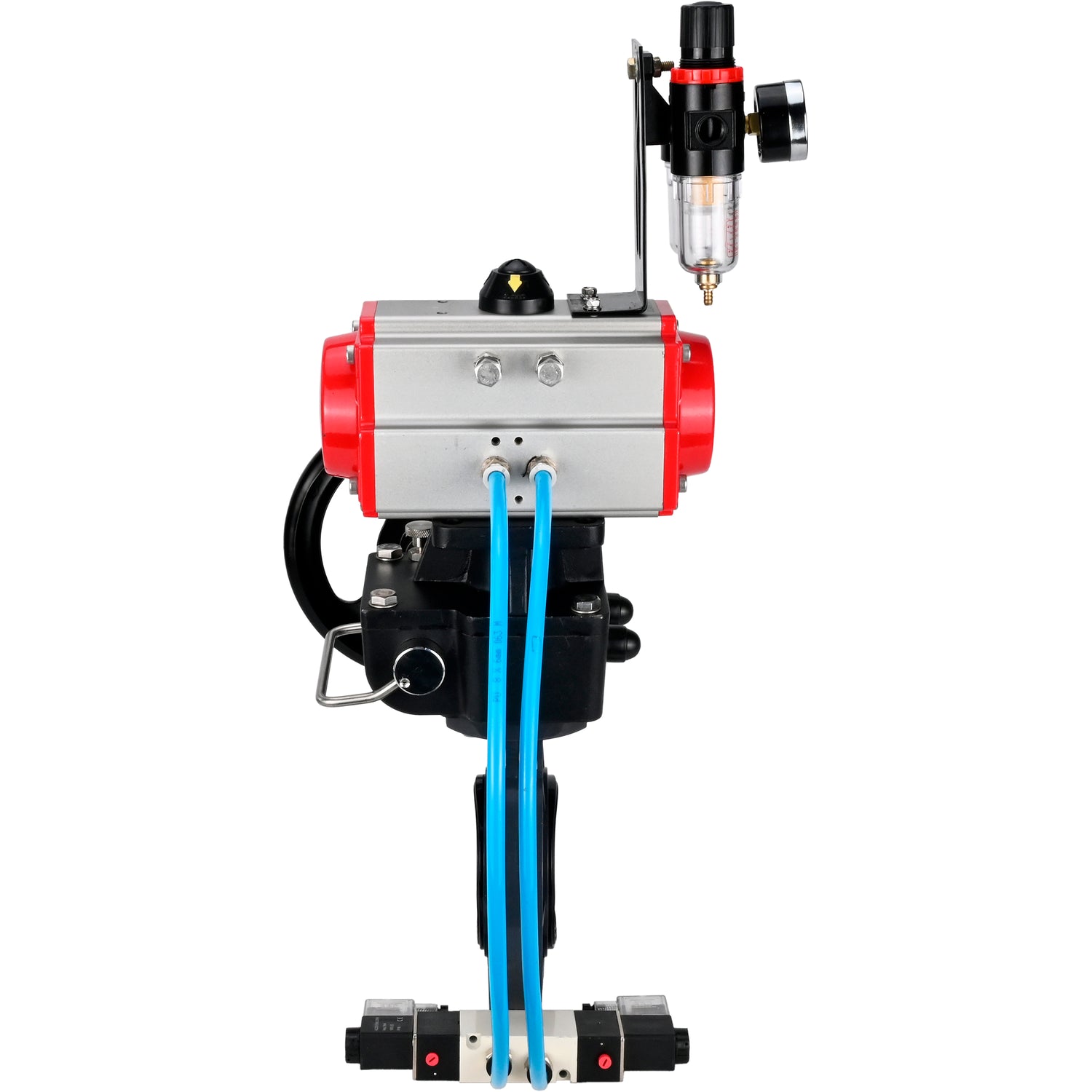

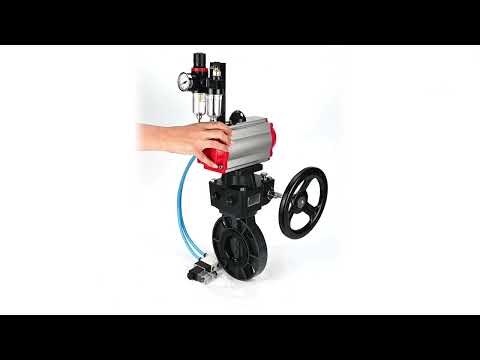

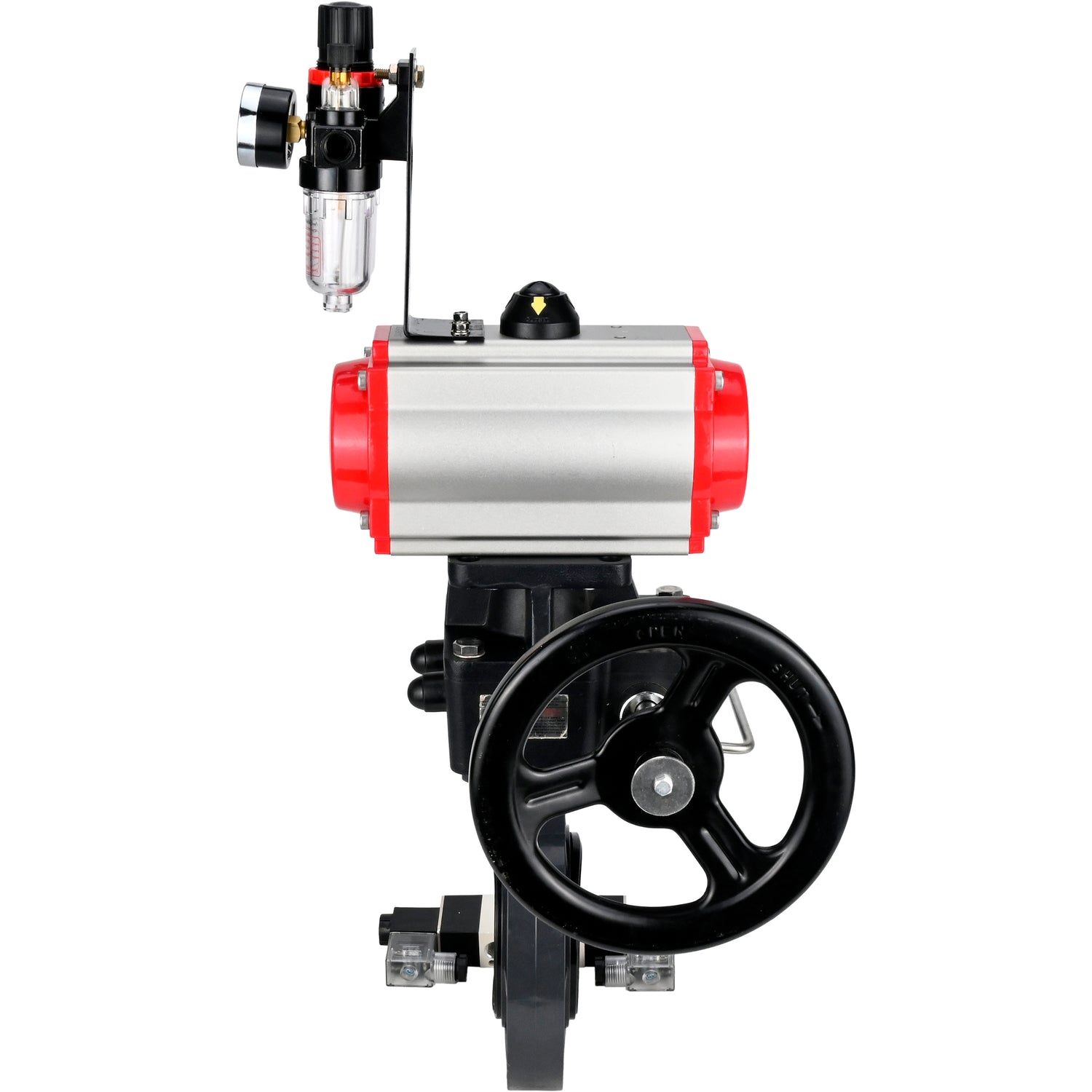

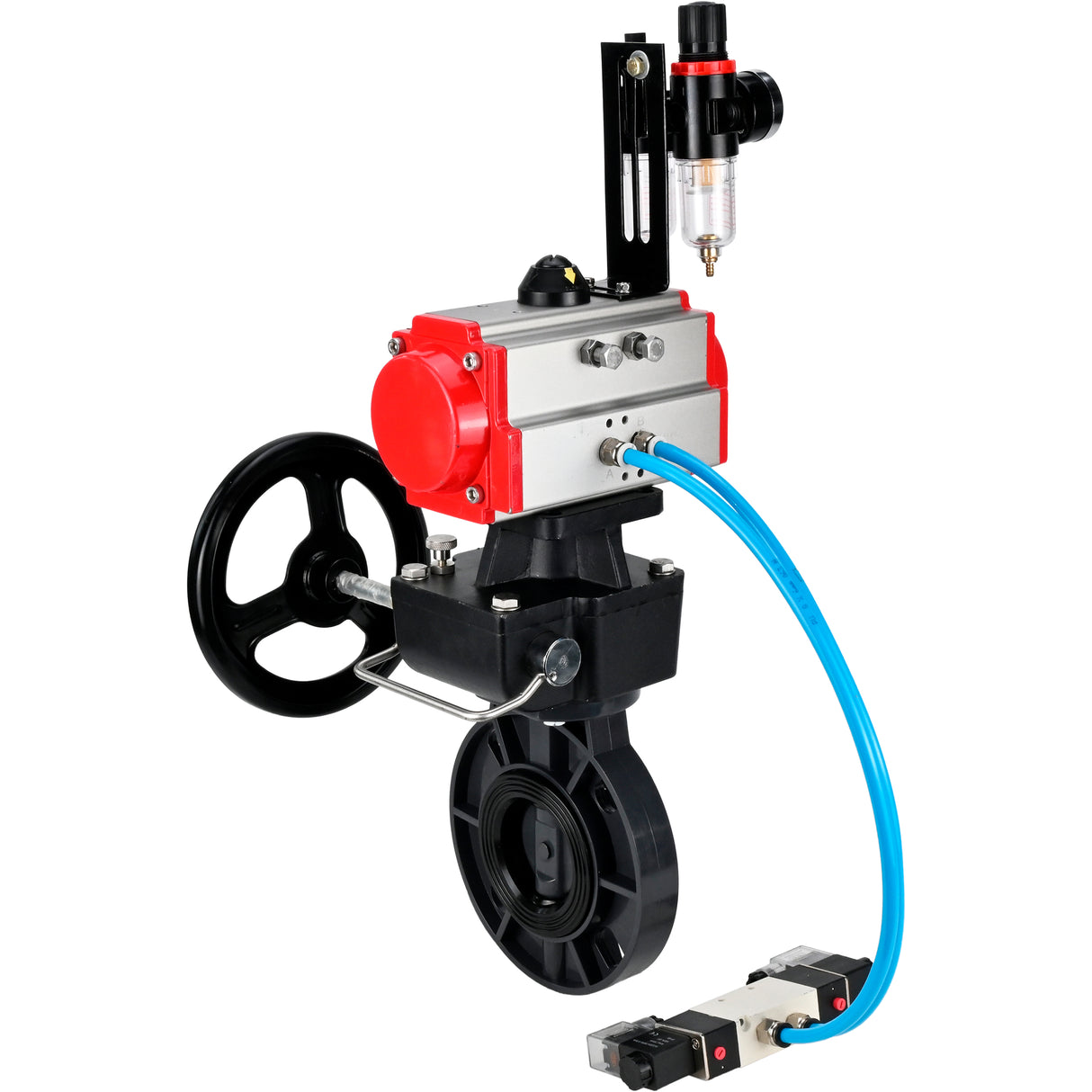

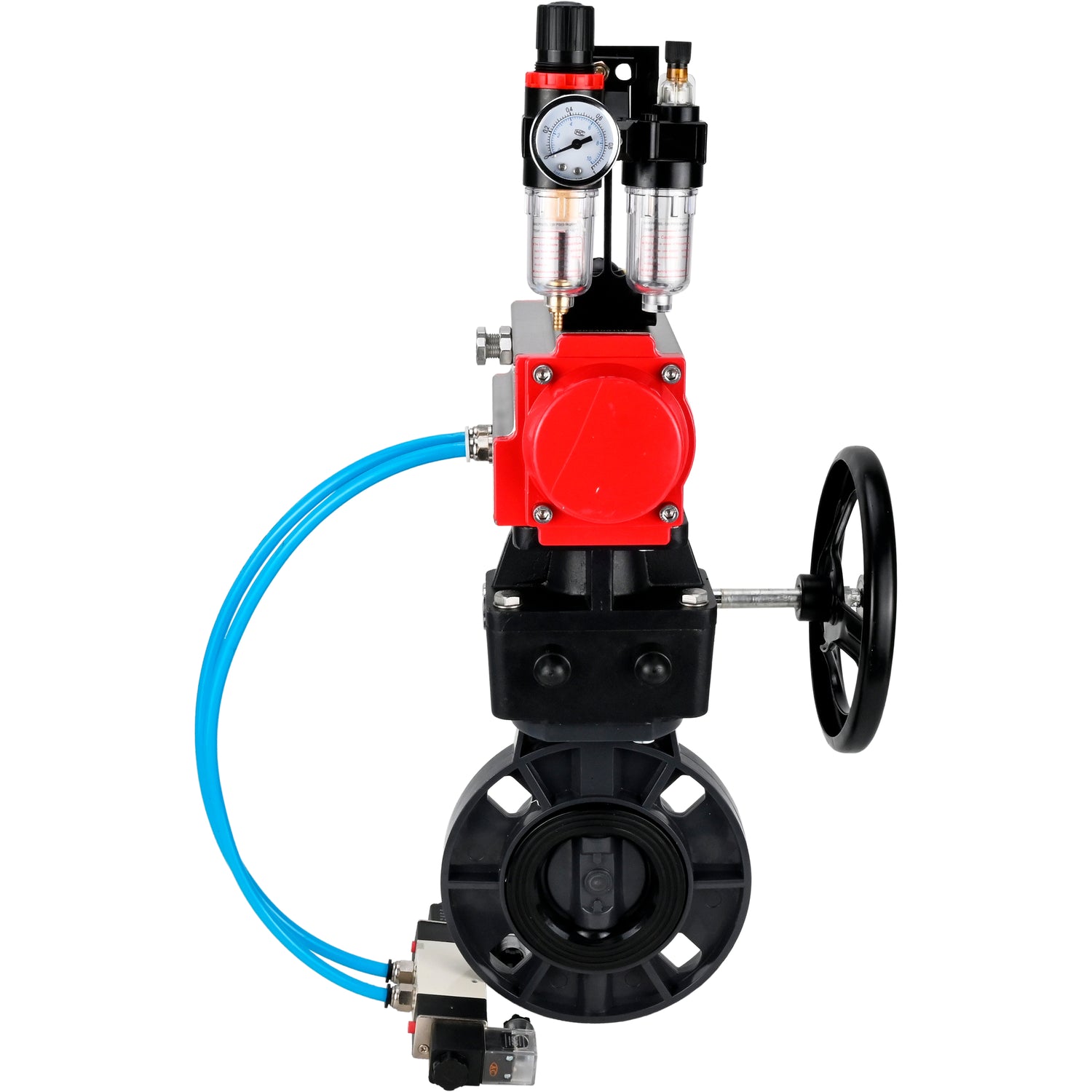

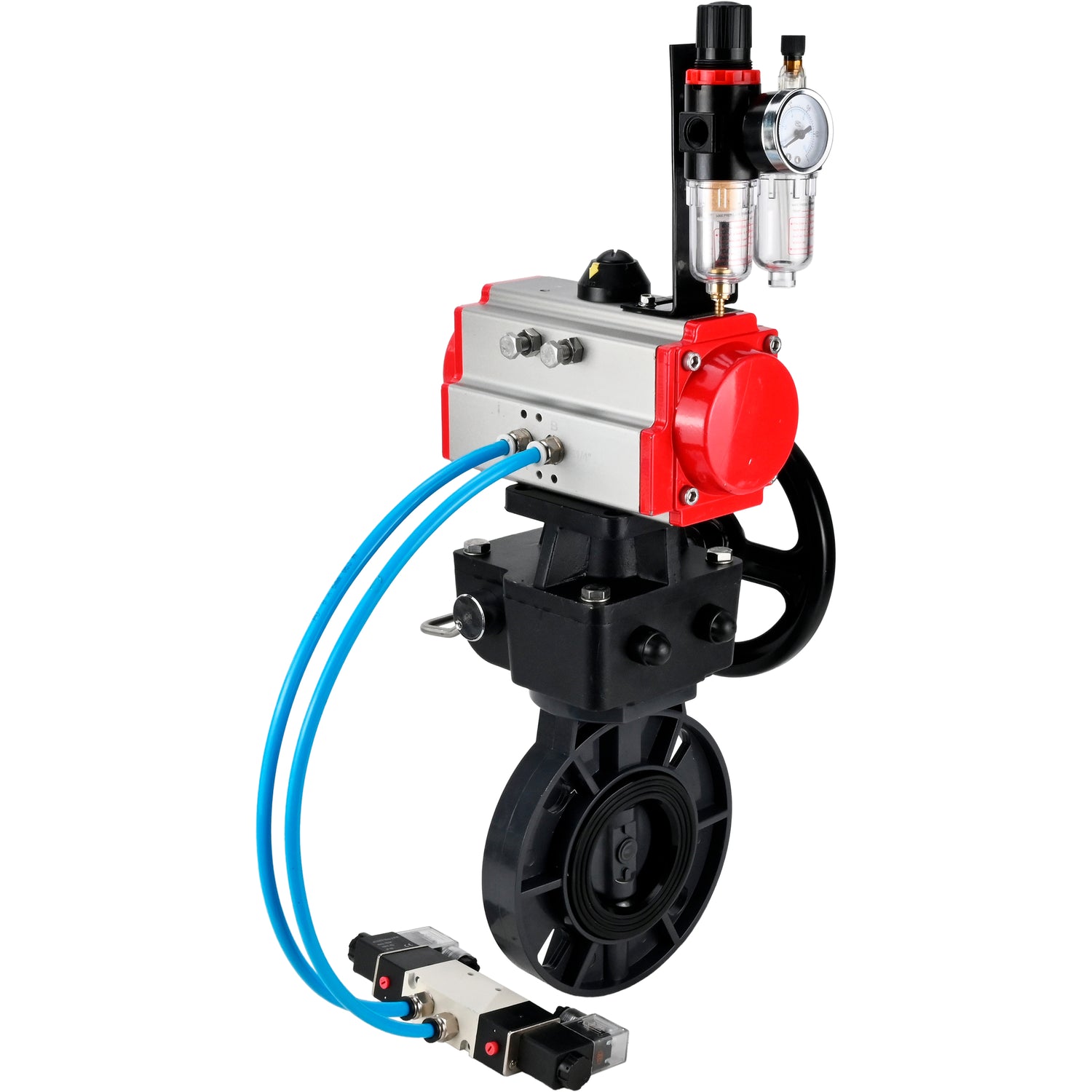

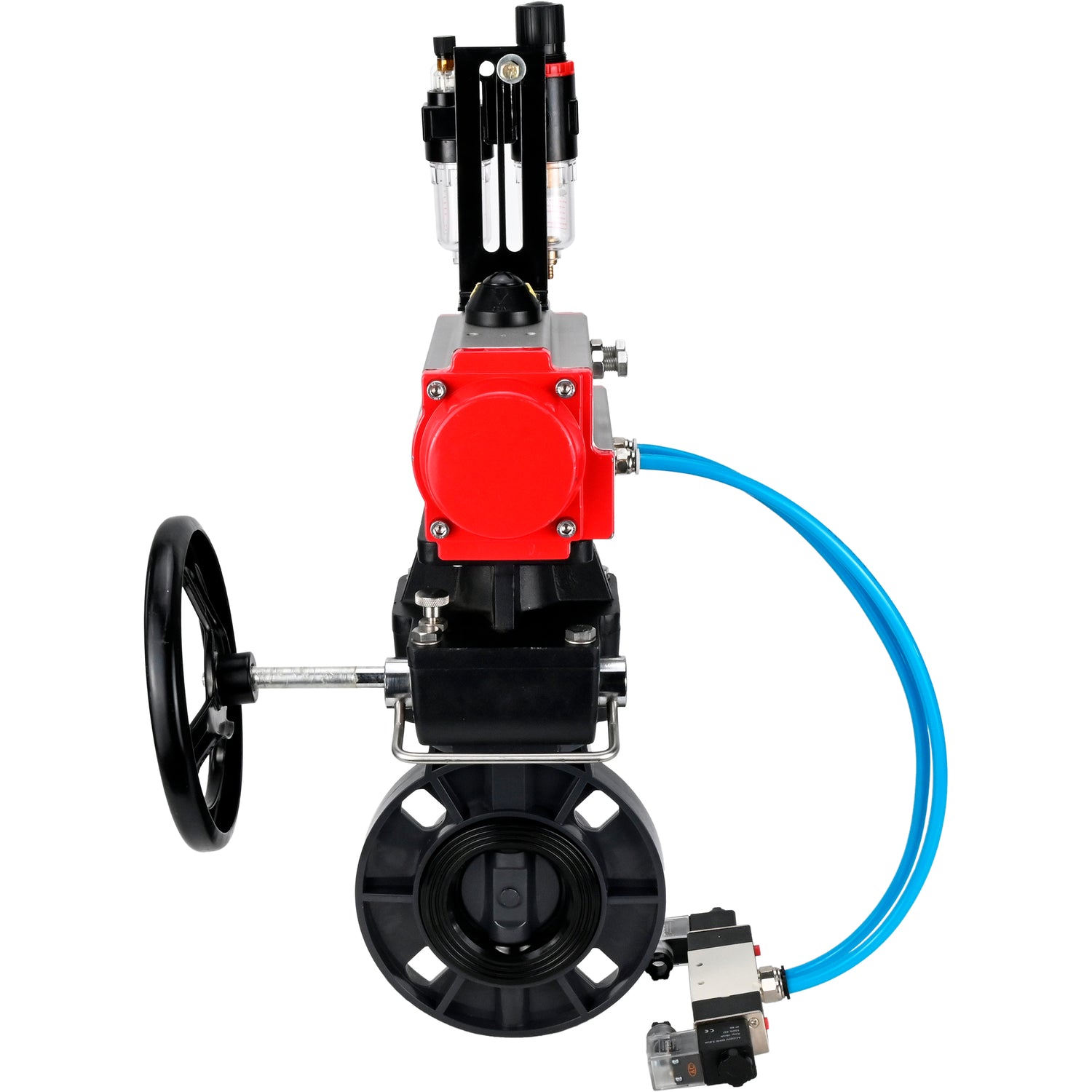

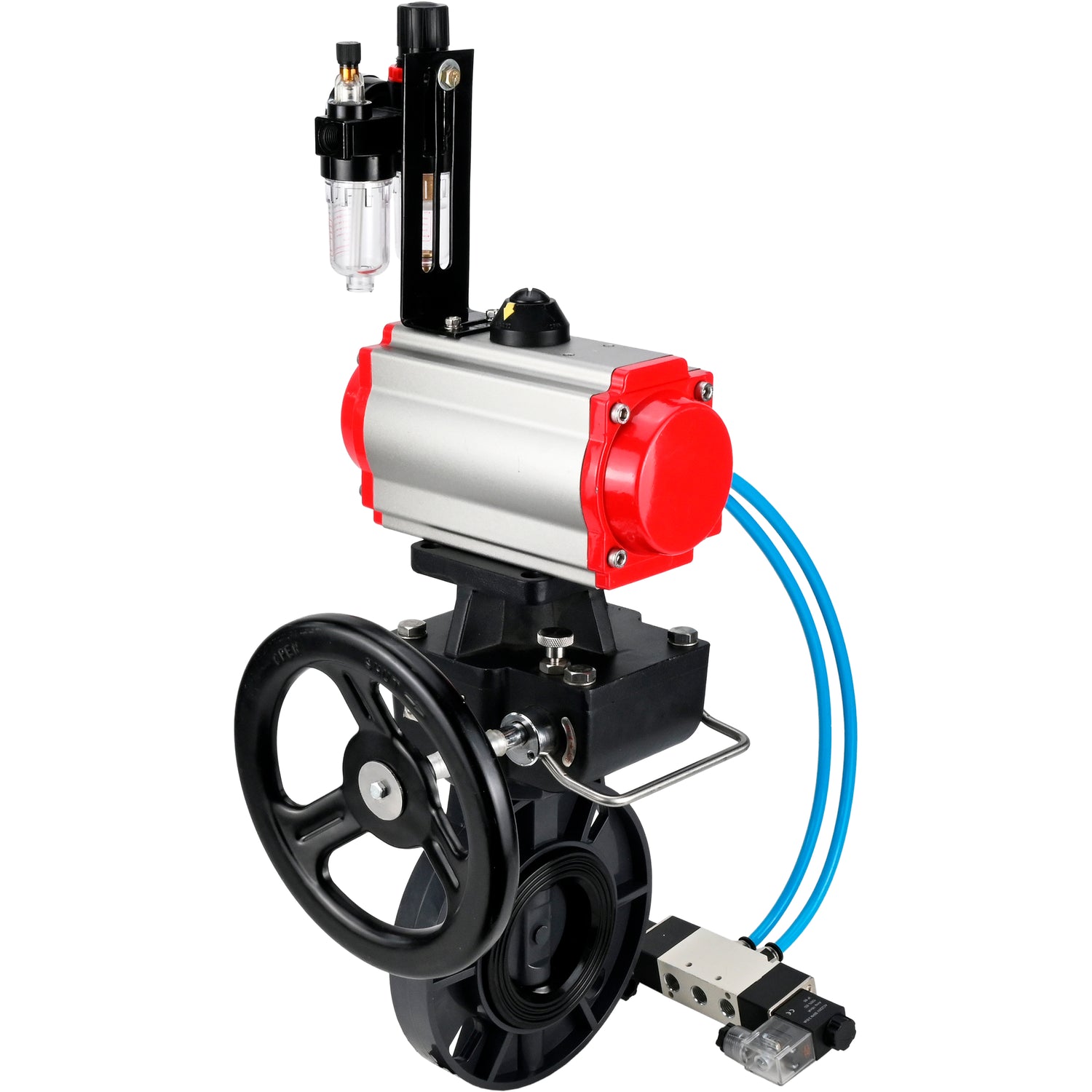

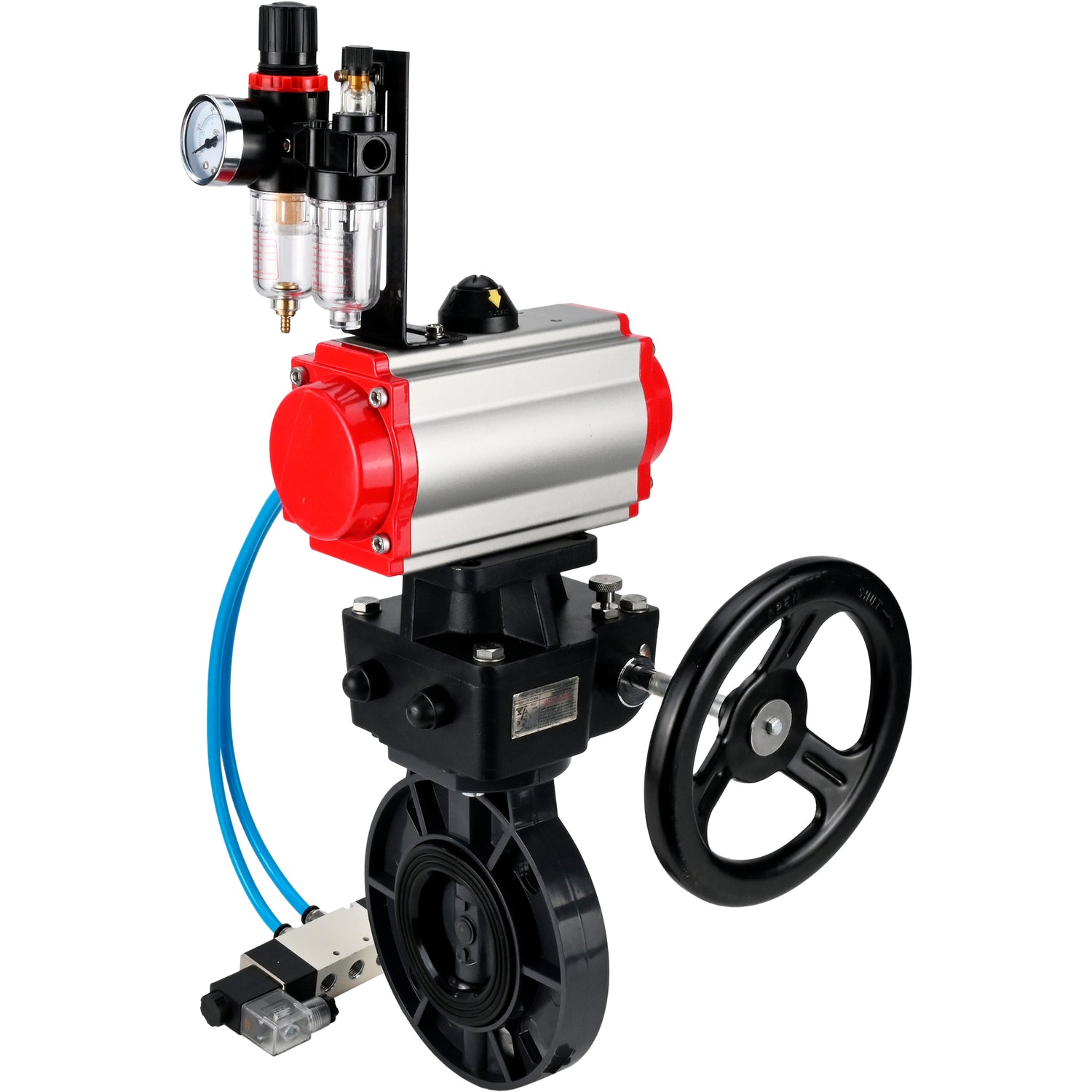

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA, pneumatic distributor 4V320-08 220V, ATU AFC2000 and handwheel MON

€0,00

Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Connection size

Pressure

Variantes del producto

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

PA-DA-x double-acting pneumatic actuators use two ports to supply the control medium and create movement in both directions, both to open and close the valve. One port is used to move the piston in one direction and the other port is used to move the piston in the opposite direction.

The MON worm gear manual quarter-turn doubleturn actuator with reduction gearbox allows manual adjustment of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators.

Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at the set level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.

Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic	Meaning
Gate type	rotary disk
Diameter	50-200 mm
Nominal pressure	10 bar
Working medium temperature	0 to +45 °C
Application	Water Supply
Operating environment	Liquids, Air and Gases
Connection type	Compact flanged
Control type	Manual (handle, gearbox)
Sealing class	A
Manufacturer's country	China
Warranty	12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem

Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model	DN50	DN65	DN80	DN100	DN125	DN150	DN200
D, mm	158	179	195	226.5	253.5	280	340
D1, mm	120.5	130.5	154	181	208	234	291.5
L, mm	45	45	48	54	63	69	89
H1, mm	98	110	131	155	169	185	231
n–Ød, pcs-mm	4–Ø19.3*24.5	4–Ø19.3*24.5	8–Ø20*24	8–Ø20*27	4–Ø23*27.5	4–Ø23*28	4–Ø23*28.5
ØD, mm	65	65	65	90	90	90	125
ØD1, mm	50	50	50	70	70	70	102
ØD2, mm	35.5	35.5	35.5	55.5	55.5	55.5	70.5
h, mm	3.5	3.5	3.5	3.5	3.5	3.5	3.5
H, mm	32	32	32	32	32	32	45
BxB, mm	9х9	9х9	9х9	11х11	14х14	14х14	17х17
N–Ød, pcs-mm	4–8	4–8	4–8	4–10	4–10	4–10	4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem

Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№	Part Name	Material
1	Body	UPVC
2	Disc	UPVC
3	Seat seal	EPDM
4	Rod	Steel 45
5	Rod seal	EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem

Technical parameters of Elephant pneumatic drives PA-DA:

Characteristic	Meaning
Pneumatic drive type	double acting
Nominal pressure	12 bar
Working pressure	2-8 bar
Ambient temperature	from -20 to +80 °C
Swivel angle	0-90°
Position indicator	open / closed
Working environment	filtered compressed air
Swivel angle adjustment	±5%
Top and air connection standard	NAMUR

Pneumatic drives Elephant PA-DA

Dimensions of Elephant pneumatic drives PA-DA:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130

Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch Pneumatic drives Elephant PA-DA

Technical parameters of Elephant pneumatic distributor 4V320 AC220V:

Characteristic	Meaning
Type of pneumatic valve	slide valve
Body material	aluminum alloy and technopolymer
Control	two-way electromagnetic
Operating temperature	-5 to +60 °C
Operating scheme	5/2
Working pressure	1.5-8 bar
Maximum pressure	12 bar
Supply voltage	220V
Degree of protection	IP65
Insulation class	F

Pneumatic distributor Elephant 4V320 AC220V

Dimensions of Elephant pneumatic distributor 4V320-08 AC220V:

A, mm	71.9
B, mm	45
C, mm	94.4
D, mm	27
E, mm	69
F, mm	40
H, mm	82.4
I, mm	24
K, mm	40
L, mm	188.8
M, mm	69.4
N, mm	50
O, mm	83.4
P, mm	22
S, mm	20
T, mm	6.5
U, mm	2.4

Sketch Pneumatic distributor Elephant 4V320-08 AC220V

Technical parameters of Elephant water separator AFC2000:

Characteristic	Meaning
Operating Pressure	8 bar
Maximum Pressure	10 bar
Adjustable Pressure Range	0.5-9 bar
Burst Pressure	15 bar
Operating Temperature	from -5 to +60 °C
Air Connection	1/4"
Filtered Particle Size	40 µm
Oil Viscosity	ISO VG 32

Water separator Elephant AFC2000

Dimensions of Elephant water separator AFC2000:

A, mm	162
B, mm	88
C, mm	139
D, mm	31
E, mm	53.5
F, mm	12
G, mm	8
H, mm	7
I, mm	13.3
J, mm	39
K, mm	5
L, mm	40
M, mm	32
N, mm	53
O, mm	29
P, mm	6
R, mm	41.5

Sketch Water separator Elephant AFC2000

Technical parameters of Elephant handwheel MON:

Characteristic	Meaning
Operating mode	repetitive-short-term, reversible
Application	water supply, heating, fire extinguishing, heating stations
Place of installation	between pneumatic actuator and ball valve or gate valve
Operating temperature	from -20 to +80 °C
Shaft angle	90±5°
Mounting	horizontal/vertical
Working environment	filtered compressed air or non-aggressive gases, oils
Protection class	IP67

Handwheel Elephant MON

Dimensions of Elephant handwheel MON:

Model	MON1- 250- T26-ISO	MON2- 450- T28-ISO	MON3- 700- T38-ISO	MON4- 1200- T54-ISO
Model	mm
b1	14	17	22	27
N	22	22	28	32
b2	14	17	22	27
M	16	18	22	30
D1	50	70	102	102
4-M1	4-M6	4-M8	4-M10	4-M10
D2	70	102	125	125
4-M2	4-M8	4-M10	4-M12	4-M12
E	70*70	95*95	114*114	129*129
D3	50	70	102	125
4-Ø1	4-6.5	4-8.5	4-10.5	4-12.5
D4	70	102	125	140
4-Ø2	4-8.5	4-10.5	4-12.5	4-16.5
A	90	125	140	188.5
B	55	64	71	93
ØC	88	110	129	174
F	115	135	166	202
T	44	62.5	70	94
Y	145	178	212	280
H	120	133	180	195
S	53	56.5	68.7	84
K	10	13	12.5	15
Ø helm	180	200	280	320

Sketch Handwheel Elephant MON

Especificaciones

País de origen

China
Temperatura máxima permitida

45 °C
Tipo de conexión

Compact flanged
Entorno operativo

Liquids, Air and Gases
Tipo de sello

EPDM
Material del disco

UPVC
Posicionador electroneumático

No
Actuador neumático

Yes
Interruptores de límite

No
Manual de estudio

Yes
Tipo de actuador neumático

Double acting
Rango de ajuste de la unidad

5%

Reseñas (0)

Documentación

Butterfly valves Elephant WBV4242E-2W-Fb-ISO

Pneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Handwheel ELEPHANT MONx-x-x-ISO for pneumatic actuators and quarter-turn valves

Pneumatic valve ELEPHANT 4V320-8 or 10 AC220V

Air treatment unit AFC2000 ELEPHANT
