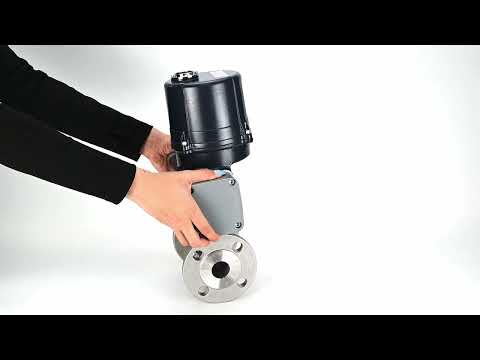

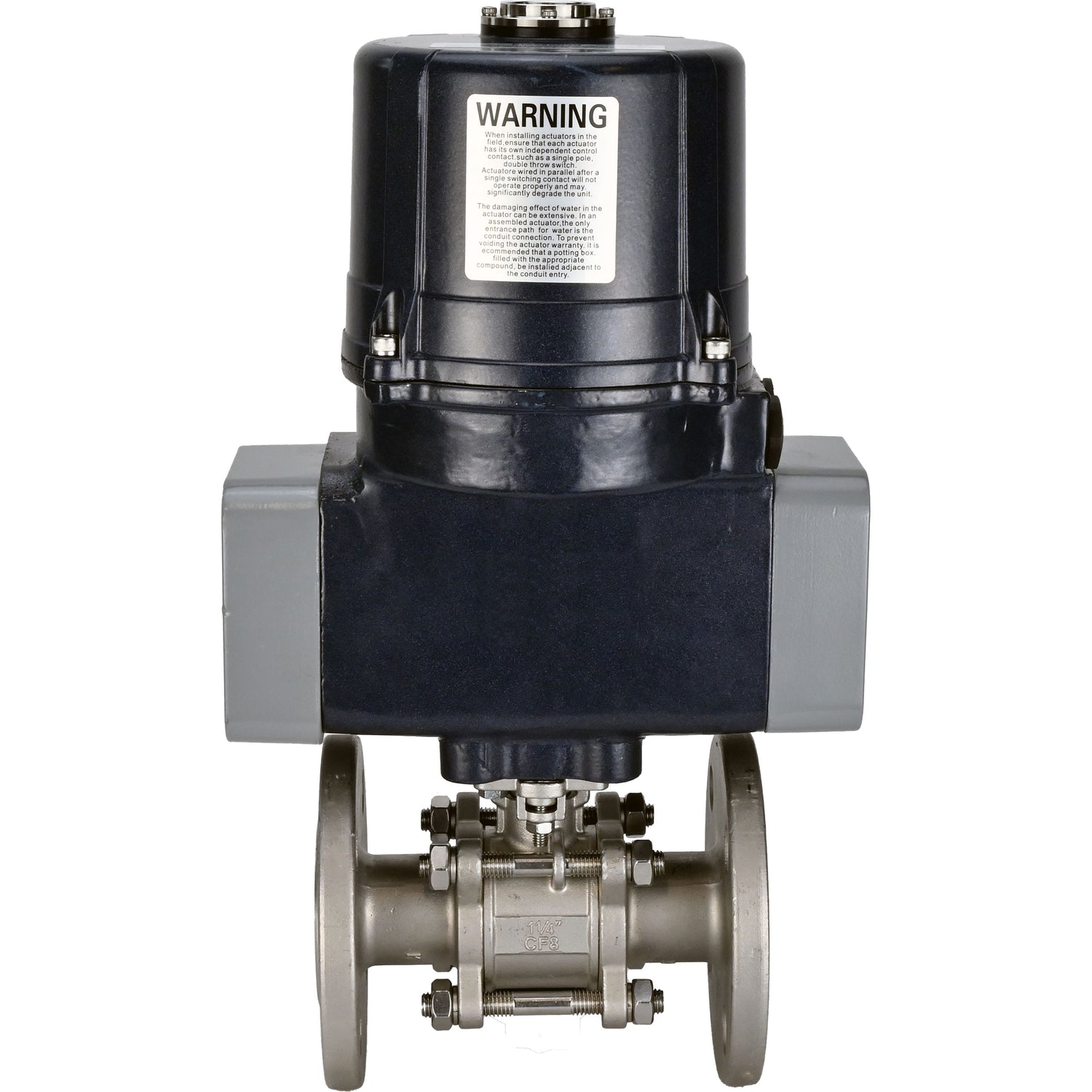

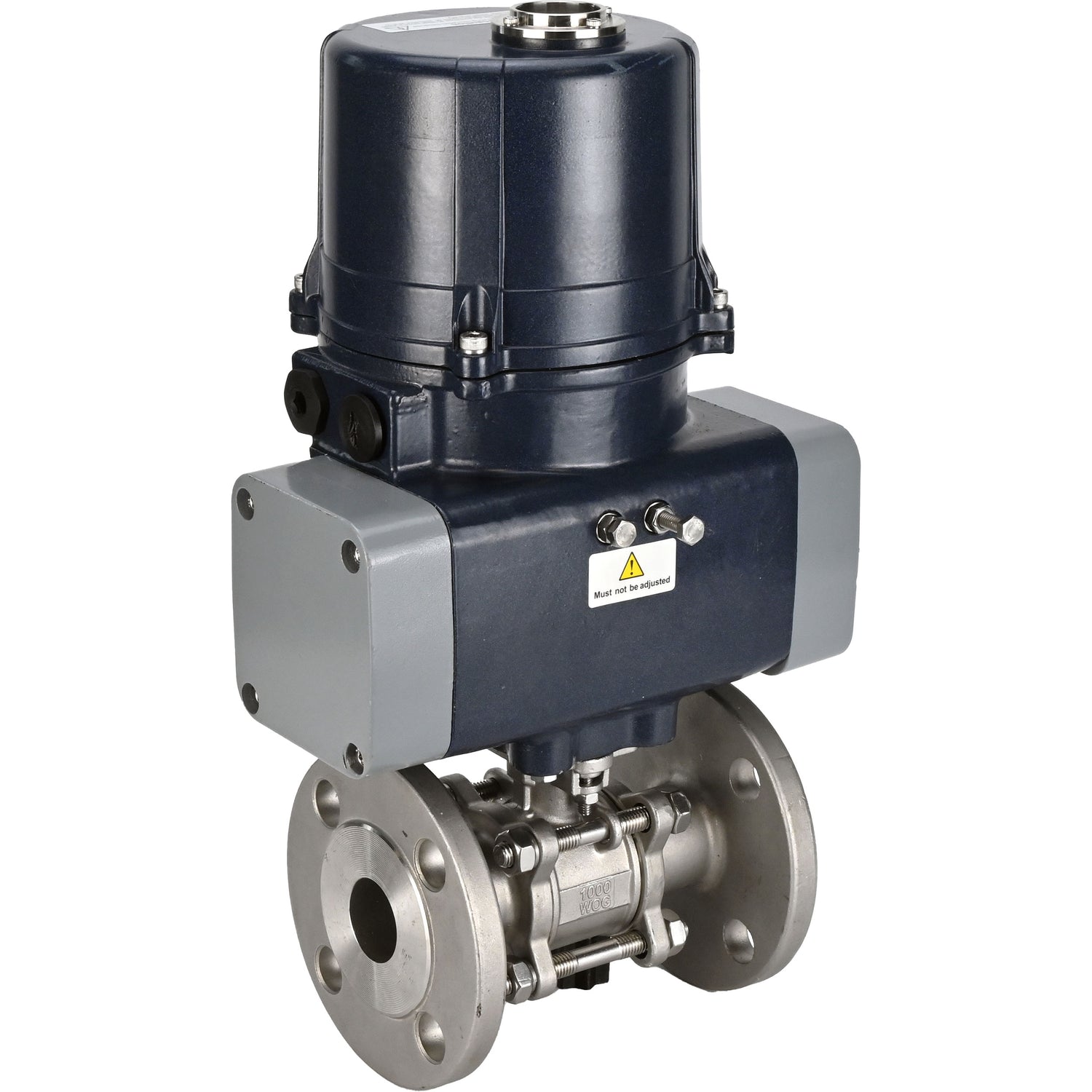

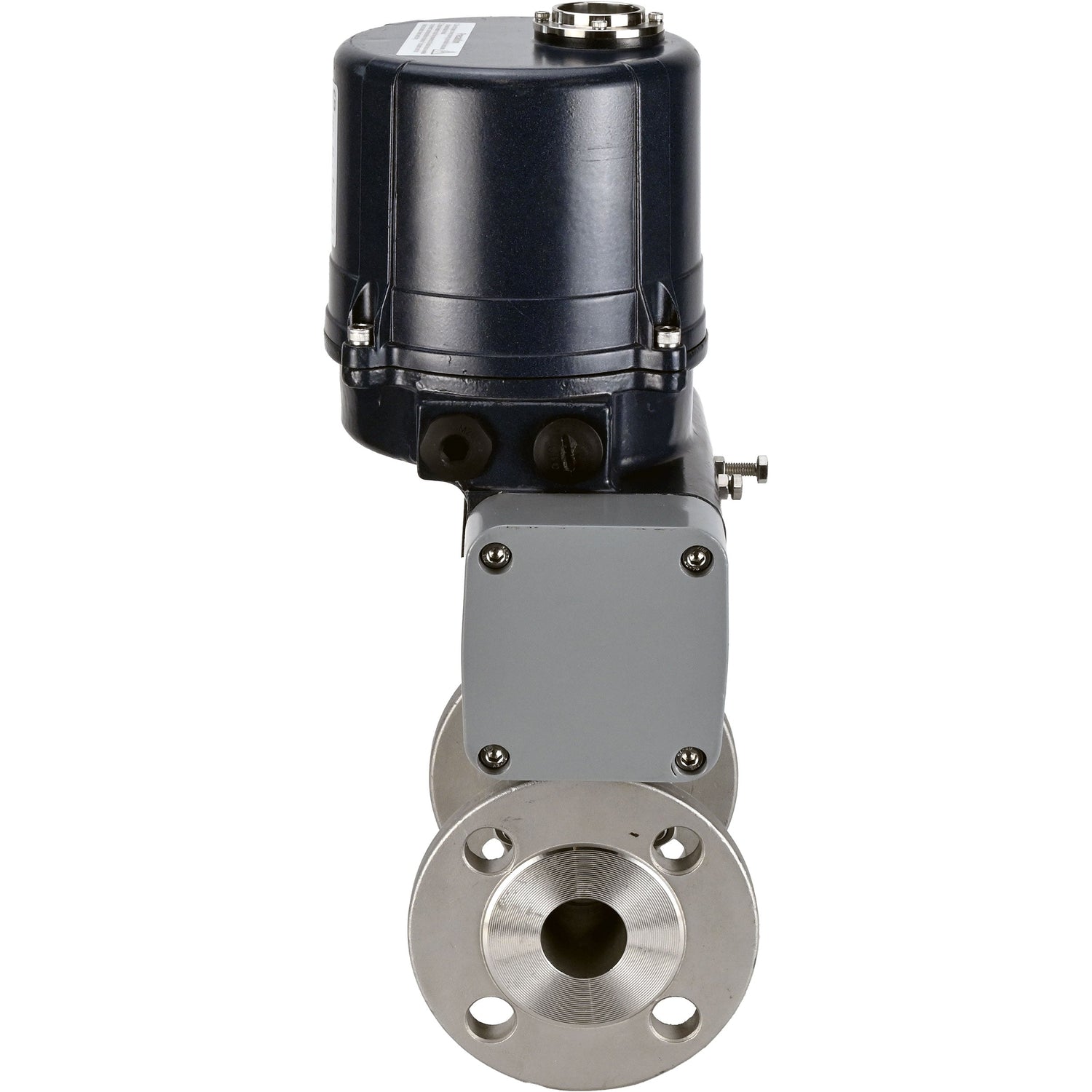

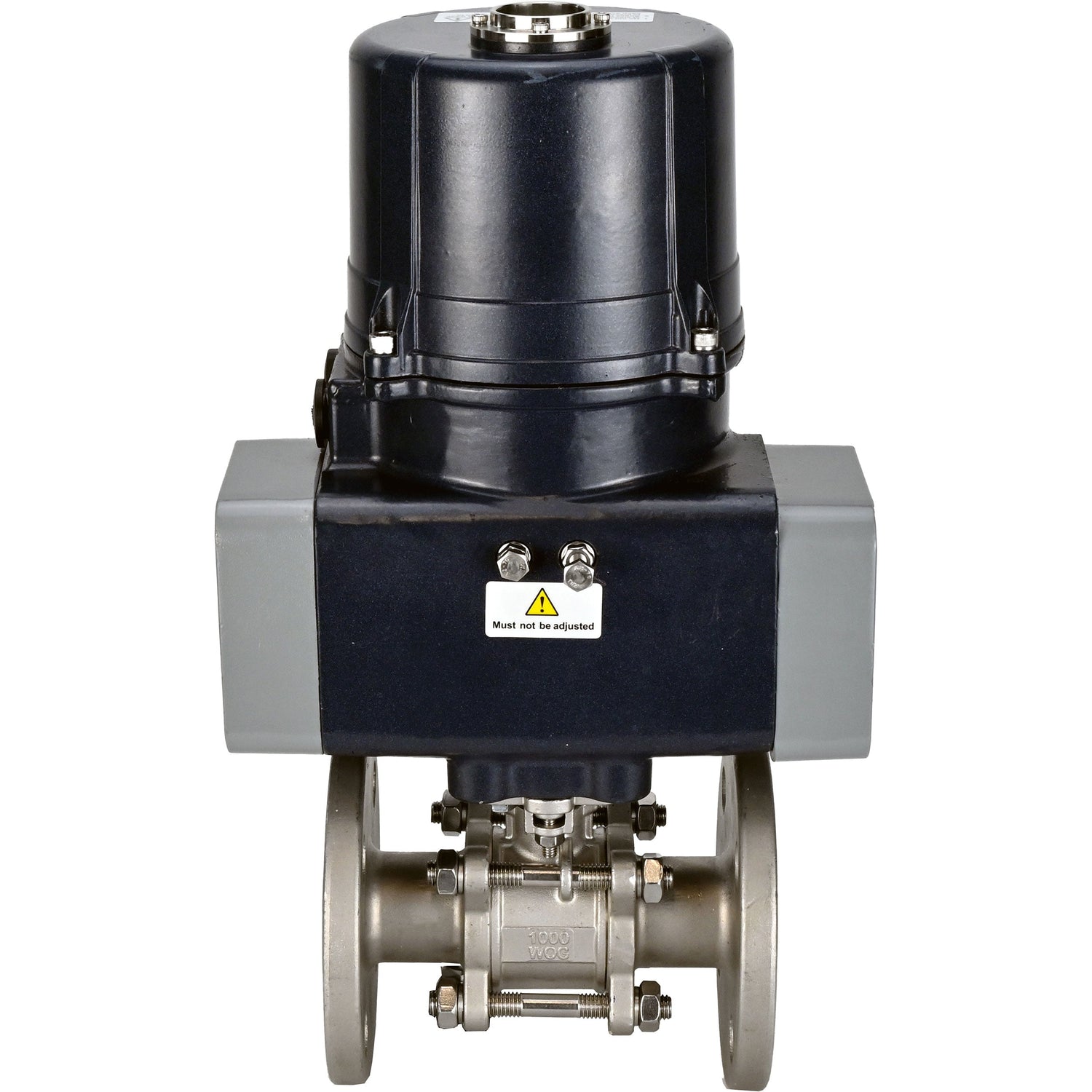

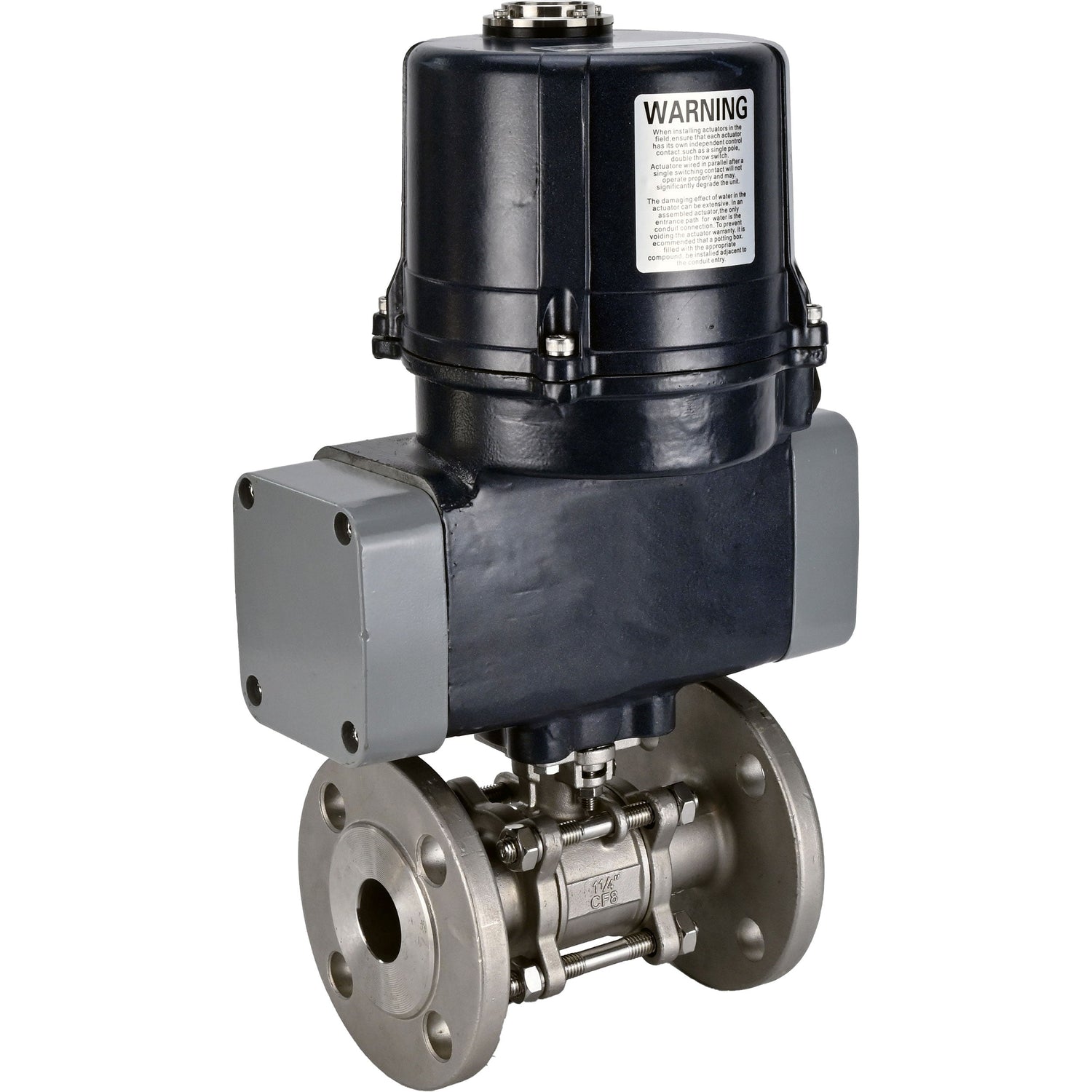

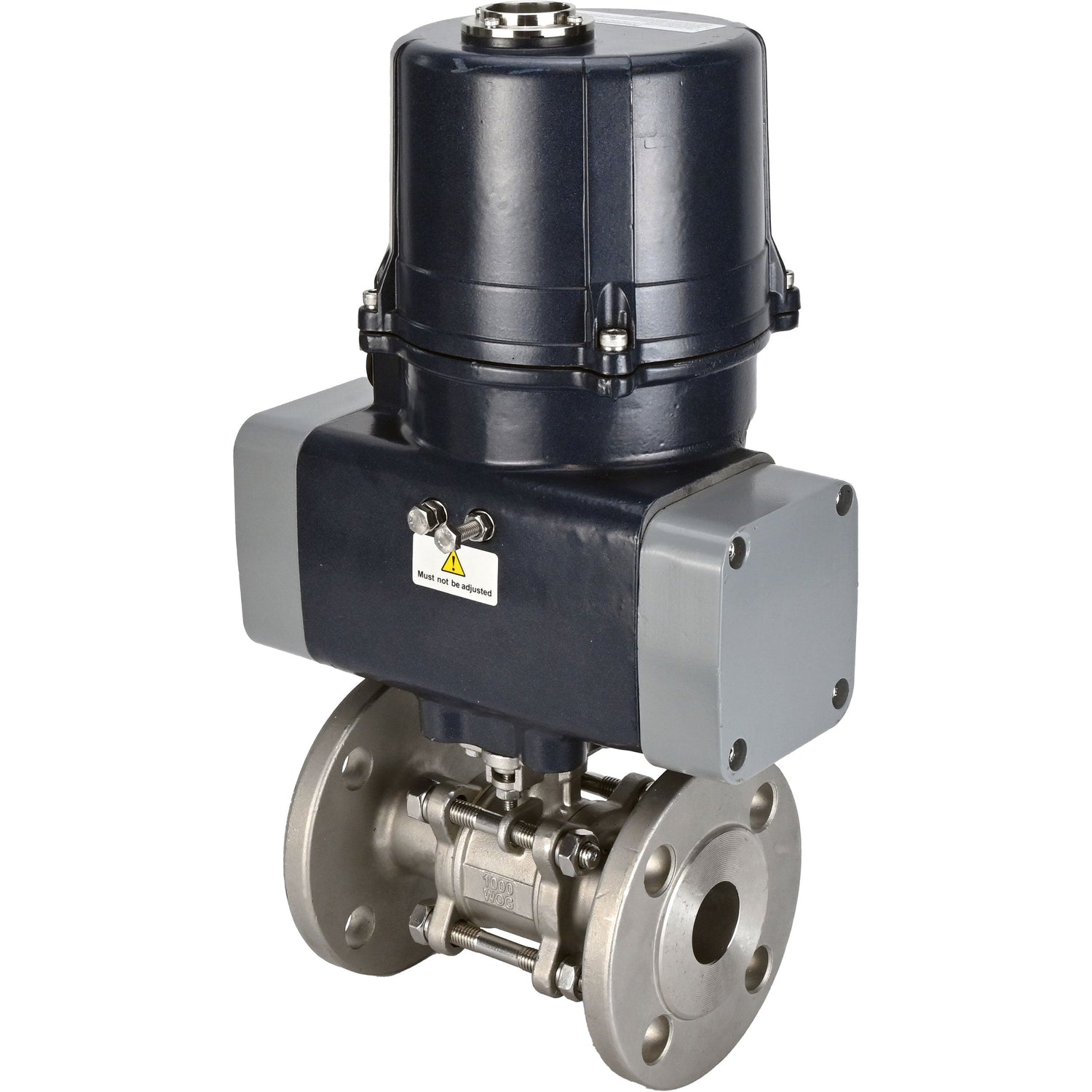

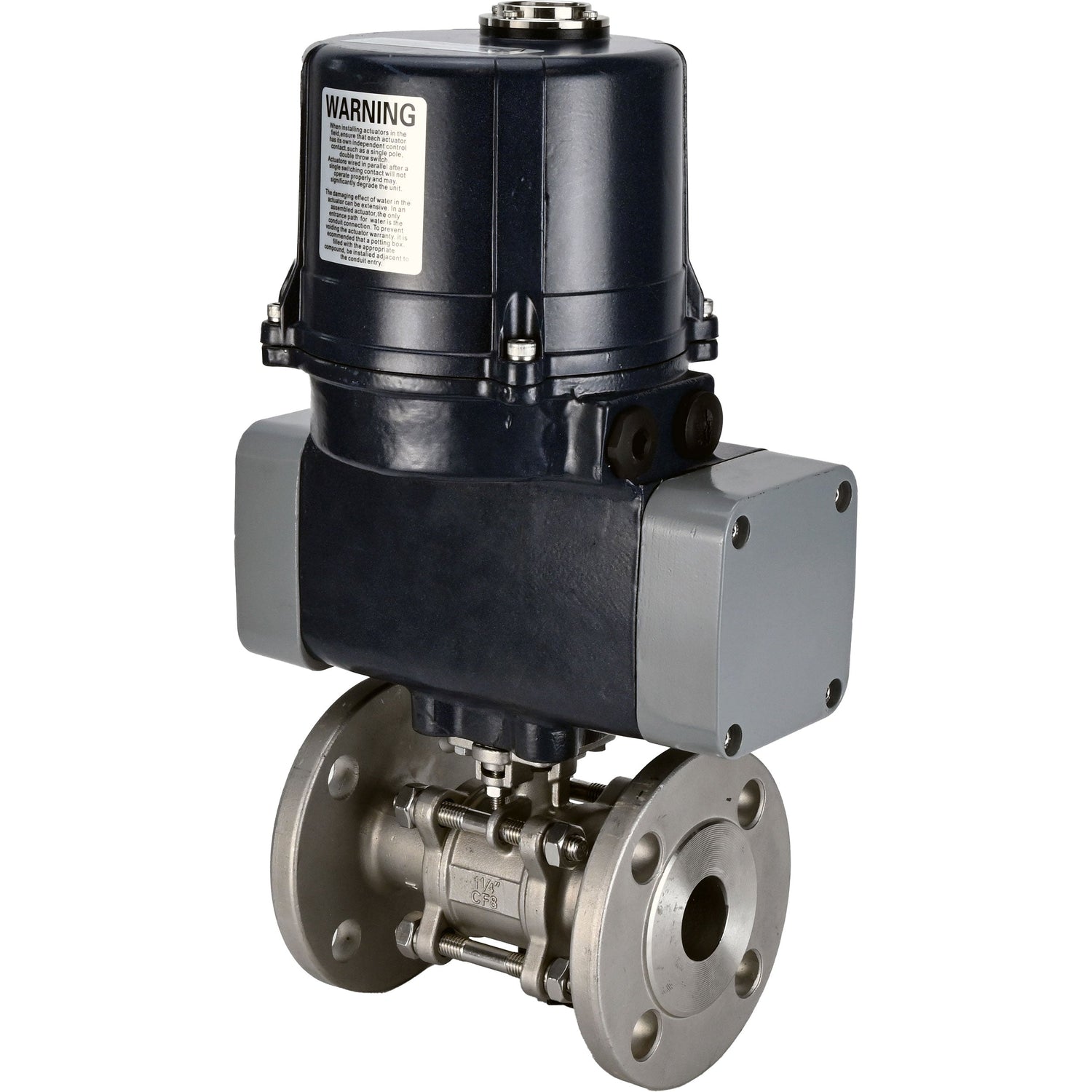

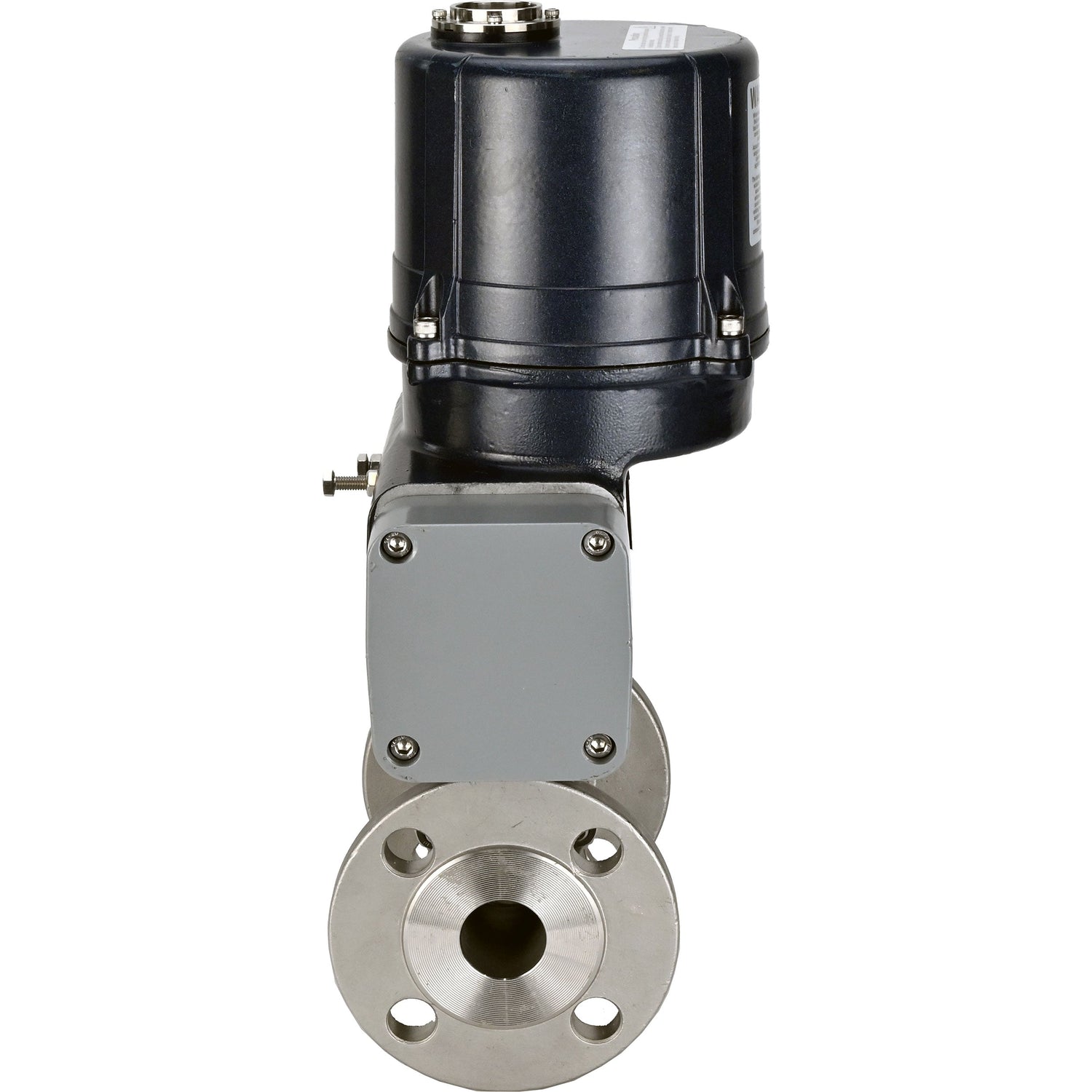

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H full bore, three-piece, flanged, body - stainless steel SS304, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H full bore, three-piece, flanged, body - stainless steel SS304, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC - DN15 / 40 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Electric actuator with spring return is designed for safe control of valves or flaps in case of power supply voltage loss. They are used in various industries. Principle of operation: this actuator is applicable in short-term mode S2 with switching-on time of 20 minutes. The actuators are powered from the AC mains 220V 50Hz 1 phase. When the actuator is energised, the valve shut-off valve is set in motion and the spring is compressed. When the power supply is switched off, the spring is unclamped, actuating the actuator and ensuring return of the valve shut-off body to the initial position (full opening or full closing).
Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H full bore, three-piece, flanged, body - stainless steel SS304, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| Name | Value |
|---|---|
| Connection Type | Flanged |
| Control Type | With Electric Actuator |
| Application | Water Supply, Heating Systems |
| Ball Passage | Full Bore |
| Operating Medium Temperature, °C | -20 to 180 |
| Connection | Flanged |
| Control | Electric Actuator 220V |
| Tightness Class | A |
| Water-Dispensing | No |
| Valve Type | Two-Way |
| Medium | Water, Steam, Petroleum Products, Gaseous Medium |
| Country of Manufacture | China |
| Warranty, years | 1 |
Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H full bore, three-piece, flanged, body - stainless steel SS304, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| DN | L, mm | d, mm | D, mm | A, mm |
| 15 | 130 | 15 | 95 | 229 |
| 20 | 150 | 20 | 105 | 229 |
| 25 | 160 | 25 | 115 | 229 |
| 32 | 180 | 32 | 140 | 229 |
| 40 | 200 | 38 | 150 | 266 |
| 50 | 230 | 50 | 165 | 266 |
| 65 | 290 | 64 | 184 | 377 |
| 80 | 310 | 79 | 200 | 377 |
| 100 | 350 | 99 | 220 | 406 |
Sketch of dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H full bore, three-piece, flanged, body - stainless steel SS304, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-F-ISO-H full bore, three-piece, flanged, body - stainless steel SS304, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| № | Part Name | Material |
|---|---|---|
| 1 | Ball Valve Body | Stainless Steel SS304 |
| 2 | Ball Shut-Off | Stainless Steel S304 |
| 3 | Bolt | Stainless Steel S201 |
| 4 | Nut | Stainless Steel S201 |
| 5 | Seal | PTFE |
| 6 | Stem | Stainless Steel SS304 |
| 7 | Gland | Stainless Steel S201 |
| 8 | Cover | WCB/CF8/CF8M |
| 9 | Seat Rings | PTFE |
| 10 | Thrust Washer | PTFE |
| 11 | Nut | Stainless Steel S201 |
| 12 | Handle | Stainless Steel S201 |
| 13 | Electric Actuator Housing | Aluminum Alloy AL104 |
| 14 | Electric Actuator Upper Cover | Aluminum Alloy ADC12 |
Parts and materials sketch for ball valves Elephant BV3131P(3pc)-FP-F-ISO-H full bore, three-piece, flanged, body - stainless steel SS304, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Technical parameters of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| Name | Value |
|---|---|
| Type of Electric Actuator | Quarter-turn with Spring Return |
| Power Supply Voltage, V | 220V |
| Rotation Angle, ° | 90±5 |
| Mechanical Stop | Yes |
| Average Lifespan, Open/Close Cycles | 100,000 |
| Enclosure Protection Rating, IP | 67 |
| Explosion Protection | No |
| Ambient Temperature, °C | -25°C to +65°C |
| Country of Manufacture | China |
Dimensions and dimensions of electric quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| Model | A | B | C | D | E | H |
| QTSA-N-003EM-O0-220VAC | 229 | 303 | 162 | 145 | 75 | 17 |
| QTSA-N-005EM-O0-220VAC | 266 | 380 | 199 | 177 | 96 | 19 |
| QTSA-N-014EM-O0-220VAC | 377 | 436 | 240 | 206 | 120 | 25 |
| QTSA-N-020EM-O0-220VAC | 377 | 436 | 240 | 206 | 120 | 25 |
| QTSA-N-030EM-O0-220VAC | 406 | 535 | 280 | 260 | 120 | 30 |
Sketch of dimensions and dimensions of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
Parts and materials table for quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| № | Part Name | Material |
|---|---|---|
| 1 | Top Cover | Aluminum Alloy ADC12 |
| 2 | Housing | Aluminum Alloy AL104 |
| 3 | Side Cover | Aluminum Alloy ADC12 |
| 4 | Cable Gland | Nylon |
| 5 | Return Springs | Spring Steel |
| 6 | Piston | Aluminum Alloy ADC12 |
| 7 | Separator Block | Carbon Steel 45 |
| 8 | Drive Mechanism | Alloy Steel 40Cr |
| 9 | Viewing Window | Tempered Glass |
| 10 | Cable Gland (Fireproof) | Fireproof Nylon |
| 11 | Heater | Ceramic |
| 12 | Electric Motor | Integrated Assembly |
| 13 | Adjustment Cam | Aluminum Alloy ADC12 |
| 14 | Limit Micro Switches | Integrated Assembly |
| 15 | Mounting Plate | Carbon Steel Q235 |
| 16 | Output Shaft | Carbon Steel 45 |
| 17 | Bearing | Stainless Steel |
| 18 | Position Indicator | Nylon |
| 19 | Capacitor | Composite Material |
| 20 | Terminal Block | Integrated Assembly |
Sketch of parts and materials of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Steam, Petroleum products, Gaseous medium
-
