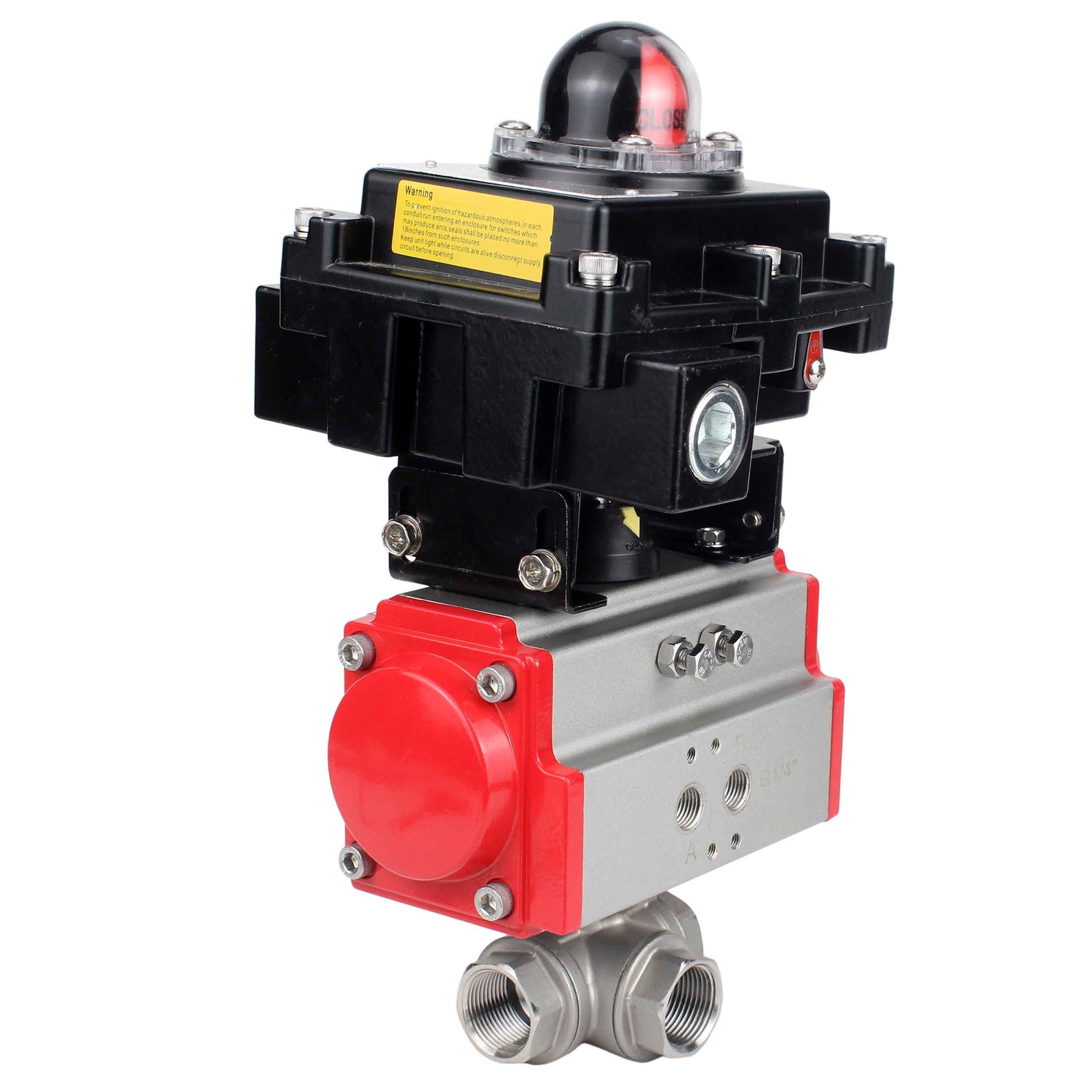

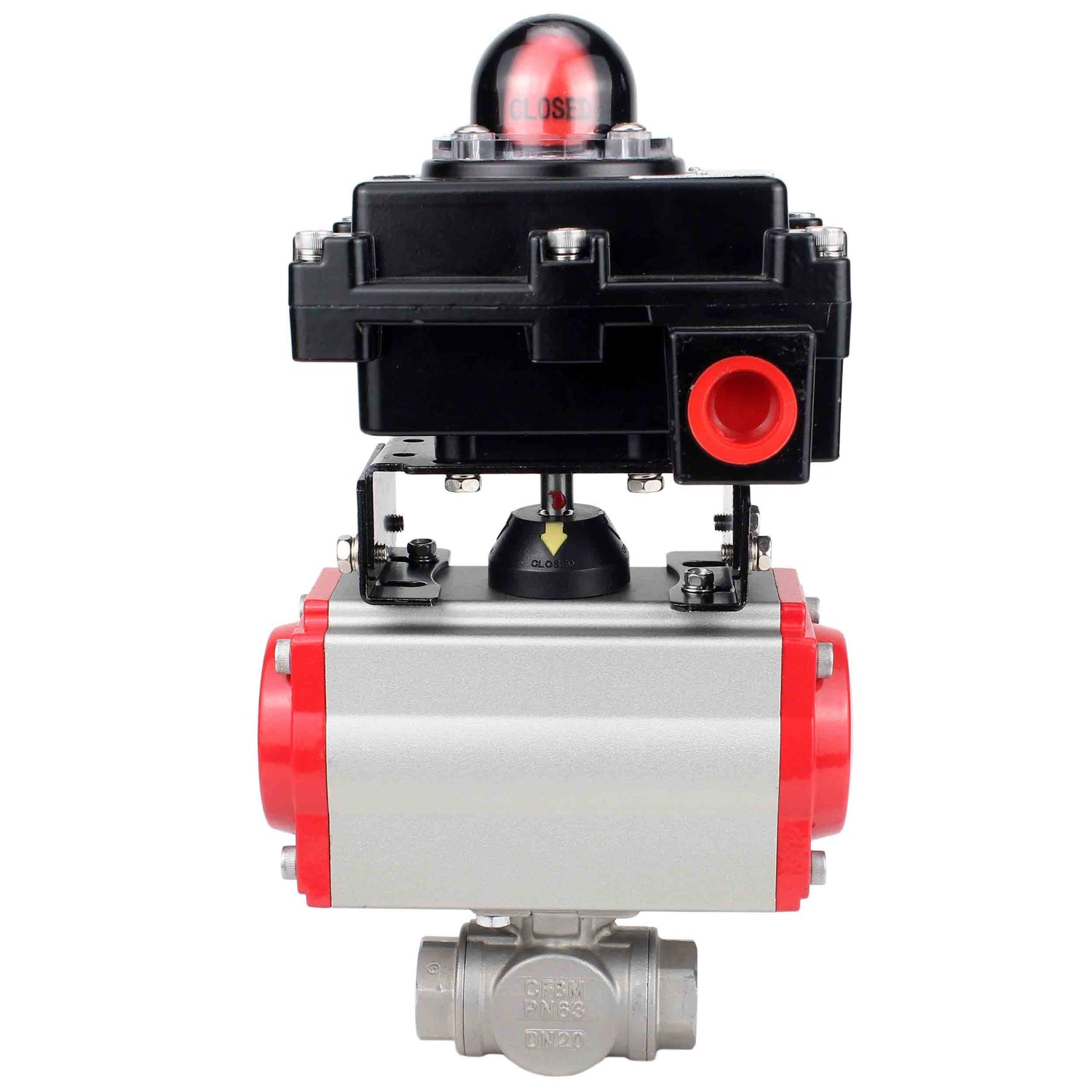

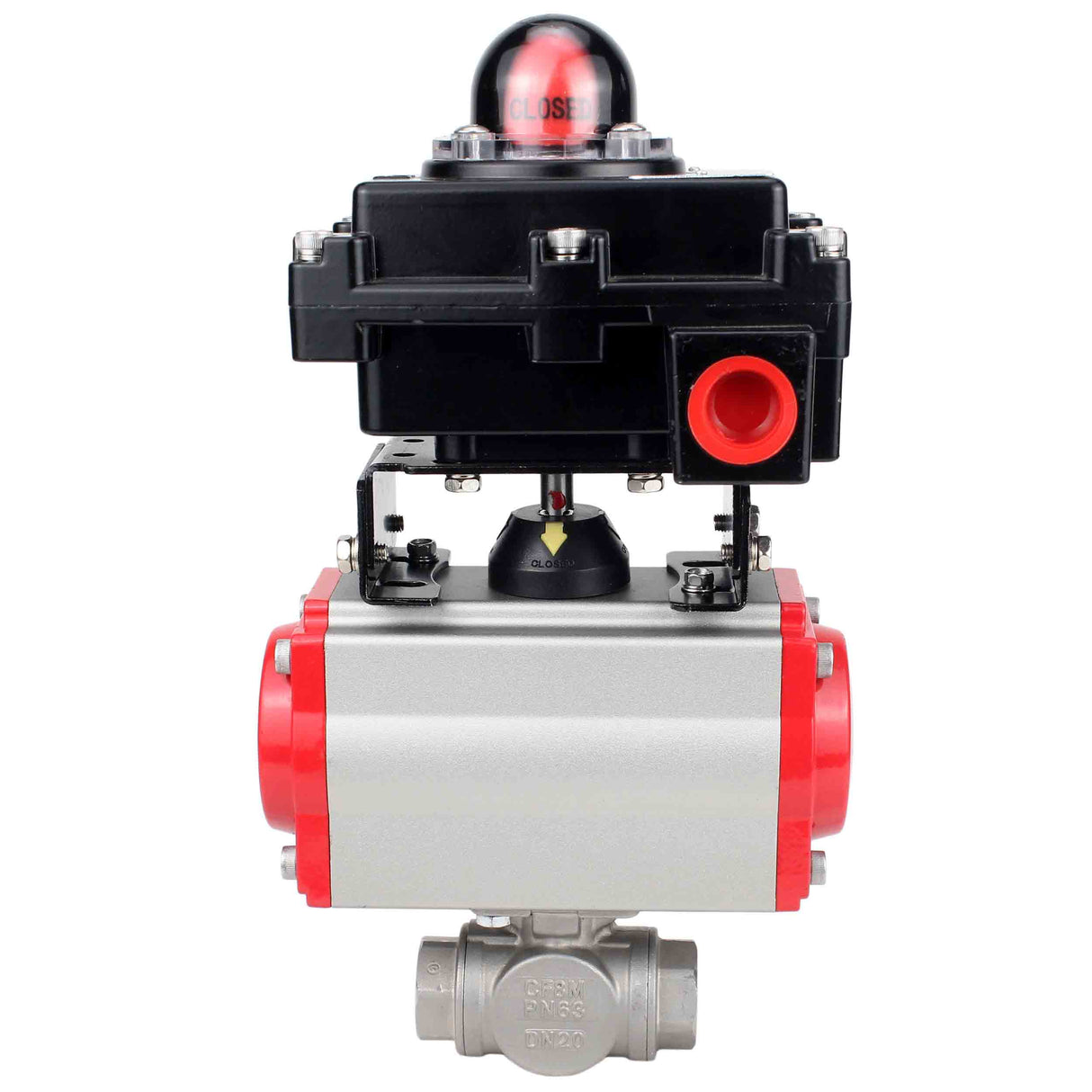

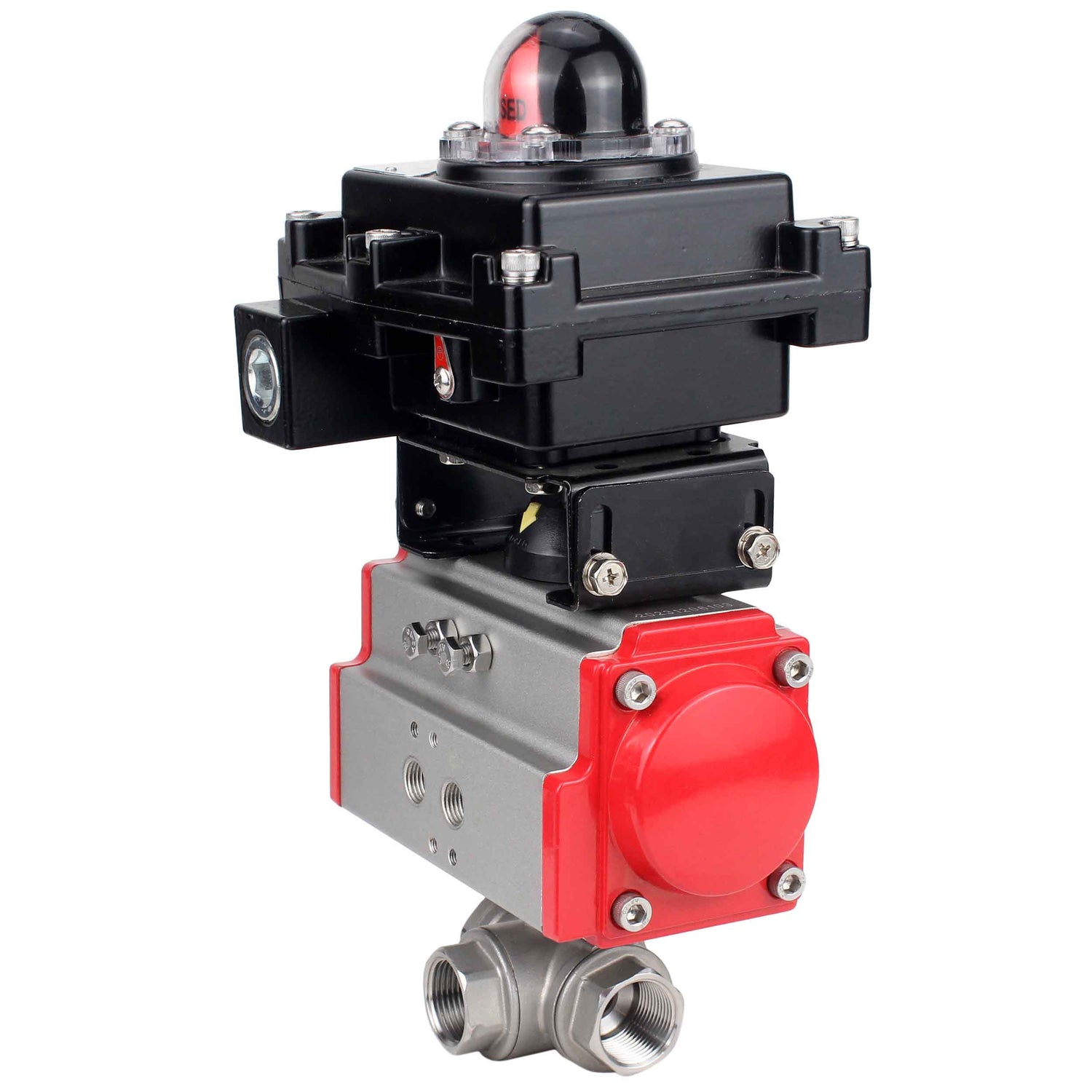

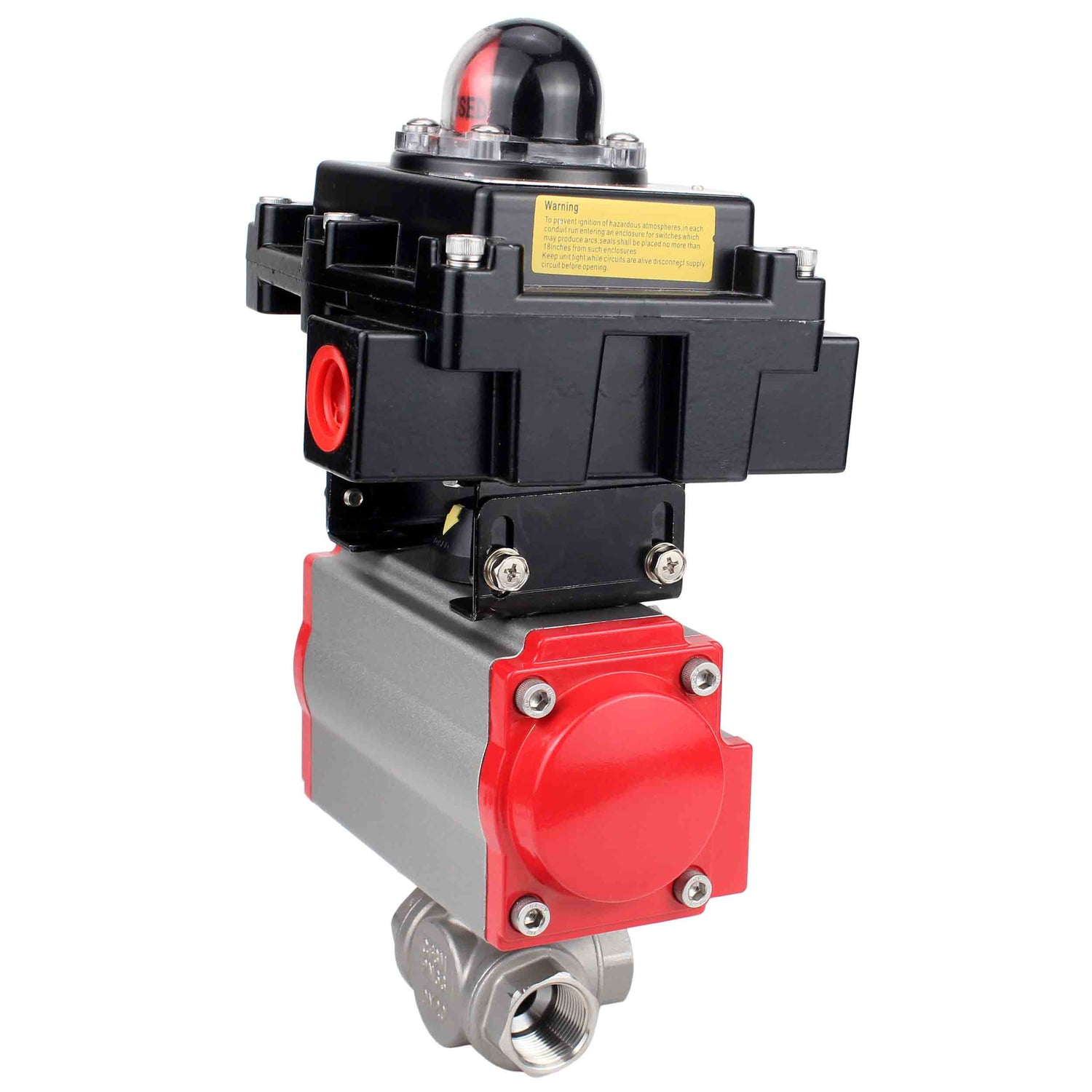

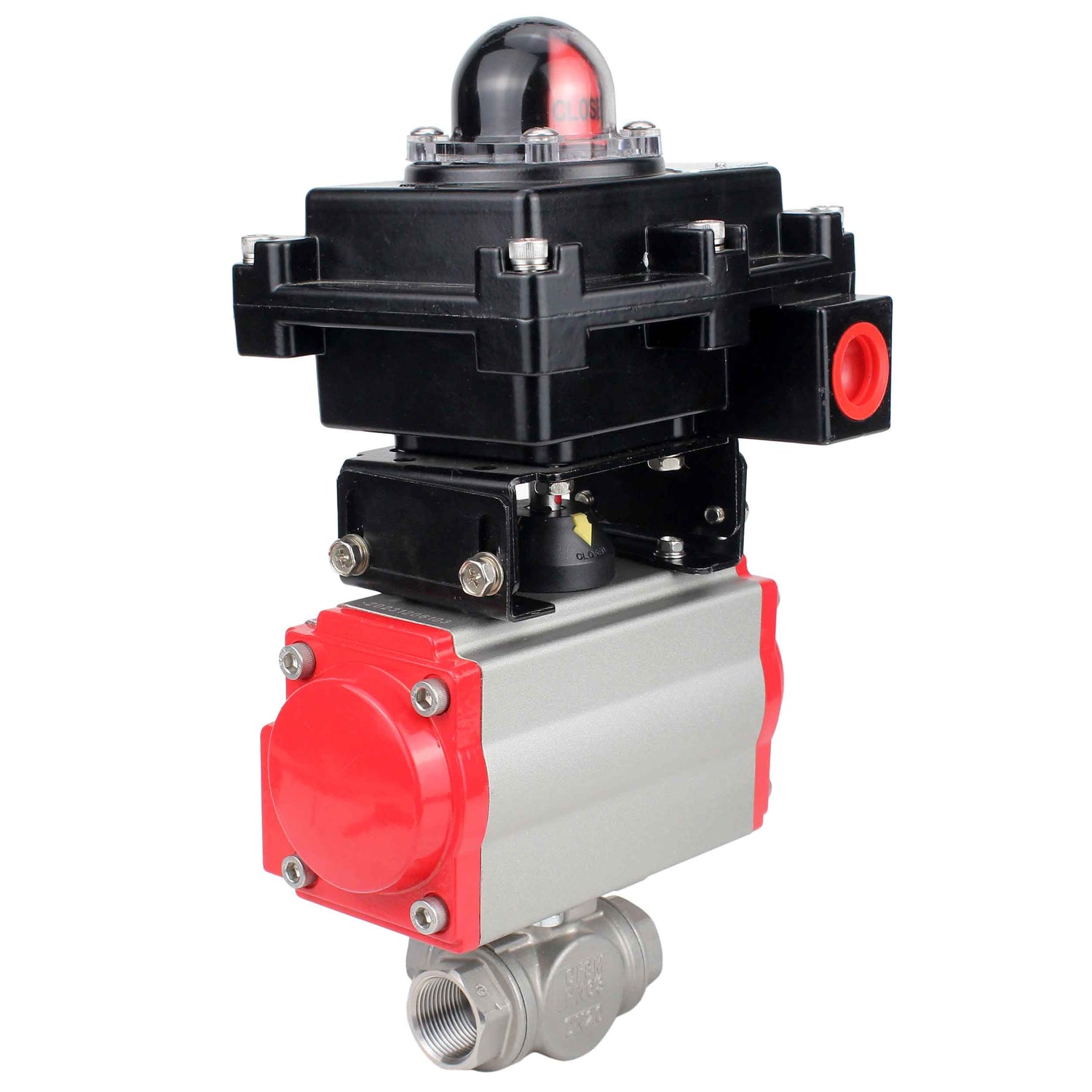

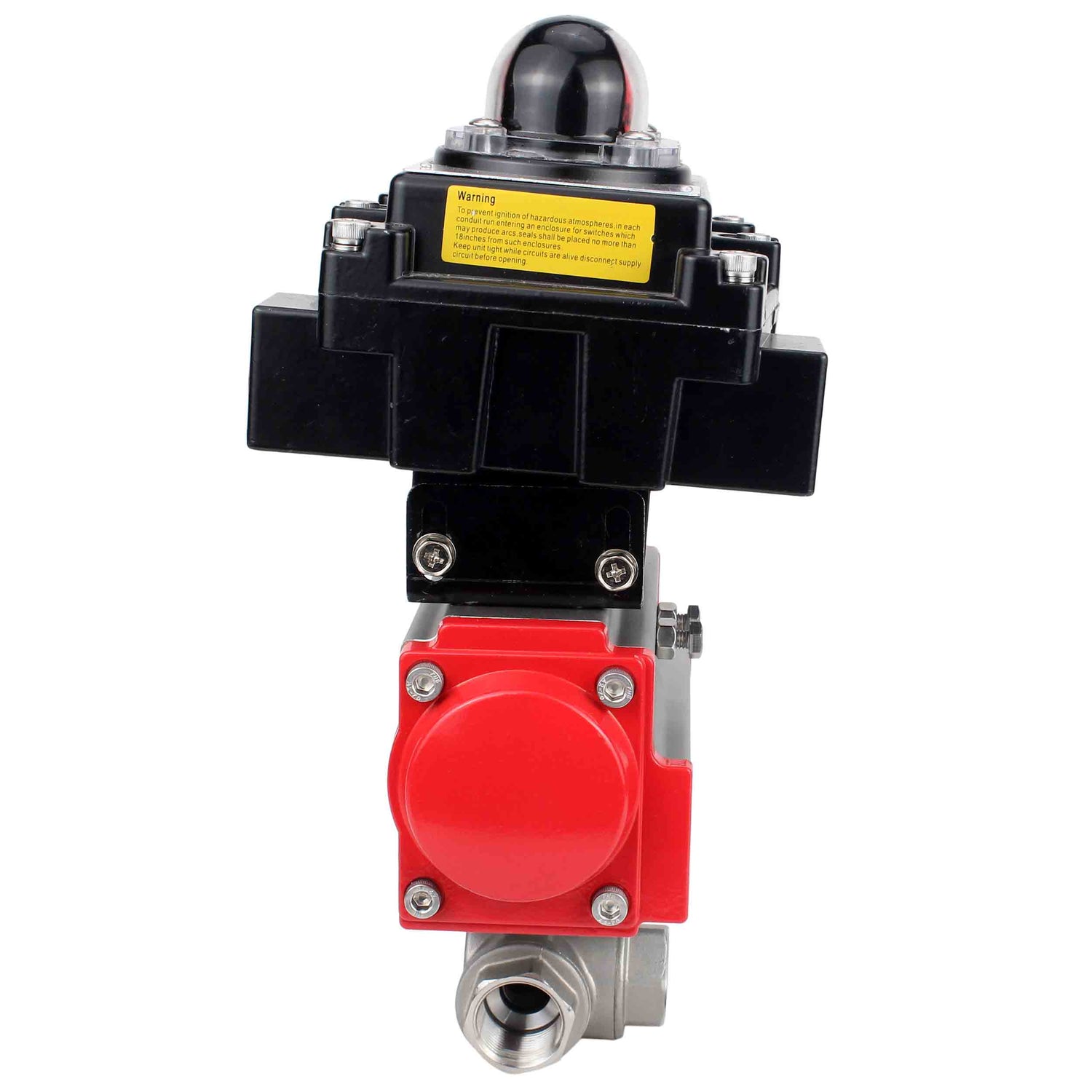

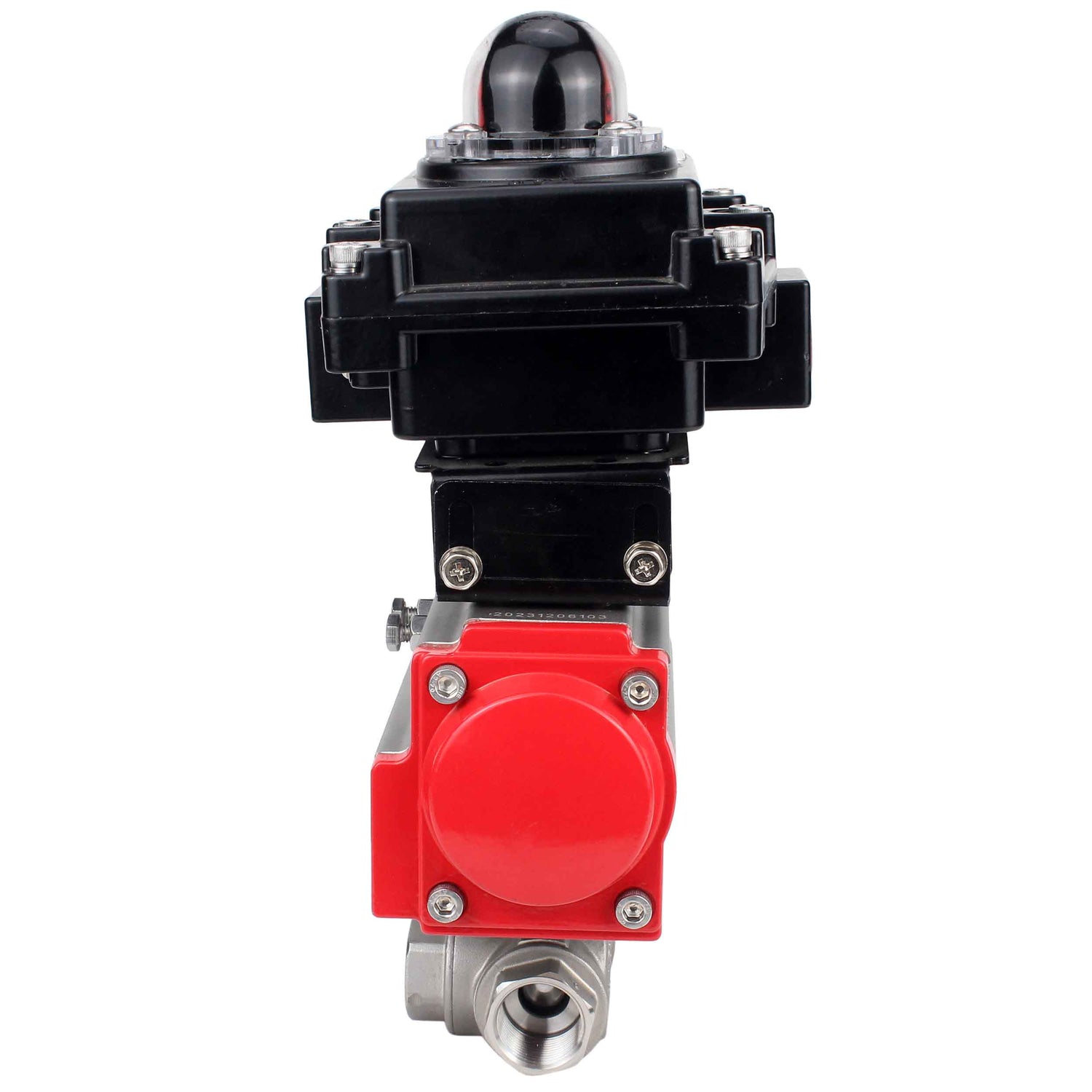

Stainless steel 3-way ball valves L-type standard bore Elephant BV3232P-SP-3WL-T-ISO 16 bar, coupling with ISO flange with pneumatic actuators Elephant PA-SA-1 and LSU APL-410N EX

€294,94
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Stainless steel 3-way ball valves L-type standard bore Elephant BV3232P-SP-3WL-T-ISO 16 bar, coupling with ISO flange with pneumatic actuators Elephant PA-SA-1 and LSU APL-410N EX - DN10 / 63 bar está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Ball valve Elephant is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Pneumatic rotary actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators Elephant are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Limit switch unit APL-410N EX is designed for visual and electrical signaling of valve end positions. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalize the end positions. Visual indication of the position can be observed on the body of the unit there is a 3D visual indicator RED-CLOSED and YELLOW-OPEN.







Technical characteristics of ball valves Elephant BV3232P-SP-3WL-T-ISO 16 bar, coupling with ISO flange with pneumatic actuators Elephant PA-SA-1 and LSU APL-410N EX:

Nominal diameter DN, mm

10–100

Working pressure PN, bar

63/40

Working environment temperature t, ⁰C

From -20 to +200

Working medium

Water, steam, petroleum products and other liquid or gaseous media neutral to valve materials

Pipeline connection

Threaded

Type of flow cross-section

Standard bore

Control type

Manual (handle)

Additional

Installation of electric or pneumatic actuator is possible (ISO 5211-2001)


Materials of ball valves Elephant BV3232P-SP-3WL-T-ISO 16 bar, coupling with ISO flange with pneumatic actuators Elephant PA-SA-1 and LSU APL-410N EX:

№

Part name

Material

Quantity

1

Cover

SS316

3

2

Seat rings

PPL

4

3

Connection gasket

PTFE/RPTFE

3

4

Thrust washer

PTFE/RPTFE

1

5

Seal

PTFE

1

6

Stem

SS304 / SS316

1

7

Gland

SS304

1

8

Ball

S304 / S316

1

9

Body

SS316

1




Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs



Technical characteristics of limit switch unit APL-410N EX:

Body all-weather IP65 explosion-proof Exd IIB T6
Cable glands 2 x NPT1/2”
Terminal strips 8 points (0.05 - 2.5) mm2
Position indicator 0 - 90° (90° free rotation) CLOSED - red; OPEN - yellow
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Permissible ambient temperature, °C from -25 to +80
Service life, years 10



Materials of limit switch unit APL-410N EX:

Name Materials
Enclosure cover and body die-cast aluminum
Shaft stainless steel
Indicator cover polycarbonate
Cam polycarbonate
Spring stainless steel
Enclosure cover bolts stainless steel
O-ring NBR
Bushing bronze
Sealing ring (shaft) stainless steel
Ground terminal stainless steel
Indicator ABS plastic / polycarbonate
Bracket stainless steel



Especificaciones
  • País de origen
    China
  • Apertura de puerto
    standard bore
  • Tipo de conexión
    Threaded
  • Tipo de sello
    PTFE
  • Interruptores de límite
    have
  • Tipo de actuador neumático
    spring loaded
