Vanne papillon d'eau Elephant WBV1331E-2W-FH, matériau du corps - Font – Valve Elephant
Elephant  |  SKU: D050-45043

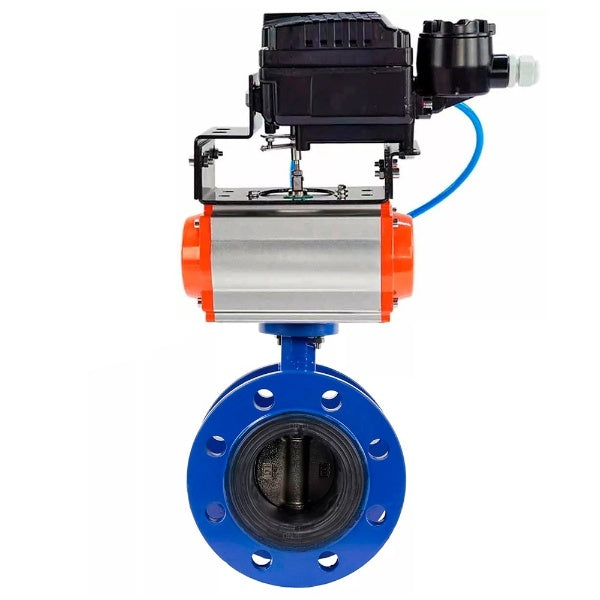

Vanne papillon d'eau Elephant WBV1331E-2W-FH, matériau du corps - Fonte GGG40/EN-GJS-400-15, matériau du disque - Acier inoxydable AISI 304, joint - EPDM, actionneur pneumatique PA-SA avec ressorts de rappel, positionneur YT-1000RSN avec rétroaction

€1.394,12
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The WBV1331E-2W-F butterfly valve is designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DA double-acting pneumatic rotary actuators and PA-SA pneumatic rotary actuators with return spring are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The electropneumatic rotary positioner is used for controlling pneumatic rotary actuators by means of an electric controller or control system with analog DC output signal range from 4 to 20 mA.

Operating principle: The positioner functions based on the balancing of forces. The positioner uses a nozzle-flap type device and a feedback servomechanism (spring and lever system) to balance the control and feedback forces when the pneumatic actuator (valve) reaches the position corresponding to the control signal.





Technical parameters of Water Butterfly Valve Elephant WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback:

Characteristic meaning
Gate type rotary disk
Diameter 50-300 mm
Nominal pressure 16 bar
Working medium temperature -25 to +130°C
Application water supply, industry, heating systems
Connection type flanged
Control type pneumatic actuator
Sealing class A
Manufacturer's country China
Service life 10 years
Warranty 12 months.

Butterfly valves WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback





Dimensions and dimensions of butterfly valves Elephant WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback:

Diameter L, mm D, mm D1, mm D2, mm n-d, mm
DN50 108 165 125 99 4-18
DN65 112 185 145 118 4-18
DN80 114 200 160 132 8-18
DN100 127 220 180 156 8-18
DN125 140 250 210 184 8-18
DN150 140 285 240 211 8-22
DN200 152 340 295 266 12-22
DN250 165 405 355 319 12-26
DN300 178 460 410 370 12-26

Sketch Butterfly valves WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback





Materials of butterfly valves Elephant WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback:

№ Part name Material
1 Body cast iron GGG40
2 Disk stainless steel 304
3 Seat seal EPDM
4 Stem stainless steel SS 420
5 Handle GGG40 cast iron

Sketch of parts and materials Butterfly valves WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs





Technical parameters of electropneumatic rotary positioners:

Name Value
Control input signal, mA 4 ~ 20
Internal resistance, Ohm 250(±15)
Input pressure, bar 1,4~7
Lever travel angle 0~90°
Compressed air connection thread 1/4″
Pressure gauge connection thread 1/8″
Cable gland G1/2″
Protection type IP66
Compressed air flow rate, l/min 3
Output air flow rate, l/min 80
Housing material aluminum casting

Electropneumatic rotary positioners





Dimensions and dimensions of electropneumatic rotary positioners:

Positioner model YT-1000RSN
A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
Q, mm 33
R, mm 80.25
S, mm 62.5
T, mm 8
U1, mm 70
U2, mm 93
V1, mm 40
V2, mm 63
W, mm 26
X, mm 32
Y, mm 9
Z, mm 24

Sketch of dimensions and dimensions of electropneumatic rotary positioners

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    130 °C
  • Tipo de conexión
    À brides
  • Entorno operativo
    Water, Air, Neutral Media
  • Tipo de sello
    EPDM
  • Material del disco
    Acier inoxydable AISI 304
  • Anulación manual
    Non
  • Interruptores de límite
    Non
  • Señal de control
    4-20 mA
  • Tipo de actuador neumático
    avec ressorts de rappel

Reseñas (0)

Documentación
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
nullButterfly valve Elephant WBV1331E-2W-F-H DN50-200 PN16 cast iron flanged with handle
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
