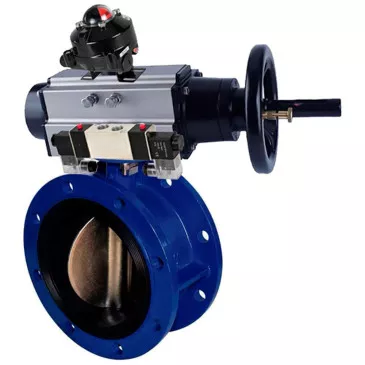

Water Butterfly Valve Elephant WBV1331E-2W-F-H, flanged, body - cast iron GGG40, disc - stainless steel 304, seal - EPDM, with pneumatic actuator PA-DA-105-1, with pneumatic distributor 4V320-08 220V, LSU APL-410N Ex

Elephant WBV1331E-2W-F-H butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic valve Elephant 4V320-08 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The Elephant APL-410N EX limit switch unit is an electrical device designed to open and close the working circuit and to visualise the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between the open and closed position reduces the probability of misinterpretation of information. The use of the AFC2000 makes it possible to transmit information on the position of the valve (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

The AFC2000 air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank to the compressed air flow to the pneumatic system elements with a large capacity range from 500 litres/minute to 10,000 litres/minute. The lubricator (oil atomiser) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic valves.

Technical parameters Rotary disc gate valves Elephant WBV1331E-2W-F-H, flanged, body - cast iron GGG40, disk - stainless steel 304, seal - EPDM

Dimensions and dimensions of Butterfly valves Elephant WBV1331E-2W-F-H, flanged, body - cast iron GGG40, disk - stainless steel 304, seal - EPDM

Sketch of rotary disc gate valves Elephant WBV1331E-2W-F-H, flanged, body - cast iron GGG40, disk - stainless steel 304, seal - EPDM

Table of parts and materials for butterfly disc gate valves Elephant WBV1331E-2W-F-H, flanged, body - cast iron GGG40, disk - stainless steel 304, seal - EPDM

Technical parameters of pneumatic valve Elephant 4V320-08 220V

Technical parameters of limit switch unit Elephant APL-410N EX

Parts and materials table for Elephant APL-410N EX limit switch unit
