Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU: D050-36426

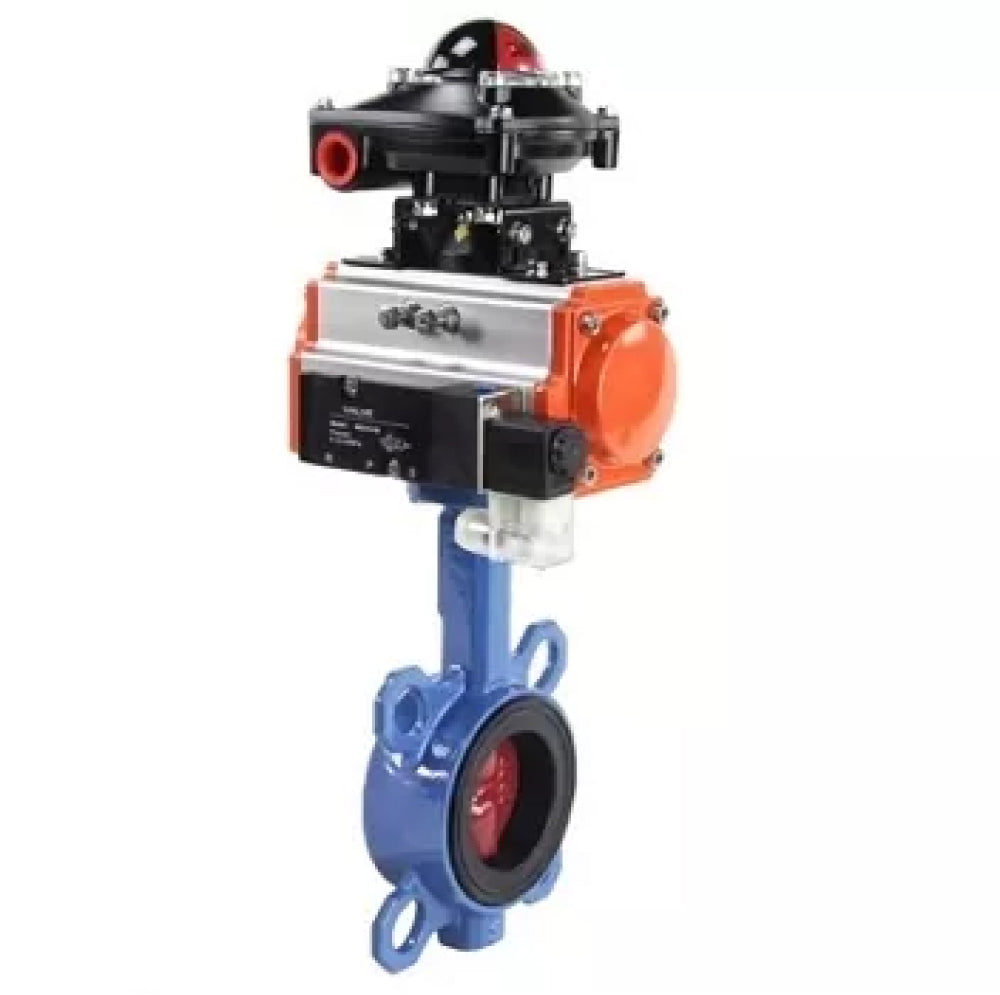

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, BKV APL-510N-EX

€322,54
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, BKV APL-510N-EX - DN40 / 16 bars está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Butterfly valve model WBV1413E-2W-Fb PA-DA 4V320-08 AC220V APL-510N-EX 4V320-08 220V is designed for use as shut-off or regulating valves to control flows in heating systems, water supply, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

PA-DA pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4V320-08 220V are used for control in pneumatic systems having NAMUR docking surface to install the actuators through through holes in the housing.

The APL-510N-EX limit switch box is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.




Basic technical data and characteristics of butterfly valves

Parameter Value
Nominal diameter DN, mm 40 – 300
Nominal pressure PN, bar 16
Flow direction Bidirectional
Operating medium temperature, °C -20 to +120
Ambient temperature, °C -20 to +100
Shut-off tightness Class A
Working medium Cold and hot water, oil-free and grease-free air, stationary air conditioning, mildly aggressive media, other media neutral to material
Body material Cast iron GGG50
Disc material Cast iron GGG40
Pipeline connection interflange
Control type Handle
Average service life, years 5
Average cycle life (open/close cycles) 20,000 (under non-aggressive media and average pressure and temperature conditions)



Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, LSU APL-510N-EX





Gate dimensions Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

DN H H1 H2 L L1 ØDм ØDк D2
(flow section)
mm
40 146 74 25 43 216 73 75 50



DN H H1 H2 L L1 ØDm ØDk
mm
50 146 74 25 43 216 73 84.5
65 156 80 25 46 216 86 104.5
80 163 100 25 46 216 103 123.5
100 180 116 25 52 255 131 139.5
125 189 123 25 56 255 155 169.5
150 206 137 25 56 255 183 196
200 232 165 35 60 370 235 247
250 275 203 35 68 370 286 304
300 314 235 35 78 370 338 358

Sketch of gates Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H





Materials of parts of rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

№ Name Material
1 Body cast iron GGG50
2 Cuff EPDM
3 Disk cast iron GGG40
4 Stock stainless steel SS 416/2Cr13
5 Hairpin stainless steel AISI 316L
6 Sleeve NBR
7 Sealing ring NBR
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Sketch of materials for rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H



Technical data of PA-DA pneumatic actuators:

Design Double action
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)


PA-DA pneumatic actuator





PA-DA pneumatic actuator component materials:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum
Parts and material sketch of the PA-DA pneumatic actuator





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Characteristics of limit switch unit APL-510N-EX:

Parameter Significance
Enclosure all-weather IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices quarter-turn pneumatic actuators;
- any actuators with shaft rotation by 90
Full rotation angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection screw terminals 8 points (0.08 - 2.5) mm2
Cable gland thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Rated voltage, V 250
Rated current, A 16
Permissible ambient temperature, °C -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    110 °C
  • Tipo de conexión
    bride compacte
  • Tipo de sello
    EPDM
  • Material del disco
    fonte GGG40
  • Anulación manual
    Non
  • Interruptores de límite
    Oui
  • Sensor de retroalimentación
    Interrupteurs de fin de course
  • Tensión de alimentación
    220 V
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV1413E-2W-Fb-H DN40-300

Pago y seguridad

Métodos de pago

    Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.

    Variantes disponibles

    SKUTaille de la connexionPressionPrecio DisponibilidadCantidad Añadir al carrito
    D050-36426DN40 (9х9 F05)16 bars €322,54 0 Disponibles
    D050-36427DN5016 bars €333,98 Agotado
    D050-36428DN6516 bars €338,86 Agotado
    D050-36429DN8016 bars €346,73 Agotado
    D050-36430DN10016 bars €401,02 Agotado
    D050-36431DN12516 bars €388,63 Agotado
    D050-36432DN15016 bars €454,78 Agotado
    D050-36433DN20016 bars €628,72 Agotado
    D050-36434DN25016 bars €703,03 Agotado
    D050-36435DN30016 bars €846,74 Agotado
