Elephant  |  SKU: D050-27715

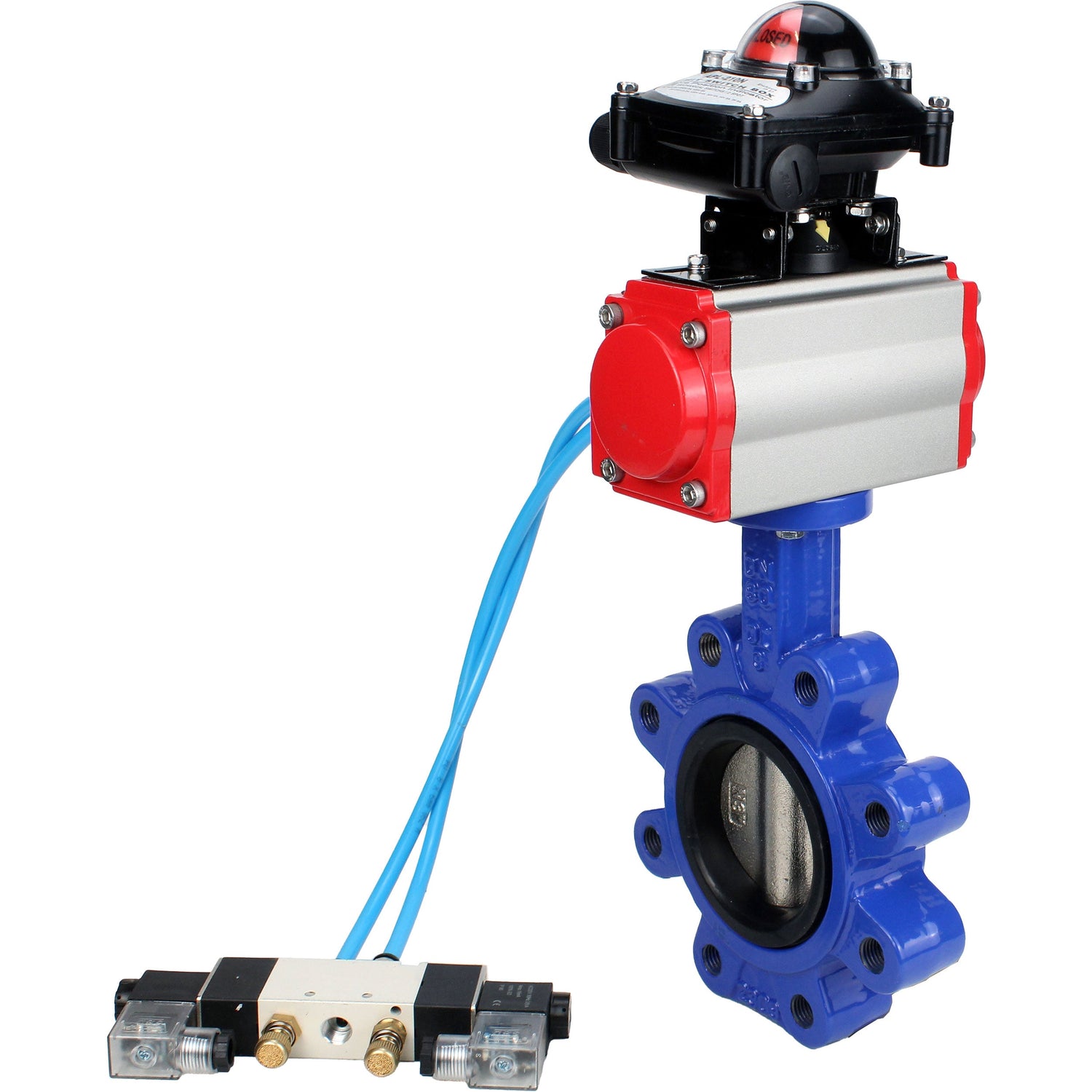

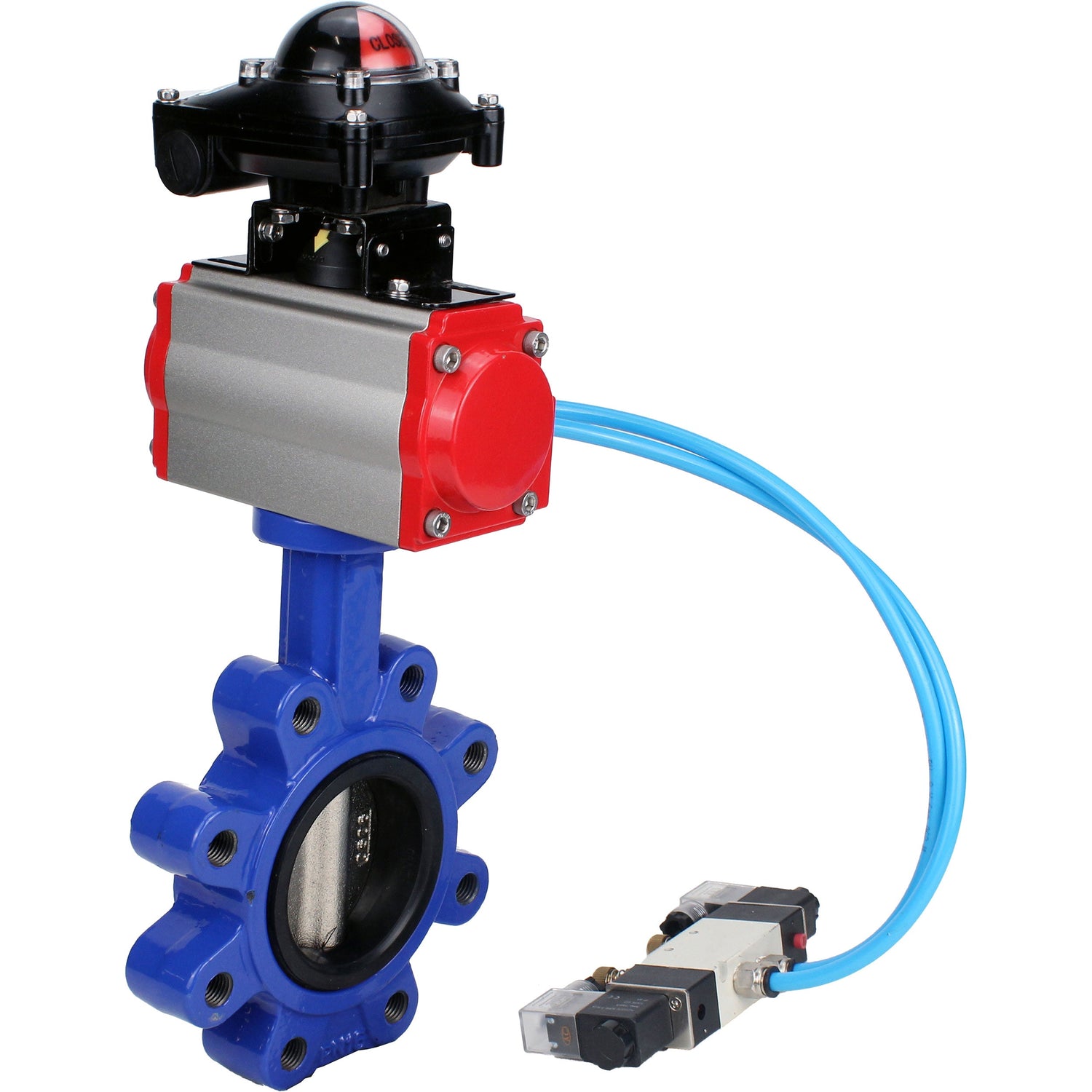

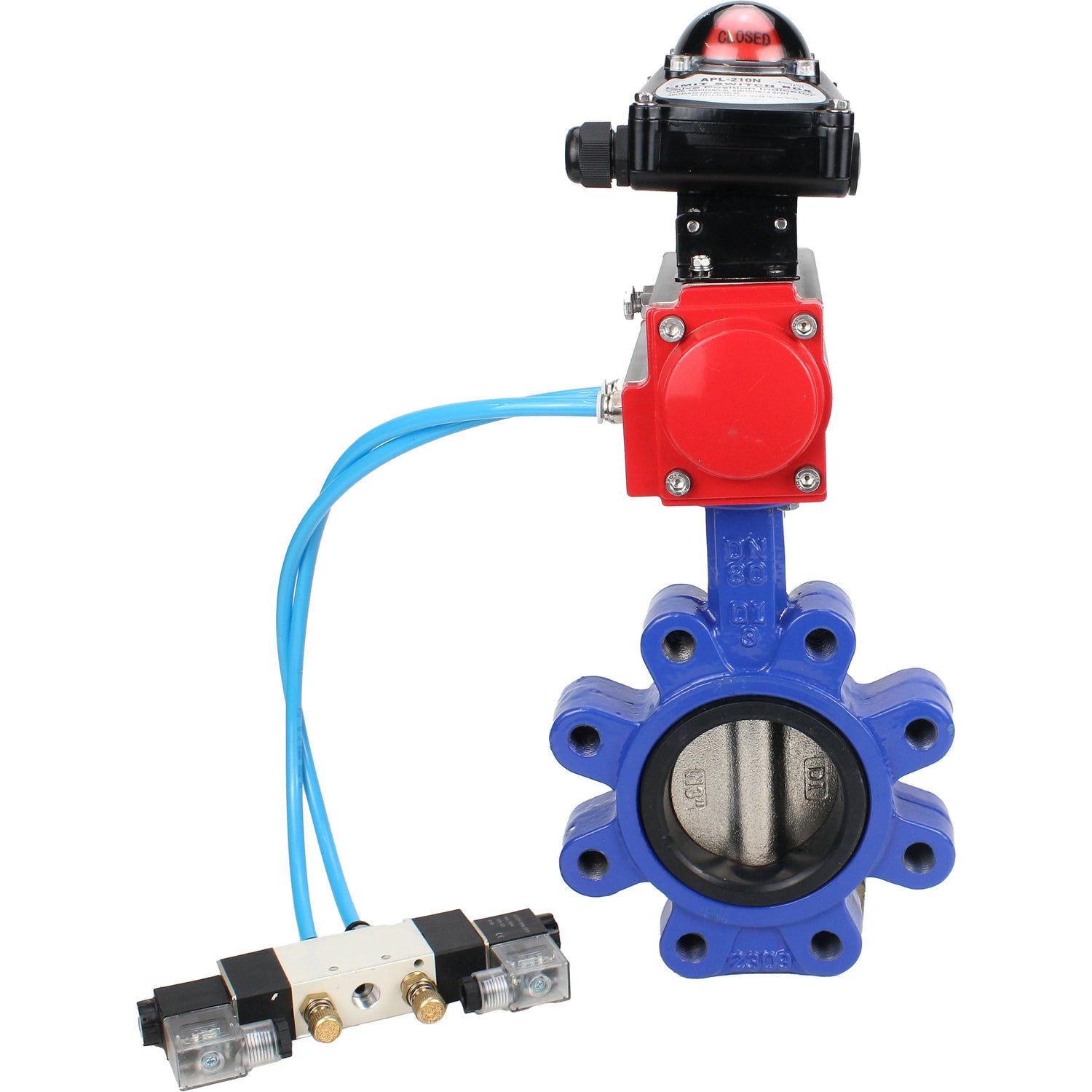

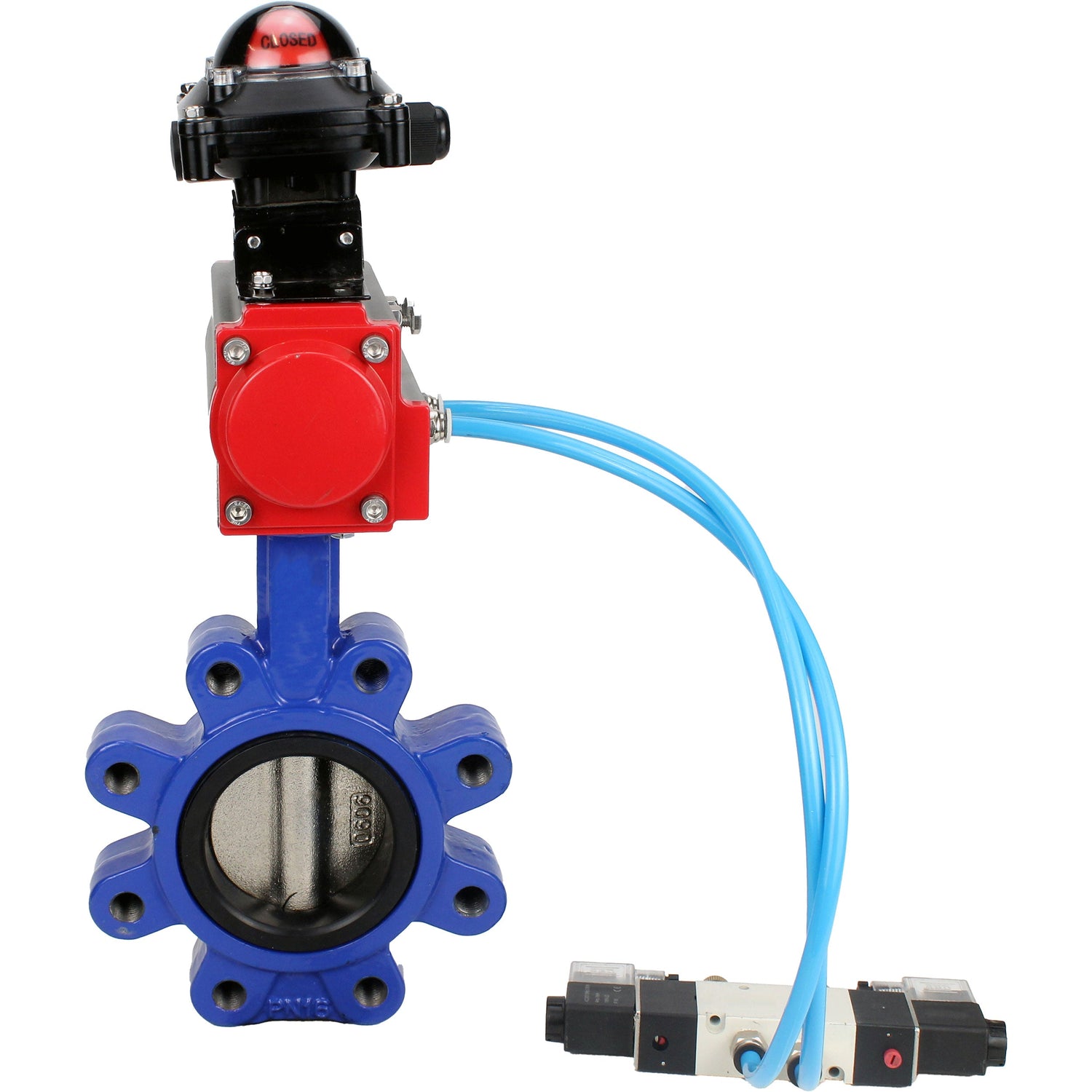

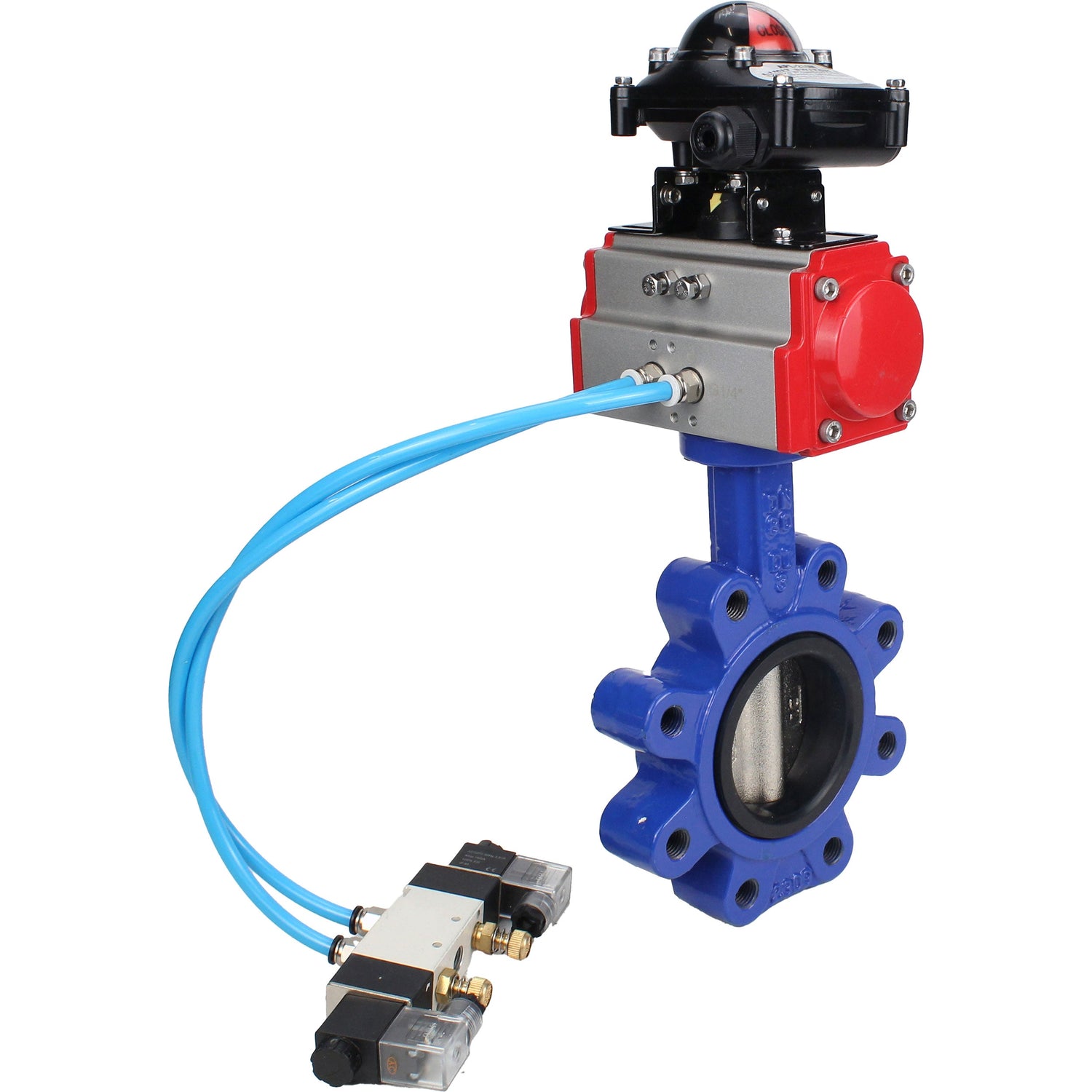

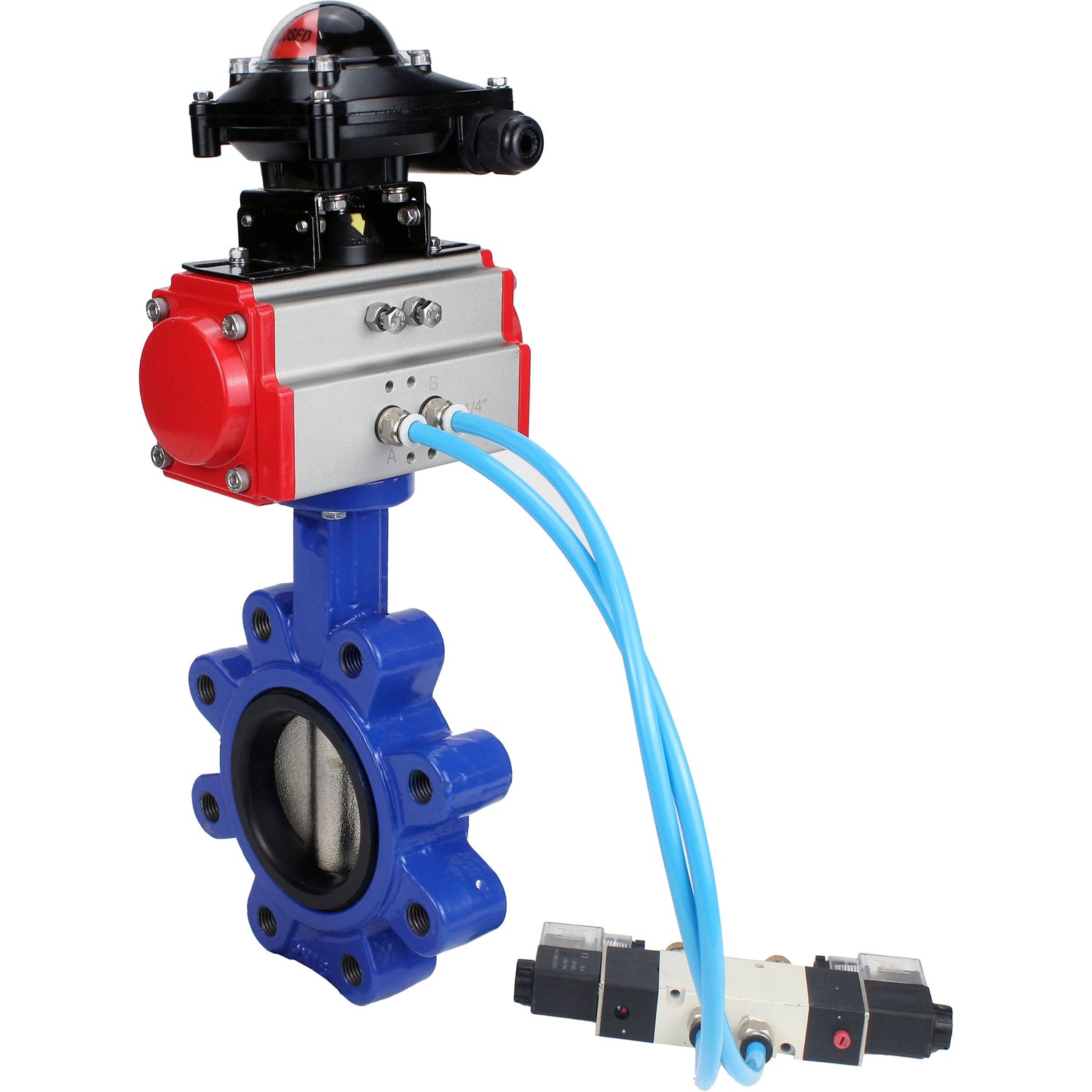

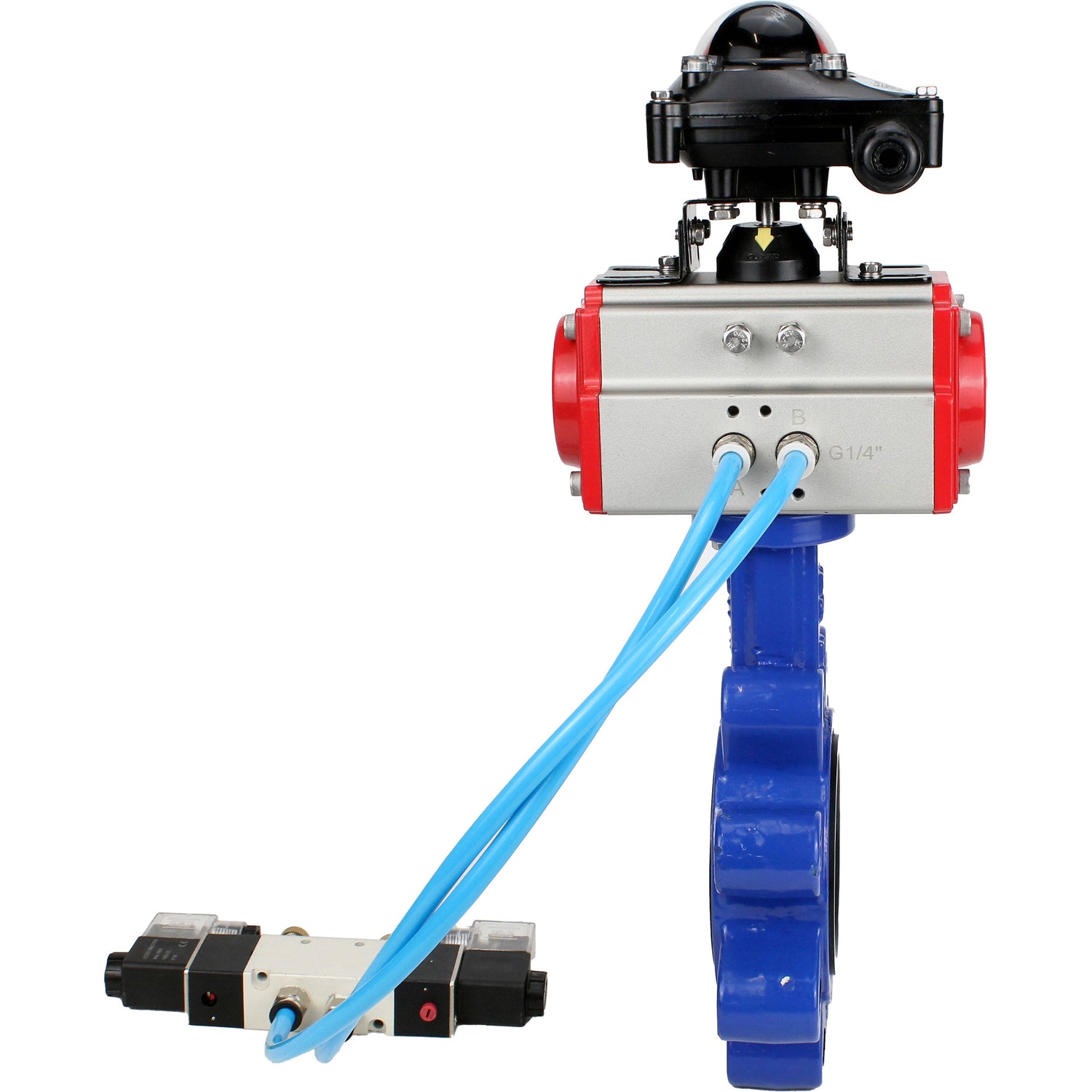

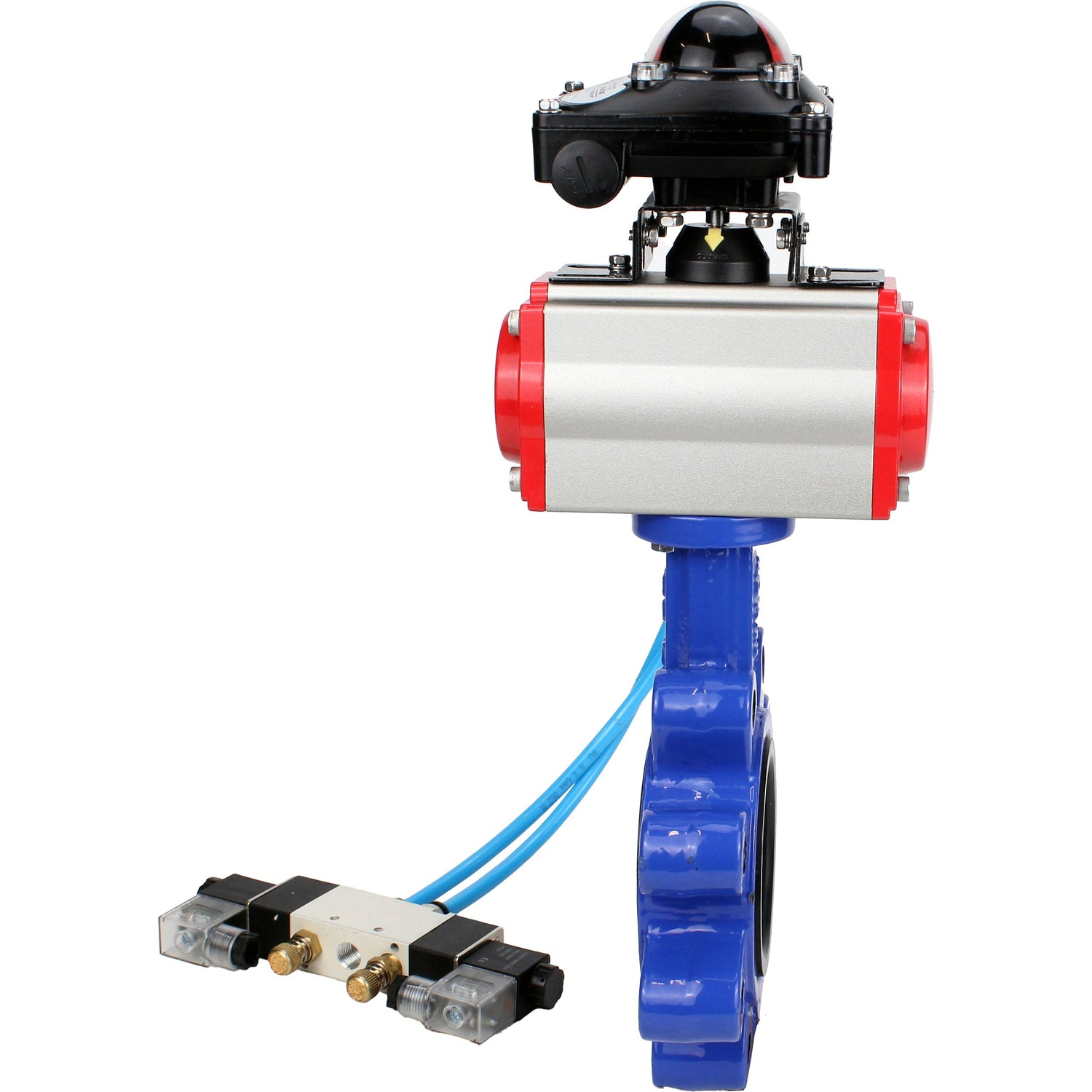

Vanne papillon d'eau Elephant WBV1616N-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - fonte QT450, joint - NBR, actionneur pneumatique PA-DA double action, 4V320-08 220V, BKV APL-210N

€373,51
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DAXXX double-acting pneumatic rotary actuators are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off device: valve, crane or disk gate. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors, which monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. The visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.





Technical parameters of Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, 4V320-08 220V, LSU APL-210N:

Name Significance
Nominal pressure PN, bar 16
Working medium temperature, °C from -10 to +90
Application water supply, heat supply
Connection to pipeline Interflange (threaded lugs)
Gate type swivel disk
Control type pneumatic actuator
Manufacturer's country China

Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, 4V320-08 220V, LSU APL-210N





Dimensions and dimensions of butterfly valves Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, 4V320-08 220V, LSU APL-210N:

DN H, mm A, mm E, mm
50 203 174 89
65 224 174 89
80 248 216 109
100 277.5 216 109
125 317.5 279 134
150 354.5 279 134

Sketch Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, 4V320-08 220V, LSU APL-210N





Materials of butterfly valves Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, 4V320-08 220V, LSU APL-210N:

№ Details Material
1 Body cast iron QT450
2 Disk cast iron QT450
3 Seat seal NBR
4 Rod stainless steel SS 316

Sketch of parts and materials Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, 4V320-08 220V, LSU APL-210N





Technical data of PA-DA pneumatic actuators:

Design Double action
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)


PA-DA pneumatic actuator





PA-DA pneumatic actuator component materials:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum
Parts and material sketch of the PA-DA pneumatic actuator





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of limit switch unit APL-210N:

Name Value
Model of limit switch unit APL-210N
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-210N



Dimensions and dimensions of the APL-210N limit switch unit:

Model H, mm L, mm B, mm D, mm D1, mm M
APL-210N 77 112 88 10 5 20x1.5

Sketch of dimensions and dimensions of limit switch unit APL-210N

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    90 °C
  • Tipo de conexión
    Brides intermédiaires (cosses filetées)
  • Entorno operativo
    Water, Oils, Hydrocarbons
  • Tipo de sello
    NBR
  • Material del disco
    fonte QT450
  • Anulación manual
    Non
  • Interruptores de límite
    Oui
  • Tensión de alimentación
    220 V
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullbutterfly valve Elephant wbv16xx-2w-fb-h dn50-150 pn16 lug
