Vanne papillon d'eau Elephant WBV1616N-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU: D050-28323

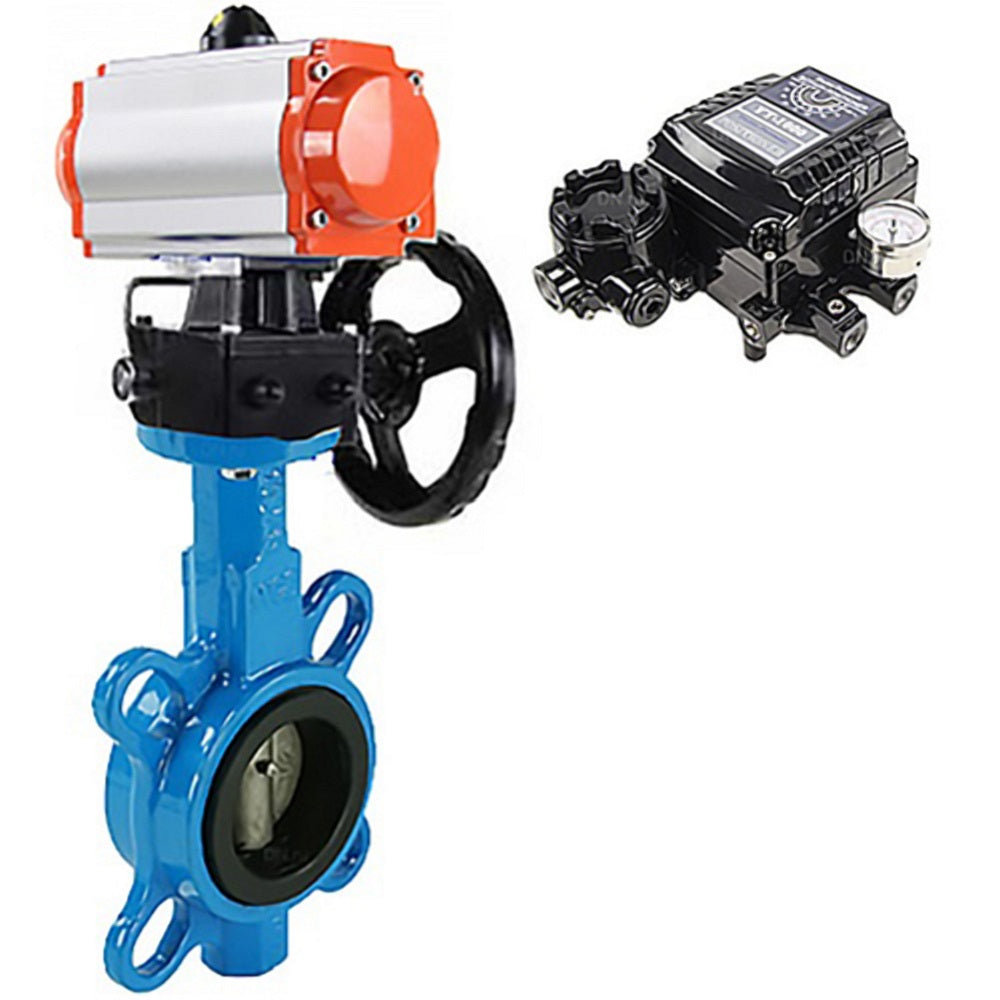

Vanne papillon d'eau Elephant WBV1616N-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - fonte QT450, joint - NBR, actionneur pneumatique PA-DA double action, positionneur YT-1000RSN sans rétroaction, volant MON

€740,80
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DAXXX double-acting pneumatic rotary actuators are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

The manual doubleturn actuator with worm gear and HDM reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The electropneumatic rotary positioner is used to control pneumatic rotary actuators using an electric controller or control system with an analog DC output signal with a range of 4 to 20 mA.





Technical parameters of Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, positioner YT-1000RSN without feedback, handwheel MON:

Name Significance
Nominal pressure PN, bar 16
Working medium temperature, °C from -10 to +90
Application water supply, heat supply
Connection to pipeline Interflange (threaded lugs)
Gate type swivel disk
Control type pneumatic actuator
Manufacturer's country China

Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, positioner YT-1000RSN without feedback, handwheel MON





Dimensions and dimensions of butterfly valves Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, positioner YT-1000RSN without feedback, handwheel MON:

DN H, mm A, mm E, mm S, mm C, mm H1, mm
50 203 174 89 62.5 117.5 120
65 224 174 89 62.5 117.5 120
80 248 216 109 62.5 117.5 133
100 277.5 216 109 62.5 117.5 133
125 317.5 279 134 62.5 117.5 180
150 354.5 279 134 62.5 117.5 180

Sketch Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, positioner YT-1000RSN without feedback, handwheel MON





Materials of butterfly valves Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, positioner YT-1000RSN without feedback, handwheel MON:

№ Details Material
1 Body cast iron QT450
2 Disk cast iron QT450
3 Seat seal NBR
4 Rod stainless steel SS 316

Sketch of parts and materials Butterfly valves WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, pneumatic actuator PA-DA double action, positioner YT-1000RSN without feedback, handwheel MON





Technical data of PA-DA pneumatic actuators:

Design Double action
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)


PA-DA pneumatic actuator





PA-DA pneumatic actuator component materials:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum
Parts and material sketch of the PA-DA pneumatic actuator





Technical parameters of electropneumatic rotary positioners:

Name Value
Control input signal, mA 4 ~ 20
Internal resistance, Ohm 250(±15)
Input pressure, bar 1,4~7
Lever travel angle 0~90°
Compressed air connection thread 1/4″
Pressure gauge connection thread 1/8″
Cable gland G1/2″
Protection type IP66
Compressed air flow rate, l/min 3
Output air flow rate, l/min 80
Housing material aluminum casting

Electropneumatic rotary positioners





Dimensions and dimensions of electropneumatic rotary positioners:

Positioner model YT-1000RSN
A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
Q, mm 33
R, mm 80.25
S, mm 62.5
T, mm 8
U1, mm 70
U2, mm 93
V1, mm 40
V2, mm 63
W, mm 26
X, mm 32
Y, mm 9
Z, mm 24

Sketch of dimensions and dimensions of electropneumatic rotary positioners





Technical parameters of the handwheel MON:

Name Value
Climatic version U,UHL,T,OM
Degree of protection, IP 67
Connection type ISO 5211
Manual doubler MON





Dimensions and dimensions of the handwheel MON:

Model MON1-250-T26-ISO MON2-450-T28-ISO MON3-700-T38-ISO MON4-1200-T54-ISO
b1, mm 14 17 22 27
N, mm 22 22 28 32
b2, mm 14 17 22 27
M, mm 16 18 22 30
D1, mm Ø50 Ø70 Ø102 Ø102
4-M1, mm 4-M6 4-M8 4-M10 4-M10
D2, mm Ø70 Ø102 Ø125 Ø125
4-M2, mm 4-M8 4-M10 4-M12 4-M12
E, mm 70x70 95x95 114x114 129x129
D3, mm Ø50 Ø70 Ø102 Ø125
4-Ø1, mm 4-Ø6.5 4-Ø8.5 4-Ø10.5 4-Ø12.5
D4, mm Ø70 Ø102 Ø125 Ø140
4-Ø2, mm 4-Ø8.5 4-Ø10.5 4-Ø12.5 4-Ø16.5
A, mm 90 125 140 188.5
B, mm 55 64 71 93
ØC, mm Ø88 Ø110 Ø129 Ø174
F, mm 115 135 166 202
T, mm 44 62.5 70 94
Y, mm 145 178 212 280
H, mm 120 133 180 195
S, mm 53 56.5 68.7 84
K, mm 10 13 12.5 15
Ø hand wheel, mm 180 200 280 320
Sketch of dimensions and dimensions of the MON handwheel MON





MON handwheel materials:

№ Name Material
1 Stem for mounting the pneumatic actuator Steel 45
2 Sealing ring EPDM
3 Fixing spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Locking bracket (main rod) Steel 304
7 Housing Aluminum alloy
8 Sealing ring EPDM
9 Gear unit Cast iron BCh50
10 Transition coupling Cast iron BCh40
11 Gear stem Cast iron BCh40

Materials of the handwheel

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    90 °C
  • Tipo de conexión
    Brides intermédiaires (cosses filetées)
  • Entorno operativo
    Water, Oils, Hydrocarbons
  • Tipo de sello
    NBR
  • Material del disco
    fonte QT450
  • Anulación manual
    volant à main
  • Interruptores de límite
    Non
  • Tipo de actuador neumático
    double action
