Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU: D050-31032

Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, actionneur pneumatique PA-DA double action, 4V320-08 220V, BKV APL-410N-EX, volant HDM, BPV AFC2000

€629,65
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

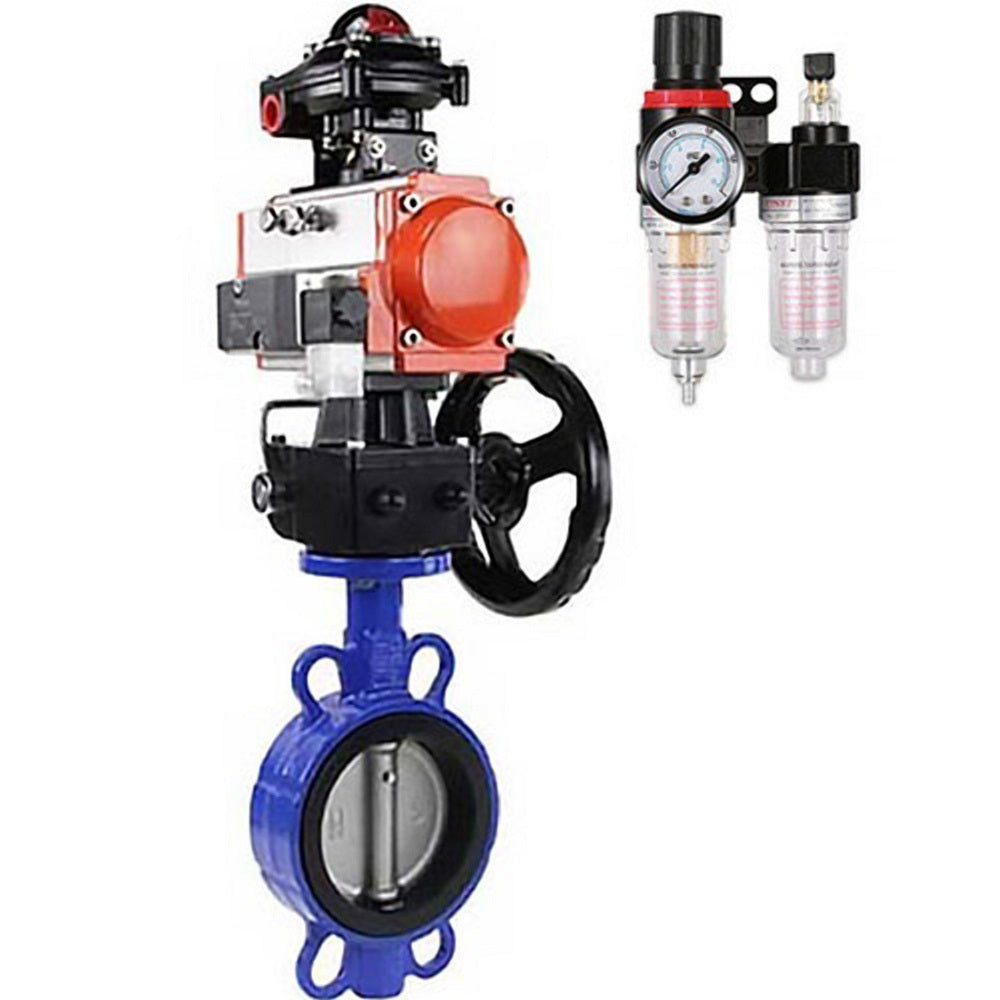

The WBV1632E-2W-Fb butterfly valve is designed for use as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

Pneumatic actuators PA-DA are designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Elephant pneumatic actuators are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.

Pneumatic distributors 4V320-08 220V 220V are used for control in pneumatic systems with a NAMUR mating surface, for installing distributors through through holes in the body.

The manual doubler with worm gear and HDM reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is intended to ensure the most efficient and effective.

The AFC2000 air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the pneumatic system elements with a large range of throughput from 500 liters/minute to 10,000 liters/minute. The lubricator (oil sprayer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic distributors.

The APL-410N EX limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off element. It is installed on top of the surface of the pneumatic drive and connected to the drive shaft - DIN standard. In a sealed box, as a rule, there are two sensors that track the position of the drive shaft and signal in extreme positions. Visual indication of the position can be observed on the body of the unit there is a 3D visual indicator RED - CLOSED and YELLOW - OPEN.





Technical characteristics of butterfly valves Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-DA double action, 4V320-08 220V, LSU APL-410N-EX, handwheel HDM, ATU AFC2000

Parameter Meaning
Nominal diameter DN, mm 40 - 300
Nominal pressure PN, bar 16
Temperature of working environment t, ⁰C from -20 to +110
Working environment water, steam, aggressive environments and
liquids with abrasive content (cement, sand, alumina, etc.)
Direction of flow bilateral
Control type DN40-200 - handle
DN250-300 - reducer
Connection to the pipeline interflange
Body material cast iron QT450
Seal material EPDM with wear-resistant coating
Service life, years 10





Sketch of parts of rotary disc valves Elephant WBV1132N-2W-Fb DN40-300 PN16



General details and materials of butterfly valves Elephant WBV1132N-2W-Fb DN40-300 PN16

No. Part name Material
1 Frame cast iron QT450
2 Disk Stainless steel 316L
3 Saddle seal EPDM
+ wear-resistant material
(siliclone+graphite)
4 Stock steel 2Cr13





Sketch of dimensions of butterfly valves Elephant WBV1132N-2W-Fb DN40-300 PN16



General weight and dimensions of the Elephant WBV1132N-2W-Fb butterfly valves DN40-300 PN16

DN L H H1 D2 D1 n.d.
DN40 43 147 70 92 125 4- Ø23
DN50 43 147 70 92 125 4- Ø23
DN65 46 155 76 110 145 4- Ø23
DN80 46 164 92 121 160 8- Ø20
DN100 52 175 106 153 180 4- Ø23
DN125 56 194 119 176 210 4- Ø23
DN150 56 206 132 207 240 4- Ø25
DN200 60 237 162 259 295 4- Ø25
DN250 68 282 200 316 355 4-Ø28
DN300 78 311 225 370 410 4-Ø28






Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of the pneumatic distributor 4V320-08 220V 220V

Name Meaning
Type of pneumatic distributor spool valve
Body material aluminum alloy and technopolymer
Control two-way electromagnetic
Scheme of work 5/2
5 working lines; 2 positions
Effective cross-sectional area, mm2 model 4V320-8 – 25 (Cv = 1.4)
model 4V320-10 – 30 (Cv = 1.68)
Thread of working ports model 4V320-8 – G 1/4"
model 4V320-10 – G 3/8"
Exhaust port thread model 4V320-8 – G 1/4"
model 4V320-10 – G 1/4"
Working pressure, bar 1.5 ÷ 8
Maximum pressure, bar 12
Working environment purified air
(filtration fineness 40 microns)
Supply voltage, V 220
Full power, VA 4.5
Permissible changes in
supply voltage 		±10%
Degree of protection/insulation class IP65/F
Operating temperature, °C from -5 to +50
Maximum response frequency 5 cycles per second
Minimum switching time, s 0.05
Flow rate, l/min model 4V320-8 – 1,350
model 4V320-10 – 2,250
Average resource, cycles 20,000,000
Weight, kg 1,2





Sketch of dimensions of manual backups Elephant-HDM



General weight and dimensions of manual backup valves Elephant-HDM

Model D2, mm A, mm T, mm Y, mm H, mm S, mm Steering wheel diameter, mm Weight, kg
HDM-1 70 90 44 145 120 53 180 3
HDM-2 102 125 62.5 178 133 56.5 200 4.5
HDM-3 125 140 70 212 180 68.7 280 6.9
HDM-4 125 188.5 94 280 195 84 320 13.7





Sketch of the AFC2000



Main parameters of the air preparation unit AFC2000

Working pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0.5 ÷ 9
Destruction pressure, bar 15
Air connection 1/4"
Operating temperature, C from -5 to +60
Size of filtered particles, µm 40
Oil viscosity ISO VG 32
Weight, kg 0.395
Kit composition filter-moisture separator, pressure regulator, lubricator, bracket





Limit Switch Block Elephant APL-410N EX



Characteristics of the limit switch unit Elephant APL-410N EX


Parameter Meaning
Frame All-weather IP65/NEMA4&4X
explosion-proof Exd IIB T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a shaft rotation of 90°
Full rotation angle 90°
Cable entries 2 x NPT1/2”
Electrical connection screw clamp terminals 8 points (0.05 – 2.5) mm2
Cable entry thread 2 x NPT1/2”
Visual indicator type two-color hemisphere: OPEN - yellow CLOSED - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Rated current, A 10
Permissible
ambient temperature, °C 		from -25 to +80
Service life, years 10
